Kawasaki 50999-2399R11 Service-Ready Industrial Spare Part

Kawasaki 50999-2399R11 Service-Ready Industrial Spare Part: Spare Replacement and Downtime Risk Control

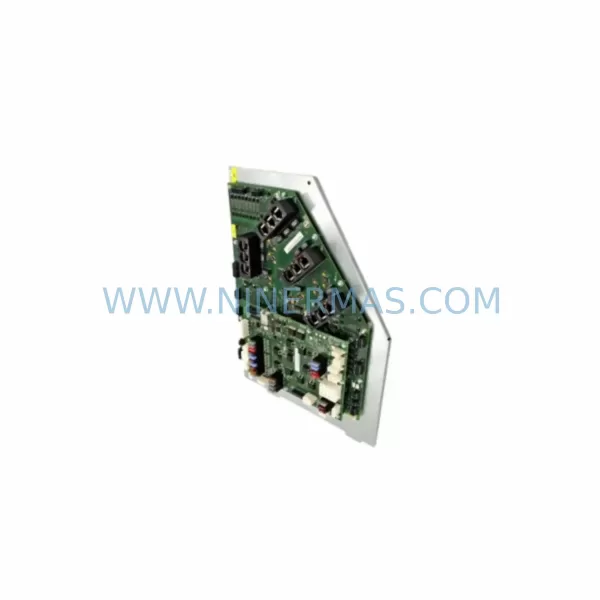

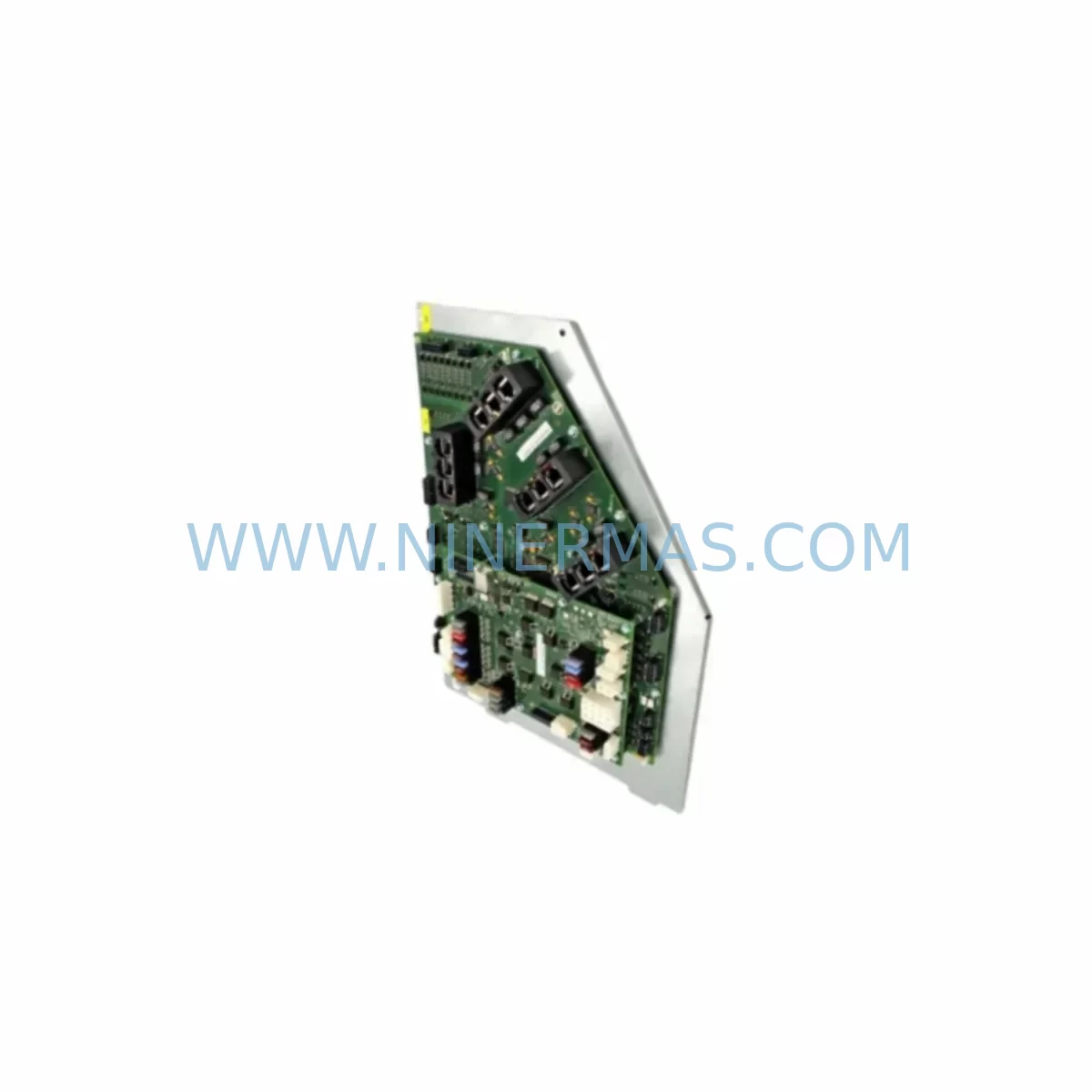

The Kawasaki 50999-2399R11 is a critical power supply module used in Kawasaki industrial robot controllers and automation systems. For maintenance engineers managing production lines, robotic welding cells, material handling systems, and assembly automation, this module represents a high-priority spare part that directly impacts system uptime. Unplanned failure of the power supply unit can halt an entire production cell within seconds, making proactive spare parts management essential for any facility operating Kawasaki robotic systems.

NINERMAS supplies the 50999-2399R11 as a service-ready spare, fully tested prior to shipment and backed by a 12-month warranty. Each unit undergoes pre-delivery inspection to verify output voltage stability, load regulation performance, and connector integrity. This ensures that when your maintenance team installs the replacement module, it performs to original specification without additional commissioning delays.

The 50999-2399R11 is also cross-referenced with related part numbers including 50998-1549, S82W-619, and 50630-1050, which may appear in older maintenance records, BOM documentation, or controller service manuals. Procurement engineers should confirm the applicable revision level against the controller generation before ordering to ensure full compatibility.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the Kawasaki 50999-2399R11 power supply module, a thorough maintenance inspection of the surrounding electrical system is strongly recommended. Power supply failures in robot controllers are rarely isolated events — they often occur alongside degraded capacitors, stressed wiring harnesses, or marginal protection components that have been operating under elevated thermal load.

Maintenance engineers should begin by inspecting the primary AC input wiring and verifying that the upstream circuit breaker and fuse assembly are within rated specification. The Kawasaki 50630-1050 CPU board, which receives regulated DC power from the supply module, should be checked for signs of voltage stress or corrupted firmware that may have resulted from the power event. Similarly, the 50607-0035 servo drive amplifier modules should be inspected for fault codes logged during the power interruption, as servo drives are sensitive to supply voltage transients.

The 50607-0147 I/O module and associated terminal blocks should be verified for correct signal levels after power restoration. Any I/O module that was active during the fault event may have latched error states that require manual reset. The 50607-0167 communication board, responsible for fieldbus or Ethernet connectivity between the robot controller and the PLC or DCS, should also be power-cycled and its link status confirmed before resuming production.

For facilities using the Kawasaki 50630-1006 backplane assembly, inspect the backplane connector seating and verify that all module slots are firmly engaged. Loose backplane connections can cause intermittent power faults that mimic power supply failures. The 1MD-4735 relay module, if present in the safety circuit, should be tested for correct coil resistance and contact continuity.

Battery-backed memory retention should be verified using the 1BR-3600A battery module. If the robot controller lost power unexpectedly, the battery may have discharged below the threshold required to retain program memory and system parameters. Replacing the battery as part of the corrective maintenance action prevents secondary data loss during the next power event.

Signal isolation components between the robot controller and external sensors or actuators should also be inspected. Industrial signal isolators in the 24VDC I/O circuit can degrade silently over time and may contribute to erratic behavior after a power supply replacement if not addressed. Procurement engineers building a comprehensive spare parts kit for Kawasaki robot systems should consider stocking the 50999-2399R10 (previous revision) alongside the R11 to cover mixed-revision controller fleets in the same facility.

Site Replacement Workflow

Replacing the Kawasaki 50999-2399R11 in the field follows a structured procedure to minimize downtime and ensure system compatibility. Before beginning, confirm that the replacement unit’s revision level matches the controller’s firmware and hardware generation. Consult the controller service manual or the Kawasaki maintenance documentation to verify the correct slot position and connector orientation.

Step 1 — Isolate and de-energize: Shut down the robot controller using the standard E-stop and power-off sequence. Lock out the main disconnect and verify zero voltage at the power supply input terminals using a calibrated multimeter.

Step 2 — Document and remove: Photograph the existing wiring and connector positions before disconnecting. Remove the faulty 50999-2399R11 module by releasing the retaining fasteners and carefully disconnecting all harness connectors. Label each connector if not already marked.

Step 3 — Install the replacement: Insert the new 50999-2399R11 into the correct slot, reconnect all harness connectors in the documented sequence, and secure the retaining fasteners. Verify that no connectors are partially seated.

Step 4 — Power-on and verify: Restore power and observe the controller startup sequence. Confirm that all status indicators on the power supply module, CPU board, and I/O modules show normal operating states. Check servo drive ready signals before enabling robot motion.

Step 5 — Functional test: Run a low-speed functional test cycle to confirm that all axes respond correctly and that no fault codes are present. Log the replacement in the maintenance record with the date, part number, and technician ID.

This structured approach reduces mean time to repair (MTTR) and ensures that the replacement is documented for future maintenance planning and warranty tracking.

Spare Parts Support FAQ

Q1: Is the Kawasaki 50999-2399R11 compatible with all Kawasaki robot controller generations?
The 50999-2399R11 is designed for specific Kawasaki controller generations. Compatibility should be verified against the controller model and firmware version before installation. NINERMAS technical support can assist with compatibility confirmation based on your controller serial number and service manual reference.

Q2: What does the 12-month warranty cover, and how is it validated?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Each unit is pre-shipment tested and documented. Warranty claims are supported by the shipment record and test report provided with the order. Units showing signs of physical damage, incorrect installation, or operation outside rated parameters are not covered.

Q3: Can NINERMAS support long-term supply commitments for this part number?
Yes. NINERMAS offers reserved inventory programs for critical spare parts including the 50999-2399R11. Procurement engineers managing multi-site Kawasaki robot fleets can request a long-term supply agreement to secure stock allocation, stabilize lead times, and reduce emergency procurement risk. Contact our sales team to discuss volume and delivery schedule requirements.

Q4: How should the 50999-2399R11 be stored as a spare part before installation?
Store the module in its original anti-static packaging in a dry, temperature-controlled environment away from direct sunlight and electromagnetic interference sources. Avoid stacking heavy items on top of the packaging. Inspect the module for physical damage before installation if it has been stored for more than 12 months. NINERMAS recommends a pre-installation functional check for units stored beyond 24 months.
