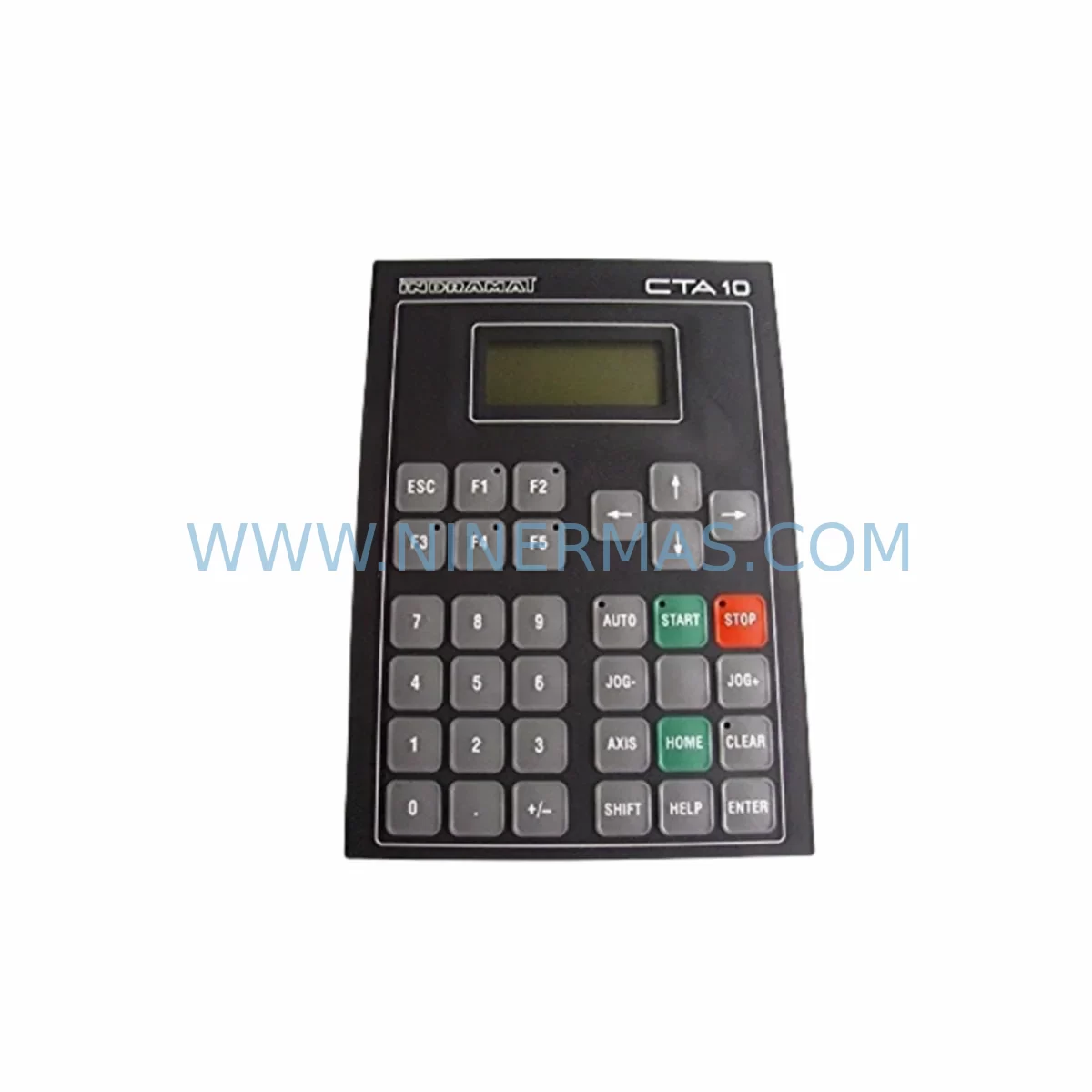

INDRAMAT CTA10.1B-000-FW Retrofit Visualization Unit

INDRAMAT CTA10.1B-000-FW Retrofit-Compatible Visualization Unit for Legacy System Modernization

The INDRAMAT CTA10.1B-000-FW is a visualization unit designed for legacy INDRAMAT drive and control systems, widely deployed in machine tool, press, and production line automation environments. As INDRAMAT’s product lines have been absorbed into the Bosch Rexroth portfolio and original CTA10.1B-000-FW units approach end-of-life, procurement engineers and maintenance teams face increasing pressure to source verified retrofit-compatible replacements that preserve existing control logic, HMI screen layouts, and communication links without triggering a full system overhaul.

NINERMAS supplies the CTA10.1B-000-FW from tested inventory, with each unit undergoing pre-shipment functional verification to confirm display output, interface connectivity, and communication integrity before dispatch. A 12-month warranty is included as standard on all spare parts supplied by NINERMAS COMPANY LIMITED.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the CTA10.1B-000-FW in an operational INDRAMAT-based control system requires a structured approach that accounts for the interdependencies between the visualization unit and the broader drive and control architecture. The CTA10.1B-000-FW typically operates alongside INDRAMAT TDM 1.2 or TDM 1.3 digital AC servo drive modules, which handle axis control and communicate status data to the operator panel. Before initiating a swap, maintenance engineers should document the existing wiring at the CTA connector block, noting signal assignments for the serial communication lines, 24 VDC supply, and any discrete I/O connections used for alarm acknowledgement or mode selection.

In control cabinets where the CTA10.1B-000-FW is mounted alongside INDRAMAT KDS 1.1 or KDS 1.3 compact drive modules, the available panel space and cable routing paths must be confirmed. The replacement unit should be test-fitted before the planned maintenance window to avoid surprises during the actual changeover. Where the cabinet also houses a INDRAMAT CLM 1.3 or CLM 1.4 controller logic module, the communication link between the CTA and the CLM must be verified post-installation using the INDRAMAT diagnostic software or a compatible programming cable such as the IDS01.1 interface adapter.

For systems that include INDRAMAT DDS or MDD servo motor feedback loops, the visualization unit’s ability to display encoder status and fault codes is critical for commissioning after replacement. Engineers should prepare a fault code reference list from the existing system before shutdown, as the CTA10.1B-000-FW displays drive-specific diagnostic codes that guide post-swap verification. Where the control system also incorporates INDRAMAT RAC 2.2 or RAC 3.1 AC drive controllers, the operator panel’s parameter display functions should be tested against each axis after the replacement unit is powered up.

In modernization projects where the goal is to extend the operational life of an INDRAMAT-based machine without migrating to a full Bosch Rexroth IndraDrive platform, sourcing a verified CTA10.1B-000-FW from tested inventory is the most cost-effective path. This approach avoids the engineering overhead of HMI reprogramming, PLC logic migration, and fieldbus reconfiguration that a full platform upgrade would require. NINERMAS maintains stock of CTA10.1B-000-FW units alongside related INDRAMAT visualization and operator interface components to support multi-axis machine retrofits and spare parts programs for production facilities with long equipment lifecycles.

Downtime Control During System Migration

Minimizing unplanned downtime during a CTA10.1B-000-FW replacement is achievable with disciplined pre-work. The most effective approach is to complete all mechanical pre-fitting, cable labeling, and connector verification during a scheduled inspection window before the actual replacement shift. This means the replacement unit arrives on-site pre-checked, with the firmware version confirmed and the connector pinout verified against the machine’s wiring documentation.

During the changeover, the existing CTA10.1B-000-FW should be removed with all connector labels photographed and the cable harness tagged before disconnection. The replacement unit is then connected in sequence — power last — and the system powered up with the drive enable signals inhibited to allow a safe initial display check before returning the machine to automatic mode. Where the control system uses an INDRAMAT BTV or BTA operator terminal in parallel with the CTA visualization unit, the BTV/BTA can be used to monitor drive status during the CTA swap, maintaining visibility of the control system without interrupting the drive power stage.

Post-installation, the commissioning checklist should include: display power-on self-test confirmation, communication link status with the connected drive modules, fault code display verification using a known test condition, and a full cycle run in manual mode before returning to automatic production. This structured approach consistently achieves CTA10.1B-000-FW replacements within a single planned maintenance shift, protecting the original program logic and keeping field control continuity intact throughout the process.

Retrofit Support FAQ

Q1: Is the CTA10.1B-000-FW a direct replacement for other CTA10 variants?
The CTA10.1B-000-FW is the firmware-loaded variant of the CTA10.1B series. It is dimensionally and electrically compatible with other CTA10.1B suffix variants in most INDRAMAT installations, but firmware version alignment should be confirmed before installation. NINERMAS can advise on cross-reference compatibility based on your existing system’s drive and controller model numbers.

Q2: What pre-shipment testing does NINERMAS perform on the CTA10.1B-000-FW?
Each CTA10.1B-000-FW unit supplied by NINERMAS undergoes functional verification covering display output, communication interface continuity, and power supply integrity before dispatch. Units are shipped with a test report and are covered by a 12-month warranty from the date of delivery.

Q3: Can the CTA10.1B-000-FW be used in a system that has been partially upgraded to Bosch Rexroth IndraDrive components?
In mixed-generation control cabinets where legacy INDRAMAT drives coexist with newer Bosch Rexroth IndraDrive modules, the CTA10.1B-000-FW continues to serve the legacy drive axes without modification. The visualization unit communicates only with the INDRAMAT drive and controller modules it was originally paired with; IndraDrive axes are managed through their own operator interface. This makes the CTA10.1B-000-FW a practical choice for phased migration strategies where not all axes are upgraded simultaneously.

Q4: What is the typical lead time and stock availability for the CTA10.1B-000-FW?
NINERMAS maintains inventory of the CTA10.1B-000-FW to support urgent spare parts requirements and planned retrofit programs. Standard lead time for in-stock units is 3–7 business days for international shipment. For customers requiring long-term supply commitments or multi-unit procurement for spare parts programs, NINERMAS offers stock reservation arrangements. Contact sale@ninermas.com or call +0086 187 5021 5667 to confirm current availability.
