INDRAMAT BTV06.1HN-RS-FW Service-Ready Spare Part

INDRAMAT BTV06.1HN-RS-FW Service-Ready Spare Part for Industrial Maintenance

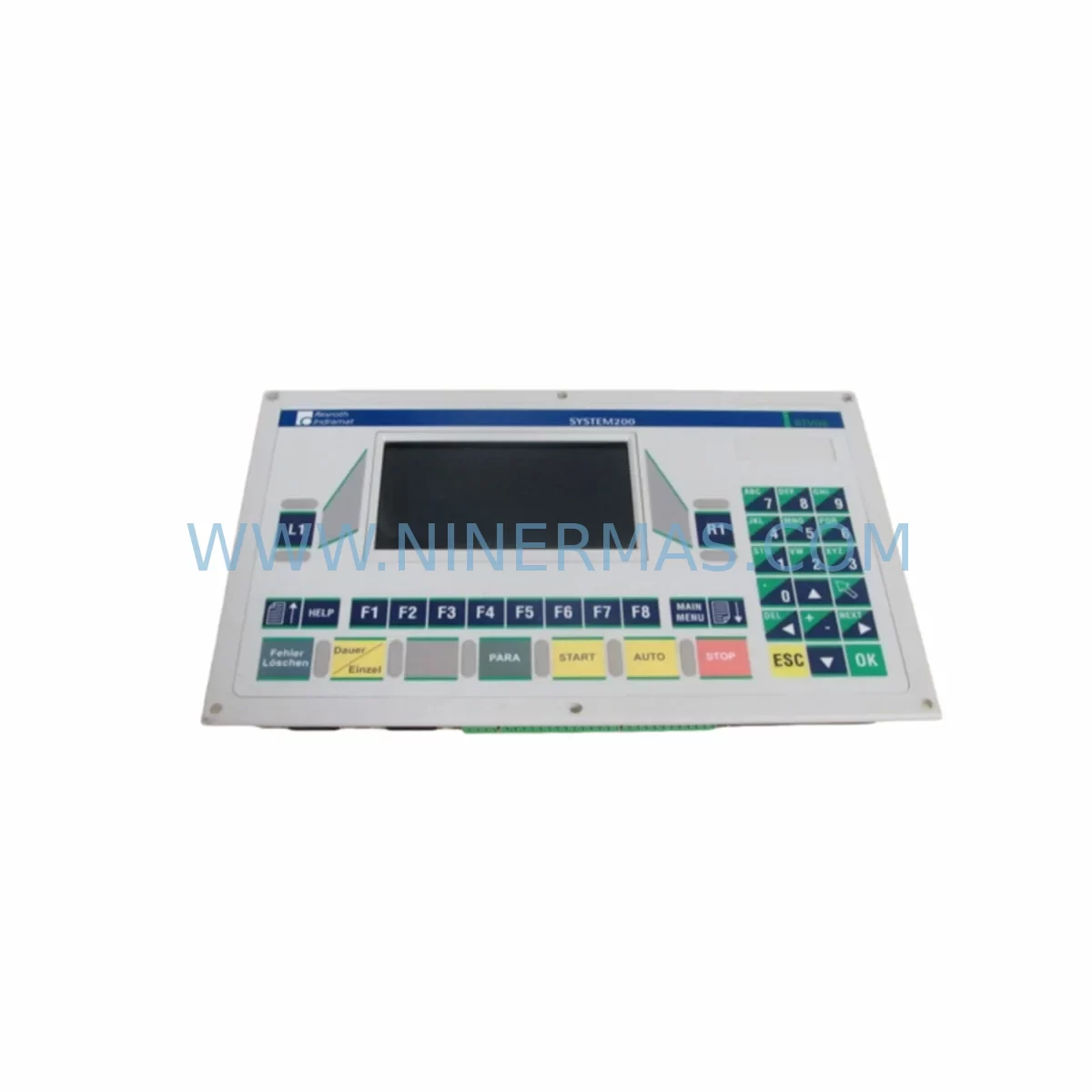

The INDRAMAT BTV06.1HN-RS-FW is a service-ready operator panel unit from the INDRAMAT BTV06 series, designed to support rapid field replacement in industrial automation environments. As legacy INDRAMAT systems continue to operate across manufacturing plants, press lines, injection moulding machines, and CNC machining centres worldwide, maintaining a reliable inventory of BTV06.1HN-RS-FW spare parts is a critical element of any proactive maintenance strategy.

This unit serves as the primary human-machine interface (HMI) component within INDRAMAT drive and control architectures. When the BTV06.1HN-RS-FW fails or degrades — whether due to display wear, keypad unresponsiveness, backlight failure, or communication faults — the entire production line can be brought to a halt. Sourcing a verified, tested replacement unit in advance eliminates unplanned downtime and protects production continuity.

NINERMAS supplies the BTV06.1HN-RS-FW as an original spare part, fully inspected and function-tested prior to shipment. Each unit is backed by a 12-month warranty, giving maintenance engineers and procurement teams confidence in long-term reliability and supply chain stability.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When scheduling replacement of the BTV06.1HN-RS-FW, experienced maintenance engineers treat the operator panel as one node in a broader control cabinet ecosystem. A structured inspection of surrounding components during the same maintenance window significantly reduces the risk of secondary failures and repeat downtime events.

Begin with the 24 VDC control power supply feeding the BTV06 panel — units such as the INDRAMAT TVD or external 24V SITOP-class power supplies should be load-tested and output voltage verified before the new panel is commissioned. A marginal power supply that was masking symptoms through the old panel will quickly damage a replacement unit.

Inspect the RS-232 serial cable connecting the BTV06.1HN-RS-FW to the host controller. Cable shielding integrity, connector pin condition, and cable routing away from high-voltage conductors are all critical. A degraded cable is a common root cause of intermittent HMI communication faults that are misdiagnosed as panel failures.

Check the INDRAMAT drive controller — whether a TDM 1.2, KDS 1.1, DDS 2.1, or RAC series unit — for active fault codes and parameter integrity. The BTV06.1HN-RS-FW communicates directly with the drive; any unresolved drive faults will immediately surface on the new panel and may be mistaken for a panel defect.

Review the CLM or CLC motion logic controller if present in the system. These controllers manage sequencing and interlocking logic that the BTV06 panel displays and interacts with. Firmware version compatibility between the panel and the logic controller should be confirmed before finalising the replacement.

Inspect terminal blocks and I/O wiring within the control cabinet. Loose or corroded terminals on the 24V supply rail, E-stop circuit, and enable signal lines are frequently disturbed during panel replacement and can cause commissioning delays. A torque check on all terminal connections in the vicinity is best practice.

If the system includes INDRAMAT DKC or HDS servo drive modules on the same backplane or bus, verify that the drive enable and ready signals are intact. These signals are often monitored and displayed via the BTV06 panel, and their status directly affects restart after maintenance.

For systems with signal isolators or relay output modules interfacing the INDRAMAT controller to field devices, confirm isolation resistance and relay contact condition. Degraded relay contacts can cause erratic behaviour that appears as HMI or communication faults.

Finally, review the fuse and circuit breaker protection for the 24V control circuit. A blown or weakened fuse protecting the HMI supply is a common finding during panel replacement and should be replaced as a matter of course. Maintaining a stock of compatible fuse elements alongside the BTV06.1HN-RS-FW spare ensures a complete and efficient maintenance response.

Site Replacement Workflow

Step 1 — Isolation & Safety: De-energise the control cabinet following site LOTO procedures. Confirm 24V control power is absent at the BTV06 panel connector before disconnecting.

Step 2 — Documentation: Photograph the existing panel installation, cable routing, and connector orientation. Note any parameter or configuration data displayed on the old panel before power-down if accessible.

Step 3 — Removal: Disconnect the RS-232 cable and 24V supply connector. Release the panel retaining clips or screws from the front of the cabinet door. Remove the BTV06.1HN-RS-FW unit.

Step 4 — Inspection: Inspect the cabinet cutout, connector receptacles, and cable harness for damage, corrosion, or contamination. Clean as required before fitting the replacement.

Step 5 — Installation: Fit the replacement BTV06.1HN-RS-FW into the cutout. Reconnect the RS-232 cable and 24V supply. Verify connector seating and locking.

Step 6 — Commissioning: Re-energise the control cabinet. Confirm the panel powers up, displays the correct system status, and communicates with the host drive controller. Verify all operator functions — parameter navigation, fault acknowledgement, and drive enable — are operational.

Step 7 — Documentation & Handover: Record the replacement in the maintenance log. Update the spare parts inventory. Initiate procurement of a replacement BTV06.1HN-RS-FW to restore buffer stock.

This workflow is applicable to direct like-for-like replacement of the BTV06.1HN-RS-FW and supports system compatibility without requiring drive re-parameterisation in standard replacement scenarios.

Spare Parts Support FAQ

Q1: Is the BTV06.1HN-RS-FW still available as a new original spare part?
INDRAMAT (now part of Bosch Rexroth) has discontinued active production of many BTV06 series components. NINERMAS sources and supplies verified original BTV06.1HN-RS-FW units from authorised industrial spare parts channels. Each unit is inspected and function-tested before shipment. Long-term supply availability is supported through our global sourcing network, and we recommend customers secure buffer stock to mitigate future availability risk.

Q2: How is the BTV06.1HN-RS-FW tested before shipment?
Every BTV06.1HN-RS-FW unit supplied by NINERMAS undergoes a pre-shipment functional inspection covering power-up verification, display integrity, keypad response, and RS-232 communication port continuity. Units that do not pass inspection are not shipped. A 12-month warranty is provided on all units from the date of delivery.

Q3: Can the BTV06.1HN-RS-FW replace other BTV06 variants in the field?
Compatibility within the BTV06 series depends on the specific firmware version and communication interface of the host controller. The BTV06.1HN-RS-FW is designed for RS-232 serial communication and FW firmware. Before substituting an alternative BTV06 variant, confirm the interface type and firmware compatibility with your INDRAMAT drive controller documentation. NINERMAS technical support can assist with compatibility verification prior to order.

Q4: What is the recommended spare parts inventory strategy for BTV06.1HN-RS-FW?
For facilities operating multiple INDRAMAT BTV06-based systems, we recommend maintaining a minimum of one BTV06.1HN-RS-FW unit in on-site buffer stock per production line or machine group. Given the discontinued status of this component, procurement lead times from standard channels can be extended. Establishing a long-term supply agreement with NINERMAS ensures priority access to verified stock and reduces the risk of extended downtime due to parts unavailability.
