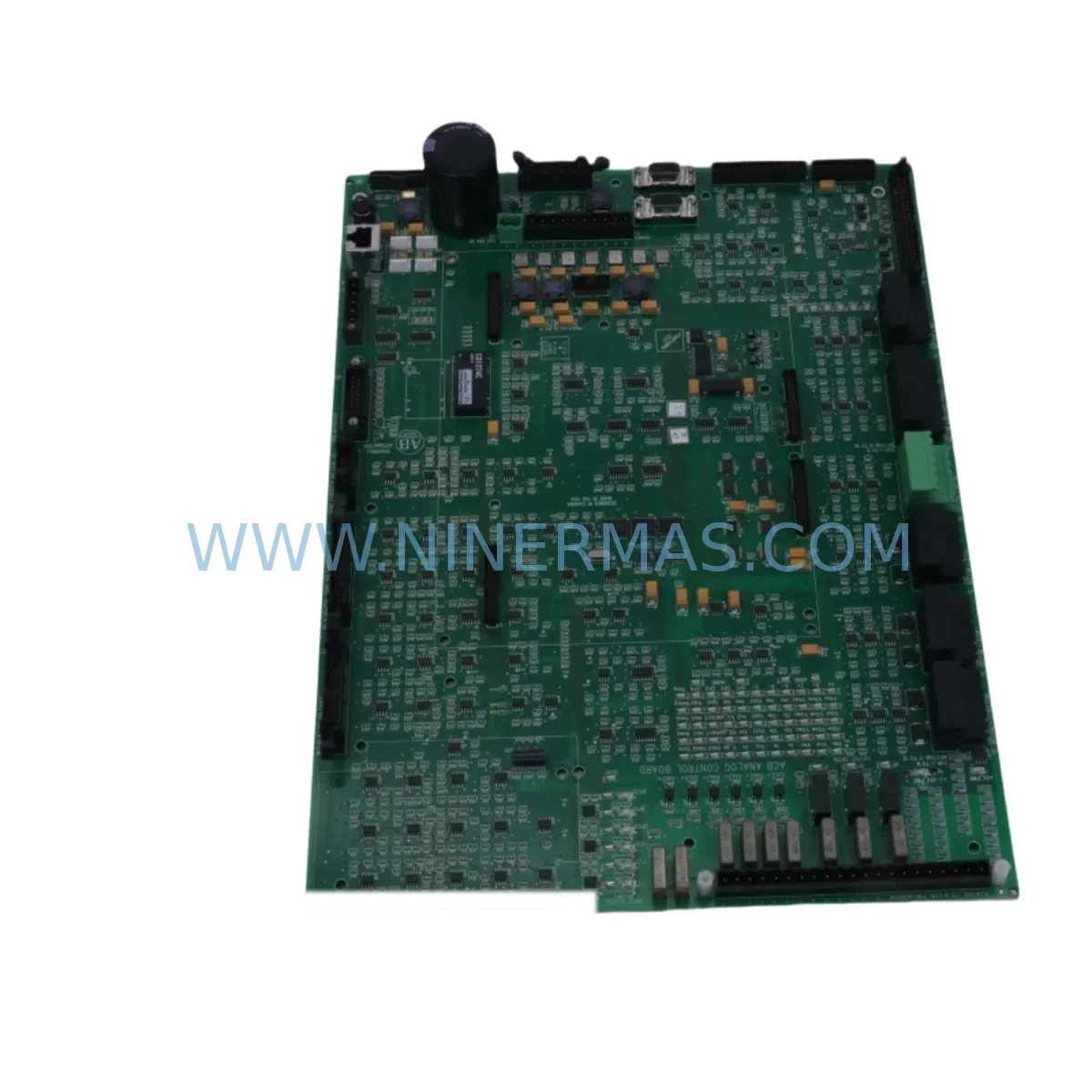

ICH 80190-560-01-R Retrofit-Compatible PC Board for Legacy Systems

ICH 80190-560-01-R Retrofit-Compatible PC Board for Legacy Systems

When aging industrial control infrastructure reaches end-of-life, the ICH 80190-560-01-R Ruggedized PC Board Module provides a proven, retrofit-compatible solution for maintenance engineers and procurement teams managing legacy system continuity. Designed to withstand harsh industrial environments, this board module addresses the critical challenge of replacing discontinued components without triggering full system overhauls — keeping production lines operational while minimizing capital expenditure and unplanned downtime.

The 80190-560-01-R is engineered for direct integration into existing control cabinet architectures. Its ruggedized construction — featuring conformal coating, vibration-resistant mounting, and extended temperature tolerance — makes it suitable for demanding plant floor conditions including high-humidity foundries, chemical processing environments, and heavy-duty manufacturing cells where standard commercial-grade boards routinely fail prematurely.

For procurement engineers managing multi-site spare parts inventories, the 80190-560-01-R represents a reliable long-term sourcing option. NINERMAS maintains verified stock with pre-shipment functional testing, 12-month warranty coverage, and documented compatibility records to support your internal procurement and maintenance planning processes.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the ICH 80190-560-01-R in a live control cabinet requires a structured approach that accounts for the full electrical and communication ecosystem surrounding the board. Maintenance engineers should begin by auditing the backplane slot assignment and confirming that the replacement board’s bus interface aligns with the existing rack’s edge connector pinout — particularly in older ICH 80190-series racks where slot-specific addressing was common.

Power supply integrity is the first checkpoint. The 80190-560-01-R draws regulated DC power from the cabinet’s internal power distribution rail; before installation, verify that the existing ICH-compatible DC power supply module is delivering stable voltage within tolerance. A degraded or undersized power supply is a frequent root cause of premature board failure in retrofit scenarios and should be replaced or load-tested concurrently. In systems where the power supply module is shared across multiple boards — such as in multi-slot ICH 80190-series racks — confirm that total load capacity is not exceeded after adding the replacement board.

I/O wiring continuity must be confirmed at the terminal block level. In legacy systems, field wiring connected to the original board’s I/O connectors may use non-standard wire gauges or aging insulation — this is the ideal time to inspect and re-terminate connections using DIN-rail-mounted terminal blocks to improve long-term reliability. Signal isolation should also be evaluated: if the original system lacked signal isolators between field devices and the board’s analog inputs, adding DIN-rail signal isolators during the retrofit significantly reduces noise-induced faults and protects the new board from transient damage.

Communication link verification is equally critical. If the 80190-560-01-R interfaces with a supervisory PLC or DCS controller via a serial communication module or fieldbus adapter, confirm that the replacement board’s firmware revision is compatible with the host controller’s polling protocol. In systems where the board communicates upstream to an HMI panel, the HMI’s tag database and screen logic should be validated post-swap to ensure data mapping integrity is preserved. Where the original system used a dedicated programming cable for configuration access, verify that the cable’s communication parameters — baud rate, parity, stop bits — match the replacement board’s default settings before attempting firmware upload or parameter restore.

For control cabinets that also house relay output modules, fuse blocks, and surge protection devices, the retrofit window is an opportunity to inspect these components for wear. Relay contacts in high-cycle applications degrade over time and may cause intermittent faults that are incorrectly attributed to the new board. Similarly, fuse holders and circuit breakers protecting the board’s power input should be tested for continuity and proper trip ratings. If the cabinet includes an I/O expansion module connected to the 80190-560-01-R via a local bus or ribbon cable, inspect the connector for pin damage or oxidation before re-energizing the system.

In systems where the 80190-560-01-R is part of a larger control platform — such as a multi-rack automation cell with distributed I/O nodes — confirm that the module address settings on the replacement board match the original configuration. Address conflicts in multi-drop communication networks are a common source of post-retrofit communication faults and can be difficult to diagnose without access to the original system documentation.

Downtime Control During System Migration

Minimizing production downtime during a board-level retrofit requires pre-staging all replacement components before the maintenance window begins. For the ICH 80190-560-01-R, this means having the replacement board, any required terminal adapters, updated wiring diagrams, and a backup copy of the original program logic or configuration parameters ready before the system is powered down.

Where possible, perform a cold-swap procedure: power down the affected control section only, using the cabinet’s zone isolation switches or circuit breakers, rather than shutting down the entire production line. This approach preserves upstream and downstream process continuity and limits the scope of post-restart verification. In systems with redundant control paths, the switchover to the backup control path should be confirmed before the primary board is removed.

After installing the 80190-560-01-R, a structured power-on sequence is recommended: restore power to the board first, confirm status indicator behavior, then re-enable field I/O connections progressively. This staged approach allows engineers to isolate any wiring or addressing issues before full process load is applied. If the system includes an HMI panel displaying real-time process data, verify that all screen tags are updating correctly before releasing the system to production operators.

Document all configuration changes made during the retrofit for future maintenance reference — this is especially important in legacy systems where original documentation may be incomplete or unavailable. A post-retrofit commissioning report, including I/O test results, communication link status, and any parameter changes made during installation, provides a valuable baseline for future troubleshooting and supports internal maintenance audit requirements.

For sites managing multiple aging control cabinets with similar 80190-series boards, a proactive spare parts strategy — maintaining at least one 80190-560-01-R in local inventory — eliminates emergency procurement lead times and supports rapid response to unplanned failures. NINERMAS supports long-term supply agreements and can provide consistent stock availability for ongoing maintenance programs.

Retrofit Support FAQ

Q: Is the ICH 80190-560-01-R a direct drop-in replacement for the original 80190-560-01?
A: The -R suffix denotes the ruggedized variant with enhanced environmental protection. In most applications it is functionally compatible with the standard 80190-560-01, but engineers should verify backplane connector pinout and firmware revision compatibility before installation, particularly in systems with strict revision-control requirements.

Q: What commissioning steps are required after installing the replacement board?
A: At minimum, verify I/O address mapping, confirm communication link status with the host controller or HMI, and perform a functional I/O test across all connected field devices. In systems with configurable board parameters, restore the original configuration from backup before enabling process control. If the system includes a serial communication module or fieldbus adapter, confirm that the communication link is active and error-free before returning the system to automatic operation.

Q: How does NINERMAS verify the board before shipment?
A: Each 80190-560-01-R unit undergoes functional testing prior to dispatch. Units are inspected for physical integrity, powered-on for operational verification, and packaged with anti-static protection. A 12-month warranty covers manufacturing defects and functional failure from the date of receipt.

Q: Can NINERMAS support long-term supply for ongoing maintenance programs?
A: Yes. NINERMAS maintains stock of the ICH 80190-560-01-R and can support scheduled procurement for multi-site maintenance programs. Contact our team to discuss inventory reservation, lead time commitments, and volume pricing for annual maintenance contracts.
