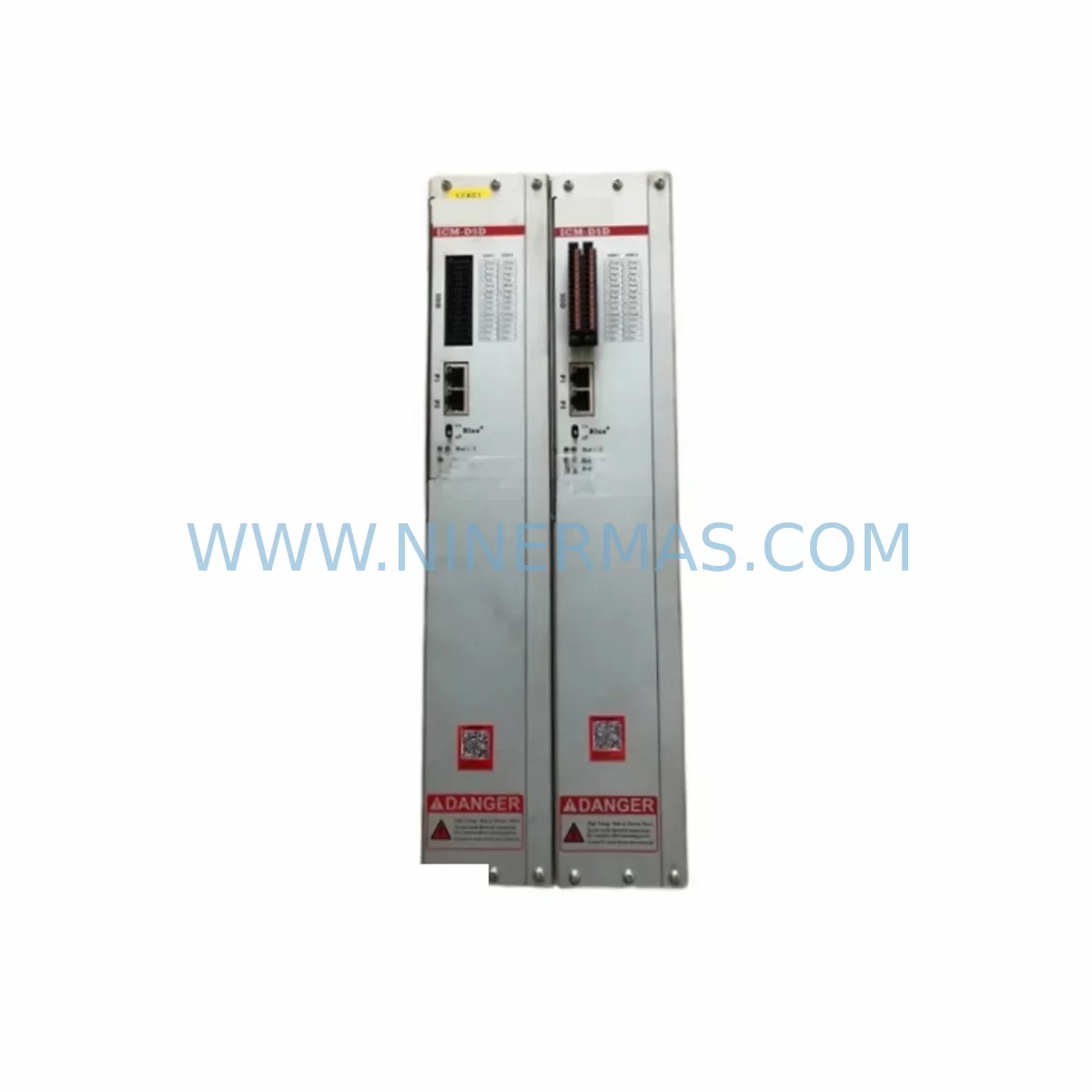

I-CON ICM-D5D08 Retrofit-Compatible Servo Drive for Legacy Systems

I-CON ICM-D5D08 Retrofit-Compatible Servo Drive for Legacy Systems

The I-CON ICM-D5D08 is a retrofit-ready servo drive engineered for seamless integration into existing ICM-series automation platforms and legacy control architectures. As original ICM-D5D08 units reach end-of-life or become increasingly difficult to source through standard distribution channels, this replacement module provides a verified drop-in upgrade path that preserves existing wiring layouts, terminal assignments, and motion control logic without requiring a full system redesign. For maintenance engineers managing aging production lines, the ICM-D5D08 offers a cost-effective alternative to full drive replacement programs, reducing both capital expenditure and unplanned downtime risk.

The ICM-D5D08 operates within the I-CON ICM series drive family, sharing the same form factor and connector pinout as predecessor units. Before installation, engineers should confirm the supply voltage range (typically single-phase or three-phase AC input depending on the variant), verify the DC bus capacitor condition of the existing drive cabinet, and cross-reference the terminal block layout against the original wiring diagram. The ICM-D5D08 supports standard encoder feedback interfaces, making it compatible with existing servo motor feedback cables without re-termination in most retrofit scenarios. Where the original system used an ICM-series communication module for fieldbus connectivity — such as PROFIBUS-DP, DeviceNet, or CANopen — the replacement drive must be confirmed to support the same communication option card slot before commissioning.

In multi-axis systems, the ICM-D5D08 is commonly installed alongside other ICM-series drives sharing a common DC bus. Engineers should verify that the regenerative braking resistor rating and the shared bus capacitance remain within specification after the replacement unit is installed. If the original cabinet included an ICM-series power supply module or a dedicated line filter, these components should be inspected and retained to maintain EMC compliance and protect the new drive from line transients.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful ICM-D5D08 retrofit begins with a thorough audit of the existing control cabinet. Engineers should document the current parameter set from the original drive using the ICM-series programming keypad or the I-CON PC configuration software before powering down the system. This parameter backup is critical — it captures tuning values, speed limits, torque limits, and I/O assignments that would otherwise need to be re-established from scratch after the swap.

In systems where the ICM-D5D08 interfaces with a PLC — such as an ICM-series programmable controller or a third-party controller communicating over a serial or fieldbus link — the program logic should be reviewed to confirm that drive fault codes, ready signals, and speed reference scaling remain consistent between the original and replacement unit. If the system uses an ICM-series I/O expansion module to extend digital or analog I/O to the drive, the wiring to those terminal blocks should be mapped and labeled before disconnection.

For cabinets that include an ICM-series HMI panel or operator terminal, the drive parameter display pages may reference specific register addresses. Engineers should verify that the replacement ICM-D5D08 uses the same register map as the original unit, or update the HMI screen configuration accordingly. In systems with an ICM-series communication gateway or protocol converter bridging legacy serial protocols to modern Ethernet-based networks, the gateway configuration should be preserved and tested after the drive replacement is complete.

Where the original installation included an ICM-series signal isolator or analog input conditioner between the controller and the drive speed reference input, these components should be retained and their output scaling verified against the new drive’s analog input specification. Similarly, any ICM-series safety relay or STO (Safe Torque Off) wiring must be reconnected and functionally tested before returning the machine to production. The ICM-D5D08 supports STO input in configurations where functional safety is required, and this wiring must be verified against the original safety circuit diagram.

Before final commissioning, confirm that the installation space within the cabinet provides adequate clearance for airflow around the replacement drive. The ICM-D5D08 requires the same minimum clearances as the original unit, but if the cabinet has been modified or additional components have been added since the original installation, airflow paths should be re-evaluated. Each unit shipped by NINERMAS undergoes pre-shipment functional testing to verify drive output, encoder feedback response, and communication link integrity before dispatch.

Downtime Control During System Migration

Minimizing production downtime during an ICM-D5D08 replacement requires advance preparation and a structured swap procedure. The recommended approach is to pre-configure the replacement drive off-line using the backed-up parameter file before the maintenance window begins. This allows the on-site technician to focus on mechanical installation, wiring reconnection, and functional verification rather than parameter entry during the outage period.

Where the production schedule permits only a short maintenance window, a staged approach can be used: install the replacement ICM-D5D08 in a parallel test position within the cabinet, verify communication link establishment and I/O response, then transfer the motor and feedback connections during the final cutover. This approach is particularly effective in multi-axis systems where adjacent ICM-series drives remain in service during the swap, as it avoids disrupting the shared DC bus or the common communication network.

Original program logic stored in the PLC or motion controller is not affected by the drive replacement, provided the drive interface — including fault codes, ready signals, and speed reference format — remains consistent. Engineers should confirm this compatibility during the pre-commissioning phase and document any parameter adjustments made to the replacement drive so that future maintenance records accurately reflect the current system configuration. After installation, a controlled test run at reduced speed and load is recommended before returning the axis to full production duty, allowing the servo tuning to be verified and adjusted if necessary without risk to the workpiece or tooling.

Retrofit Support FAQ

Q: Is the ICM-D5D08 a direct drop-in replacement for the original I-CON ICM-D5D08?
A: In most installations, yes. The replacement unit shares the same form factor, terminal layout, and encoder interface as the original. However, engineers should verify the firmware version and communication option card compatibility before installation, particularly in systems using fieldbus communication modules.

Q: Can I reuse the existing wiring and motor feedback cable?
A: In the majority of retrofit cases, existing motor power cables and encoder feedback cables can be reused without modification. Terminal assignments should be verified against the replacement unit’s wiring diagram before reconnection to confirm pin-for-pin compatibility.

Q: What pre-shipment testing is performed on each unit?
A: Every ICM-D5D08 unit dispatched by NINERMAS undergoes pre-shipment functional testing covering drive output verification, encoder feedback signal integrity, and communication link response. Units are shipped with a test record and are covered by a 12-month warranty from the date of shipment.

Q: What is the lead time and stock availability?
A: NINERMAS maintains stock of ICM-D5D08 units to support urgent retrofit and breakdown replacement requirements. Contact our team for current availability and lead time confirmation. Standard orders are processed within 1–2 business days, with express dispatch available for critical breakdown situations.
