Hydac EDS1791-N-016-000 Retrofit-Compatible Pressure Switch

Hydac EDS1791-N-016-000 Retrofit-Compatible Pressure Switch for Legacy System Modernization

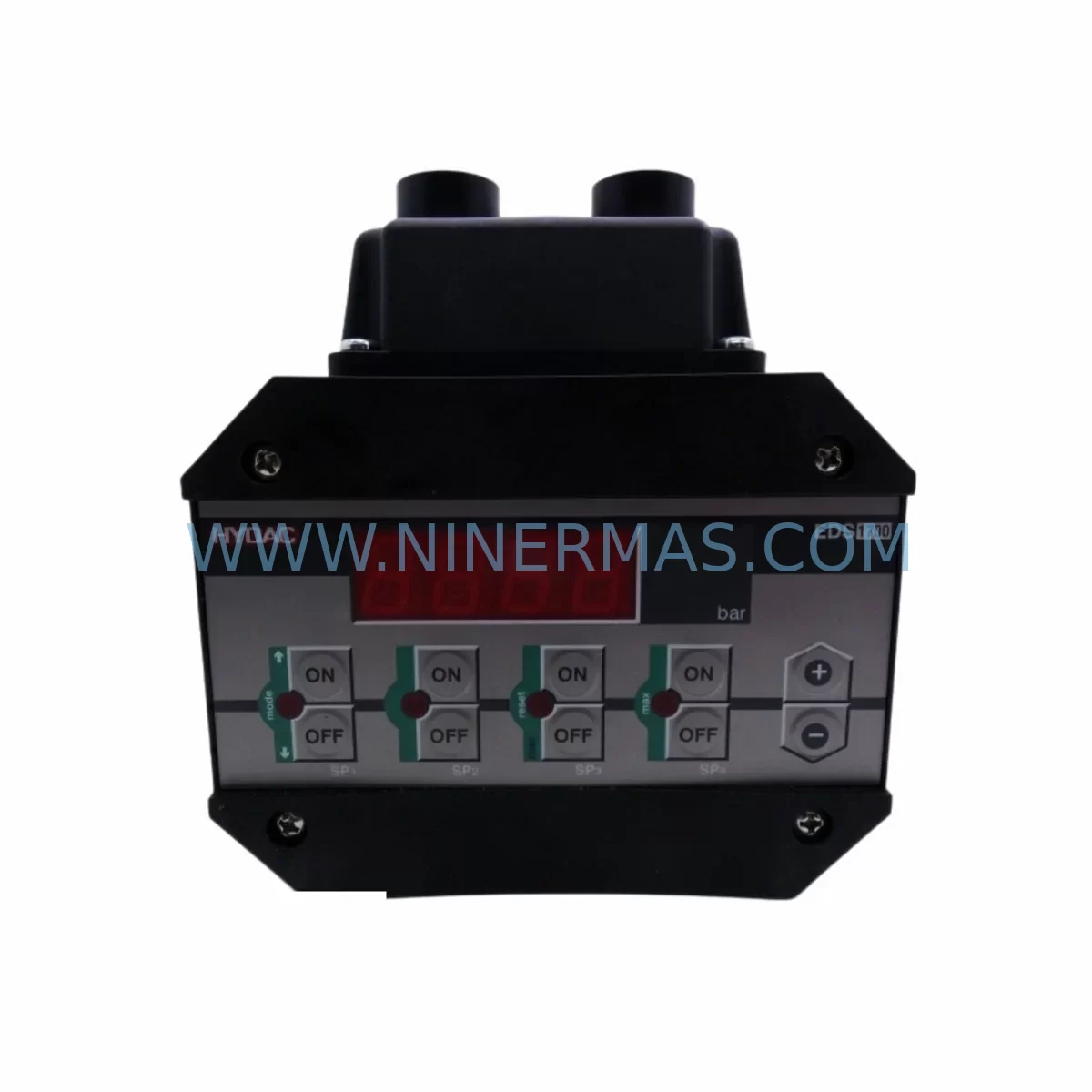

The Hydac EDS1791-N-016-000 is a precision electronic pressure switch from the EDS 1791 series, engineered for demanding industrial control environments. As legacy hydraulic and pneumatic control systems reach end-of-life, this unit serves as a direct retrofit-compatible replacement for discontinued pressure monitoring modules across a wide range of OEM machine platforms. Whether you are upgrading a legacy control cabinet, restoring a decommissioned production line, or extending the service life of an aging automation system, the EDS1791-N-016-000 delivers reliable, drop-in compatibility with minimal re-engineering effort.

Sourced directly from authorized supply channels and subject to full pre-shipment functional testing, each unit is backed by a 12-month warranty covering manufacturing defects and performance deviations. NINERMAS maintains ready inventory of the EDS 1791 series to support urgent MRO procurement, unplanned downtime recovery, and scheduled overhaul programs.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the EDS1791-N-016-000 into an existing control architecture requires a structured pre-installation review. Begin by auditing the control cabinet power distribution: confirm that the 24 V DC supply rail — typically sourced from a Hydac EDS 3000 series or a third-party SITOP power supply module — can sustain the additional current draw without tripping the branch circuit breaker or triggering an overload relay.

Next, inspect the terminal wiring at the PLC I/O module. If the existing system uses a Siemens S7-300 or S7-400 digital input card, verify that the input channel is configured for the correct signal polarity to match the PNP output of the EDS1791-N-016-000. For systems migrating from older relay-logic panels to modern PLC-based control, a signal isolator or signal conditioner may be required to bridge the voltage level difference between the legacy field device wiring and the new I/O backplane.

The process connection at the hydraulic manifold must be inspected for thread condition and sealing surface integrity. If the legacy pressure switch used a different thread standard — for example, NPT on North American OEM equipment versus the G¼ EN 837 fitting on the EDS1791-N-016-000 — a stainless steel adapter fitting should be sourced and pressure-tested before installation. Confirm that the manifold block port is rated for the operating pressure range of the new device.

For systems that include a Hydac HMG 3010 handheld measuring instrument or a panel-mounted Hydac HDA 4000 series pressure transmitter operating in parallel on the same hydraulic circuit, ensure that the addition of the EDS1791-N-016-000 does not create a pressure tap conflict or introduce measurement interference. Where the control system relies on a Profibus DP or Profinet communication backbone, verify that the IO-Link master gateway — if used to digitize the pressure switch signal — is correctly addressed and that the GSDML device description file is loaded into the engineering tool (TIA Portal or Step 7).

Backplane slot addressing is a critical step when the pressure switch feeds a signal into a distributed I/O rack such as a Siemens ET 200S or ET 200SP remote I/O station. Confirm the module slot assignment in the hardware configuration matches the physical installation position, and update the PLC program symbol table accordingly. If the legacy system used a Moeller (Eaton) XC200 or Allen-Bradley MicroLogix 1400 controller, the I/O address mapping will need to be reviewed and updated in the respective programming environment before the new device is brought online.

Finally, document the M12 cable routing from the pressure switch to the nearest junction box or marshalling panel. Ensure the cable is rated for the ambient temperature and chemical exposure conditions of the installation environment, and that the connector is correctly torqued to prevent ingress of hydraulic fluid or cleaning agents during production operation.

Downtime Control During System Migration

Minimizing unplanned downtime during a pressure switch retrofit requires careful pre-staging and a disciplined changeover sequence. Before initiating any field work, create a full backup of the PLC program — including all data blocks, function blocks, and HMI screen configurations — using the appropriate programming software. For Siemens TIA Portal projects, archive the complete project file including device configurations and network topology. For legacy Step 7 projects, export the symbol table and all organization blocks to a secure offline location.

Coordinate the physical swap during a scheduled maintenance window or planned production break. Isolate the hydraulic circuit at the nearest isolation valve upstream of the pressure tap, depressurize the line to zero bar, and confirm zero-energy state with a calibrated pressure gauge before breaking the process connection. Remove the legacy pressure switch, clean the thread port, apply fresh PTFE tape or liquid thread sealant as appropriate, and install the EDS1791-N-016-000 to the manufacturer’s specified torque value.

Reconnect the M12 electrical connector, restore hydraulic pressure gradually, and monitor the switching output at the PLC input channel using the online diagnostic view in the programming environment. Verify that the switching point corresponds to the setpoint recorded from the legacy device. If the original setpoint documentation is unavailable, use the teach function on the EDS1791-N-016-000 to set the switching threshold based on the observed process pressure during normal operating conditions.

Confirm that all HMI alarm pages and trend displays associated with the pressure monitoring point are functioning correctly before releasing the system to production. Log the completed retrofit in the plant maintenance management system, record the new device serial number, and update the spare parts inventory to reflect the change in installed base. With proper pre-staging, the physical changeover for a single pressure switch can typically be completed within a 30-to-60-minute maintenance window, keeping production impact to a minimum.

Retrofit Support FAQ

Q1: Is the EDS1791-N-016-000 a direct replacement for my existing EDS 1791 series pressure switch?
A: The EDS1791-N-016-000 is designed as a retrofit-compatible replacement within the Hydac EDS 1791 series. Before ordering, cross-reference your existing part number against the EDS 1791 series datasheet to confirm that the pressure range (0–16 bar), output type, and process connection match your application requirements. If your legacy unit carries a different suffix indicating a non-standard output or connection variant, contact our technical team for confirmation.

Q2: What pre-shipment testing is performed on each unit?
A: Every EDS1791-N-016-000 unit supplied by NINERMAS undergoes functional verification prior to dispatch, including switching output confirmation at rated voltage and pressure simulation where applicable. Units are shipped in original or equivalent protective packaging to prevent transit damage. A 12-month warranty is included from the date of shipment.

Q3: Can this pressure switch be used with an IO-Link master for digital integration?
A: The EDS 1791 series includes IO-Link capable variants. Confirm that your specific unit suffix indicates IO-Link support before connecting to an IO-Link master port. For standard discrete switching applications, the unit operates as a conventional PNP/NPN output device without requiring IO-Link configuration.

Q4: What is your typical lead time and do you maintain stock?
A: NINERMAS maintains ready inventory of the EDS 1791 series to support urgent MRO and retrofit procurement. Standard orders are processed and dispatched within 1–3 business days. For large-quantity or project-based requirements, contact our sales team to confirm availability and arrange a dedicated stock reservation.
