Honeywell TC-CCR011 Retrofit-Compatible Controller for Legacy Systems

Honeywell TC-CCR011 Retrofit-Compatible Controller for Legacy Systems

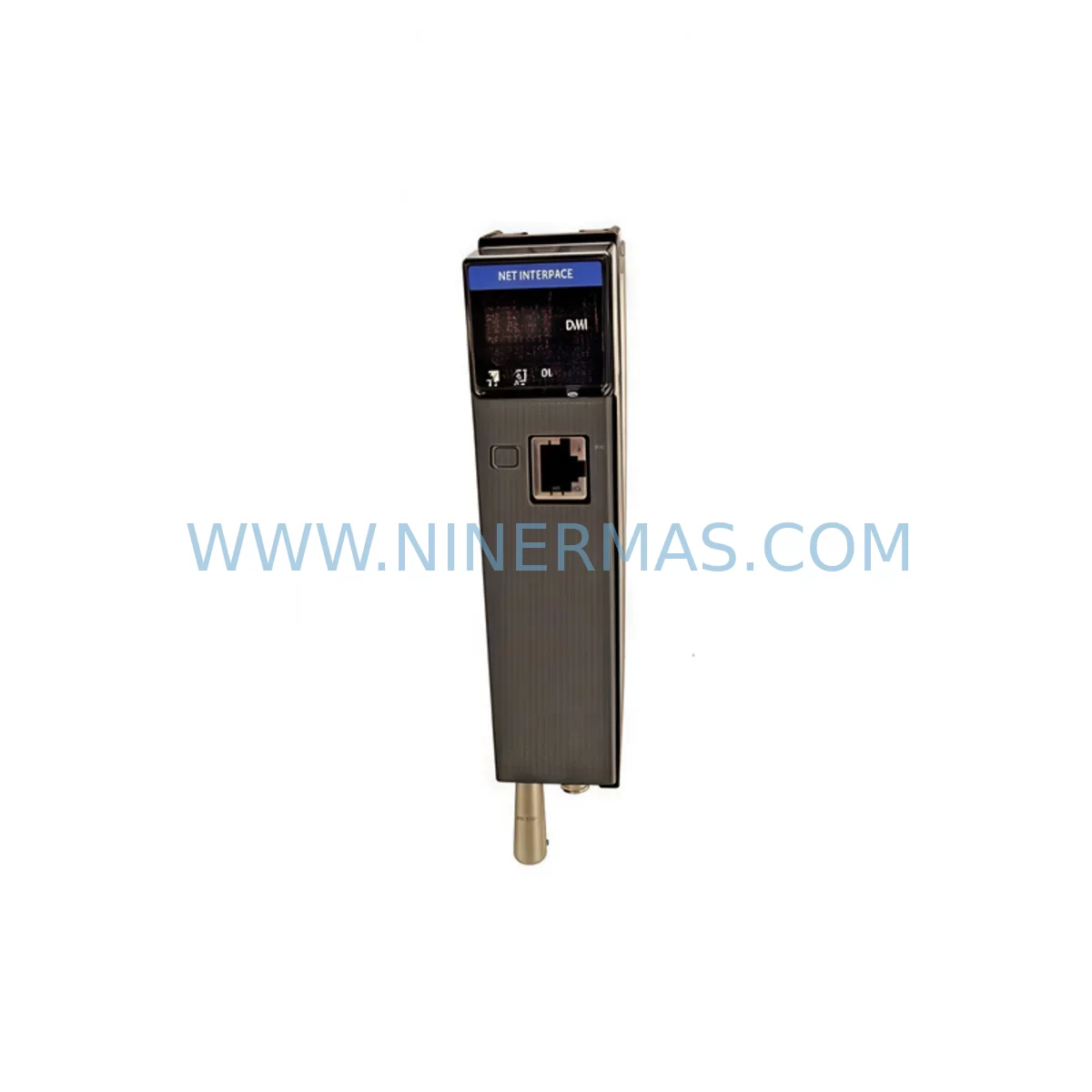

The Honeywell TC-CCR011 is a C300 Controller Module designed for the Experion PKS platform, widely deployed across process industries including oil & gas, chemical, power generation, and pharmaceutical manufacturing. As legacy Honeywell TDC 3000, PlantScape, and early Experion R100–R300 systems approach end-of-support milestones, the TC-CCR011 has become a critical component in brownfield modernization projects — enabling engineers to extend operational life, restore redundancy, and migrate control logic without a full system replacement.

At NINERMAS, we maintain verified in-stock inventory of the TC-CCR011 to support urgent retrofit schedules, unplanned outages, and long-term spare parts programs. Every unit ships with a 12-month warranty and passes pre-shipment functional testing.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing or upgrading a C300 controller in a live production environment requires careful pre-engineering. The TC-CCR011 slots into the C300 chassis — typically a TC-FCS111 (4-slot) or TC-FCS211 (8-slot) field control station — and communicates upstream to the Experion server via the PCIC interface card (TC-PCIC or TC-PCIC02). Before pulling the existing module, engineers must confirm that the chassis backplane is in good condition and that the power supply — usually a TC-PSA011 or TC-PSA021 — can sustain the load of the replacement controller plus any co-installed I/O modules.

On the I/O side, the TC-CCR011 manages Series C I/O modules such as the TC-IDJ161 (digital input), TC-ODJ161 (digital output), TC-IAH161 (analog input), and TC-OAH163 (analog output). During retrofit, each I/O module’s terminal block wiring must be verified against the original loop drawings. If the site is migrating from an older C200 or C200E architecture, I/O module types and terminal assignments may differ, requiring adapter plates or rewiring of field junction boxes.

Communication architecture is another key planning area. The TC-CCR011 operates on FTE (Fault Tolerant Ethernet), a dual-star Ethernet topology. If the existing plant network uses legacy Control Network (CN) or peer-to-peer links, a protocol migration plan must be developed — often involving the addition of a TC-PCIC02 PCIC card and reconfiguration of the Experion FTE switch infrastructure. For sites running Profibus or HART field devices, the existing TC-PRS021 Profibus interface or HART multiplexers should be verified for compatibility with the new controller revision.

HMI integration is equally important. Experion operator stations running HMIWeb displays must be checked for point references tied to the outgoing controller’s module address. After the TC-CCR011 is installed and commissioned, all affected control modules (CMs) and function blocks must be re-downloaded from the Experion server. Any custom faceplate or group display referencing the old controller node should be validated in the HMI engineering environment before returning the loop to automatic control.

For redundant controller configurations, a second TC-CCR011 is installed in the adjacent chassis slot and linked via the TC-CCRSIN redundancy synchronization cable. The redundancy state — primary/secondary switchover behavior — should be tested under simulated fault conditions before the system is handed back to operations. This is especially critical in safety-instrumented loops where the SIS boundary interfaces with the Experion DCS.

Downtime Control During System Migration

Minimizing production downtime during a C300 controller swap is achievable with the right preparation. The recommended approach is a hot-standby cutover: with redundancy enabled, the secondary TC-CCR011 takes over seamlessly when the primary is removed, keeping field I/O active and control loops in automatic throughout the hardware exchange. This eliminates the need for a planned shutdown in most process applications.

Before any physical work begins, a full backup of the Experion database — including all control strategies, CM configurations, historian tags, and alarm setpoints — should be exported from the Experion server. The backup ensures that if the new controller requires a full CM download, the logic can be restored exactly as engineered without manual re-entry.

Field engineers should also prepare a loop-by-loop checklist covering: current controller module address, associated I/O channel assignments, active alarms to be suppressed during cutover, and any interlocks that must be placed in manual or bypass mode. After the TC-CCR011 is seated and powered, the Experion server will detect the new module and prompt for a CM download. Confirming the download sequence — and monitoring the first scan cycle for any I/O faults or communication errors — is the final step before returning loops to automatic.

With proper planning, most TC-CCR011 replacements in redundant configurations can be completed within a two-to-four-hour maintenance window, with zero impact on process continuity. For non-redundant installations, a brief controlled shutdown of the affected control loops is required, but total outage time can typically be held under one hour when all materials and documentation are staged in advance.

Retrofit Support FAQ

Q1: Is the TC-CCR011 a direct drop-in replacement for an existing C300 controller in my Experion system?
A: Yes, in most cases. The TC-CCR011 is form-factor and backplane compatible with standard C300 chassis installations. However, you should verify the Experion server software release level and confirm that the existing TC-PCIC or TC-PCIC02 PCIC card firmware is compatible with the replacement unit before installation.

Q2: What wiring or terminal changes are required when installing the TC-CCR011?
A: The TC-CCR011 itself does not have direct field wiring — all field I/O connects through Series C I/O modules mounted in the same chassis. No terminal rewiring is required for the controller module itself. However, if you are migrating from a C200/C200E platform, I/O module types and terminal block assignments may differ and should be reviewed against original loop drawings.

Q3: Does NINERMAS provide pre-shipment testing and what does the 12-month warranty cover?
A: Yes. Every TC-CCR011 unit shipped by NINERMAS undergoes functional verification testing prior to dispatch. The 12-month warranty covers hardware defects and DOA (dead-on-arrival) scenarios. Replacement or repair is arranged promptly to minimize impact on your retrofit schedule. In-stock units are typically available for same-week shipment.

Q4: Can the TC-CCR011 support redundant controller configurations, and how is redundancy commissioned?
A: Yes. Redundancy is achieved by installing a second TC-CCR011 in the paired chassis slot and connecting the two modules with a TC-CCRSIN redundancy synchronization cable. Redundancy state and switchover behavior are configured in Experion Configuration Studio. NINERMAS can supply matched pairs of TC-CCR011 units from the same production batch to ensure firmware consistency between primary and secondary controllers.
