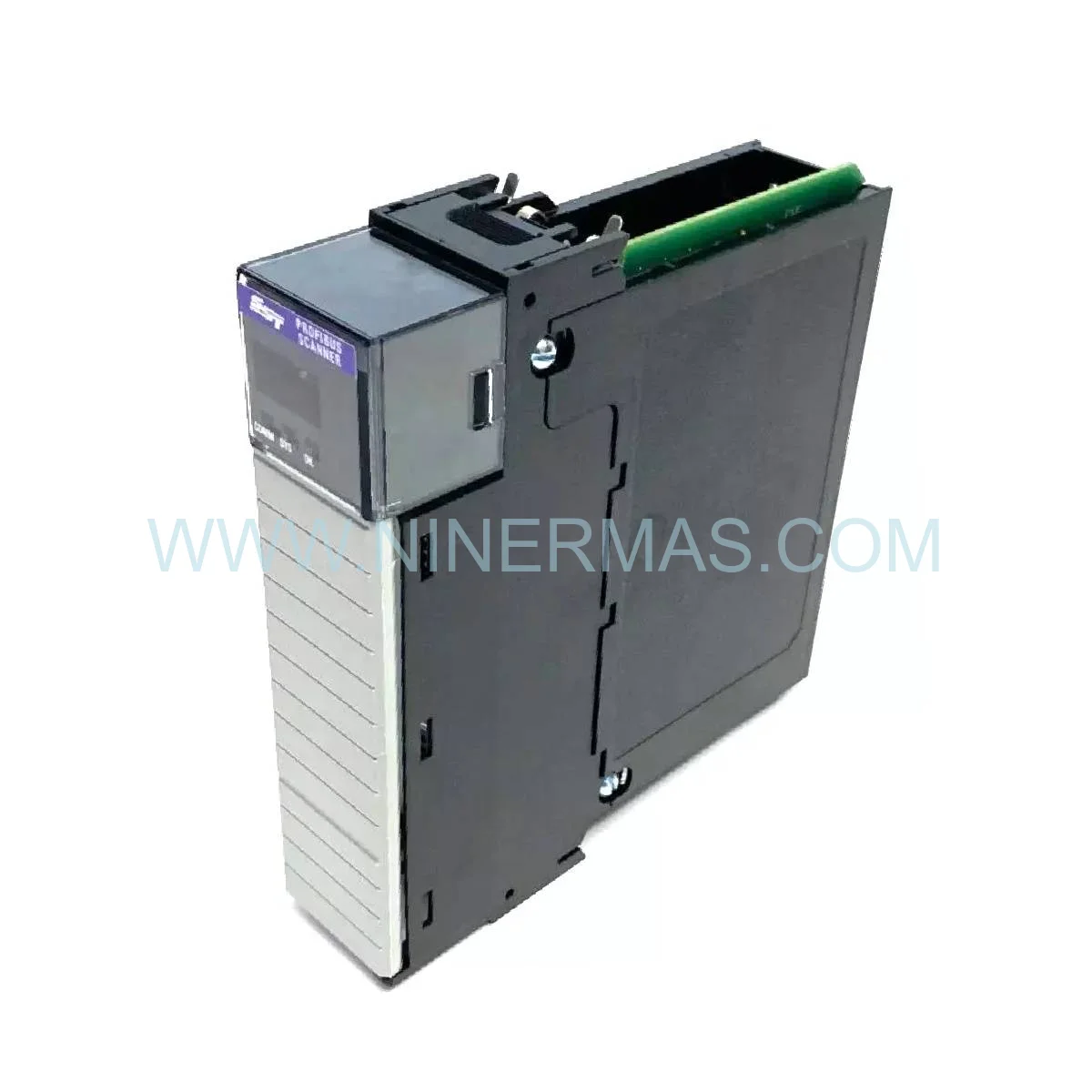

Honeywell SST-PB3-CLX PROFIBUS DP Scanner Module (Honeywell) Original Spare Part RFQ

Honeywell SST-PB3-CLX PROFIBUS DP Scanner Module | Reliable Automation Component

Field Application & Operational Analysis

From the perspective of a Site Reliability Engineer managing multi-vendor automation architectures, the Honeywell SST-PB3-CLX stands as a cornerstone component for maximizing system availability in PROFIBUS-to-ControlLogix integration scenarios. The SST-PB3-CLX eliminates protocol barriers between Rockwell Automation 1756 ControlLogix chassis and PROFIBUS DP fieldbus networks, enabling deterministic, low-latency data exchange with up to 125 slave devices — a capability that directly translates into reduced unplanned downtime and enhanced process optimization across mission-critical production lines.

Engineered for operational excellence in harsh industrial environments, the Honeywell SST-PB3-CLX incorporates 1500V optical isolation to guard against ground loops and electrical transients common in heavy manufacturing facilities. Installation within any available 1756 chassis slot is straightforward; however, SRE best practice dictates verifying firmware compatibility with the target RSLogix 5000 / Studio 5000 version prior to commissioning. The module’s auto-baud detection — spanning 9.6 Kbps to 12 Mbps — eliminates manual rate configuration errors that frequently cause integration delays during system integration projects.

Maintaining a verified spare unit of the SST-PB3-CLX in your critical spares inventory is a non-negotiable reliability strategy. As a legacy-compatible yet actively supported module, sourcing lead times can extend significantly during peak demand cycles. Securing an original, factory-packaged replacement ensures mean time to repair (MTTR) remains within acceptable SLA thresholds when a primary unit requires swap-out.

Key Operational Features

Seamless System Integration: Native EDS file support and RSLogix 5000 / Studio 5000 compatibility for zero-friction commissioning
High Availability Architecture: Supports hot-swap replacement within live ControlLogix chassis — no full system shutdown required
Redundancy-Ready Design: Pairs with SST-PB3-CLX-RLL variant for dual-port redundant PROFIBUS link configurations
Broad Slave Compatibility: Interfaces with all PROFIBUS DP V0/V1 compliant devices — drives, I/O modules, analyzers, and field instruments
Comprehensive Diagnostics: Front-panel LED status indicators plus real-time tag-level diagnostics via RSLogix 5000 for rapid fault isolation
Industrial-Grade Isolation: 1500V optical isolation ensures signal integrity in electrically noisy environments
Process Optimization: Auto-baud detection across 9.6 Kbps 12 Mbps eliminates manual configuration overhead

Maintenance & Performance Benchmarks

The Honeywell SST-PB3-CLX is architected to perform reliably across a wide spectrum of industrial network topologies — from compact single-chassis skid-mounted control panels to large-scale distributed control systems spanning multiple plant areas.

In small-to-medium installations (fewer than 32 PROFIBUS slaves), the module operates with minimal CPU overhead on the ControlLogix backplane, leaving ample processing headroom for motion, safety, and process control tasks running concurrently. For large-scale networks approaching the 125-slave ceiling, SREs should implement segmented PROFIBUS trunk architecture with RS-485 repeaters to maintain signal integrity and sub-10ms cycle times. Power budget analysis is recommended: the module draws 5V DC @ 800mA and 24V DC @ 50mA from the chassis backplane — factor this into chassis power supply sizing during system design.

Firmware version alignment is a critical maintenance checkpoint. Confirm that the installed SST Configuration Software version matches the module’s embedded firmware to avoid diagnostic tag mapping discrepancies. Scheduled preventive maintenance should include inspection of PROFIBUS cable termination resistors and connector seating, as loose connections are the leading cause of intermittent communication faults in fieldbus networks.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every Honeywell SST-PB3-CLX unit dispatched from our inventory is shipped in Original Factory Packaging with full manufacturer labeling and serial number traceability — ensuring authenticity verification upon receipt. For urgent production recovery scenarios, same-day dispatch is available for in-stock units when orders are confirmed before the daily logistics cutoff.

Our global supply network is specifically structured to support End-of-Life (EOL) and legacy automation components, addressing the sourcing challenges that arise when OEM channels discontinue active production. Whether you require a single replacement unit for emergency maintenance or a bulk quantity for a plant-wide standardization project, our procurement team maintains access to verified new-old-stock and current-production inventory across multiple international distribution nodes.

Worldwide express logistics partnerships ensure delivery to major industrial hubs across North America, Europe, the Middle East, and Asia-Pacific — with full shipment tracking and customs documentation support included as standard service elements.

Engineering Support & FAQ

Q1: What are the step-by-step installation requirements for the SST-PB3-CLX in a ControlLogix chassis?
A: Power down the chassis (or confirm hot-swap compatibility with your system design), insert the module into any available 1756 slot, and secure the locking tab. Import the provided EDS file into RSLogix 5000 / Studio 5000, add the module to the I/O tree under the local chassis, and configure slave device parameters via the SST Configuration Software. Verify LED status indicators show solid green on the PROFIBUS port before going online.

Q2: Which firmware versions of RSLogix 5000 / Studio 5000 are compatible with the SST-PB3-CLX?
A: The SST-PB3-CLX is compatible with RSLogix 5000 v16 and above, including all Studio 5000 Logix Designer versions. Always cross-reference the SST Configuration Software release notes against your controller firmware revision to confirm tag mapping compatibility before deployment.

Q3: Can the SST-PB3-CLX operate in a redundant ControlLogix controller configuration?
A: The standard SST-PB3-CLX supports single-link PROFIBUS operation. For full redundant controller architectures (1756-SRM based), the SST-PB3-CLX-RLL variant with dual PROFIBUS ports is the recommended solution, providing automatic failover without loss of fieldbus communication.

Q4: What is the warranty coverage and RMA process for the SST-PB3-CLX?
A: All units carry a 1-Year Warranty covering manufacturing defects and component failures under normal operating conditions. To initiate an RMA, contact our technical support team with the unit serial number, purchase documentation, and a fault description. Advance replacement units are available for critical production environments to minimize downtime during the warranty claim process.

Q5: How do I diagnose intermittent PROFIBUS communication faults on the SST-PB3-CLX?
A: Begin with front-panel LED diagnostics — a flashing red BUS LED indicates active slave communication errors. Cross-reference slave status tags in RSLogix 5000 to isolate the affected device address. Common root causes include improper cable termination (missing 220Ω/390Ω termination resistors at segment endpoints), baud rate mismatches, or cable lengths exceeding the specification for the configured baud rate. Use the SST Configuration Software’s live diagnostic view for real-time slave health monitoring.

Q6: Is the SST-PB3-CLX suitable for use in hazardous (Ex) classified areas?
A: The SST-PB3-CLX itself is rated for standard industrial environments (IP20, 0-60°C). For deployment in ATEX/IECEx Zone 1 or Zone 2 hazardous areas, the module must be installed in a certified enclosure with appropriate Ex protection measures. PROFIBUS segments entering hazardous zones should utilize certified RS-485-IS barrier couplers to maintain intrinsic safety compliance.
