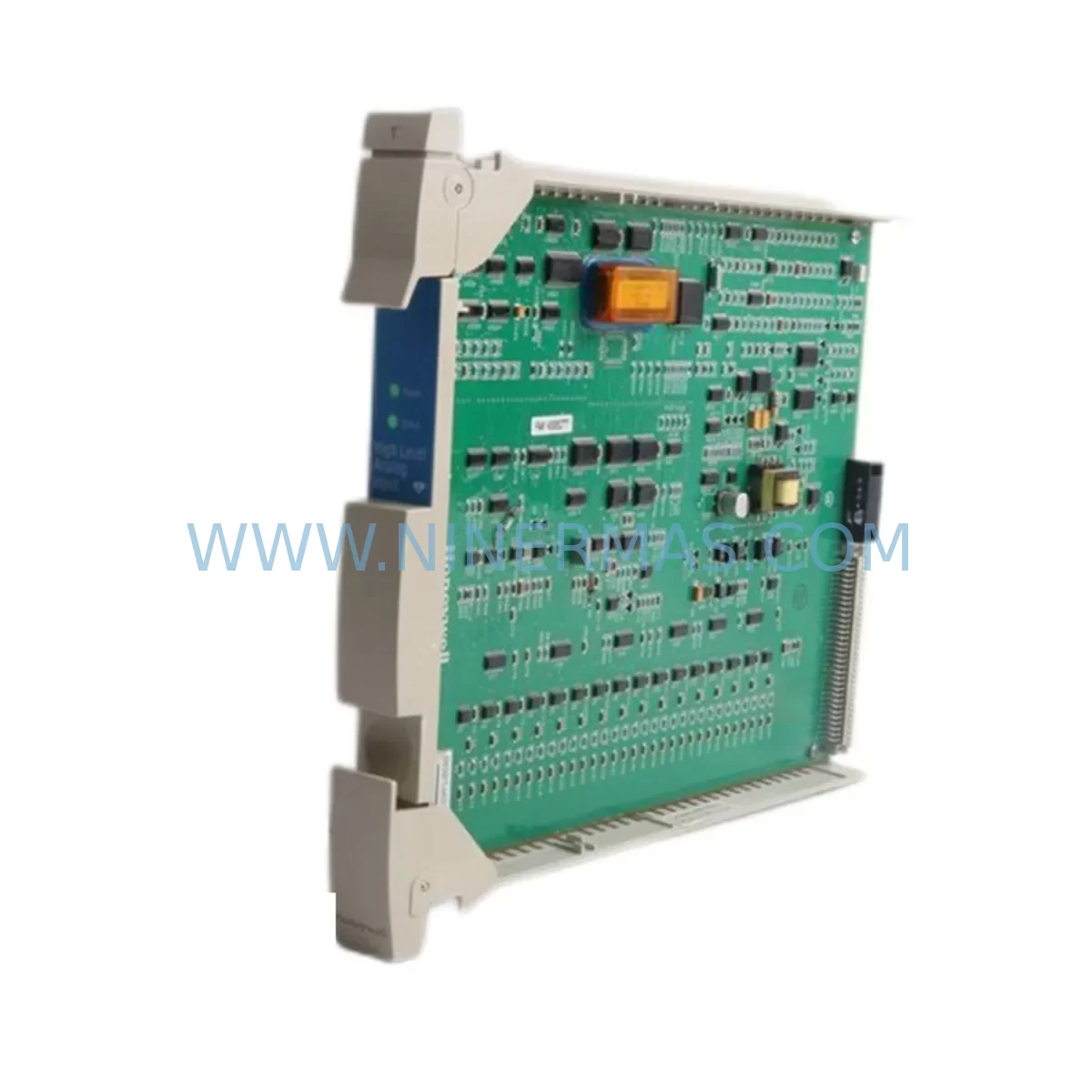

The Honeywell MU-PAOX03 (P/N 51304672-100) is an original analog output module designed for use in Honeywell TDC 3000 and TotalPlant Solution (TPS) distributed control systems. As a critical field interface component, this module provides reliable 4–20 mA analog output signals to final control elements such as control valves, variable frequency drives, and positioners across continuous process industries including oil & gas, petrochemical, power generation, and pulp & paper.

For maintenance engineers managing aging DCS infrastructure, sourcing a verified, service-ready MU-PAOX03 51304672-100 is essential to minimizing unplanned downtime. NINERMAS supplies this module as an original spare, fully tested prior to shipment, and backed by a 12-month warranty. Each unit undergoes functional verification to confirm channel integrity, output accuracy, and communication handshake with the Honeywell High-Performance Process Manager (HPM) or Basic Process Manager (BPM) before dispatch.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a Honeywell TDC 3000 or TPS system requires replacement of the MU-PAOX03 51304672-100 analog output module, experienced maintenance engineers know that a single module swap rarely tells the full story. A thorough site inspection and preventive replacement strategy should accompany any AO module change to prevent repeat failures and protect production continuity.

Begin by inspecting the MU-TAOX02 or MU-TAOX04 termination assemblies connected to this module. Corroded or loose field wiring terminals are a leading cause of premature AO module failure and intermittent output drift. Verify that all 4–20 mA field loops are properly grounded and that loop resistance is within the module’s rated load range.

Next, assess the power supply modules feeding the card cage — typically Honeywell MC-PDOX01 or MC-PDOX02 DC power distribution modules. Voltage sag or ripple on the 24 VDC bus can corrupt analog output accuracy and cause nuisance alarms. A calibrated power quality meter should be used to verify bus stability before and after module replacement.

The MU-PAIX02 or MU-PAIX03 analog input modules in the same HPM cabinet should also be inspected during the same maintenance window. In many process loops, the AO module drives a valve while the AI module reads back the process variable — degraded AI performance can mask AO faults and complicate fault isolation.

For systems with MU-PDIX02 digital input modules and MU-PDOX02 digital output modules in adjacent slots, check backplane connector integrity. Bent or oxidized backplane pins can cause intermittent communication errors that are often misdiagnosed as module failures. Cleaning with approved contact cleaner and reseating all modules in the affected cage is recommended.

If the plant uses Honeywell FSC (Fail Safe Controller) or Safety Manager systems in the same control room, verify that the AO replacement does not affect any safety instrumented function (SIF) that relies on shared field wiring or common power distribution. Cross-reference the SIL loop documentation before energizing the replacement module.

Communication health should also be verified at the UCN (Universal Control Network) level. Use the Honeywell Station Manager or GUS (Global User Station) to confirm that the HPM node re-registers the new MU-PAOX03 correctly and that all configured AO tags resume normal scan cycles without requiring a cold restart.

For plants running extended TDC 3000 life extension programs, it is advisable to maintain a minimum of two MU-PAOX03 51304672-100 units in the on-site spare parts inventory alongside companion modules such as the MU-PAIX03 analog input module, MU-PDOX02 digital output module, and relevant MC-PDOX01 power supply modules. This multi-module buffer strategy significantly reduces mean time to repair (MTTR) during unplanned outages and supports annual turnaround planning.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Confirm the failed module’s slot address in the HPM cabinet using the Honeywell Engineering Workstation (EWS) or Station Manager. Document all AO tag assignments, engineering unit ranges, and output clamp values before removal. Take a photograph of the wiring termination assembly for reference.

Step 2 — Safe Isolation: Place all associated control loops in manual mode at the operator station. Notify the field operator to monitor final control elements during the swap. If the loop is part of a safety interlock, obtain a formal permit-to-work and isolate per site MOC (Management of Change) procedures.

Step 3 — Module Removal and Inspection: Power down the card cage slot if hot-swap is not supported for this module revision. Remove the MU-PAOX03 carefully, inspect the backplane connector for damage, and clean the slot with dry compressed air. Inspect the termination assembly wiring for insulation damage, moisture ingress, or corrosion.

Step 4 — Installation of Replacement MU-PAOX03 51304672-100: Insert the new module firmly into the backplane slot. Reconnect the termination assembly. Power up the slot and observe the module’s LED status indicators — a steady green RUN LED confirms successful initialization and UCN registration.

Step 5 — Loop Verification and Return to Auto: Using the Honeywell operator station, perform a manual output test across the full 4–20 mA range (0%, 25%, 50%, 75%, 100%) and verify field response at the final control element. Confirm output accuracy is within ±0.1% of full scale. Return all loops to automatic control and document the replacement in the plant CMMS.

This structured workflow minimizes total downtime to under 2 hours for a single-module replacement and ensures full system compatibility is maintained without requiring a DCS database reload or HPM restart.

Spare Parts Support FAQ

Q1: Is the MU-PAOX03 51304672-100 supplied as a new original or refurbished unit?
NINERMAS supplies the MU-PAOX03 51304672-100 as an original Honeywell spare part. Each unit is individually tested for output channel functionality, backplane communication, and signal accuracy prior to shipment. A 12-month warranty is provided from the date of delivery, covering manufacturing defects and functional failures under normal operating conditions.

Q2: How do I confirm compatibility with my existing Honeywell TDC 3000 or TPS system revision?
Compatibility is determined by your HPM or BPM firmware revision and the card cage type (standard or high-density). The MU-PAOX03 51304672-100 is compatible with standard HPM card cages running TDC 3000 R500 and later software releases. Please provide your system release number and HPM model when placing your order so our technical team can confirm fit before shipment.

Q3: What is the typical lead time and how is the module packaged for international shipment?
In-stock units ship within 3–5 business days via DHL Express or FedEx International Priority. Each module is packed in anti-static ESD shielding bags, placed in foam-lined export cartons, and accompanied by a test report and packing list. For urgent plant shutdowns, expedited same-day dispatch is available — contact our team directly at sale@ninermas.com or +0086 187 5021 5667.

Q4: Can NINERMAS support long-term supply agreements for TDC 3000 spare parts?
Yes. NINERMAS specializes in long-term supply programs for obsolete and end-of-life Honeywell DCS components. We maintain strategic inventory of TDC 3000 and TPS spare parts including analog I/O modules, digital I/O modules, power supply modules, and communication cards. Annual blanket purchase orders and consignment stock arrangements are available for refineries, power plants, and chemical facilities managing multi-year life extension programs.
