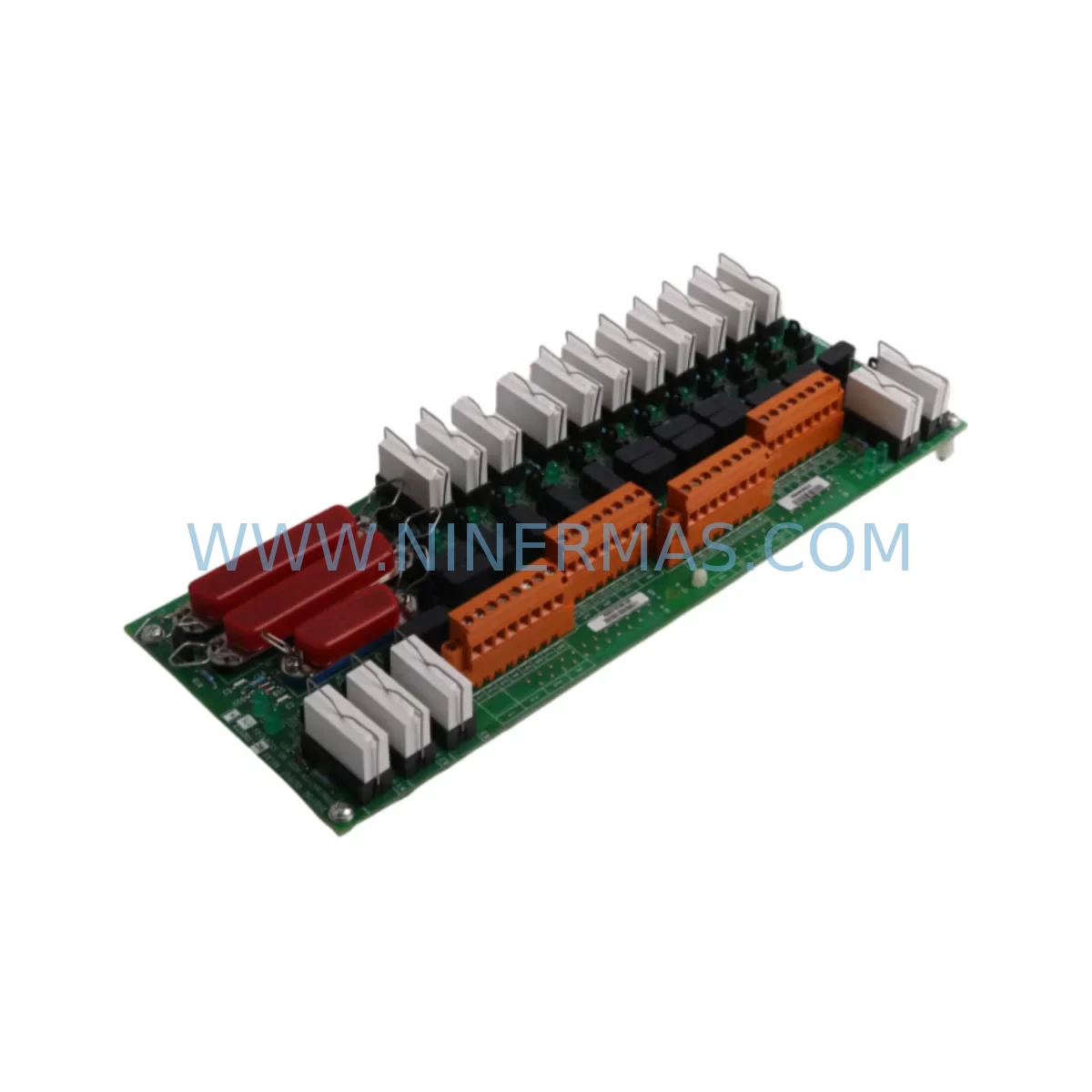

Honeywell MC-TDOY23 51204166-175 Digital Output Relay Module

Honeywell MC-TDOY23 51204166-175 Digital Output Relay Module: Retrofit-Compatible Upgrade for Legacy DCS Systems

The Honeywell MC-TDOY23 (part number 51204166-175) is a Digital Output Relay module designed for use within the Honeywell TotalPlant Solution (TPS) and Experion PKS distributed control system platforms. As legacy DCS installations age and original spare parts become increasingly scarce, the MC-TDOY23 remains a critical component for engineers managing retrofit projects, control cabinet upgrades, and long-term system continuity. This module provides relay-based digital output capability, enabling reliable switching of field devices including solenoid valves, motor starters, and alarm annunciators in process-critical environments.

For facilities operating aging Honeywell TPS or early-generation Experion PKS architectures, sourcing a verified replacement MC-TDOY23 is often the fastest path to restoring system availability without committing to a full platform migration. NINERMAS maintains ready inventory of this module, with each unit subject to pre-shipment functional testing and backed by a 12-month warranty — providing procurement teams and maintenance engineers with the confidence needed for planned and emergency replacement scenarios alike.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

When planning a retrofit around the MC-TDOY23, engineers must account for the broader I/O subsystem architecture. The module operates within an MC-series I/O nest, typically mounted alongside analog input modules such as the MC-TAIH04 and MC-TAIH22, as well as digital input modules like the MC-TDID12 and MC-TDID22. The relay output signals from the MC-TDOY23 are routed through a dedicated Field Termination Assembly (FTA), and the specific FTA model must be confirmed before ordering — mismatched FTAs are a common source of commissioning delays during legacy system restoration.

Power distribution within the control cabinet is another key consideration. The MC-series I/O nest draws regulated 24 VDC from the cabinet power supply rail, and adding or replacing modules requires verifying that the existing power supply — often an MC-PDPY22 or equivalent — has sufficient headroom to support the restored I/O count. In cabinets where multiple nests share a common bus, a power audit should be completed before module insertion.

For sites migrating from TPS to Experion PKS, the MC-TDOY23 is frequently retained as part of a phased upgrade strategy. The Experion PKS C300 controller and associated IOTA assemblies can coexist with legacy MC-series I/O during transition periods, allowing production to continue while new control nodes are commissioned in parallel. Communication between the C300 and legacy I/O links is managed through the Control Firewall and Series C I/O Link interface, and engineers should confirm link address assignments to avoid address conflicts during the cutover window.

In applications involving protocol migration — for example, transitioning field instruments from HART to Foundation Fieldbus or PROFIBUS — the MC-TDOY23 relay outputs typically remain unchanged, as they serve hardwired discrete functions rather than networked instrument loops. However, the associated analog I/O modules, such as the MC-TAIH04 for HART multiplexing, may require replacement or reconfiguration as part of the broader protocol migration plan.

I/O expansion projects that add new process points to an existing Experion PKS system may require additional MC-series nests and backplane assemblies. In these cases, the MC-TDOY23 is often specified alongside MC-TDID12 digital input modules and MC-TAOH04 analog output modules to complete a balanced I/O complement for the new control loop. Rack space, cable tray routing, and marshalling cabinet layout should all be confirmed during the engineering phase to avoid rework during installation.

For HMI integration, the Experion Station and associated Honeywell HMIWeb displays reference point tags that are bound to specific I/O module channel assignments. When replacing an MC-TDOY23, the replacement module must occupy the same physical slot and channel address as the original to ensure that existing graphic displays, alarm configurations, and historian tags remain valid without modification. This is particularly important in facilities where the control narrative and cause-and-effect matrix are tightly coupled to specific I/O point identifiers.

Signal isolation requirements should also be reviewed during retrofit planning. In applications where the relay output circuits interface with high-voltage field devices or cross cabinet boundaries, signal isolators or interposing relays may be installed between the MC-TDOY23 FTA and the field terminal strip. These isolators — often DIN-rail mounted units from established industrial suppliers — should be inspected and tested as part of the module replacement procedure to confirm that isolation integrity is maintained after the swap.

Programming cable access is rarely required for a direct MC-TDOY23 replacement, as the module does not carry embedded firmware that requires field updating. However, if the replacement is part of a broader controller upgrade involving the Experion PKS C200 or C300, a programming workstation running Honeywell Control Builder will be needed to download revised control strategies and verify I/O point assignments before returning the loop to automatic control.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern when replacing an MC-TDOY23 in a live process environment. The recommended approach is to pre-stage the replacement module and verify its functional test certificate before scheduling the maintenance window. With a pre-tested unit on hand, the physical swap can typically be completed within a single shift, provided that the FTA wiring, slot address, and power supply capacity have been confirmed in advance.

Before removing the failed or end-of-life module, the control strategy for all points served by the MC-TDOY23 should be placed in manual mode at the Experion Station. This prevents spurious output changes during the module swap and protects downstream field devices from unintended actuation. The existing wiring at the FTA should be photographed and documented before disconnection, and terminal labels should be verified against the as-built drawings to ensure correct reconnection.

After inserting the replacement module, the Experion system will perform an automatic module recognition sequence. Engineers should monitor the I/O link status in the Experion Configuration Studio and confirm that all channel health indicators return to normal before transferring control loops back to automatic. Any discrepancies in point health should be investigated at the FTA level before resuming production, as wiring errors at the terminal block are the most common cause of post-replacement commissioning issues.

For facilities with redundant control architectures, the MC-TDOY23 replacement can often be performed without a full process shutdown by leveraging the redundant controller path to maintain output integrity during the swap. This approach requires coordination between the DCS engineer and the field technician to ensure that the redundant path is confirmed healthy before the primary module is removed. Post-replacement, both paths should be tested to verify that failover behavior is correct before the maintenance window is closed.

Maintaining a documented retrofit log — including the replaced module serial number, installation date, slot address, and post-replacement test results — supports future maintenance planning and provides an audit trail for regulatory compliance in industries such as oil and gas, petrochemical, and power generation.

Retrofit Support FAQ

Q1: Is the MC-TDOY23 a direct drop-in replacement for the original Honeywell 51204166-175?
Yes. The MC-TDOY23 with part number 51204166-175 is a slot-compatible replacement for the original module. No mechanical modification, wiring change, or control strategy recompilation is required for a same-platform swap within a TPS or Experion PKS system. Confirm the FTA model and slot address before installation.

Q2: What pre-shipment testing is performed on each unit?
Each MC-TDOY23 supplied by NINERMAS undergoes functional verification prior to dispatch, including relay contact continuity checks, power-up self-diagnostic confirmation, and visual inspection for physical integrity. A test record is available upon request. All units are covered by a 12-month warranty from the date of shipment.

Q3: Can this module be used in an Experion PKS system that has been partially upgraded from TPS?
Yes. The MC-TDOY23 is compatible with mixed TPS/Experion PKS architectures during phased migration projects. The module operates on the standard MC-series I/O link and does not require platform-specific firmware. Confirm I/O link address assignments with your Experion Configuration Studio to avoid conflicts with newly commissioned C300 or C200 controller nodes.

Q4: What is the typical lead time and inventory availability?
NINERMAS maintains stock of the MC-TDOY23 to support both planned maintenance and emergency replacement scenarios. Standard lead time for in-stock units is 3–7 business days for international shipments. For urgent requirements, expedited dispatch options are available. Contact our team at sale@ninermas.com or +0086 187 5021 5667 to confirm current stock levels and delivery schedules.
