Honeywell MC-TDOY22 51204162-175 Service-Ready Spare Part

Honeywell MC-TDOY22 51204162-175 Service-Ready Spare Part for Industrial Maintenance

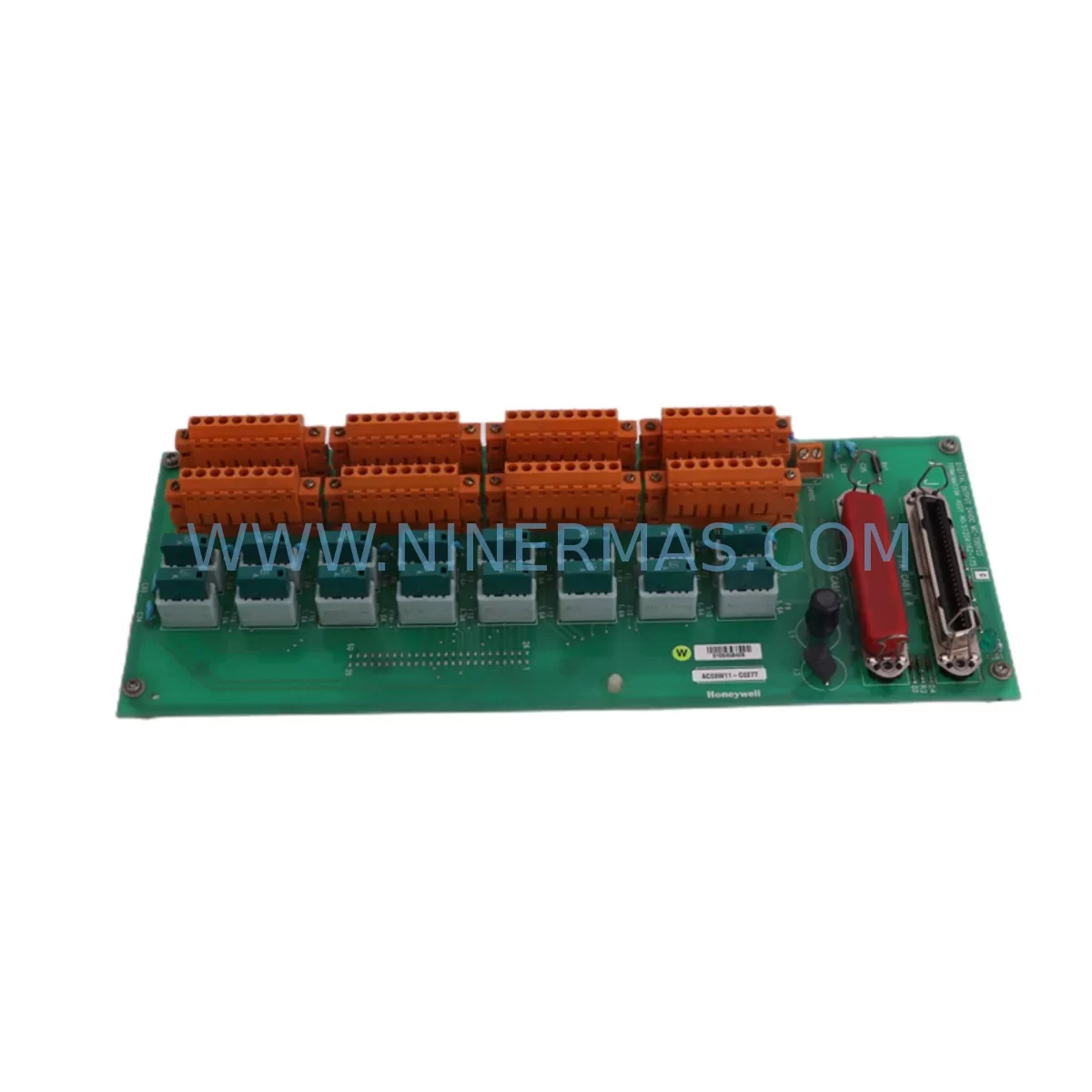

The Honeywell MC-TDOY22 (Part No. 51204162-175) is a high-density digital output module engineered for the Honeywell Experion PKS and TDC 3000 distributed control system platforms. As a critical field I/O component, this module drives discrete output signals to final control elements — including solenoid valves, motor starters, relay coils, and indicator lamps — across continuous process industries such as oil & gas, petrochemical, power generation, pulp & paper, and pharmaceutical manufacturing.

At NINERMAS, every MC-TDOY22 unit is sourced as an original Honeywell spare part, individually inspected, and dispatched with full documentation. Our inventory is maintained specifically to support emergency breakdown recovery, planned annual turnarounds, and long-term spare parts programs for facilities operating legacy and current-generation Honeywell DCS architectures.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

For maintenance engineers managing Honeywell Experion PKS or TDC 3000 systems, the MC-TDOY22 rarely fails in isolation. Digital output modules operate within a tightly coupled electrical circuit that spans the DCS controller, the I/O backplane, the field termination assembly, and the field wiring itself. When planning a replacement or conducting a control cabinet inspection, a structured approach to adjacent component verification is essential to avoid repeat failures and unnecessary downtime.

Begin with the Field Termination Assembly (FTA) paired to this module — typically the MC-TDOY22 mates with a dedicated FTA such as the MC-TAOY22 or equivalent analog/digital termination panel. Inspect the FTA for corrosion on screw terminals, loose field wiring, and signs of moisture ingress. A degraded FTA can cause intermittent output faults that are incorrectly attributed to the DO module itself.

Next, verify the 24 VDC field power supply feeding the output circuits. Honeywell DCS cabinets commonly use dedicated Honeywell CC-PWR01 or equivalent redundant power supply modules to maintain field I/O voltage. Measure output voltage under load — a sagging supply rail is a frequent root cause of digital output channel failures, particularly in high-channel-count modules like the MC-TDOY22.

Inspect the I/O link cable and backplane connectors between the MC-TDOY22 and the controller node. Bent pins, oxidized contacts, or a cracked backplane can cause partial channel loss or complete module communication failure. If the system uses a Honeywell C200 or C300 controller, confirm that the controller firmware revision is compatible with the installed DO module version to prevent configuration mismatch alarms.

For facilities running mixed I/O architectures, also inspect adjacent digital input modules (MC-TDID22 or MC-TDIY22) in the same chassis. A shorted field device connected to a DI channel can induce ground loops that affect nearby DO channels. Similarly, check any relay output modules or interposing relay assemblies wired downstream of the MC-TDOY22 — relay coil failures and welded contacts are common causes of output circuit overload that can damage the DO module over time.

Communication integrity should also be validated. If the system uses Honeywell FTE (Fault Tolerant Ethernet) or a legacy UCN (Universal Control Network) backbone, verify switch health, cable continuity, and node addressing. A degraded network segment can cause the controller to report false DO module faults during high-traffic periods.

Finally, for older TDC 3000 installations, review the condition of the card cage backplane and chassis power distribution board. Electrolytic capacitor aging in legacy power boards can produce voltage ripple that destabilizes I/O module operation. Proactive replacement of aging power distribution components during a planned turnaround significantly reduces the risk of cascade failures across multiple I/O modules.

NINERMAS maintains stock of complementary Honeywell Experion PKS and TDC 3000 spare parts — including FTAs, power modules, controller cards, and communication modules — to support complete cabinet restocking programs for maintenance and procurement engineers.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Confirm the failed module part number against the system configuration database. Verify that the replacement MC-TDOY22 (51204162-175) matches the installed revision level. Check Honeywell system documentation for any firmware or hardware revision dependencies before proceeding.

Step 2 — Safe Isolation: Place the affected controller node in manual or backup control mode per your site safety procedure. De-energize the field power supply feeding the DO module’s output circuits. Do not remove the module under live field voltage — output channel damage and field device actuation risk are both present.

Step 3 — Module Extraction: Release the module locking lever and extract the MC-TDOY22 from the card cage slot. Inspect the backplane connector for damage before inserting the replacement unit. Clean connector contacts with approved contact cleaner if oxidation is present.

Step 4 — Replacement Installation: Insert the new MC-TDOY22 firmly until the locking lever engages. Restore field power supply. Allow the DCS controller to perform automatic module recognition and channel configuration download — this typically completes within 60–120 seconds on Experion PKS systems.

Step 5 — Functional Verification: Force-test each output channel from the Experion PKS operator station or engineering workstation. Confirm field device response for all 32 channels. Document the replacement in the site maintenance management system (CMMS) and update the spare parts inventory record.

Step 6 — Return to Service: Release the controller node from manual mode. Monitor the first 30 minutes of operation for any residual alarms. Archive the replaced module for failure analysis or refurbishment evaluation.

This workflow applies equally to planned annual maintenance replacements and emergency breakdown recovery scenarios. NINERMAS ships all MC-TDOY22 units with a pre-shipment test report, reducing on-site commissioning time and supporting rapid return-to-service objectives.

Spare Parts Support FAQ

Q1: Is the MC-TDOY22 (51204162-175) compatible with both Experion PKS and TDC 3000 systems?
Yes. The MC-TDOY22 is a Honeywell-designed digital output module qualified for use across the Experion PKS and TDC 3000 DCS platforms. Compatibility depends on the specific I/O chassis generation and controller revision installed at your site. NINERMAS recommends providing your system configuration details — including controller model and chassis type — so our technical team can confirm the correct module revision before shipment.

Q2: What is included with each MC-TDOY22 shipment from NINERMAS?
Each unit is shipped with a pre-shipment functional test report, original or equivalent packaging, and a 12-month warranty certificate. Export documentation, including commercial invoice and packing list, is provided for international shipments. Expedited shipping options are available for emergency breakdown recovery situations.

Q3: How does NINERMAS support long-term spare parts supply for legacy Honeywell systems?
NINERMAS maintains a dedicated inventory of Honeywell Experion PKS and TDC 3000 spare parts, including I/O modules, controller cards, power supplies, and FTAs. For facilities managing aging DCS infrastructure, we offer blanket order arrangements and reserved stock programs to ensure supply continuity beyond the original manufacturer’s active production period. Contact our team to discuss a customized long-term supply agreement.

Q4: Can the MC-TDOY22 be used as a direct replacement for an older or superseded Honeywell DO module?
In many cases, yes — Honeywell has maintained a degree of backward compatibility across successive I/O module generations within the Experion PKS and TDC 3000 families. However, direct substitution should always be validated against the site’s system configuration database and Honeywell’s compatibility matrix. NINERMAS technical support can assist with cross-reference verification prior to purchase to eliminate compatibility risk and avoid costly installation errors.
