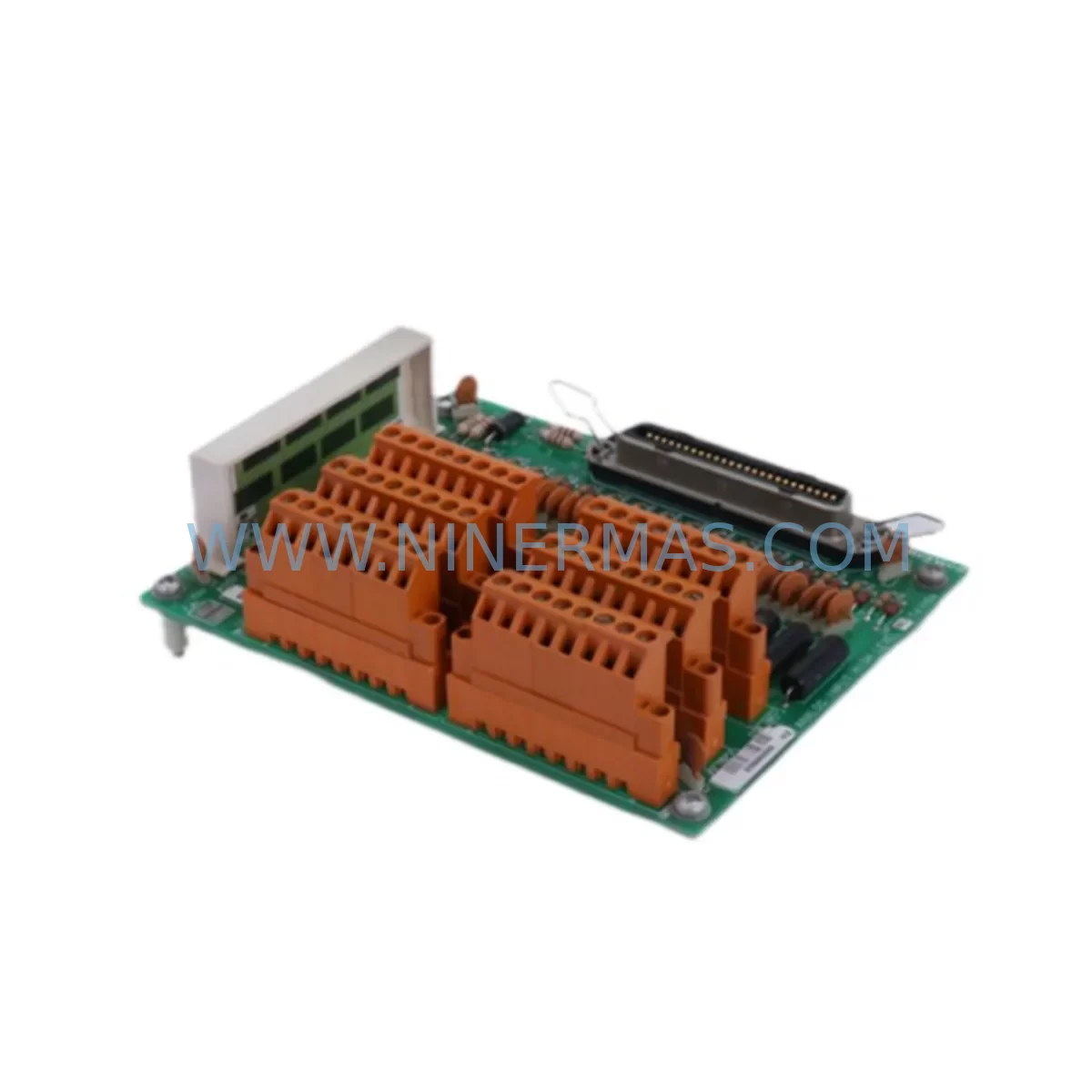

Honeywell MC-TAIH04 51305900-175 Retrofit Analog Input

Honeywell MC-TAIH04 51305900-175 Retrofit-Compatible Analog Input Module for Legacy Systems

The Honeywell MC-TAIH04 (P/N 51305900-175) is a high-density analog input module designed for integration within Honeywell’s TDC-3000 and Experion PKS distributed control system platforms. As original equipment reaches end-of-life and spare parts become increasingly scarce, the MC-TAIH04 serves as a critical retrofit-compatible replacement for aging analog input assemblies across process industries including oil & gas, petrochemical, power generation, and pharmaceutical manufacturing.

This module supports 4-channel thermocouple and high-level analog input acquisition, interfacing directly with the High-Performance Process Manager (HPM) and Process Manager (PM) controller backplanes. When planning a retrofit or legacy system upgrade, engineers must verify terminal block wiring compatibility, confirm backplane slot addressing, and validate signal range configuration against the existing I/O database before hot-swap or cold-replacement procedures begin.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the MC-TAIH04 into an existing control architecture begins well before the module arrives on-site. Retrofit engineers typically start by auditing the HPM or PM cabinet layout, identifying which backplane slots are occupied and confirming that the MC-TAIH04 will occupy the correct IOP slot without conflicting with adjacent modules such as the MC-TDID11 digital input module or the MC-TAOY22 analog output module sharing the same backplane segment.

Power budget verification is a non-negotiable step. The cabinet’s power supply module — commonly the MC-PSIM11 or its equivalent — must be assessed for available capacity before adding or replacing I/O modules. An undersized or aging power supply is one of the most common causes of intermittent faults following a module swap, and this check should be documented as part of the pre-retrofit engineering review.

Field wiring connected to the terminal assembly must be inspected for insulation integrity, correct polarity, and proper shielding continuity. Thermocouple inputs in particular are sensitive to ground loops and electromagnetic interference from adjacent VFD cabling or motor starters within the same control cabinet. Where signal quality is in question, the addition of a signal isolator or a dedicated MC-TAIH04-compatible terminal panel can resolve noise-induced measurement errors without requiring changes to the control program.

Module address configuration is handled through the Honeywell Control Builder environment. Engineers must confirm that the IOP slot address assigned to the replacement MC-TAIH04 matches the address recorded in the existing control strategy. If the original module was removed from a different physical slot, the address must be re-assigned to prevent the HPM controller from flagging the module as an unrecognized device. This step is especially critical in systems where the HPM controller module manages multiple IOP backplanes across a large process unit.

For facilities migrating from older TDC-3000 hardware toward Experion PKS, the MC-TAIH04 remains compatible within the hybrid migration architecture. During phased migration projects, it is common to operate legacy PM controllers alongside newer Experion C300 controllers, with the MC-TAIH04 continuing to serve its original analog input function while the migration team progressively transfers control loops. Communication links between the legacy UCN network and the new Experion FTE (Fault Tolerant Ethernet) backbone must be validated to ensure that analog values from the MC-TAIH04 are correctly reflected in the Experion Station operator displays and historian.

Where I/O expansion is required as part of the upgrade scope, engineers may introduce additional MC-TAIH04 modules alongside MC-TAOY22 analog output modules and MC-TDID11 digital input modules to extend the system’s measurement and control capability without replacing the entire HPM backplane assembly. This modular approach minimizes capital expenditure and allows the plant to maintain production continuity during the upgrade window.

Programming cable access via the Honeywell MU-KFCS02 or equivalent engineer workstation connection is required for any configuration download or point verification activity. Ensure that the engineering workstation running Control Builder has the correct software version aligned with the HPM firmware revision installed in the target cabinet.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern when replacing a module in a live process control environment. For the MC-TAIH04, the recommended approach is to pre-configure a spare module offline — loading the correct I/O point configuration, verifying channel assignments, and confirming signal range settings — before the scheduled maintenance window begins. This preparation reduces the in-cabinet replacement time to a slot swap and a brief online verification sequence.

Where the process cannot tolerate even a brief interruption to analog input monitoring, a parallel wiring strategy can be employed: the replacement MC-TAIH04 is installed in an adjacent available slot, field signals are temporarily cross-wired to the new module, and the control strategy is updated to reference the new slot address before the original module is removed. This approach maintains measurement continuity throughout the transition and eliminates the risk of process upsets caused by loss of critical analog inputs such as temperature, pressure, or flow signals.

Original program logic — including PID tuning parameters, alarm setpoints, and engineering unit scaling — must be preserved and verified against the as-built control narrative before the replacement module is declared operational. A structured pre-return-to-service checklist should confirm that all analog input tags are reading correctly in the Experion Station or GUS operator display, that historian data collection has resumed, and that no spurious alarms have been generated by the module replacement activity.

Post-replacement, a 24-hour monitoring period is recommended to confirm stable signal quality across all four input channels of the MC-TAIH04. Any drift or noise observed during this period should be investigated at the field wiring level before attributing the issue to the replacement module itself.

Retrofit Support FAQ

Q1: Is the MC-TAIH04 (51305900-175) a direct drop-in replacement for the original installed module?
Yes. The MC-TAIH04 with P/N 51305900-175 is a direct form-fit-function replacement for the original Honeywell analog input module of the same part number. No mechanical modification to the backplane or cabinet is required. Configuration must be verified and re-loaded if the replacement module’s internal memory has been cleared.

Q2: What pre-shipment testing is performed on the MC-TAIH04?
Each MC-TAIH04 unit supplied by NINERMAS undergoes a functional verification test prior to shipment, confirming channel integrity, backplane interface communication, and signal acquisition performance. A test report is available upon request. All units are covered by a 12-month warranty against manufacturing defects from the date of shipment.

Q3: Can the MC-TAIH04 be used in an Experion PKS migration alongside legacy TDC-3000 hardware?
Yes. The MC-TAIH04 is compatible with the hybrid TDC-3000 / Experion PKS architecture commonly used during phased migration projects. It continues to operate within the HPM or PM controller environment while the broader migration to Experion C300 or other modern controllers proceeds in parallel. Confirm UCN and FTE network configuration with your Honeywell system integrator during the migration planning phase.

Q4: What is the typical lead time and stock availability for the MC-TAIH04 51305900-175?
NINERMAS maintains inventory of the MC-TAIH04 (51305900-175) to support urgent replacement and planned maintenance requirements. Standard orders are processed and shipped within 3–7 business days. For large-quantity or project-based procurement, contact our sales team to confirm availability and arrange priority allocation. All units are supplied with a 12-month warranty and full traceability documentation.
