HONEYWELL MC-IOLX02 Retrofit-Compatible I/O Link Extender for Legacy Systems

HONEYWELL MC-IOLX02 Retrofit-Compatible I/O Link Extender for Legacy Systems

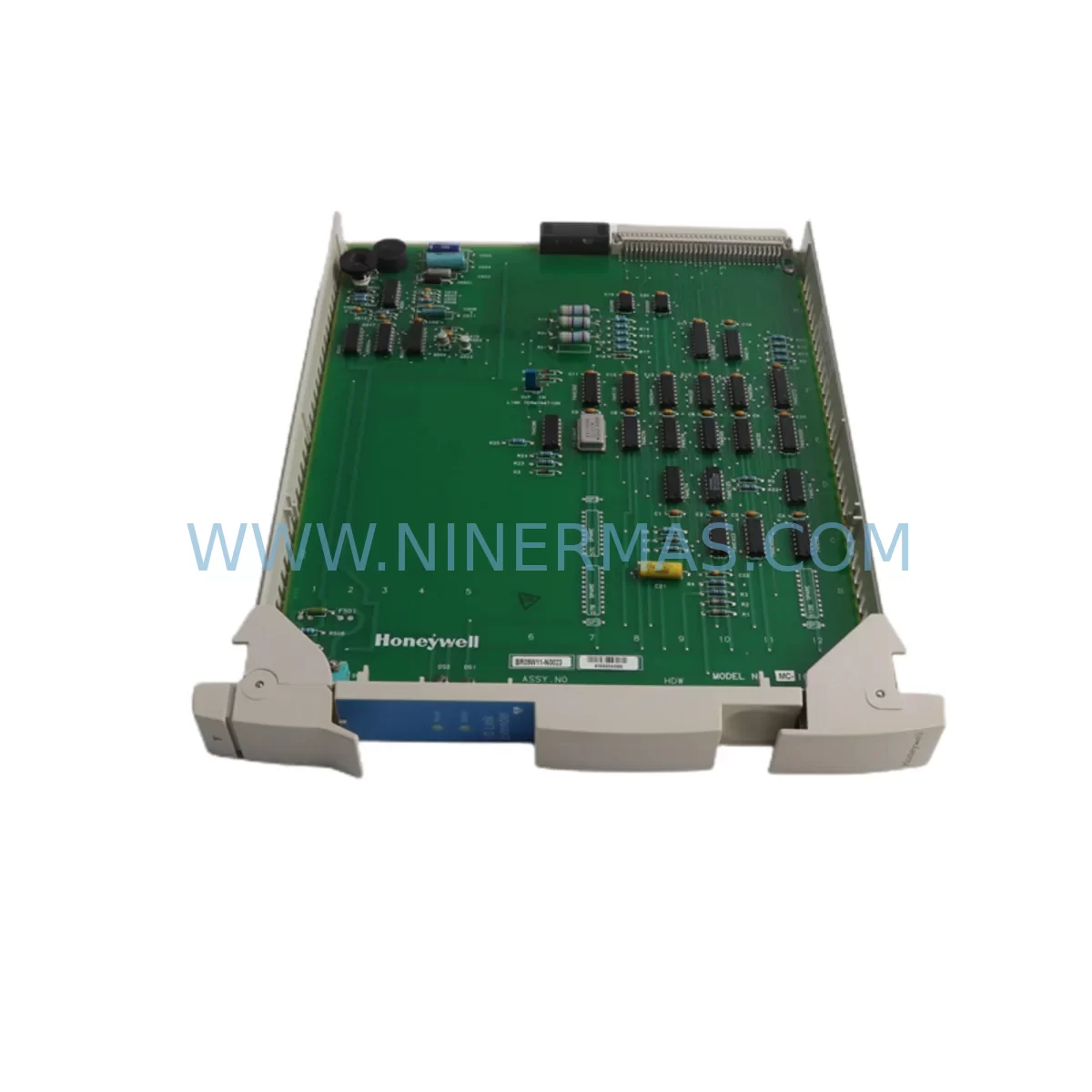

The HONEYWELL MC-IOLX02 (full SKU: 51304419-150) is a ruggedized I/O Link Extender engineered for demanding industrial environments. As legacy Honeywell process control systems reach end-of-life and spare parts become increasingly scarce, the MC-IOLX02 has become a critical component in retrofit projects, discontinued model replacements, and control cabinet upgrades across oil & gas, chemical processing, power generation, and manufacturing sectors.

NINERMAS maintains verified stock of the MC-IOLX02 with full pre-shipment testing and a 12-month warranty, making it a reliable source for maintenance teams managing aging automation infrastructure.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

When integrating the MC-IOLX02 into an existing control architecture, engineers must approach the project with a structured retrofit plan that accounts for every layer of the automation stack. The I/O Link Extender sits at the intersection of the controller backplane and the remote I/O subsystem, meaning that any change to this module can have cascading effects on signal routing, module addressing, and process data integrity.

Before removing the legacy unit, maintenance teams should document the full terminal wiring layout. The MC-IOLX02 connects to field instruments through a defined terminal block arrangement, and any deviation during reinstallation can result in signal inversion, open-circuit faults, or incorrect process variable readings. Cross-referencing the existing wiring against the Honeywell I/O Link wiring diagram is essential before the first terminal is disconnected.

Power supply capacity is another critical checkpoint. The Honeywell MC-PDIX01 Power Distribution Module or equivalent power conditioning unit feeding the I/O rack must be verified to support the current draw of the replacement MC-IOLX02 alongside any co-installed modules such as the MC-TAIX02 Analog Input Termination Assembly or MC-TAOX02 Analog Output Termination Assembly. Overloading the power rail during a retrofit is a common cause of post-commissioning instability.

Backplane slot assignment and module addressing must be confirmed against the existing controller configuration. In Honeywell Experion PKS and legacy TDC 3000 environments, the I/O Link Extender occupies a defined slot position that is referenced in the controller’s I/O configuration database. If the replacement module is installed in a different slot or if the rack address has shifted due to hardware changes, the controller will fail to recognize the module and generate a hardware fault alarm. The Honeywell C300 Controller or C200E Controller, depending on the platform generation, must have its I/O configuration updated to reflect any addressing changes before the system is brought back online.

Communication link integrity between the MC-IOLX02 and the upstream controller should be validated using the Honeywell system diagnostic tools. In environments where the I/O Link cable runs have been extended or rerouted during a control cabinet upgrade, signal attenuation and impedance mismatch can degrade communication reliability. Verifying cable specifications and termination resistance values before energizing the system prevents intermittent communication faults that are difficult to diagnose under live plant conditions.

For sites migrating from older TDC 3000 hardware to Experion PKS, the MC-IOLX02 may serve as a bridge component during a phased migration. In this scenario, the extender allows legacy I/O modules such as the MC-TAIH02 High-Level Analog Input Module or MC-TDIY22 Digital I/O Module to remain in service while the upstream controller platform is upgraded. This approach significantly reduces the scope of a single outage window and allows engineering teams to validate each I/O subsystem independently before full cutover.

HMI screen verification is a step that is frequently underestimated in retrofit projects. After the MC-IOLX02 is installed and the controller configuration is updated, every process display that references tags sourced from the affected I/O rack must be checked for correct value display, alarm setpoint integrity, and trend data continuity. In Honeywell Experion environments, the Experion Station HMI tag database should be audited to confirm that no orphaned or misrouted tags remain from the legacy configuration.

Where the retrofit involves I/O expansion — for example, adding new field instruments to an existing rack — the MC-IOLX02’s channel capacity and the available backplane slots in the Honeywell MC-RACK Chassis must be assessed. Installing a MC-PAIH03 Analog Input Module or additional digital I/O cards alongside the extender requires confirming that the rack’s total power budget and backplane bandwidth are not exceeded. A signal isolator such as a Pepperl+Fuchs KFD2-STC4-Ex1 Signal Conditioner may also be required when integrating new HART-enabled field devices into the legacy I/O bus.

Programming cable compatibility is a final but important consideration. During commissioning, technicians may need to connect a laptop directly to the controller or I/O module for firmware verification or configuration download. Confirming that the correct Honeywell MC-KFCI01 Programming Cable or equivalent interface adapter is available on-site before the maintenance window begins prevents unnecessary delays during a time-critical cutover.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern when replacing the MC-IOLX02 in a live production environment. A well-executed hot-swap or planned outage strategy begins with a complete backup of the controller program, I/O configuration database, and HMI tag definitions before any hardware is touched. In Honeywell Experion PKS environments, the Control Builder application should be used to export the full controller configuration, including all I/O module assignments, function block connections, and alarm parameters, to a secure backup location.

Where process conditions allow, a partial shutdown strategy can be employed. By isolating only the I/O rack containing the MC-IOLX02 while keeping adjacent racks and controllers online, the impact on overall plant operations can be contained to a defined process section. Field instruments connected to the affected rack should be placed in manual control mode at the DCS level before the module is removed, ensuring that control loops do not respond to spurious signals during the hardware swap.

After the replacement MC-IOLX02 is installed and the rack is re-energized, a structured loop check sequence should be performed before returning any control loops to automatic mode. This includes verifying analog input signal levels against field transmitter readings, confirming digital output states against field device positions, and checking that all communication links between the extender and the upstream controller are established without fault. Only after a clean loop check should the process be returned to automatic control and the maintenance window formally closed.

NINERMAS performs pre-shipment functional testing on all MC-IOLX02 units to confirm that the module powers up correctly, communication interfaces are active, and no internal faults are present before dispatch. This reduces the risk of receiving a defective unit and eliminates one variable from the commissioning process. All units are shipped with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Retrofit Support FAQ

Q: Is the HONEYWELL MC-IOLX02 (51304419-150) a direct drop-in replacement for the existing unit in my rack?
A: In most cases, yes. The MC-IOLX02 is designed to occupy the same backplane slot and use the same terminal wiring as the original unit. However, customers should verify the firmware revision of the replacement module against the controller’s compatibility matrix, particularly in mixed-generation Experion PKS or TDC 3000 environments, before installation.

Q: What commissioning steps are required after installing the MC-IOLX02?
A: After physical installation, the controller I/O configuration should be verified to confirm the module is recognized at the correct rack address. A full loop check covering all analog and digital channels connected through the extender is recommended before returning control loops to automatic mode. HMI tag values should also be verified against field instrument readings to confirm correct signal routing.

Q: Can the MC-IOLX02 be used during a phased migration from TDC 3000 to Experion PKS?
A: Yes. The MC-IOLX02 is commonly used as a bridge component in phased migration projects, allowing legacy I/O modules to remain in service while the upstream controller platform is upgraded. This approach reduces the scope of individual outage windows and allows each I/O subsystem to be validated independently before full platform cutover.

Q: What warranty and stock availability does NINERMAS offer for the MC-IOLX02?
A: NINERMAS maintains verified in-stock inventory of the MC-IOLX02 with pre-shipment functional testing on every unit. All units are covered by a 12-month warranty against manufacturing defects and functional failures. Typical lead time is 3–5 business days from order confirmation. Contact our team at sale@ninermas.com or +0086 187 5021 5667 for availability and pricing.
