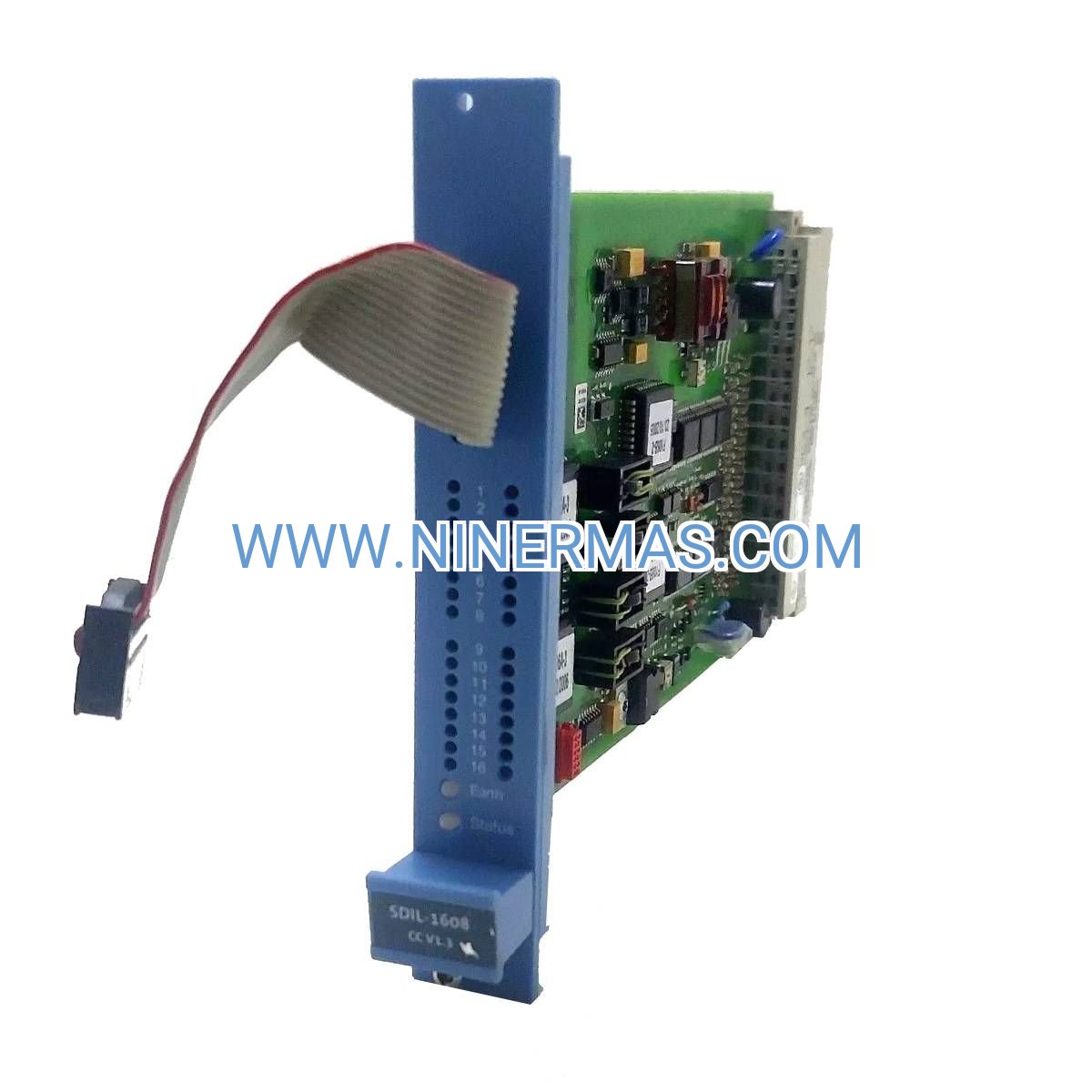

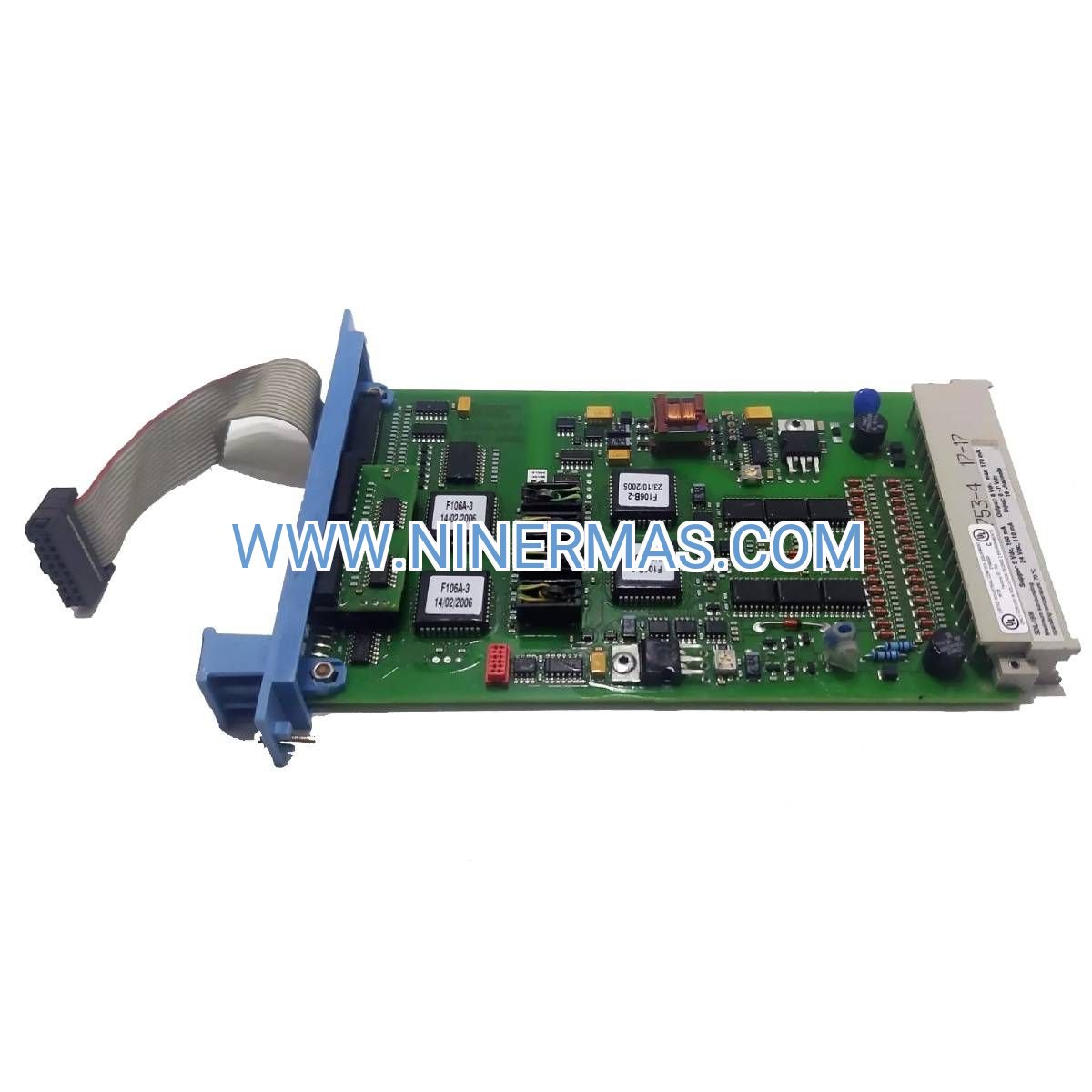

FS-SDIL-1608 Digital Safety Input Module (Industrial-Grade 16-Channel FSC Platform)

The FS-SDIL-1608 represents Honeywell's advanced safety I/O technology for Fail-Safe Control (FSC) architectures, delivering 16 independent digital input channels engineered for mission-critical safety instrumented systems. Designed for oil & gas, chemical processing, power generation, and heavy manufacturing environments, this module ensures reliable signal acquisition in emergency shutdown (ESD), fire & gas detection, and burner management applications where system integrity directly impacts personnel safety and asset protection.

Built to withstand extreme industrial conditions from -40°C to +70°C, the FS-SDIL-1608 combines dual-power architecture (5V logic / 24V field) with comprehensive diagnostic capabilities to maintain operational visibility across all 16 channels. Its SIL 3 certification and compliance with TUV, UL, CSA, and FM standards make it the preferred choice for safety-critical installations requiring proven reliability and regulatory compliance.

Whether you're upgrading legacy safety systems, expanding existing FSC platforms, or designing new safety instrumented systems, the FS-SDIL-1608 delivers the performance, certification, and integration flexibility demanded by modern industrial safety applications. Contact our technical team to configure your complete safety I/O solution.

Core Capabilities & Business Value

→ SIL 3 Safety Integrity Certification
Meets IEC 61508 SIL 3 requirements with full TUV, UL, CSA, and FM approval, enabling deployment in the most demanding safety instrumented systems while satisfying regulatory compliance mandates and reducing liability exposure.

→ 16 Independent Monitoring Channels
Provides comprehensive digital signal acquisition for complex safety logic applications, reducing cabinet footprint by 40% compared to 8-channel alternatives while maintaining complete channel isolation and diagnostic independence.

→ Dual-Power Isolation Architecture
Separate 5V DC logic (160mA) and 24V DC field (110mA) power rails ensure signal integrity, eliminate ground loop interference, and protect control circuitry from field-side electrical disturbances—critical for maintaining safety function availability above 99.9%.

→ Extended Temperature Performance
Operates reliably across -40°C to +70°C ambient range without derating, supporting installations in unheated enclosures, outdoor cabinets, and high-temperature process areas where conventional I/O modules fail or require costly environmental controls.

✓ Hot-Swap Capability in Redundant Systems
Enables online module replacement without safety system shutdown in redundant FSC configurations, reducing planned maintenance downtime by 75% and eliminating costly production interruptions during routine hardware servicing.

✓ Channel-Level LED Diagnostics
Real-time visual status indication for each input simplifies commissioning, accelerates fault isolation during troubleshooting, and reduces mean time to repair (MTTR) by providing immediate visibility into channel health without engineering software access.

Industrial Application Scenarios

Emergency Shutdown Systems (ESD) – Oil & Gas Production
Monitor critical field devices including emergency stop pushbuttons, high-level switches, pressure safety switches, and flame detectors across wellhead platforms, separation facilities, and pipeline compressor stations. The FS-SDIL-1608 processes permissive signals that govern automated shutdown sequences, preventing overpressure events, fire escalation, and environmental releases. Typical installations monitor 12-16 discrete safety devices per module, with redundant configurations providing 2oo3 voting logic for maximum availability.

Fire & Gas Detection Networks – Petrochemical Facilities
Interface with UV/IR flame detectors, combustible gas sensors, toxic gas monitors, and manual call points to create comprehensive hazard detection matrices. The module's fast scan time (typically <10ms) ensures rapid detection-to-action response, while its SIL 3 rating supports integration into safety instrumented functions (SIF) with target risk reduction factors exceeding 1000:1. Deploy alongside zone isolation valves and deluge systems for complete fire protection architectures.

Burner Management Systems (BMS) – Power Generation
Acquire permissive signals from flame scanners, air flow proving switches, fuel valve limit switches, and purge confirmation devices in boiler and gas turbine applications. The FS-SDIL-1608 enforces safe start sequences, monitors flame stability during operation, and initiates fuel trip actions upon unsafe conditions—preventing furnace explosions and protecting multi-million dollar generation assets. Typical BMS applications utilize 2-3 modules per burner train.

Process Safety Interlocks – Chemical Manufacturing
Monitor reactor temperature switches, agitator motor status contacts, emergency vent valve positions, and batch sequencing permissives in exothermic reaction control, distillation column protection, and batch polymerization systems. The module's diagnostic capabilities detect wiring faults and sensor failures before they compromise safety function performance, supporting proof test intervals up to 24 months in well-designed systems.

Technical Parameters & Selection Guide

Selection Criteria: Choose the FS-SDIL-1608 when your application requires SIL 3 capability, 16 or fewer digital inputs per safety function, and integration with existing FSC platforms. For applications requiring 8 channels or fewer, consider cost-optimized 8-channel variants. For analog safety signals, pair with FS-series analog input modules. Always verify compatibility with your FSC controller firmware revision before ordering.

Advanced Integration & Customization Options

Redundant System Architectures: Deploy FS-SDIL-1608 modules in dual or triple redundant configurations (1oo2, 2oo3 voting) to achieve availability targets exceeding 99.99% for critical safety functions. Redundant modules share field wiring through voting circuits and provide automatic failover without spurious trips.

Intrinsically Safe Barriers: When monitoring field devices in hazardous classified areas (Class I Div 1, Zone 0/1), interface the FS-SDIL-1608 through certified intrinsically safe barriers such as MTL, Pepperl+Fuchs, or Honeywell MTL4000 series isolators to maintain area classification integrity.

Legacy System Migration: The FS-SDIL-1608 supports phased migration from older TDC 3000 and legacy safety systems through FSC gateway modules, enabling gradual modernization without complete system replacement—reducing project risk and capital expenditure.

SCADA Integration: FSC systems communicate with plant SCADA and DCS platforms via OPC, Modbus TCP, or proprietary protocols, allowing safety system status monitoring and alarm annunciation at operator workstations while maintaining complete functional separation per IEC 61511 requirements.

Delivery Timeline & Service Commitment

Standard Delivery: 5-7 business days for in-stock modules via express courier (DHL, FedEx, UPS) with full tracking visibility. Expedited 2-3 day delivery available for urgent requirements at additional cost.

Custom Configuration: Factory-configured modules with pre-loaded application programs available with 10-15 business day lead time. Contact our engineering team for configuration service details.

Warranty Coverage: Comprehensive 12-month warranty covering manufacturing defects, component failures, and workmanship issues. Warranty includes advance replacement service to minimize downtime during any warranty claim resolution.

Technical Support: Unlimited access to our FSC-certified technical support team for installation guidance, configuration assistance, and troubleshooting support. Phone, email, and remote desktop support available during business hours with emergency after-hours contact for critical issues.

Documentation Package: Each module ships with installation quick-start guide, wiring diagrams, and safety manual excerpts. Complete technical manuals, configuration software, and certification documents available for download from our technical library.

Frequently Asked Questions

What safety integrity level does the FS-SDIL-1608 support in certified applications?
The module is certified for use in Safety Instrumented Functions (SIF) up to SIL 3 per IEC 61508 when properly configured, installed, and maintained according to Honeywell's safety manual requirements. Actual SIF integrity level depends on complete loop design including sensors, logic solver, and final elements.

Can I replace this module during system operation without causing a safety trip?
In redundant FSC configurations (1oo2 or 2oo3), the FS-SDIL-1608 supports hot-swap replacement without safety system shutdown or spurious trip generation. Single-channel systems require controlled shutdown for module replacement. Always follow site-specific lockout/tagout procedures.

What input voltage range and signal types are compatible with this module?
The FS-SDIL-1608 accepts 24V DC nominal field signals with typical tolerance of ±20% (19.2V to 28.8V). Both dry contact (switch closure) and wet contact (sourcing/sinking) input types are supported. Consult technical manual for exact threshold voltages and current requirements.

Is the FS-SDIL-1608 backward compatible with older FSC controller generations?
Compatibility depends on FSC controller model and firmware revision. Most current FSC platforms support the FS-SDIL-1608, but legacy systems may require controller firmware updates. Contact our technical team with your specific controller model for compatibility verification before ordering.

What diagnostic features help identify wiring problems or sensor failures?
Each channel provides LED status indication (on/off/fault), and the FSC engineering interface reports comprehensive diagnostics including wire break detection, short circuit detection, power supply status, and communication health. Diagnostic coverage exceeds 95% per IEC 61508 requirements.

How does this module compare to competitive safety input modules from other vendors?
The FS-SDIL-1608 offers comparable SIL 3 certification to modules from HIMA, Triconex, and Yokogawa, with advantages in FSC ecosystem integration, hot-swap capability, and channel density. Selection should prioritize compatibility with your existing safety platform and long-term vendor support strategy.

Quality Verification & Authenticity Guarantee

Every FS-SDIL-1608 module supplied by Industrial Control Hub undergoes multi-point quality verification to ensure authentic Honeywell manufacturing, complete certification documentation, and full compliance with published specifications. Our quality process includes:

• Visual inspection for counterfeit indicators and packaging integrity
• Serial number verification against Honeywell factory databases
• Electrical continuity and power-on self-test validation
• Certification document authentication and traceability confirmation
• ESD-protected handling and climate-controlled storage throughout our facility

We maintain complete chain-of-custody documentation and provide certificate of conformance with every shipment. Our 12-month warranty backs our commitment to delivering genuine, factory-fresh modules that meet or exceed your performance expectations.

Request Your Quote Today

Secure your critical safety system infrastructure with genuine Honeywell FS-SDIL-1608 digital input modules from Industrial Control Hub. Our technical sales team is ready to assist with:

• Application-specific configuration recommendations
• Volume pricing for multi-module projects
• Expedited delivery coordination for urgent requirements
• Technical compatibility verification with your existing systems
• Complete safety I/O solution design and quotation

Contact us today to discuss your safety system requirements and receive a detailed quotation within 24 hours.
