Honeywell FS-SAO-0220m Service-Ready Spare Part

Honeywell FS-SAO-0220m Service-Ready Spare Part for Industrial Maintenance

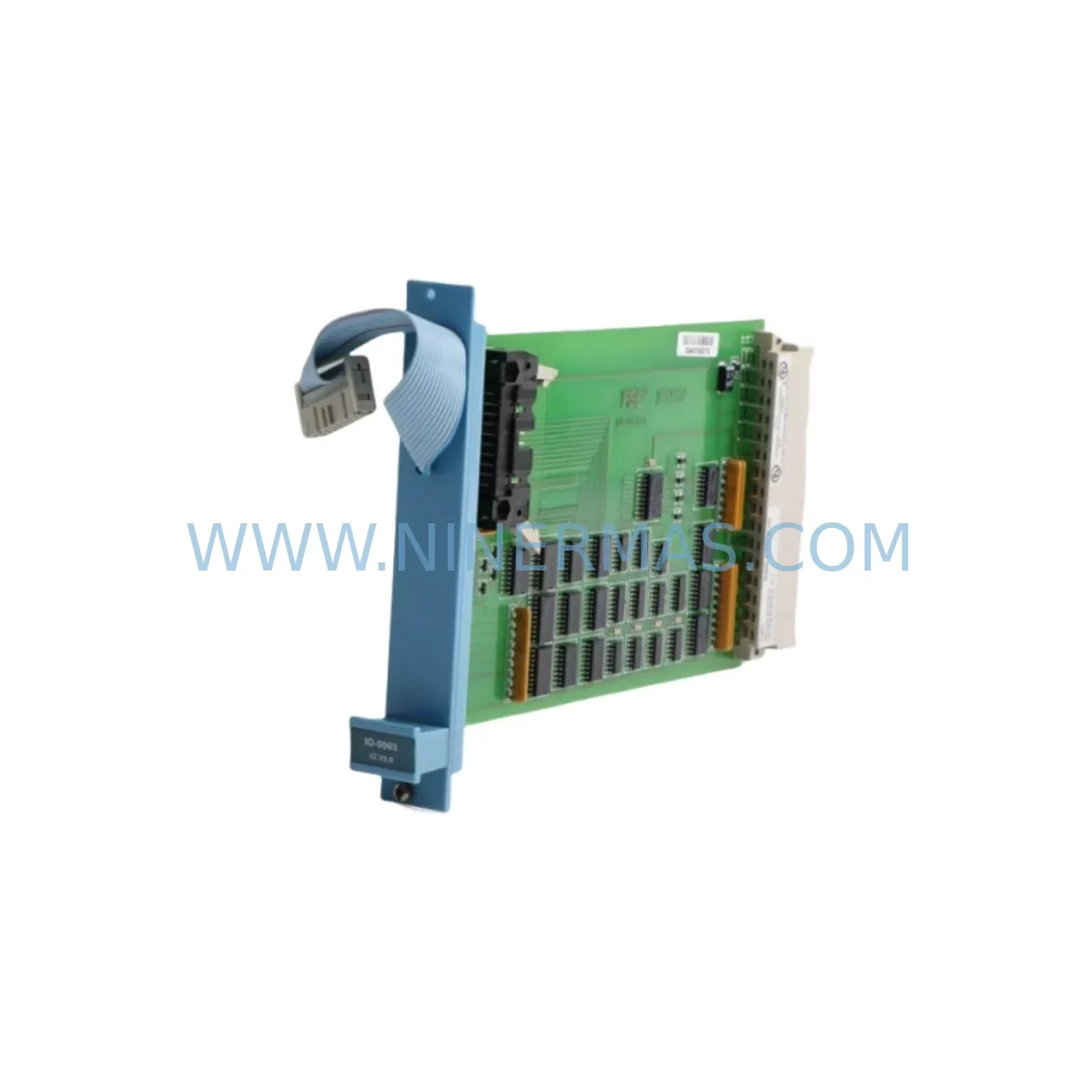

The Honeywell FS-SAO-0220m is a safety-rated analog output module designed for use within the Honeywell FSC (Fail-Safe Controller) and Safety Manager platform — one of the most widely deployed safety instrumented systems (SIS) in the global process industry. Serving as a critical interface between the safety logic solver and field actuators, the FS-SAO-0220m delivers 4–20 mA analog output signals to control valves, positioners, and variable-speed drives in safety loops that demand IEC 61508 and IEC 61511 compliance.

For maintenance engineers managing continuous production assets in petrochemical plants, LNG terminals, offshore platforms, power generation facilities, and water treatment stations, the FS-SAO-0220m is a non-negotiable spare. When this module fails or degrades, the safety loop it governs may be forced into a safe state — triggering a process shutdown that can cost tens of thousands of dollars per hour. Holding a verified, pre-tested replacement unit in your on-site spare parts inventory is the most direct way to minimize mean time to repair (MTTR) and restore production safely.

NINERMAS maintains ready stock of the FS-SAO-0220m with full pre-shipment functional testing and a 12-month warranty, ensuring that when your maintenance team needs this module, it ships immediately — not weeks later after a factory lead time.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the FS-SAO-0220m in a live FSC or Safety Manager cabinet is rarely an isolated task. A disciplined maintenance engineer will treat this replacement as an opportunity to inspect the entire safety loop and associated infrastructure. During the replacement window, the following components should be verified for condition, calibration, and connectivity:

The FS-SAI-0220m (Safety Analog Input module) is the logical counterpart to the FS-SAO-0220m and is often installed in the same rack. If the analog output module has experienced a fault, the input module on the same loop should be checked for signal drift or degraded channel performance. Similarly, the FS-CPU (FSC Central Processing Unit) should be confirmed to be running the correct application version and that no diagnostic flags have been latched from the output module fault.

The FS-DO-0808m (Safety Digital Output module) and FS-DI-0808m (Safety Digital Input module) are frequently co-located in the same FSC rack and share the same 24 VDC backplane power rail. A power anomaly that caused the FS-SAO-0220m to fail may have also stressed these modules — inspect their LED status indicators and run a channel-by-channel diagnostic from the Safety Manager engineering workstation.

The FS-PSU (FSC Power Supply Unit) is a critical component to inspect during any module replacement. A degraded or aging power supply can produce voltage ripple that causes intermittent analog output errors, which are often misdiagnosed as module failures. Verify output voltage stability under load before reinstalling the new FS-SAO-0220m.

Field wiring termination should be inspected at the FS-TB (terminal block / marshalling panel) level. Loose terminals, corroded conductors, or incorrect shielding on the 4–20 mA loop wiring can cause the replacement module to exhibit the same fault symptoms as the original. Use a calibrated loop calibrator to verify the full 4–20 mA range before returning the loop to service.

If the FSC system communicates with a DCS or SCADA layer via Modbus RTU, PROFIBUS DP, or Ethernet/IP, verify that the communication module (such as the FS-COM or gateway interface) is correctly reporting the analog output channel status after replacement. A misconfigured address or protocol timeout can mask a successful hardware replacement.

For sites running redundant FSC configurations, the FS-BM (Bus Module / backplane interconnect) should be inspected to confirm that the redundant path is active and that the replacement module has been correctly recognized by both CPUs. Redundancy switchover testing should be performed after any module replacement in a safety-critical rack.

Finally, consider stocking the FS-SAO-0220m alongside the FS-SAI-0220m, FS-DO-0808m, and FS-PSU as a coordinated spare kit. This approach — recommended by IEC 61511 Part 1 for SIS maintenance — ensures that a single procurement event covers the most failure-prone components in the safety loop, reducing the risk of a second unplanned shutdown during the same maintenance cycle.

Site Replacement Workflow

Step 1 — Pre-Replacement Authorization: Obtain a Management of Change (MOC) permit and confirm with the control room that the affected safety loop can be bypassed or placed in manual override for the duration of the replacement. Document the current module firmware version and channel configuration from the Safety Manager engineering station.

Step 2 — Isolation and De-energization: Isolate the 4–20 mA field loop at the marshalling panel. Confirm zero energy state using a calibrated multimeter. Do not rely solely on the FSC diagnostic display — verify at the terminal block level.

Step 3 — Module Extraction: Release the module locking mechanism on the FSC rack. Slide the FS-SAO-0220m out of its backplane slot. Inspect the backplane connector pins for corrosion, bent contacts, or debris. Clean with isopropyl alcohol if necessary before inserting the replacement unit.

Step 4 — Replacement Installation: Insert the new FS-SAO-0220m into the correct rack slot. Confirm the module address DIP switch or configuration matches the original unit. Power up and observe the module’s self-test LED sequence — a solid green status LED indicates successful initialization.

Step 5 — Loop Verification: Using a loop calibrator, inject 4 mA, 12 mA, and 20 mA reference signals and confirm that the Safety Manager engineering station displays the correct engineering unit values. Verify that the field actuator (control valve or positioner) responds correctly across the full output range.

Step 6 — Return to Service: Remove the bypass, restore the safety loop to automatic mode, and confirm that no diagnostic alarms are active in the Safety Manager. Update the maintenance log with the replacement date, module serial number, and test results. File the 12-month warranty documentation from NINERMAS for future reference.

Spare Parts Support FAQ

Q1: Does the FS-SAO-0220m come with a warranty, and what does it cover?
Yes. Every FS-SAO-0220m supplied by NINERMAS carries a 12-month warranty from the date of shipment. The warranty covers functional failure under normal operating conditions and includes return-and-replace support. Each unit undergoes pre-shipment functional testing to verify analog output accuracy, self-diagnostic operation, and backplane communication before dispatch.

Q2: How do I confirm compatibility with my existing FSC or Safety Manager system?
The FS-SAO-0220m is compatible with Honeywell FSC racks and Safety Manager SM platforms that support the standard FSC I/O bus. Compatibility depends on your rack generation and CPU firmware version. Share your system configuration details with our technical team at sale@ninermas.com and we will confirm compatibility before shipment. We recommend cross-referencing the module’s hardware revision with your FSC system documentation.

Q3: What is your typical lead time, and can you support emergency orders?
NINERMAS maintains in-stock inventory of the FS-SAO-0220m for immediate dispatch. Standard orders ship within 1–3 business days. For emergency plant shutdowns or critical safety loop failures, contact us directly at +0086 187 5021 5667 to arrange priority processing and expedited freight. We support global shipping to petrochemical, power, and process industry sites worldwide.

Q4: Can NINERMAS guarantee long-term supply of the FS-SAO-0220m as it approaches end-of-life?
Yes. NINERMAS specializes in long-term supply of legacy and end-of-life industrial automation components. We maintain reserved inventory agreements and source from verified supply channels to ensure continued availability of the FS-SAO-0220m beyond the OEM’s standard product lifecycle. We recommend that maintenance and procurement teams contact us to discuss annual blanket orders or reserved stock arrangements to protect against future supply disruptions.
