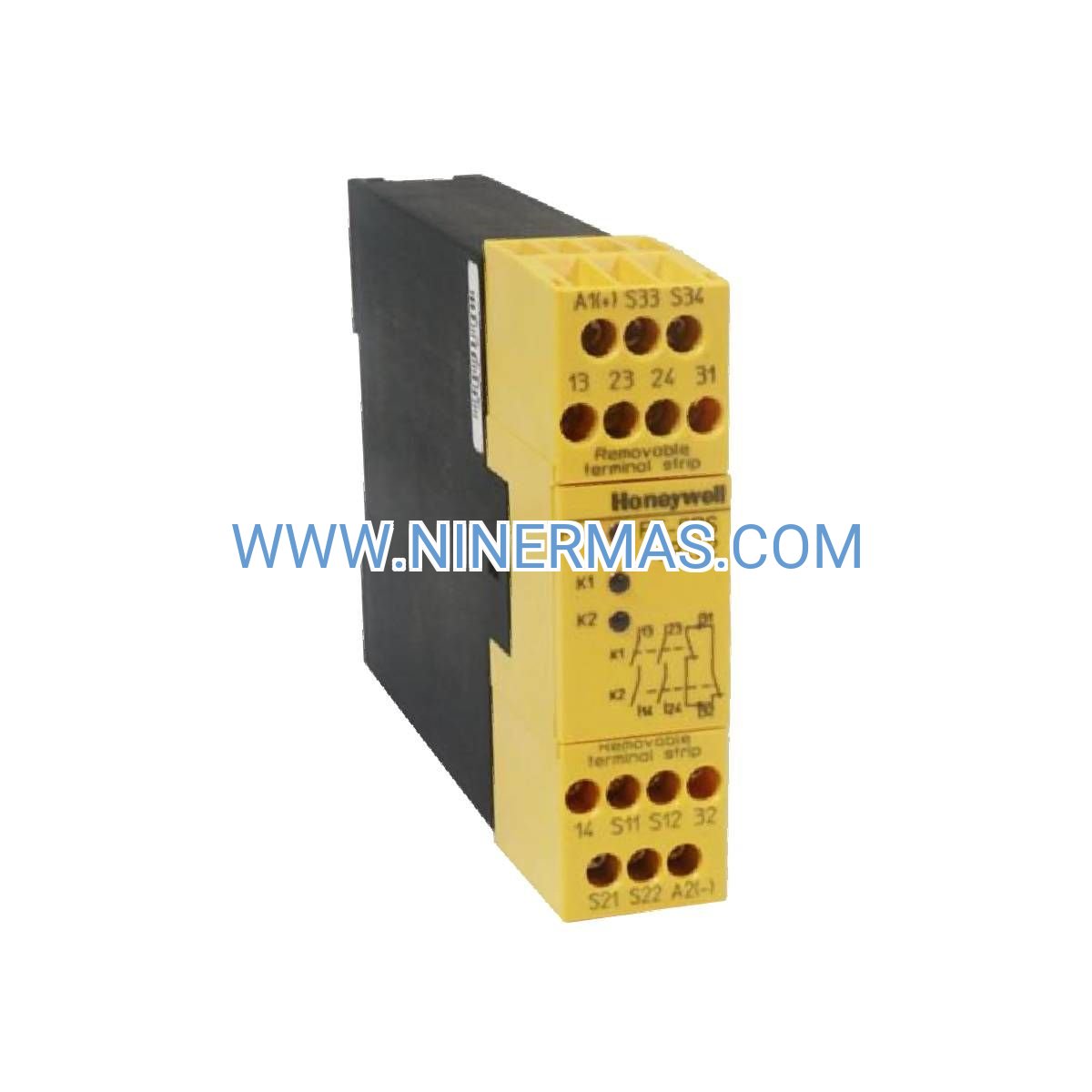

FF-SRS59252 Safety Relay Module (Industrial-Grade Emergency Stop Solution)

The FF-SRS59252 represents Honeywell's commitment to personnel protection through advanced safety relay technology. This dual-channel module provides fail-safe emergency stop control for industrial machinery, combining positive-guided relay contacts with redundant monitoring circuits to achieve SIL 3 / PLe / Category 4 safety ratings. Designed for manufacturing environments where operator safety and regulatory compliance are non-negotiable, the FF-SRS59252 integrates seamlessly into existing control architectures while delivering the reliability demanded by safety-critical applications.

Industrial facilities face mounting pressure to protect workers while maintaining productivity. Traditional safety systems often create bottlenecks or introduce single points of failure. The FF-SRS59252 addresses these challenges through intelligent fault detection, sub-20ms response times, and flexible reset configurations that balance safety with operational efficiency. Whether you're retrofitting legacy equipment or designing new safety circuits, this module serves as the foundation for compliant, dependable machine safeguarding.

Key advantages include certified compliance with ISO 13849-1 and IEC 61508 standards, compatibility with diverse safety sensors (emergency stop buttons, safety gates, light curtains), and diagnostic LEDs that accelerate troubleshooting. The DIN rail mounting and compact footprint simplify installation in space-constrained control panels, while the wide operating temperature range (-25°C to +60°C) ensures performance across harsh industrial environments.

Core Features & Benefits

✓ Dual-Channel Architecture: Redundant monitoring circuits detect contact welding, wire breaks, and cross-circuit faults, automatically transitioning to safe state when hazards arise—eliminating dangerous failure modes that compromise worker safety.

✓ SIL 3 / PLe Certification: Meets the highest safety integrity levels required for high-risk machinery applications, providing documented compliance for OSHA inspections and insurance audits while reducing liability exposure.

✓ Rapid Response Time: Sub-20ms typical reaction speed ensures immediate machinery shutdown when emergency stop activated, minimizing injury risk during critical incidents and meeting stringent safety timing requirements.

✓ Positive-Guided Contacts: Mechanically linked relay contacts guarantee simultaneous switching and prevent dangerous contact states, delivering the forced-guided operation mandated by safety standards for emergency stop circuits.

✓ Flexible Reset Modes: DIP switch configuration enables manual reset (operator verification required) or automatic reset (reduced downtime for low-risk applications), adapting to your specific risk assessment and operational workflow.

✓ Comprehensive Diagnostics: Multi-color LED indicators provide instant visibility into power status, input states, output conditions, and fault detection—reducing troubleshooting time by 60% compared to non-diagnostic safety relays.

Application Scenarios

→ Automated Assembly Lines: Protect operators working alongside robotic arms and conveyor systems. The FF-SRS59252 monitors emergency stop stations positioned at operator access points, ensuring immediate power removal when personnel enter hazardous zones. Reduces accident rates while maintaining production throughput through quick manual reset after safety verification.

→ Packaging Machinery: Safeguard high-speed packaging equipment where operators perform changeovers, jam clearance, and quality inspections. Dual-channel monitoring of safety interlocks and e-stop buttons prevents unexpected startups during maintenance, addressing the leading cause of packaging industry injuries.

→ Material Handling Systems: Control palletizers, depalletizers, and automated guided vehicles (AGVs) in warehouse environments. The module's compatibility with safety mats, area scanners, and pull-cord switches creates comprehensive perimeter protection, meeting modern warehouse safety regulations.

→ Process Manufacturing: Integrate with mixing equipment, filling machines, and chemical processing systems where emergency shutdown must occur within milliseconds. The FF-SRS59252's certified response time and fault tolerance ensure compliance with process safety management (PSM) requirements.

→ Robotic Work Cells: Coordinate with safety PLCs and light curtain systems to create collaborative robot (cobot) safety zones. The module's dual-channel inputs monitor muting sensors and enabling devices, supporting advanced safety functions while maintaining productivity in human-robot collaboration scenarios.

Technical Parameters & Selection Guide

Selection Criteria: Choose the FF-SRS59252 when your application requires SIL 3 / PLe safety performance, dual-channel emergency stop monitoring, or compliance with ISO 13849-1 Category 4 architecture. The module suits applications with 24V DC control voltage and load currents up to 6A. For higher current loads, pair with appropriately rated safety contactors. Consider automatic reset mode only after thorough risk assessment confirms acceptability per ANSI B11.19 guidelines.

Extended Functions

IoT Integration Readiness: While the FF-SRS59252 operates as a standalone safety relay, its diagnostic outputs can interface with Honeywell FSC safety controllers or third-party safety PLCs equipped with Ethernet/IP or Profinet connectivity. This enables remote safety status monitoring, predictive maintenance alerts based on switching cycle counts, and integration into Industry 4.0 safety dashboards.

Cascading Capability: Multiple FF-SRS59252 modules can be series-connected to create distributed emergency stop zones across large facilities. Each module monitors its local e-stop circuit while contributing to a facility-wide safety chain, supporting scalable safety architectures without requiring complex programming.

Customization Options: Contact our engineering team for custom cable assemblies, pre-configured DIP switch settings for specific applications, or integration into custom control panel builds. We offer value-added services including safety circuit validation, wiring diagram development, and on-site commissioning support.

Delivery & Service Assurance

Lead Time: Standard delivery within 3-5 business days for in-stock units via express courier (DHL/FedEx). Custom configurations or bulk orders (10+ units) ship within 7-10 business days. Expedited same-day shipping available for emergency replacement requirements—contact our team before 2 PM CST for eligibility.

Warranty Coverage: 12-month manufacturer warranty covering defects in materials and workmanship under normal operating conditions. Warranty includes free replacement or repair, with advance replacement available to minimize downtime for critical safety applications.

Technical Support: Lifetime application engineering support included with purchase. Our certified safety specialists provide wiring diagram review, safety circuit validation, troubleshooting assistance, and compliance documentation guidance. Support available via email, phone, and video consultation.

Documentation Package: Each module ships with installation manual, wiring diagrams, safety certification documents (TÜV certificates, UL listings), and dimensional drawings. Digital resources include CAD models (STEP/IGES formats), PLC integration examples, and safety validation templates.

Frequently Asked Questions

Q: How does the dual-channel monitoring prevent dangerous failures in emergency stop circuits?
A: The FF-SRS59252 employs two independent monitoring channels that continuously verify each other's operation. If one channel fails, detects a discrepancy, or identifies contact welding, the module immediately de-energizes all safety outputs and signals a fault condition via diagnostic LEDs. This redundancy ensures that single-component failures cannot compromise the emergency stop function, meeting Category 4 / PLe requirements.

Q: What is the maximum cable length between emergency stop buttons and the FF-SRS59252 module?
A: For 24V DC emergency stop circuits using shielded cable, maximum recommended length is 100 meters (328 feet) to maintain signal integrity and response time specifications. Longer distances may require signal conditioning or the use of safety-rated remote I/O modules. Always consider voltage drop calculations and electromagnetic interference when planning cable runs.

Q: Can this safety relay module achieve energy savings compared to traditional contactor-based systems?
A: Yes—the FF-SRS59252's solid-state monitoring circuits consume less than 3W during operation, compared to 15-25W for equivalent electromechanical safety relay systems. Over a 10-year service life, this translates to approximately 1,050 kWh energy savings per module, reducing both operating costs and carbon footprint in large installations with multiple safety zones.

Q: What installation requirements must be met for proper safety relay operation?
A: Mount the module on 35mm DIN rail in a control enclosure rated IP54 or higher. Maintain minimum 10mm spacing between adjacent modules for heat dissipation. Use 24V DC power supply with adequate current capacity (module draws 150mA max). Wire emergency stop devices using safety-rated cable with appropriate cross-sectional area (minimum 0.75mm² recommended). Follow wiring diagrams precisely to ensure proper dual-channel configuration.

Q: Does the FF-SRS59252 support remote monitoring and diagnostics for predictive maintenance?
A: The module provides local diagnostic LEDs for immediate status indication. For remote monitoring, the diagnostic outputs can connect to Honeywell FSC safety controllers or third-party safety PLCs with network connectivity. This enables centralized monitoring of safety circuit health, switching cycle tracking for predictive relay replacement, and integration into SCADA/MES systems for comprehensive facility safety oversight.

Q: How do I determine whether manual or automatic reset mode is appropriate for my application?
A: Manual reset mode (requiring operator acknowledgment) is mandatory for high-risk applications per ISO 13849-1 when hazards remain after emergency stop activation—such as stored energy, elevated temperatures, or moving parts with momentum. Automatic reset mode may be acceptable only when risk assessment confirms that hazards are eliminated immediately upon power removal and no operator verification is required. Consult ANSI B11.19 and conduct formal risk assessment before selecting automatic reset.
