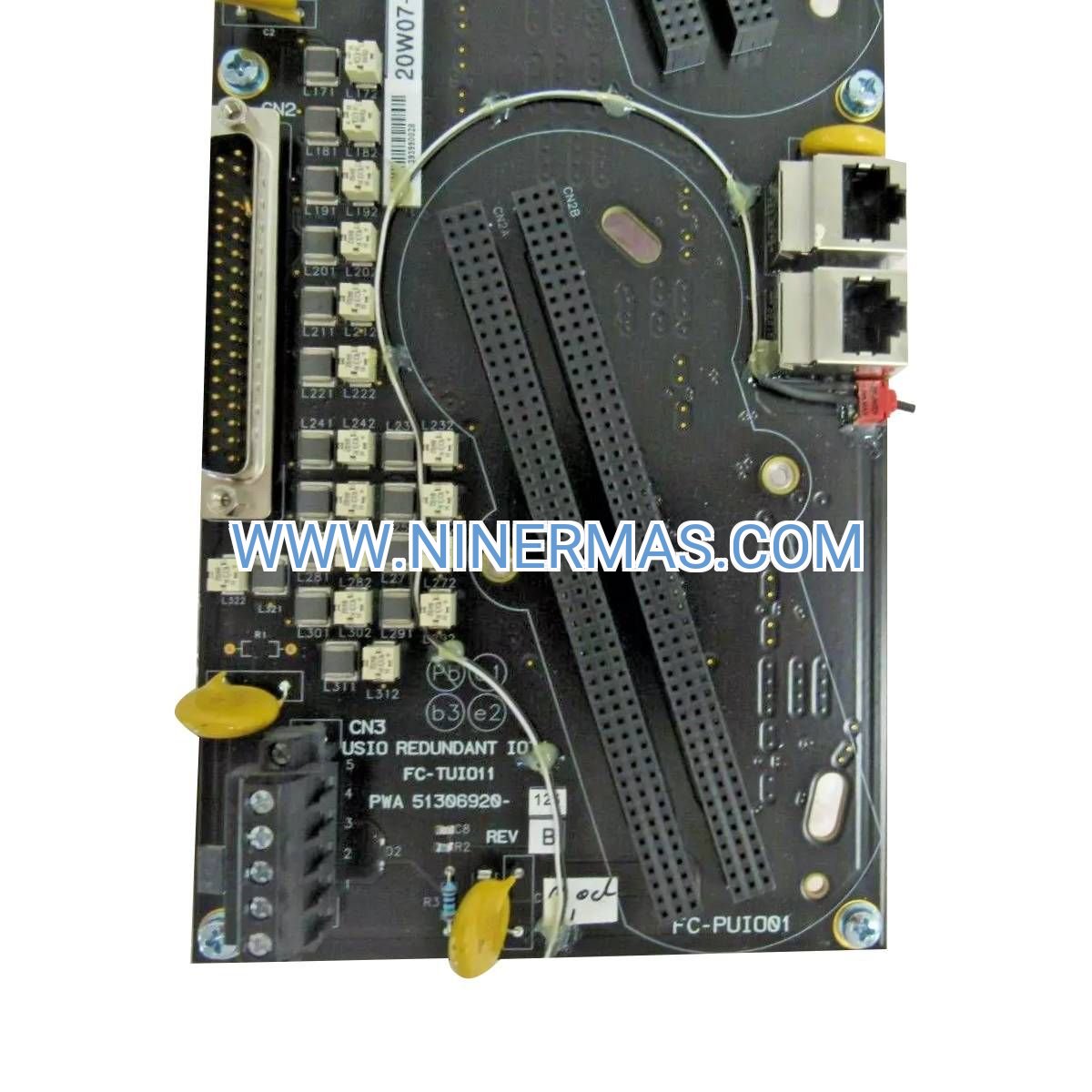

FC-TUIO11 Universal Safety I/O Module (Industrial-Grade SIL3 Interface)

The FC-TUIO11 represents a breakthrough in configurable safety I/O technology, engineered specifically for process industries demanding the highest levels of functional safety. This universal interface module combines SIL3-certified reliability with unprecedented channel flexibility, enabling safety engineers to deploy a single hardware platform across diverse emergency shutdown, fire & gas detection, and burner management applications.

Designed for seamless integration within Honeywell Safety Manager and Experion PKS ecosystems, the FC-TUIO11 eliminates the traditional compromise between I/O versatility and safety integrity. Each of its eight universal input channels can be independently configured for digital signals, 4-20mA analog loops, RTD temperature sensors, or thermocouple inputs—while maintaining full SIL3 certification across all operating modes. Four safety-rated output channels provide fail-safe control through either relay or solid-state switching, with comprehensive diagnostic coverage exceeding 99% to detect latent faults before they compromise system safety.

Process facilities worldwide rely on the FC-TUIO11 to protect personnel, assets, and the environment in applications where failure is not an option. With an MTBF exceeding 100 years, hot-swappable architecture for zero-downtime maintenance, and certifications spanning IEC 61508, ATEX, FM, and CSA standards, this module delivers the proven performance required for mission-critical safety instrumented systems.

Core Features & Benefits

→ Configurable Universal I/O Architecture
Each input channel adapts to your exact requirements—digital contact monitoring, analog process measurement, or temperature sensing—eliminating the need for multiple specialized modules and reducing spare parts inventory by up to 60%.

→ SIL3 Safety Integrity Certification
Achieve the highest safety integrity level for emergency shutdown systems, meeting IEC 61508 requirements with proven safe failure fraction >95% and hardware fault tolerance suitable for risk reduction factors exceeding 10,000.

→ Zero-Downtime Maintenance Capability
Hot-swap modules during live operation in redundant configurations, enabling preventive maintenance without process interruption—critical for continuous manufacturing environments where unplanned shutdowns cost $50,000+ per hour.

✓ Comprehensive Fault Detection
Advanced diagnostics continuously monitor signal integrity, power supply health, and internal circuitry, automatically reporting anomalies to the safety controller with >99% diagnostic coverage—far exceeding industry standards.

✓ Redundancy-Ready Design
Deploy in 1oo2 (one-out-of-two) or 2oo3 (two-out-of-three) voting configurations for applications requiring 99.99%+ availability, with automatic fault masking and seamless failover between redundant channels.

✓ Extreme Environment Resilience
Operate reliably across -40°C to +70°C temperature ranges with conformal coating protection against humidity, corrosive atmospheres, and vibration—ideal for offshore platforms, chemical plants, and outdoor installations.

Typical Application Scenarios

Petrochemical Emergency Shutdown Systems
In refinery crude distillation units, the FC-TUIO11 monitors critical parameters including reactor pressure, temperature, and level transmitters while controlling emergency isolation valves. When process variables exceed safe operating limits, the module executes coordinated shutdowns within 100ms, preventing runaway reactions and protecting downstream equipment valued at millions of dollars.

Offshore Platform Fire & Gas Detection
Oil and gas production facilities deploy FC-TUIO11 modules to interface with toxic gas sensors, flame detectors, and emergency shutdown valves across hazardous area zones. The module's SIL3 certification ensures regulatory compliance with API RP 14C and IEC 61511 standards, while its diagnostic capabilities reduce spurious trip rates by 40% compared to legacy systems.

Power Plant Turbine Protection
Combined-cycle power stations utilize the FC-TUIO11 for overspeed detection, vibration monitoring, and bearing temperature surveillance on gas turbines generating 300+ MW. The module's microsecond-level response time enables protective actions before catastrophic mechanical failures, with proven reliability exceeding 99.999% availability in critical service.

Chemical Batch Process Safety Interlocks
Pharmaceutical and specialty chemical manufacturers implement FC-TUIO11 modules to enforce recipe-driven safety interlocks during batch operations. The universal I/O capability allows a single module to monitor reactor temperature via RTD, pressure via 4-20mA transmitter, and agitator status via digital contact—while controlling cooling water valves and emergency venting systems.

Pipeline Leak Detection & Isolation
Crude oil and natural gas pipeline operators deploy FC-TUIO11 modules at pump stations and valve manifolds to detect pressure anomalies indicating leaks or ruptures. Upon detecting abnormal pressure gradients, the module commands automatic valve closure within seconds, minimizing environmental impact and regulatory exposure.

Technical Parameters & Selection Guide

Selection Criteria: Choose the FC-TUIO11 when your safety application requires flexible I/O configuration, SIL3 certification, and integration with Honeywell Safety Manager platforms. For applications requiring more than 8 inputs or 4 outputs, multiple modules can be deployed in a distributed architecture. Consult with our application engineers to determine optimal module quantity and redundancy configuration based on your specific safety integrity level targets and availability requirements.

Extended Functions

Advanced Diagnostic Reporting: The FC-TUIO11 provides granular fault diagnostics including wire break detection, short circuit identification, sensor drift monitoring, and power supply anomaly alerts. Diagnostic data streams continuously to the Safety Manager controller via fault-tolerant Ethernet, enabling predictive maintenance strategies that reduce unplanned downtime by 35%.

Partial Stroke Testing Integration: Support for automated partial stroke testing of emergency shutdown valves without process interruption, meeting IEC 61511 proof test requirements while extending valve service life and reducing maintenance costs by up to $15,000 per valve annually.

Cybersecurity Features: Built-in security mechanisms including encrypted communication, role-based access control, and audit logging ensure compliance with IEC 62443 industrial cybersecurity standards—critical for facilities subject to CFATS, NERC CIP, or EU NIS Directive regulations.

Custom Configuration Services: Our engineering team offers factory pre-configuration services, delivering modules programmed to your exact I/O requirements, reducing commissioning time by 50% and eliminating field configuration errors.

Delivery & Service

Lead Time: Standard stock items ship within 3-5 business days. Custom-configured modules require 2-3 weeks for factory programming and testing. Expedited delivery available for emergency replacements with 24-hour dispatch service.

Warranty Coverage: Comprehensive 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for up to 5 years, including advance replacement service and on-site spare parts stocking.

Technical Support: Unlimited access to our certified safety system engineers for configuration assistance, troubleshooting, and application optimization. Support available via phone, email, and remote desktop sessions during business hours, with emergency 24/7 hotline for critical system failures.

Documentation Package: Each module includes installation manual, configuration guide, safety manual per IEC 61508-2, calibration certificates, and material traceability documentation. CAD drawings, HART device descriptions, and safety manual addendums available for download.

FAQ

How does the FC-TUIO11 universal I/O configuration compare to traditional fixed-function safety modules?
Unlike conventional safety I/O that requires separate modules for digital, analog, and temperature inputs, the FC-TUIO11's universal architecture allows each channel to be software-configured for any signal type. This reduces hardware variety by 70%, simplifies spare parts management, and enables field modifications without hardware changes—critical advantages for facilities with evolving process requirements.

What is the maximum cable distance between the FC-TUIO11 module and field devices?
Digital inputs support cable runs up to 300 meters using shielded twisted pair. Analog 4-20mA loops can extend to 1,000 meters with proper wire sizing (typically 18 AWG). RTD and thermocouple inputs are limited to 100 meters to maintain accuracy. For longer distances, consider field-mounted transmitters with 4-20mA output.

Can the FC-TUIO11 interface with third-party safety controllers or only Honeywell systems?
The FC-TUIO11 is specifically designed for Honeywell Safety Manager and Experion PKS platforms, utilizing proprietary fault-tolerant Ethernet communication. It cannot directly interface with third-party safety PLCs. For multi-vendor integration, consider gateway solutions or consult our engineering team for hybrid architecture options.

What proof testing procedures are required to maintain SIL3 certification?
IEC 61511 mandates periodic proof testing at intervals determined by your safety integrity level calculations—typically 12-24 months for SIL3 applications. The FC-TUIO11 supports online diagnostics that reduce required proof test coverage, but manual functional testing of outputs and end-to-end loop verification remain necessary. Our technical team provides detailed proof test procedures aligned with your safety requirements specification.

How does the module handle power supply failures or voltage fluctuations?
The FC-TUIO11 incorporates power supply monitoring with automatic transition to safe state upon detecting under-voltage or over-voltage conditions. In redundant configurations, power supply failure on one module triggers automatic failover to the redundant channel without process interruption. The module operates reliably across 19.2-28.8VDC range, accommodating typical industrial power supply variations.

What is the typical energy consumption impact when deploying FC-TUIO11 modules?
Each module consumes approximately 8W at nominal 24VDC supply voltage. For a typical safety system with 20 I/O modules, annual energy cost is under $150 at industrial electricity rates—negligible compared to the safety and operational benefits. The module's high efficiency design minimizes heat generation, reducing cooling requirements in enclosed cabinets.

Ready to Enhance Your Safety System?

The FC-TUIO11 Universal Safety I/O Module delivers the proven reliability, regulatory compliance, and operational flexibility demanded by today's most critical process safety applications. Whether you're designing a new safety instrumented system or upgrading legacy infrastructure, our team of certified safety engineers is ready to assist with application selection, system architecture, and lifecycle support.

Contact our safety system specialists today: Request a detailed quotation, schedule a technical consultation, or discuss volume pricing for multi-unit projects. We maintain extensive inventory for immediate shipment and offer flexible payment terms for qualified industrial accounts.
