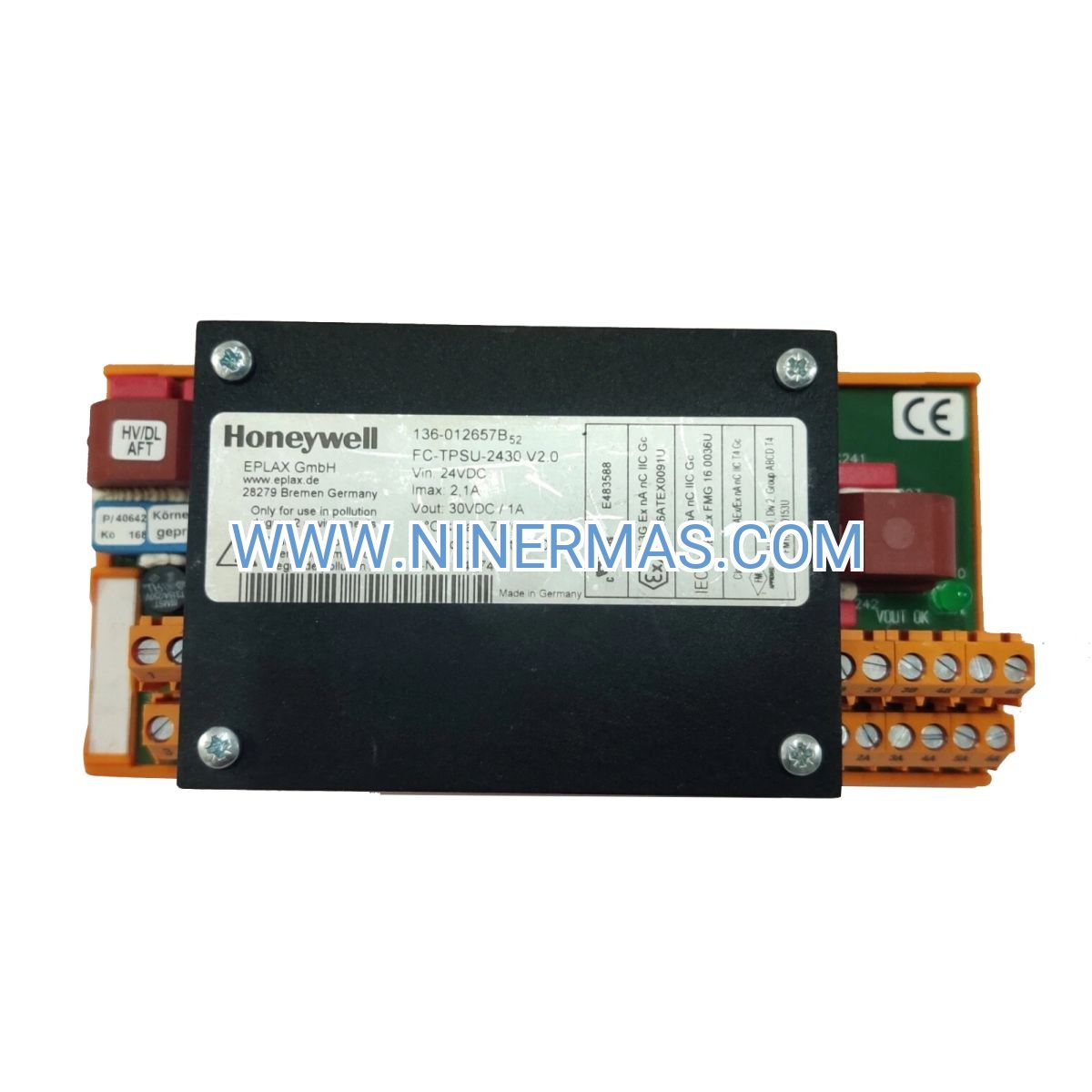

FC-TPSU-2430 Industrial DC/DC Power Converter (High-Efficiency Isolated Supply)

The FC-TPSU-2430 represents a specialized power conversion solution engineered for demanding industrial safety applications. This compact DC/DC converter transforms standard 24 VDC system power into isolated 30 VDC output, specifically optimized for analog Field Termination Assembly (FTA) modules in safety-critical control environments.

Designed for process industries where power integrity directly impacts operational safety, this converter addresses the fundamental challenge of providing clean, isolated power to sensitive analog input circuits. Target users include instrumentation engineers, system integrators, and maintenance teams managing Safety Instrumented Systems (SIS) in oil & gas, chemical processing, power generation, and pharmaceutical manufacturing facilities.

Key advantages include 1500 VDC galvanic isolation eliminating ground loop interference, wide -40°C to +70°C operating range for harsh environments, and >85% conversion efficiency reducing thermal load in densely packed control cabinets. Certified to UL, CE, ATEX, and IECEx standards for global deployment in hazardous area classifications.

Core Features & Benefits

✓ Galvanic Isolation Protection
Provides 1500 VDC isolation barrier between input and output circuits, protecting analog measurement accuracy from electrical noise and ground potential differences common in large distributed control systems.

✓ Extended Temperature Performance
Operates reliably across -40°C to +70°C ambient range without derating, ensuring consistent power delivery in outdoor enclosures, high-temperature process areas, and cold climate installations.

✓ High-Efficiency Topology
Achieves minimum 85% conversion efficiency, translating to reduced heat dissipation (only 11W maximum at full load), lower cooling requirements, and extended component lifespan in continuous-duty applications.

→ Space-Optimized DIN Rail Design

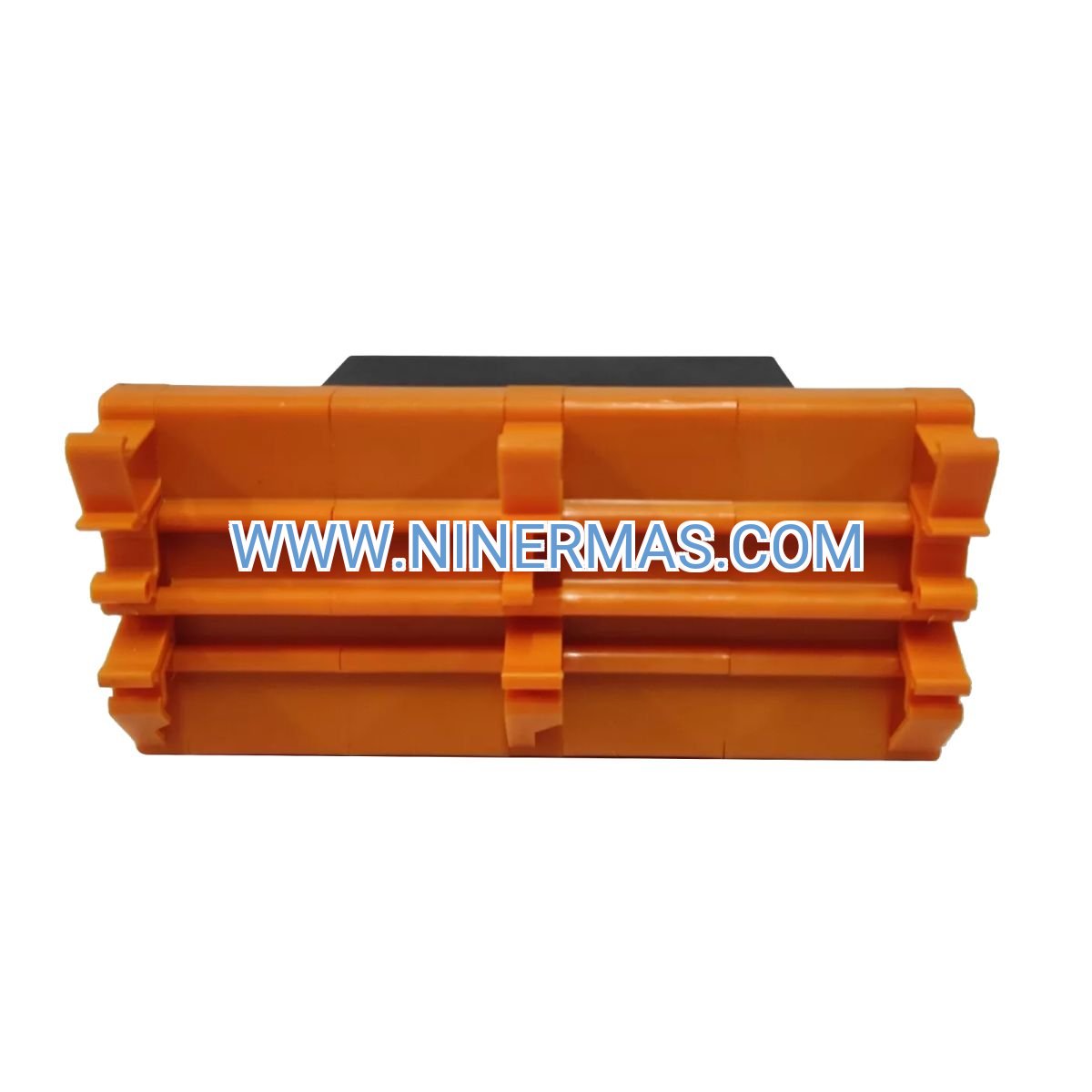

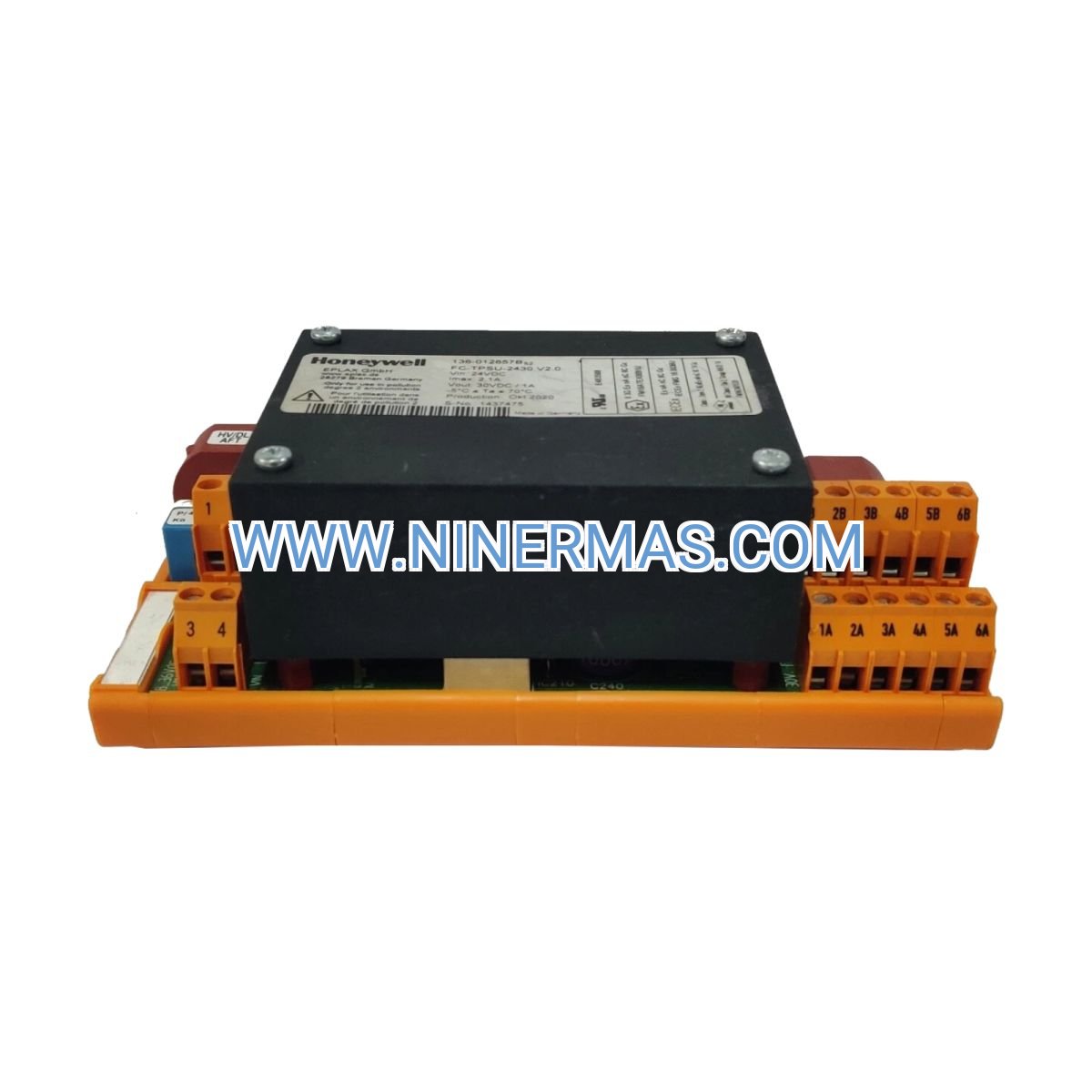

Compact 120 x 100 x 58 mm footprint mounts on standard 35mm DIN rail, maximizing cabinet space utilization while maintaining easy access for installation and service.

→ Robust Output Capacity
Delivers up to 2.5A continuous current at 30 VDC (75W total power), sufficient to power multiple analog input FTA modules from a single converter in typical system configurations.

→ Multi-Standard Safety Certification
Carries UL, CE, ATEX Zone 2, and IECEx certifications, enabling deployment in both safe area and classified hazardous locations without additional barriers or enclosures.

Typical Application Scenarios

Scenario 1: Offshore Oil Platform SIS Power Distribution
Challenge: Analog transmitters monitoring critical process variables experience measurement drift due to ground loop currents between platform structures and control room.
Solution: FC-TPSU-2430 provides isolated 30V power to analog input FTAs, breaking ground loops while maintaining signal integrity across 500+ meter cable runs.
Value: Eliminates false trip events, reduces unplanned shutdowns by 40%, and ensures SIL-rated measurement accuracy for safety functions.

Scenario 2: Chemical Reactor Temperature Monitoring
Challenge: High-precision RTD temperature measurements for exothermic reaction control require noise-free power in electrically noisy environments with VFD motor drives.
Solution: Isolated power from FC-TPSU-2430 shields analog input circuits from switching noise, maintaining ±0.1°C measurement accuracy critical for batch quality.
Value: Prevents batch rejection due to temperature excursions, saving $50K+ per avoided incident while meeting FDA 21 CFR Part 11 data integrity requirements.

Scenario 3: Power Plant Burner Management System
Challenge: Flame scanner and fuel valve position feedback signals must maintain reliability during grid transients and startup current surges.
Solution: Converter's wide input voltage tolerance and isolation protect analog inputs during 18-32 VDC input variations common in large battery-backed UPS systems.
Value: Achieves 99.97% uptime for burner management functions, preventing costly forced outages and maintaining NERC compliance.

Scenario 4: Pharmaceutical Clean Room Environmental Monitoring
Challenge: GMP-compliant environmental monitoring requires validated power sources with documented traceability and change control.
Solution: FC-TPSU-2430's fixed output voltage and certified design simplifies validation protocols while isolated output prevents cross-contamination of measurement circuits.
Value: Reduces validation effort by 60% compared to custom power solutions, accelerates facility qualification timelines.

Scenario 5: Multi-Drop I/O Cabinet Retrofit
Challenge: Upgrading legacy 4-20mA systems to modern FTA-based architecture requires adding isolated power without cabinet redesign.
Solution: Compact DIN rail form factor allows installation in existing cabinets alongside legacy equipment during phased migration projects.
Value: Enables incremental system upgrades without production downtime, reducing project risk and capital expenditure.

Technical Parameters & Selection Guide

Selection Criteria:

Choose the FC-TPSU-2430 when your application requires isolated 30 VDC power for analog input modules drawing up to 2.5A total. Calculate total FTA current consumption by summing individual module requirements (typically 150-300mA per 8-channel analog input FTA). For systems requiring more than 2.5A, deploy multiple converters with separate output circuits.

Verify input power source can deliver minimum 3.5A at 24 VDC to account for converter losses and inrush current. For redundant power architectures, use external diode isolation modules between parallel converter outputs. Confirm ambient temperature in installation location remains within -40°C to +70°C range, accounting for solar heating in outdoor enclosures.

Extended Functions

Redundant Power Configuration: Deploy dual FC-TPSU-2430 converters with diode-OR output coupling for N+1 redundancy in SIL 2/3 safety applications. Each converter operates at 50% capacity during normal operation, providing automatic failover if one unit fails.

Remote Monitoring Integration: Output voltage and current can be monitored via external measurement circuits connected to SCADA or DCS systems. Implement under-voltage alarms at 28.5 VDC threshold to detect converter degradation before FTA modules are affected.

Customization Options: While the FC-TPSU-2430 is a standard catalog product, custom output voltages (28-32 VDC range) and conformal coating for extreme environments are available for volume orders (MOQ 50 units). Contact technical sales for custom specifications.

System Integration: Pairs seamlessly with Honeywell Safety Manager, Experion PKS, and third-party DCS platforms using standard analog input FTA modules. Compatible with both 2-wire and 4-wire transmitter configurations when used with appropriate FTA terminal blocks.

Delivery & Service Assurance

Lead Time:

• Standard Stock Items: 3-5 business days for order processing and shipment
• Express Service: 24-hour expedited handling available for critical outage situations (additional fees apply)
• Custom Configurations: 6-8 weeks for factory-customized units with special voltage or coating requirements

Warranty Coverage:
All FC-TPSU-2430 converters include a comprehensive 12-month manufacturer's warranty covering defects in materials and workmanship. Warranty includes free replacement or repair, with advance exchange available to minimize downtime. Extended warranty programs up to 36 months available for critical applications.

Technical Support:
Our applications engineering team provides pre-sales consultation for system design, sizing calculations, and integration planning. Post-sales support includes installation guidance, troubleshooting assistance, and configuration verification. Support available via email, phone, and remote desktop sessions during business hours (GMT+8, 9:00-18:00 Mon-Fri).

Documentation Package:
Each converter ships with installation manual, wiring diagrams, dimensional drawings, and safety certification documents. CAD models (STEP, DXF formats) and EPLAN macros available for download from product support portal. Calibration certificates and material traceability documentation provided upon request for regulated industries.

Frequently Asked Questions

What is the maximum cable length between the FC-TPSU-2430 converter and powered FTA modules?
Recommended maximum cable length is 50 meters using 1.5mm² (16 AWG) wire to maintain voltage drop below 0.5V at 2.5A load. For longer distances up to 100 meters, increase wire size to 2.5mm² (14 AWG) and verify voltage at FTA terminals remains above 29V under full load conditions.

Can this converter power 4-20mA loop-powered transmitters directly?
No, the FC-TPSU-2430 is designed specifically for powering analog input FTA modules, not field transmitters. Loop-powered transmitters receive power from the FTA module's internal loop supply circuits. Use this converter only for FTA module power input terminals.

How do I calculate the required number of converters for my system?
Sum the current consumption of all analog input FTA modules to be powered (check module datasheets for typical values, usually 150-300mA per module). Divide total current by 2.0A (80% of converter capacity for safety margin). Round up to determine the number of converters required. For example, 8 FTA modules at 250mA each = 2000mA total, requiring 1 converter with 20% spare capacity.

What protection features are included against short circuits or overload conditions?
The converter incorporates automatic current limiting at 2.8A (112% of rated capacity) and thermal shutdown protection at 85°C internal temperature. Short circuit protection automatically reduces output voltage to prevent damage, with auto-recovery when fault is cleared. Input reverse polarity protection via series diode prevents damage from miswiring.

Is the FC-TPSU-2430 suitable for marine or offshore platform installations?
Yes, when installed in appropriate enclosures. The converter meets vibration and shock requirements per IEC 60068-2-6 and IEC 60068-2-27, suitable for marine environments. For salt-fog environments, specify conformal coating option (custom order) to protect PCB from corrosion. Ensure enclosure provides minimum IP54 protection for deck-mounted installations.

Can I parallel multiple converters to increase output current capacity?
Direct paralleling without external isolation is not recommended due to potential circulating currents between units. For applications requiring more than 2.5A, use Schottky diode isolation (minimum 5A, 40V rating) on each converter output, or distribute load across multiple converters powering separate FTA groups. Consult factory for parallel operation guidelines.

Ready to Enhance Your Safety System Reliability?

The FC-TPSU-2430 industrial DC/DC converter delivers the isolated, stable power your analog measurement systems demand. Whether you're designing a new Safety Instrumented System or upgrading existing infrastructure, this proven solution ensures measurement integrity and system uptime.

Next Steps:

• Add to cart for immediate purchase with secure checkout
• Contact our technical team at sale@ninermas.com for application-specific sizing and integration support
• Request a formal quotation for volume orders or custom configurations
• Download technical documentation and CAD models from the product resources section

Questions about compatibility with your existing system? Our applications engineers are ready to assist. Reach out via email or call +0086 187 5021 5667 during business hours for immediate technical consultation.
