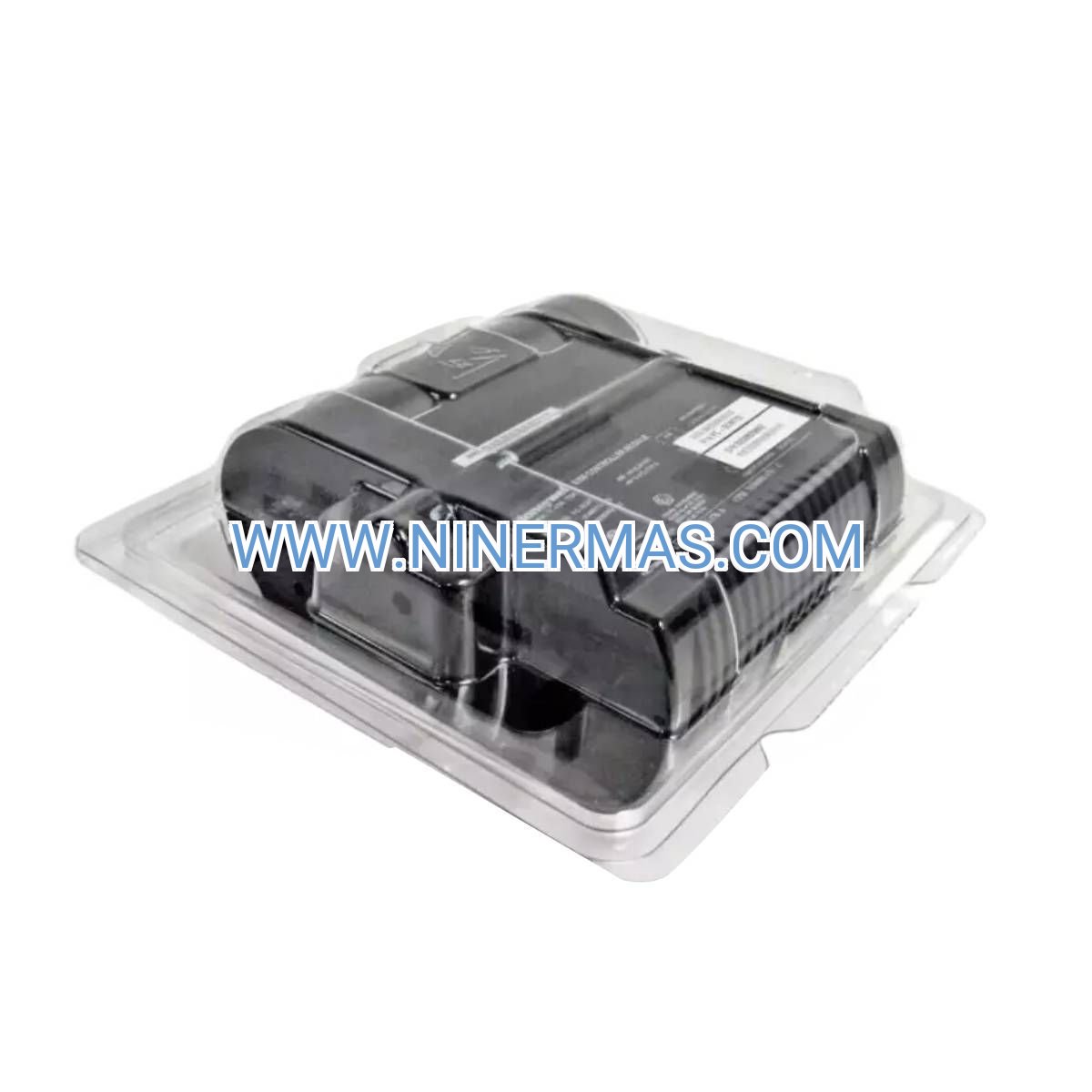

FC-SCNT02 Industrial Safety Controller (SIL3-Certified Dual-Core Architecture)

The FC-SCNT02 SC S300 Safety Controller delivers mission-critical protection for high-risk industrial environments through advanced dual-core processing and comprehensive diagnostic monitoring. Certified to SIL3 standards per IEC 61508, this controller provides the reliability and fault tolerance demanded by emergency shutdown systems, fire and gas detection networks, and burner management applications where personnel safety and asset protection are non-negotiable.

Designed for seamless integration into existing automation infrastructures, the FC-SCNT02 supports multiple industrial protocols including DNP3, Modbus TCP/IP, and Ethernet/IP. Its hot-swappable architecture and online programming capabilities minimize maintenance downtime while maintaining continuous safety coverage across your facility.

Whether you're upgrading legacy safety systems or designing new installations, the FC-SCNT02 combines proven Honeywell engineering with modern cybersecurity features to protect your operations against both process hazards and digital threats.

Core Capabilities & Technical Advantages

→ SIL3 Safety Integrity Certification
Achieves probability of failure on demand (PFD) between 10⁻⁴ and 10⁻³, meeting IEC 61508 requirements for applications where single failures could result in catastrophic consequences. TÜV-certified for use in safety instrumented systems across oil & gas, chemical processing, and power generation sectors.

→ Redundant Dual-Core Processing
Two independent processors execute safety logic simultaneously with continuous cross-checking. Automatic failover ensures uninterrupted operation even during processor faults, delivering 99.99% availability for critical safety functions without manual intervention.

→ Multi-Protocol Industrial Connectivity
Native support for DNP3, Modbus TCP/IP, and Ethernet/IP protocols enables direct integration with SCADA systems, distributed control systems (DCS), and third-party automation platforms. Eliminates costly protocol gateways while maintaining deterministic communication performance.

→ Extended Environmental Operating Range
Functions reliably across -40°C to +70°C (-40°F to +158°F) without performance derating. Conformal coating options protect against humidity, corrosive atmospheres, and airborne contaminants in harsh industrial settings.

→ Online Modification Capability
Update safety logic, adjust parameters, and modify I/O configurations without halting the safety system. Reduces planned maintenance windows and allows rapid response to process changes while maintaining continuous protection.

→ Comprehensive Self-Diagnostics
Achieves >99% diagnostic coverage (Safe Failure Fraction) through continuous monitoring of processor health, memory integrity, I/O channel status, and communication paths. Predictive fault detection identifies potential issues before they compromise safety performance.

Industrial Application Scenarios

Emergency Shutdown Systems (ESD)
Deploy the FC-SCNT02 as the core logic solver in emergency shutdown applications protecting refineries, offshore platforms, and chemical plants. Its SIL3 certification and redundant architecture meet API RP 14C and IEC 61511 requirements for high-demand safety systems. Typical installations monitor critical process parameters and execute coordinated shutdown sequences within milliseconds when hazardous conditions are detected.

Fire & Gas Detection Networks
Integrate with multi-point gas detectors and flame sensors to create comprehensive fire and gas systems (F&G) protecting personnel and assets. The controller's fast scan times enable rapid response to combustible gas releases or fire events, automatically activating ventilation systems, isolation valves, and alarm notification sequences.

Burner Management Systems (BMS)
Control industrial boilers, furnaces, and thermal oxidizers with proven safety logic that prevents dangerous fuel-air mixtures and ensures proper ignition sequences. Meets NFPA 85 and FM approval requirements for burner control applications, with built-in permissive checking and flame supervision capabilities.

High-Integrity Pressure Protection (HIPPS)
Protect downstream equipment from overpressure events by implementing fast-acting isolation valve control. The FC-SCNT02's deterministic response times and diagnostic coverage make it suitable for HIPPS applications as an alternative to traditional pressure relief systems, reducing emissions and maintenance costs.

Pharmaceutical Manufacturing Safety
Ensure personnel protection and product quality in pharmaceutical production environments through monitoring of critical utilities, clean room pressurization, and hazardous material handling systems. FDA 21 CFR Part 11 compliant audit trails support regulatory validation requirements.

Technical Specifications & Selection Guide

Selection Criteria: Choose the FC-SCNT02 when your application requires SIL3 certification, redundant processing, or proof test intervals exceeding 5 years. For lower-risk applications (SIL1/SIL2), consider standard programmable controllers. Applications requiring triple modular redundancy (TMR) should evaluate 2oo3 voting configurations using multiple FC-SCNT02 units.

Advanced Integration & Expansion Options

Distributed I/O Expansion
Connect up to 64 remote I/O modules via high-speed safety bus, supporting digital inputs, analog sensors, relay outputs, and solid-state drivers. Hot-swappable I/O cards enable maintenance without system shutdown, while automatic module recognition simplifies configuration and replacement.

Cybersecurity Hardening
Implements IEC 62443 industrial cybersecurity standards with encrypted Ethernet communications, role-based access control (RBAC), and comprehensive audit logging. Supports network segmentation strategies to isolate safety systems from enterprise networks while maintaining necessary data exchange.

SCADA/HMI Integration
Provides OPC UA server functionality for seamless integration with modern SCADA platforms and historian systems. Pre-built driver support for Wonderware, Ignition, FactoryTalk, and other leading HMI packages accelerates commissioning and reduces engineering costs.

Redundancy Architectures
Supports 1oo2 (one-out-of-two) and 2oo3 (two-out-of-three) voting configurations for applications requiring fault tolerance beyond single-controller redundancy. Automatic synchronization maintains consistent logic execution across redundant processors without manual intervention.

Delivery Timeline & Service Commitments

Standard Delivery: In-stock FC-SCNT02 controllers ship within 2-3 business days via express courier with full tracking. International shipments typically arrive within 5-7 business days depending on customs clearance and destination country regulations.

Custom Configuration Services: Factory-configured controllers with pre-loaded application programs and tested I/O assemblies available with 10-15 business day lead time. Custom configurations include full documentation package and factory acceptance testing (FAT) certificates.

Warranty Coverage: 12-month manufacturer warranty covers defects in materials and workmanship. Extended warranty programs available for critical applications requiring guaranteed replacement and advanced exchange services.

Technical Support: Lifetime technical support includes configuration assistance, troubleshooting guidance, firmware updates, and application engineering consultation. Emergency support available 24/7 for critical safety system issues.

Documentation Package: Complete product shipment includes installation manual, programming guide, I/O wiring diagrams, safety validation reports, and TÜV certification documents. Digital documentation library accessible via customer portal.

Frequently Asked Questions

How does SIL3 certification impact proof test requirements for this safety controller?
SIL3 certification combined with >99% diagnostic coverage enables proof test intervals of 5-10 years depending on your application's risk assessment and target PFD values. This significantly reduces maintenance costs compared to SIL1/SIL2 systems requiring annual or biennial testing. Consult IEC 61511 lifecycle documentation for specific interval calculations based on your process hazard analysis.

Can the FC-SCNT02 interface with legacy 4-20mA analog sensors and discrete relay outputs?
Yes, through compatible I/O modules supporting analog input cards (4-20mA, 0-10V, RTD, thermocouple) and various output types (relay, solid-state, analog). All I/O modules maintain SIL3 certification when used in approved configurations. Consult the I/O selection guide for specific module compatibility and channel density options.

What programming software is required and are there ongoing license fees?
The FC-SCNT02 requires Honeywell Safety Manager software supporting IEC 61131-3 programming languages (Ladder Diagram, Function Block Diagram, Structured Text, Sequential Function Chart). Software licenses are perpetual with optional annual maintenance agreements for updates and technical support. Floating network licenses available for multi-engineer teams.

Does this controller support integration with non-Honeywell DCS and SCADA platforms?
Absolutely. Standard Modbus TCP/IP, DNP3, and Ethernet/IP protocol support enables integration with Rockwell, Siemens, Schneider Electric, Emerson, and other major automation vendors. OPC UA server functionality provides vendor-neutral connectivity for modern industrial IoT architectures. Protocol conversion gateways typically not required.

What is the typical power consumption and backup battery runtime?
Typical power consumption is 15W at 24V DC nominal. When equipped with optional battery backup modules, the system maintains full operation for 30 minutes during power loss, sufficient for controlled shutdown sequences. UPS systems recommended for extended backup requirements in critical applications.

How do I migrate existing safety logic from competitive controllers to the FC-SCNT02?
Honeywell provides migration services and conversion tools for legacy systems from Triconex, HIMA, Siemens, and other safety controller platforms. Typical migration projects include logic conversion, I/O mapping, FAT/SAT testing, and on-site commissioning support. Contact our application engineering team for migration feasibility assessment and project scoping.

Order Your FC-SCNT02 Safety Controller Today

Protect your personnel, assets, and environment with proven SIL3-certified safety technology trusted by industry leaders worldwide. The FC-SCNT02 combines advanced diagnostics, redundant processing, and flexible connectivity to deliver reliable protection for your most critical safety applications.

Contact our industrial automation specialists for technical consultation, application engineering support, and competitive pricing on volume orders. We maintain extensive inventory of safety controllers, I/O modules, and accessories for immediate shipment to your facility.
