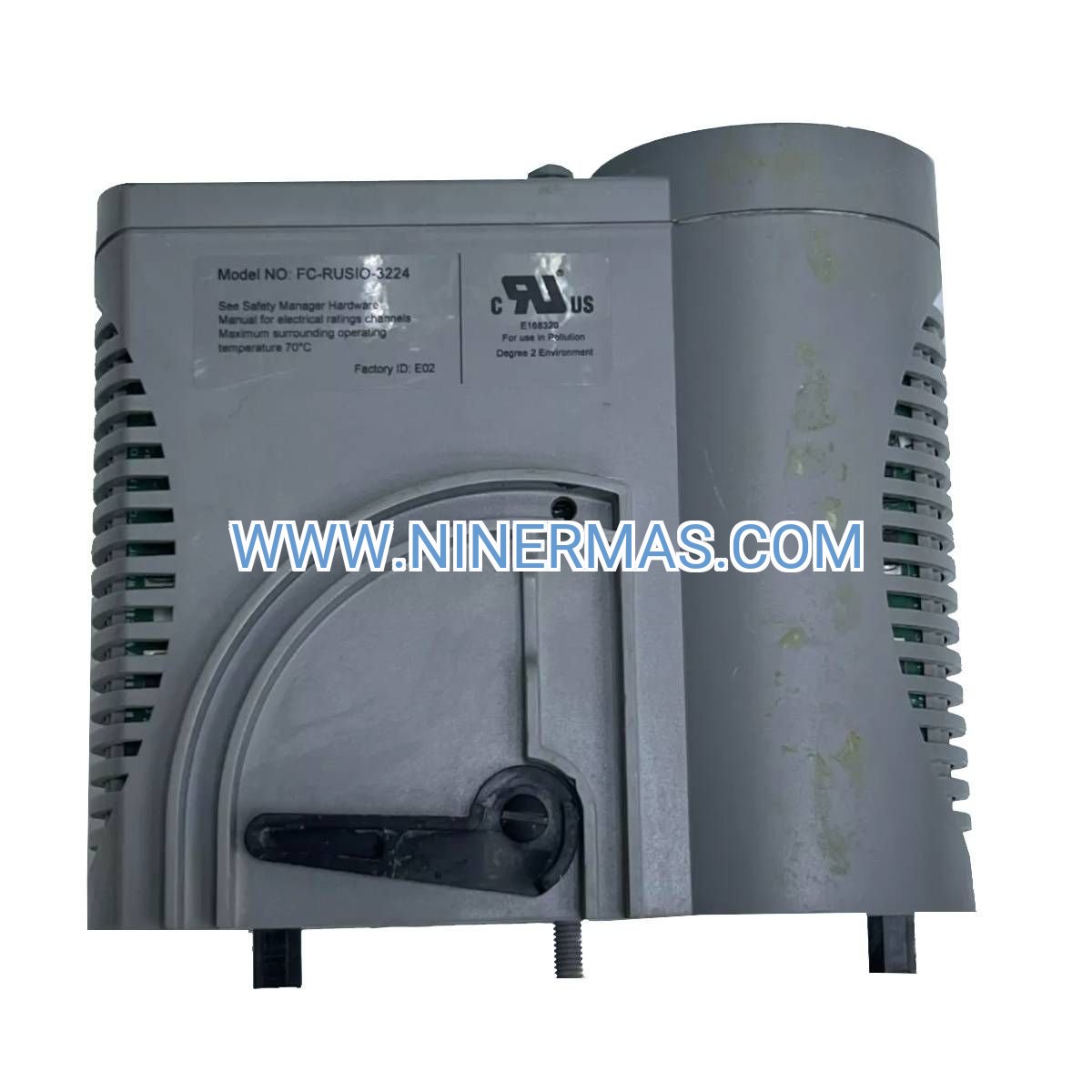

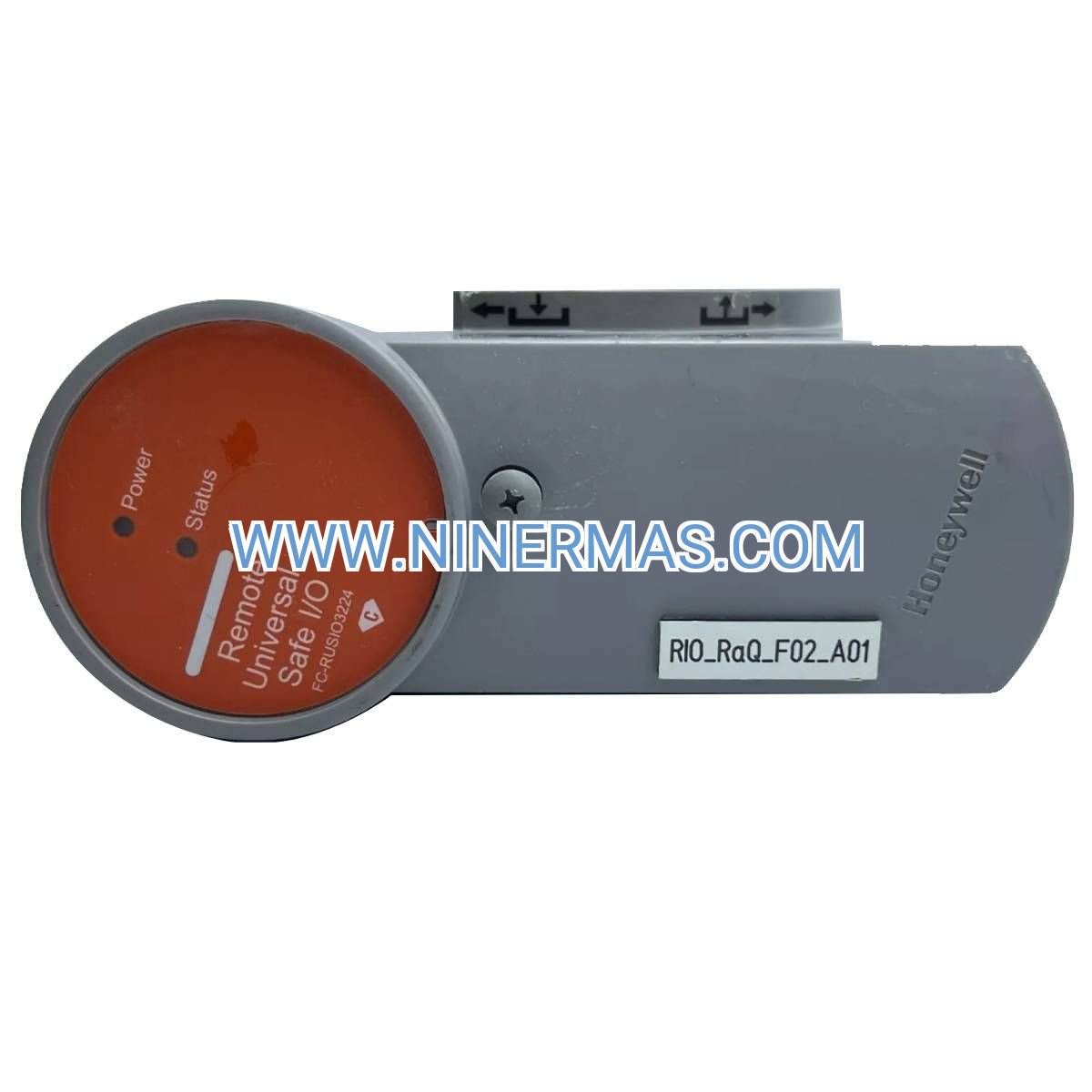

FC-RUSIO-3224 Universal Safety I/O Controller (Industrial-Grade SIL3 Module)

The FC-RUSIO-3224 represents a breakthrough in configurable safety I/O technology, delivering 32 universal channels engineered for mission-critical process control environments. This SIL3-certified module seamlessly integrates with Safety Manager and Experion FSC platforms, providing unmatched flexibility through software-configurable inputs and outputs that adapt to evolving safety requirements without hardware modifications.

Designed for industries where downtime equals catastrophic risk, this universal safety controller addresses the fundamental challenge of maintaining operational continuity while meeting stringent functional safety standards. Process engineers and safety system integrators rely on the FC-RUSIO-3224 to bridge the gap between legacy safety systems and modern fault-tolerant architectures.

With built-in HART communication, redundant operation support, and hot-swappable design, the FC-RUSIO-3224 eliminates traditional tradeoffs between safety integrity and system availability. Whether you're upgrading aging ESD systems or designing greenfield safety instrumented functions, this module delivers the configurability and reliability demanded by IEC 61508/61511 compliance.

Core Capabilities & Business Value

→ Software-Configurable Universal Channels
Each of the 32 I/O points can be programmed as digital input, digital output, or analog input through Safety Builder software. This eliminates costly hardware swaps during commissioning or process modifications, reducing spare parts inventory by up to 60% compared to fixed-function I/O modules.

→ SIL3 Functional Safety Certification
Certified to IEC 61508 SIL3 and IEC 61511 standards with proven-in-use documentation spanning over 500,000 operational hours. Achieves PFDavg values below 10⁻⁴ in 1oo2 configurations, meeting the most stringent safety integrity requirements for emergency shutdown and fire & gas systems.

→ Fault-Tolerant Redundant Architecture
Native support for dual-controller configurations with automatic failover in under 50 milliseconds. When paired with redundant I/O chassis and power supplies, the system achieves 99.99% availability while maintaining full SIL3 certification—critical for continuous process industries.

→ Integrated HART Diagnostics
Built-in HART multiplexer enables simultaneous 4-20mA signal transmission and digital device communication. Access real-time diagnostics, perform remote calibration, and retrieve asset health data without interrupting safety functions—reducing maintenance costs by 35% through predictive intervention.

→ Hot-Swap Capability Without Process Interruption
Replace failed modules in under 2 minutes without de-energizing adjacent I/O or halting production. Termination assemblies maintain field wiring integrity during module extraction, eliminating the need for scheduled maintenance windows in 24/7 operations.

✓ Channel-Level Diagnostic Intelligence
Advanced diagnostics detect wire breaks, short circuits, ground faults, and out-of-range signals at the individual channel level. Diagnostic coverage exceeds 95%, enabling rapid fault isolation and reducing mean time to repair (MTTR) from hours to minutes.

Industrial Application Scenarios

Oil & Gas Emergency Shutdown Systems
In offshore platforms and onshore processing facilities, the FC-RUSIO-3224 monitors critical shutdown parameters including wellhead pressure, separator levels, and flare system status. The module's SIL3 certification ensures compliance with API RP 14C and IEC 61511 requirements for process safety management. Typical installations interface 24-32 safety-critical sensors per module, with redundant configurations protecting against single-point failures in high-consequence scenarios.

Chemical Process Safety Interlocking
Chemical manufacturers deploy the FC-RUSIO-3224 for reactor temperature monitoring, pressure relief valve control, and toxic gas detection interlocking. The universal I/O configuration accommodates diverse sensor types—thermocouples, RTDs, 4-20mA transmitters, and discrete switches—within a single module, simplifying system architecture and reducing cabinet space by 40%.

Power Generation Turbine Protection
Combined-cycle and cogeneration plants utilize the module for turbine overspeed detection, vibration monitoring, and emergency trip functions. The 300-meter field wiring capability allows centralized I/O marshalling while maintaining signal integrity for critical vibration sensors located at remote bearing housings. HART diagnostics enable condition-based maintenance of protection sensors without safety system bypass.

Pharmaceutical Clean Room Environmental Monitoring
In GMP-regulated facilities, the FC-RUSIO-3224 provides validated safety I/O for differential pressure monitoring, HVAC interlock control, and emergency ventilation activation. The module's comprehensive audit trail and diagnostic logging support FDA 21 CFR Part 11 compliance requirements for electronic records in safety-critical applications.

Mining Conveyor Emergency Stop Networks
Underground and surface mining operations implement distributed emergency stop systems using the FC-RUSIO-3224 to aggregate pull-cord switches, motion detectors, and belt alignment sensors across kilometer-long conveyor networks. The fault-tolerant Ethernet communication maintains safety function integrity even during network disruptions, meeting AS 4024.3 machinery safety standards.

Technical Parameters & Selection Guide

Selection Criteria for Your Application:

Choose the FC-RUSIO-3224 when your safety application requires maximum I/O flexibility with minimal spare parts inventory. The universal channel architecture is ideal for projects with evolving I/O requirements or multi-phase expansions. For applications demanding more than 32 safety I/O points, deploy multiple modules within the same chassis—up to 8 modules per redundant chassis for 256 total safety channels.

Consider redundant configurations (dual modules with 1oo2 voting) for SIL3 applications where single-point failures are unacceptable. Simplex configurations are suitable for SIL2 applications or non-critical monitoring functions. Verify that your field devices operate within the 18-32V DC input range and 4-20mA signal specifications before procurement.

Advanced Integration Capabilities

The FC-RUSIO-3224 operates as a native component within the Experion FSC and Safety Manager ecosystems, leveraging fault-tolerant Ethernet for deterministic communication with safety controllers. Configuration is performed through Safety Builder IEC 61131-3 programming environment, which provides function block libraries pre-certified for SIL3 applications.

Power distribution follows a redundant architecture using dual 24V DC supplies with automatic load sharing and failover. Each module draws a maximum of 15W, allowing up to 8 modules per standard power distribution unit. Field wiring terminates on removable IOTA (I/O Termination Assembly) blocks that maintain connection integrity during module replacement.

The module supports both local and remote I/O configurations via FTE network topology. In distributed architectures, I/O chassis can be located up to 10 kilometers from the primary controller using fiber-optic FTE media converters, enabling centralized control of geographically dispersed process units.

HART communication operates simultaneously with 4-20mA signaling using FSK modulation at 1200 baud. The integrated HART multiplexer eliminates the need for external HART interfaces, reducing system complexity and cabinet space. Asset management systems can poll HART devices for diagnostics, calibration data, and configuration parameters without interrupting safety functions.

Commissioning & Lifecycle Management

Initial installation requires DIN rail mounting within a compatible I/O chassis, followed by backplane connector engagement and IOTA termination assembly attachment. Field wiring connects to screw terminals on the IOTA, with clear labeling for channel identification. The module auto-discovers upon power-up and registers with the safety controller via FTE network.

Configuration involves three steps: channel type assignment (digital input/output or analog input), signal range selection, and diagnostic threshold setting. Safety Builder software validates configurations against SIL3 requirements and generates compliance documentation automatically. Loop testing verifies end-to-end signal integrity before commissioning.

Ongoing maintenance leverages built-in diagnostics accessible through the operator interface or asset management software. Predictive alerts notify operators of degrading field devices, wiring issues, or module health concerns before failures occur. When replacement is necessary, the hot-swap procedure takes under 2 minutes: release module locking mechanism, extract module while IOTA remains in place, insert new module, and verify auto-configuration.

Frequently Asked Questions

Q: How do I determine the optimal channel configuration for mixed signal types?
A: Use Safety Builder's I/O allocation tool to map your field devices to available channels. The software automatically validates configurations and warns of incompatible assignments. For maximum flexibility, reserve 20% of channels as spares configured for the most common signal type in your application.

Q: What is the maximum loop resistance for analog input channels?
A: The module supports up to 600 ohms total loop resistance for 4-20mA circuits, including field wiring and transmitter burden. For 200-meter cable runs using 18 AWG wire (6.4 ohms/km), total resistance remains well within limits.

Q: Can I use this module in Zone 2 hazardous areas?
A: Yes, the FC-RUSIO-3224 carries ATEX and IECEx certification for Zone 2 / Division 2 installation when mounted in appropriate enclosures. For Zone 1 / Division 1 applications, use intrinsically safe barriers between the module and field devices.

Q: How does redundancy work with universal I/O channels?
A: In redundant configurations, two FC-RUSIO-3224 modules operate in parallel with identical channel configurations. The safety controller performs 1oo2 voting on input signals and energizes both output channels simultaneously. If one module fails, the system continues operating on the remaining module while maintaining SIL3 integrity.

Q: What diagnostic information is accessible via HART?
A: HART communication provides access to transmitter diagnostics including sensor drift, calibration status, temperature compensation data, and device-specific parameters. The module also reports its own health metrics via HART, including power supply voltage, channel status, and communication quality.

Q: Is the module compatible with legacy Safety Manager systems?
A: The FC-RUSIO-3224 requires Safety Manager firmware version 5.0 or later and Experion FSC R410 or later. Older systems may require controller firmware upgrades before deploying this module. Contact technical support for compatibility verification with your specific system version.

Delivery Timeline & Service Assurance

Standard Delivery: 3-5 business days for in-stock units via express courier with full tracking and insurance. All modules ship factory-sealed with calibration certificates and test reports.

Custom Configuration: Pre-configured modules with customer-specific channel assignments and diagnostic settings ship within 7-10 business days. Configuration files are provided for backup and documentation purposes.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and workmanship issues. Warranty includes advance replacement service with 24-hour shipment of replacement units for critical applications.

Technical Support: Unlimited access to application engineers for configuration assistance, troubleshooting, and integration guidance. Support available via email, phone, and remote desktop sessions during business hours (GMT+8), with emergency support available 24/7 for critical safety system issues.

Documentation Package: Each module includes installation manual, safety manual, IEC 61508 certification documents, ATEX/IECEx certificates, wiring diagrams, and Safety Builder configuration templates. Additional documentation available for download including application notes and integration guides.

Frequently Asked Questions

Q: What training is recommended for commissioning personnel?
A: We recommend Safety Builder software training (2-day course) and Experion FSC system fundamentals (3-day course) for engineers responsible for safety system configuration. Online tutorials and quick-start guides are available for basic installation and maintenance tasks.

Q: How do I handle module replacement in a redundant system?
A: The redundant partner continues operating while you replace the failed module. After inserting the new module, it automatically synchronizes configuration from the active partner. No manual configuration or safety system bypass is required during replacement.

Q: Can I mix FC-RUSIO-3224 modules with other I/O types in the same chassis?
A: Yes, the module coexists with digital input, digital output, analog input, and analog output modules within the same I/O chassis. The backplane supports mixed I/O configurations with up to 8 modules per chassis.

Q: What cybersecurity features protect the safety network?
A: The FTE communication protocol includes encrypted authentication, message integrity verification, and replay attack prevention. Network segmentation isolates the safety network from process control and enterprise networks, meeting IEC 62443 industrial cybersecurity requirements.
