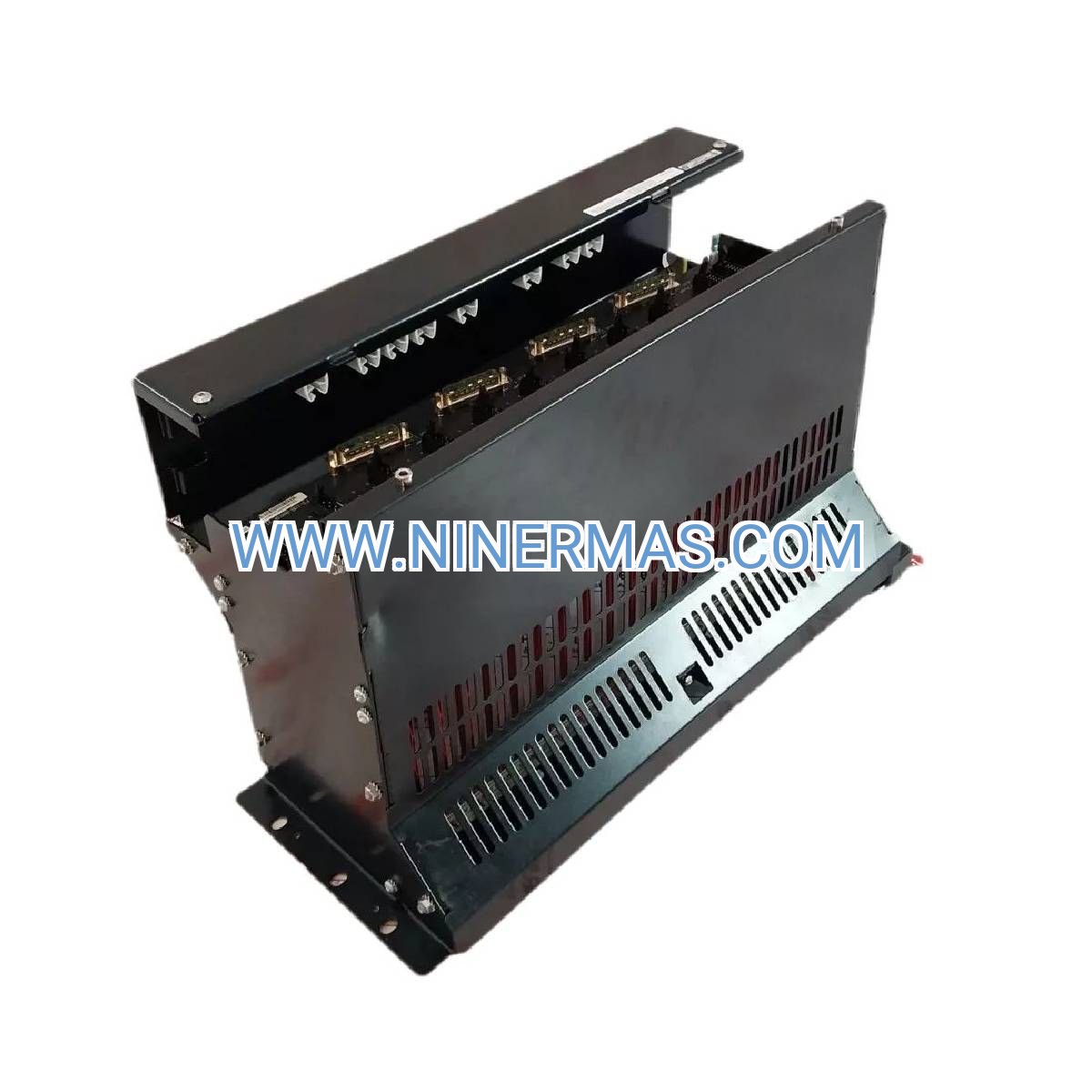

FC-IOCHAS-0002R Industrial Mounting Platform (Safety-Certified FSC Chassis)

The FC-IOCHAS-0002R represents a mission-critical infrastructure component for Honeywell Fail-Safe Controller architectures, delivering a ruggedized mounting platform engineered to house safety I/O modules in SIL 2/3 environments. Designed for process industries where equipment failure is not an option, this chassis combines structural integrity with thermal optimization to ensure continuous operation across emergency shutdown systems, fire protection networks, and burner management installations.

Process engineers and safety system integrators rely on this platform to eliminate single points of failure in critical control loops. Whether you're commissioning a new petrochemical ESD system or retrofitting legacy safety infrastructure, the FC-IOCHAS-0002R provides the mechanical foundation and electromagnetic shielding required for IEC 61508/61511 compliance. Its modular slot architecture accommodates mixed I/O configurations while maintaining deterministic communication timing across the FSC backplane.

With global safety certifications spanning CE, UL, CSA, TÜV, and FM approvals, this chassis meets the stringent requirements of multinational projects. The heavy-duty metal construction withstands vibration, temperature extremes (-40°C to +70°C), and industrial contaminants, while the optimized airflow design prevents thermal-induced failures in densely populated module configurations.

Engineering Advantages & Operational Benefits

→ Multi-Standard Safety Certification
Pre-certified to IEC 61508 SIL 2/3 standards with TÜV validation, eliminating months of compliance testing. Accepted by AHJs worldwide for hazardous area control room installations, reducing project approval cycles by 40-60%.

→ Adaptive Module Slot Architecture
Accommodates heterogeneous I/O mixing—combine digital inputs, analog transmitters, relay outputs, and communication modules within a single chassis. Supports hot-swappable module replacement during scheduled maintenance windows without system shutdown.

→ Industrial-Hardened Construction
Machined metal housing with EMI/RFI shielding protects sensitive safety logic from electrical noise in VFD-heavy environments. Corrosion-resistant coating extends service life in offshore platforms and chemical processing facilities where atmospheric contaminants accelerate equipment degradation.

→ Simplified Cabinet Integration
DIN rail mounting clips enable tool-free installation in standard 19" racks or custom marshalling panels. Pre-drilled cable management channels organize field wiring for IEC 60204-compliant panel layouts, reducing commissioning labor by 30%.

→ Thermal Management Engineering
Convection-optimized slot spacing maintains junction temperatures below critical thresholds even with fully populated high-power modules. Prevents nuisance trips caused by thermal overload in ambient temperatures up to +70°C.

→ Electromagnetic Compatibility (EMC)
Grounded backplane design with filtered power distribution minimizes crosstalk between adjacent I/O channels. Passes EN 61000-6-2 immunity testing for industrial environments with heavy inductive loads and switching transients.

Industry-Specific Deployment Scenarios

✓ Offshore Oil & Gas Emergency Shutdown (ESD)
Houses critical shutdown logic for topside process units and subsea control systems. The chassis's salt-fog resistance and vibration tolerance meet DNV-GL offshore certification requirements, while redundant backplane communication ensures fail-safe operation during platform emergencies.

✓ Petrochemical Fire & Gas Detection Networks
Provides the mounting infrastructure for multi-zone flame detector interfaces and toxic gas monitoring modules. Supports distributed safety architectures where individual chassis serve dedicated process areas, enabling partial system maintenance without compromising plant-wide protection.

✓ Power Generation Burner Management Systems (BMS)
Integrates with flame scanners, fuel valve actuators, and air-fuel ratio controllers in boiler safety chains. The chassis's fast I/O scan rates (typically <10ms) meet NFPA 85 response time requirements for combustion safeguarding.

✓ Pipeline High Integrity Pressure Protection (HIPPS)
Enables rapid valve closure logic in overpressure scenarios, protecting downstream equipment rated for lower design pressures. The chassis's -40°C cold-start capability ensures reliable operation in remote Arctic pipeline installations.

✓ Chemical Manufacturing Batch Process Safety
Supports recipe-driven safety interlocks for reactor temperature control, exothermic reaction monitoring, and emergency venting systems. Modular I/O expansion accommodates evolving process requirements without chassis replacement.

Technical Specifications & Selection Criteria

Selection Guidelines: When specifying the FC-IOCHAS-0002R, calculate total I/O point count requirements and verify power budget compatibility with your selected FS-FEEDER power supply module. For systems requiring more than 128 I/O points, consider distributed chassis architectures with fiber-optic inter-chassis communication. Ensure adequate panel ventilation—minimum 50mm clearance above/below chassis for natural convection cooling.

Advanced Integration Capabilities

SCADA & HMI Connectivity: The chassis supports FSC modules with Modbus TCP/IP, OPC UA, and proprietary Honeywell protocol interfaces, enabling seamless integration with Experion PKS, DCS systems, and third-party SCADA platforms. Real-time diagnostic data streams to operator workstations for predictive maintenance scheduling.

Cybersecurity Hardening: When paired with FC-BKM controller modules featuring embedded firewall capabilities, the chassis supports defense-in-depth strategies compliant with IEC 62443 industrial cybersecurity standards. VLAN segmentation isolates safety networks from enterprise IT infrastructure.

Redundancy Architectures: Deploy dual-chassis configurations with automatic failover logic for SIL 3 applications requiring 1oo2 (one-out-of-two) voting. The chassis's deterministic backplane timing ensures synchronized I/O updates across redundant controllers within 5ms tolerance.

Delivery Timelines & Service Commitments

Standard Lead Time: 3-5 business days for in-stock units (subject to inventory availability)
Custom Configurations: 2-3 weeks for pre-populated chassis with customer-specified module layouts
Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects and material failures
Technical Support: Lifetime access to application engineering team for configuration assistance, troubleshooting, and system optimization
Documentation Package: Includes installation manual, dimensional drawings (DXF/PDF), safety certification documents, and module compatibility matrix

Frequently Asked Questions

What is the maximum ambient temperature for continuous operation of the FC-IOCHAS-0002R chassis?
The chassis is rated for continuous operation up to +70°C ambient temperature when equipped with standard I/O modules. For high-power analog modules or fully populated configurations, maintain ambient temperatures below +60°C or implement forced-air cooling to prevent thermal derating.

Can this chassis be used in Zone 2 hazardous area classifications?
The FC-IOCHAS-0002R is designed for safe area installation (typically control rooms or marshalling cabinets). For Zone 2 applications, install the chassis in a purged/pressurized enclosure meeting IEC 60079-2 Type X pressurization requirements, or use intrinsically safe barriers between field devices and I/O modules.

How do I determine the correct power supply sizing for my chassis configuration?
Sum the current draw specifications from all installed I/O module datasheets, then add 20% safety margin. For example, a chassis with eight modules drawing 150mA each requires a minimum 1.44A power supply (8 × 150mA × 1.2). The FS-FEEDER-24R provides 10A capacity for most applications.

Is the chassis compatible with legacy Honeywell FSC modules from earlier production years?
Yes, the FC-IOCHAS-0002R maintains backward compatibility with FSC I/O modules manufactured since 2008. However, verify firmware revision compatibility between older modules and current FC-BKM controller versions to ensure proper backplane communication protocol support.

What grounding requirements apply to this chassis installation?
Connect the chassis ground lug to a dedicated safety ground bus bar using minimum 14 AWG (2.5mm²) copper wire. Maintain less than 1-ohm resistance to earth ground. For systems with multiple chassis, implement star-point grounding topology to prevent ground loops that can cause I/O signal corruption.

Does Industrial Control Hub provide pre-commissioning testing services?
Yes, we offer factory acceptance testing (FAT) for pre-configured chassis assemblies, including I/O loop checks, power-on diagnostics, and safety function verification per customer-supplied test procedures. Contact our engineering team to discuss project-specific testing requirements.

Secure Your Safety System Foundation Today

The FC-IOCHAS-0002R chassis represents a proven platform trusted by safety engineers across 50+ countries for mission-critical applications. Industrial Control Hub maintains ready stock of genuine Honeywell components backed by full traceability documentation and factory certifications.

Request a quotation now: Contact our automation specialists at sale@ninermas.com or call +0086 187 5021 5667 to discuss your project requirements, receive application engineering support, and expedite delivery to meet your commissioning schedule.
