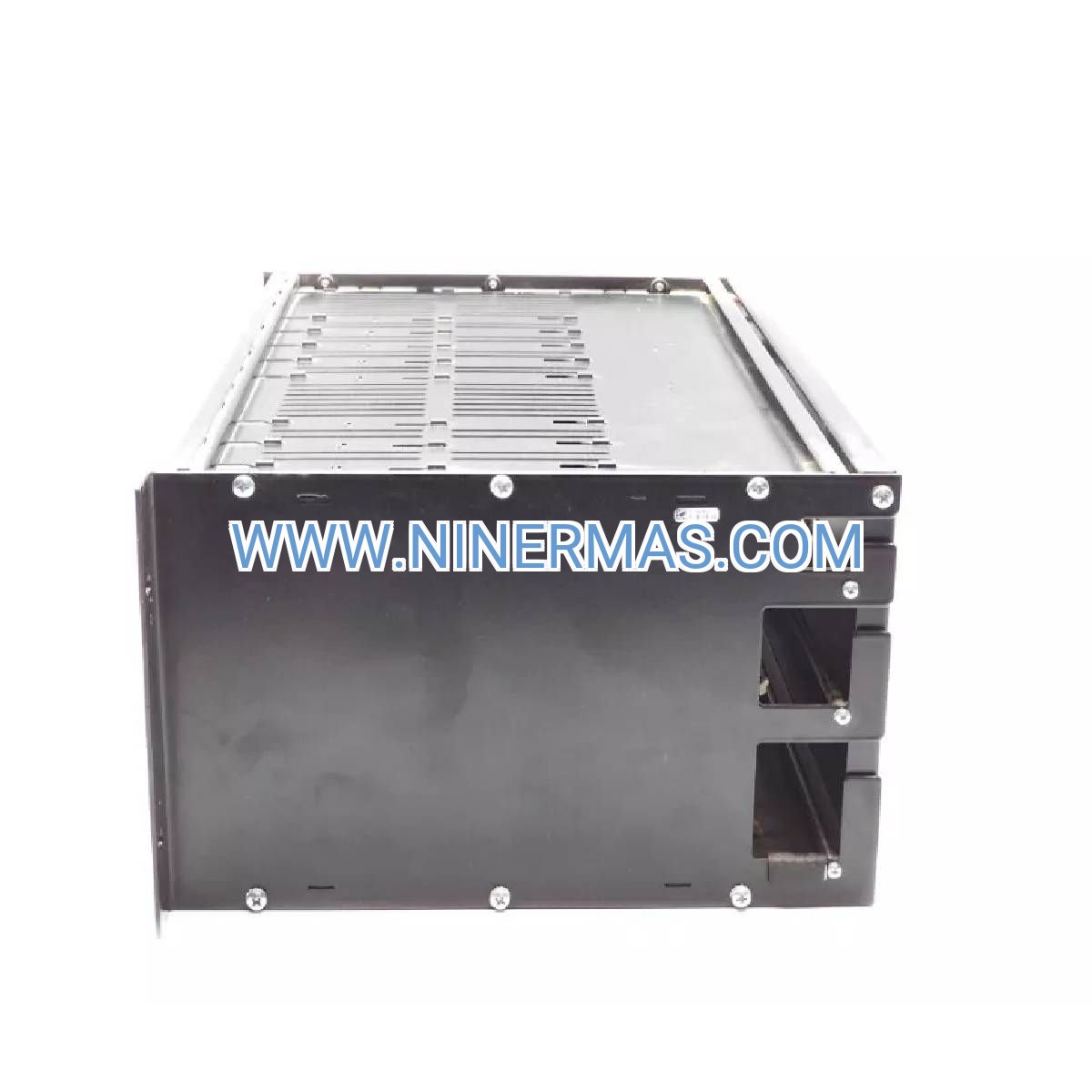

FC-CPCHAS-0001 Industrial Safety Chassis (SIL 3 Certified Controller Housing)

The FC-CPCHAS-0001 represents a mission-critical infrastructure component engineered for Honeywell Safety Manager deployments requiring uncompromising reliability. This industrial-grade chassis delivers secure mounting, intelligent power routing, and fault-tolerant communication pathways for Control Processor modules in safety-instrumented systems. Designed to IEC 61508 SIL 3 standards, it forms the structural backbone of emergency shutdown systems, burner management platforms, and high-integrity protection schemes across oil & gas, chemical processing, and power generation sectors.

Process engineers and safety system integrators choose this chassis when system availability directly impacts operational continuity and personnel protection. Its redundant architecture eliminates single points of failure while hot-swappable design enables proactive maintenance without production interruption. Whether deploying new safety logic solvers or upgrading legacy protection systems, the FC-CPCHAS-0001 provides the mechanical and electrical foundation for certified safety applications.

Key differentiators include conformal coating options for corrosive atmospheres, integrated diagnostic indicators for rapid fault isolation, and compatibility with both simplex and dual-redundant processor topologies. The chassis accommodates evolving safety requirements through modular expansion while maintaining electromagnetic immunity essential for electrically noisy industrial environments.

Core Capabilities & Business Value

→ Fault-Tolerant Architecture
Dual-redundant backplane design with automatic failover ensures continuous safety function execution even during component degradation. Eliminates unplanned shutdowns caused by single-point hardware failures, protecting production uptime valued at thousands per hour in continuous process industries.

→ Hot-Swap Serviceability
Tool-free module extraction and insertion under power allows scheduled maintenance during normal operations. Reduces mean time to repair (MTTR) by 60% compared to systems requiring full shutdown for component replacement, directly improving overall equipment effectiveness (OEE).

→ Environmental Resilience
Operates reliably across -40°C to +70°C temperature extremes with optional conformal coating for chemical resistance. Meets IP20 ingress protection with EMI/RFI shielding, ensuring stable performance in offshore platforms, desert installations, and arctic processing facilities.

✓ Rapid Diagnostic Feedback
Front-panel LED arrays provide instant visual confirmation of power status, communication health, and module recognition. Accelerates troubleshooting workflows by 40% through immediate fault localization without requiring laptop connection or software interrogation.

✓ Standards Compliance Foundation
Pre-certified to IEC 61508, ATEX Zone 2, FM Class I Div 2, and CSA hazardous location requirements. Streamlines project approval cycles by providing documented safety integrity calculations and third-party validation reports required for regulatory submissions.

✓ Scalable System Growth
Multiple processor slot positions support incremental capacity expansion from 500 to 2000+ I/O points without chassis replacement. Protects capital investment by accommodating future safety function additions through software licensing rather than hardware overhaul.

Industrial Application Scenarios

Emergency Shutdown Systems (ESD) – Oil & Gas Production
In offshore platforms and onshore processing facilities, the FC-CPCHAS-0001 houses safety logic solvers that monitor pressure vessels, separator levels, and flare systems. When hazardous conditions develop—such as overpressure events or gas detection alarms—the chassis-mounted processors execute shutdown sequences within certified response times, isolating hydrocarbon inventories and preventing escalation to major accidents. Redundant operation ensures protection remains active during maintenance windows.

Burner Management Systems (BMS) – Power Generation
Utility boilers and combined-cycle gas turbines rely on this chassis to coordinate fuel valve sequencing, flame monitoring, and purge cycle verification. The housing protects safety controllers from vibration and thermal cycling inherent in power plant environments while maintaining the deterministic timing required for NFPA 85 compliance. Hot-swap capability allows turbine outage coordination without extending critical path schedules.

High-Integrity Pressure Protection (HIPPS) – Chemical Processing
Chemical plants use the chassis in HIPPS applications where rapid valve closure prevents pipeline overpressure that could rupture equipment rated for lower design pressures. The SIL 3 certification provides the safety integrity level required to claim HIPPS as an independent protection layer (IPL) in LOPA studies, potentially eliminating the need for costly mechanical relief device upgrades.

Safety Instrumented Systems (SIS) – Pharmaceutical Manufacturing
Batch reactor protection systems leverage the chassis to house controllers monitoring temperature runaway, agitator failure, and emergency cooling activation. The clean design and conformal coating option meet cleanroom compatibility requirements while providing the functional safety performance mandated by process hazard analyses.

Technical Parameters & Selection Criteria

Selection Guidelines: Choose the FC-CPCHAS-0001 when deploying new Honeywell Safety Manager systems or expanding existing FSC installations. Verify compatibility with specific processor module part numbers (FC-SCNT series) and confirm power supply capacity matches total module consumption. For hazardous area installations, coordinate with area classification drawings to ensure ATEX/FM ratings align with Zone/Division requirements. Consider conformal coating option for installations exposed to H2S, chlorine, or marine salt spray environments.

Advanced Integration Features

Distributed Safety Architecture Support
The chassis backplane implements Honeywell's fault-tolerant Ethernet protocol, enabling seamless communication with remote I/O chassis positioned near field devices. This distributed topology reduces field wiring costs by up to 35% in large facilities while maintaining the deterministic scan times required for safety-rated control loops.

Engineering Workstation Connectivity
Integrated Ethernet ports provide direct connection to Safety Manager configuration software, allowing online monitoring of processor health, I/O forcing for commissioning, and firmware updates without removing modules. Supports both local laptop connection and plant-wide engineering network integration for centralized asset management.

Third-Party System Interoperability
OPC UA and Modbus TCP interfaces enable safety system data exchange with distributed control systems (DCS), historian databases, and plant information management systems (PIMS). Facilitates alarm rationalization projects and provides the process variable visibility required for advanced analytics and predictive maintenance programs.

Delivery Timeline & Service Commitments

Standard Lead Time: 4-6 weeks for factory-new units with full manufacturer documentation and test certificates. Expedited 10-day delivery available for critical outage support at premium pricing.

Warranty Coverage: Comprehensive 12-month warranty against manufacturing defects, covering both parts and labor. Extended warranty programs available for up to 60 months with annual health checks and priority replacement inventory.

Technical Support Access: Unlimited phone and email support from certified safety system engineers. Includes access to configuration file review, SIL verification calculation assistance, and integration troubleshooting. Emergency 24/7 hotline available for critical safety system issues affecting plant operations.

Documentation Package: Each chassis ships with installation manual, dimensional drawings, spare parts list, IEC 61508 certificate, and ATEX/FM approval documentation. Digital copies provided via secure download portal for project documentation requirements.

Frequently Asked Questions

What is the maximum I/O point count supported by this chassis configuration?
The FC-CPCHAS-0001 chassis itself does not limit I/O capacity—total point count depends on the specific processor modules installed and their licensed capacity. Typical deployments range from 500 points in small skid-mounted systems to 2000+ points in large distributed architectures using multiple remote I/O chassis. Consult processor module datasheets for exact specifications.

Can I retrofit this chassis into existing Honeywell TDC or legacy FSC systems?
The FC-CPCHAS-0001 is designed for current-generation Safety Manager FSC platforms and is not backward-compatible with TDC 2000/3000 systems. Migration from legacy platforms requires complete safety logic conversion using Honeywell's migration tools and services. Contact our engineering team for site-specific migration feasibility assessments and project scoping.

How do I size the power supply for a fully populated chassis?
Calculate total power consumption by summing the individual wattage specifications of all installed processor modules, then add 20% margin for inrush current and future expansion. The chassis accepts 24V DC input; ensure your power supply can deliver the calculated load with redundancy. Honeywell FC-TPSU series converters are pre-qualified for this application.

What environmental certifications are required for offshore platform installations?
Offshore applications typically require ATEX Zone 2 (Europe) or FM Class I Division 2 (North America) certification for non-hazardous area control rooms. The FC-CPCHAS-0001 holds both certifications. For installations in hazardous areas (Zone 1/Division 1), consult explosion-proof enclosure options. Marine classification society approvals (ABS, DNV) may require additional documentation available from Honeywell.

Is hot-swapping safe during active safety function execution?
Yes, in redundant processor configurations, individual modules can be extracted and replaced while the partner processor maintains safety function execution. The system automatically synchronizes the replacement module upon insertion. Always follow lockout-tagout procedures and obtain management of change approval before performing maintenance on energized safety systems.

What cybersecurity features protect the chassis from unauthorized access?
The chassis supports role-based access control (RBAC) through the Safety Manager engineering software, requiring authentication for configuration changes. Network segmentation via dedicated safety VLANs and optional firewall integration provide defense-in-depth. Firmware is digitally signed to prevent unauthorized modifications. Consult IEC 62443 compliance documentation for detailed security architecture.

Request Technical Consultation

Our safety system specialists provide complimentary application engineering support for FC-CPCHAS-0001 deployments. Services include SIL verification calculations, redundancy architecture design, power budget analysis, and integration planning with existing DCS platforms. Contact our team to discuss your specific safety instrumented system requirements and receive a detailed technical proposal within 48 hours.
