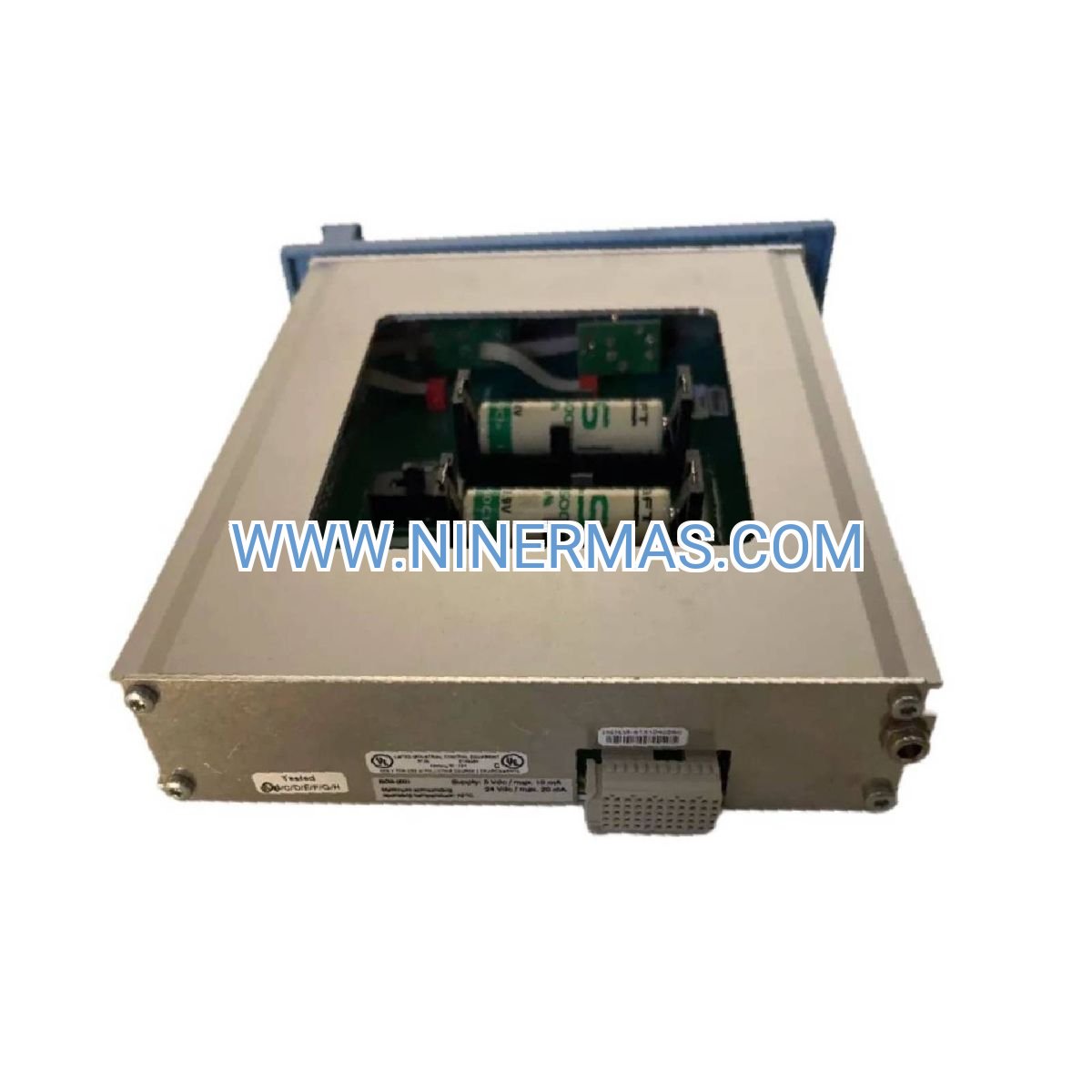

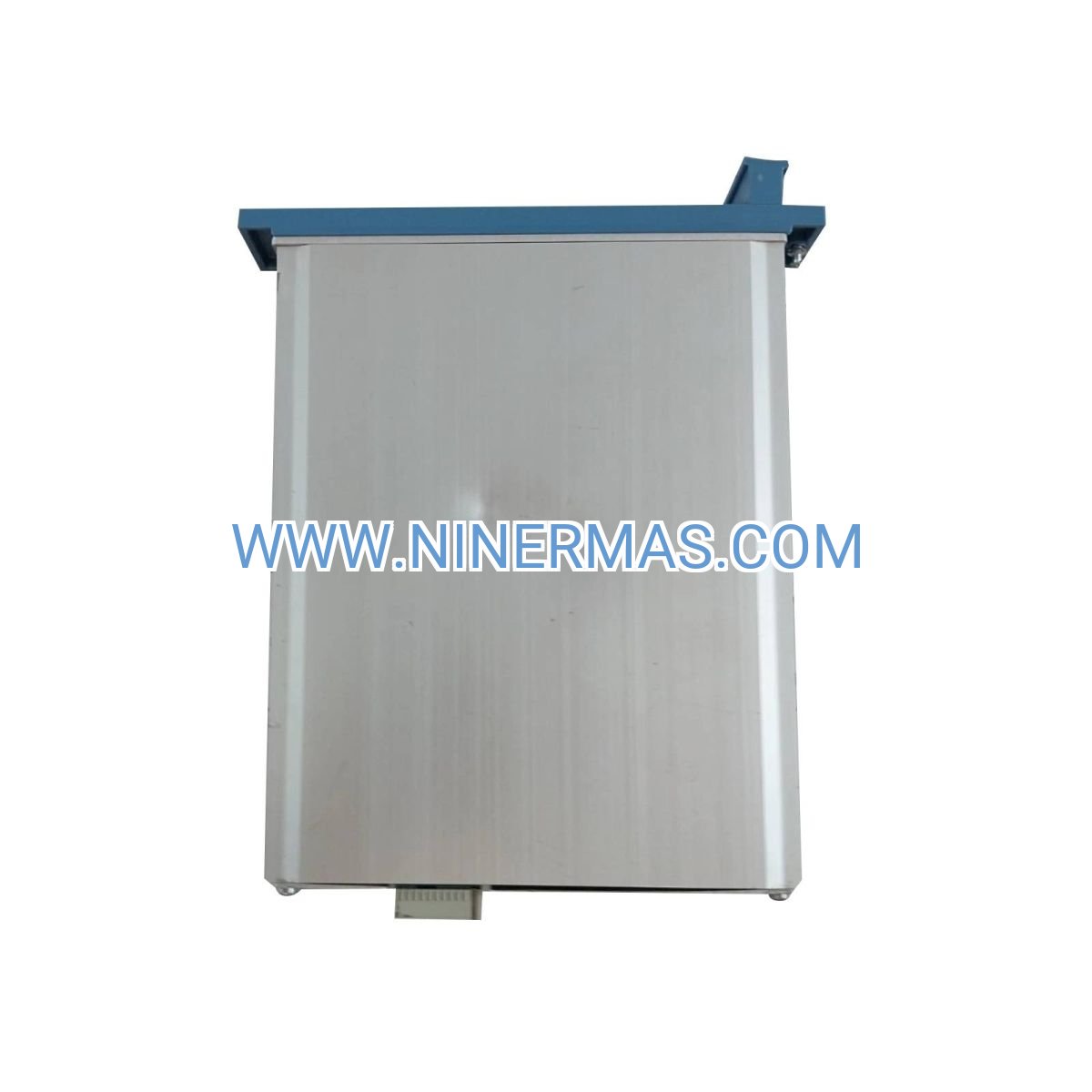

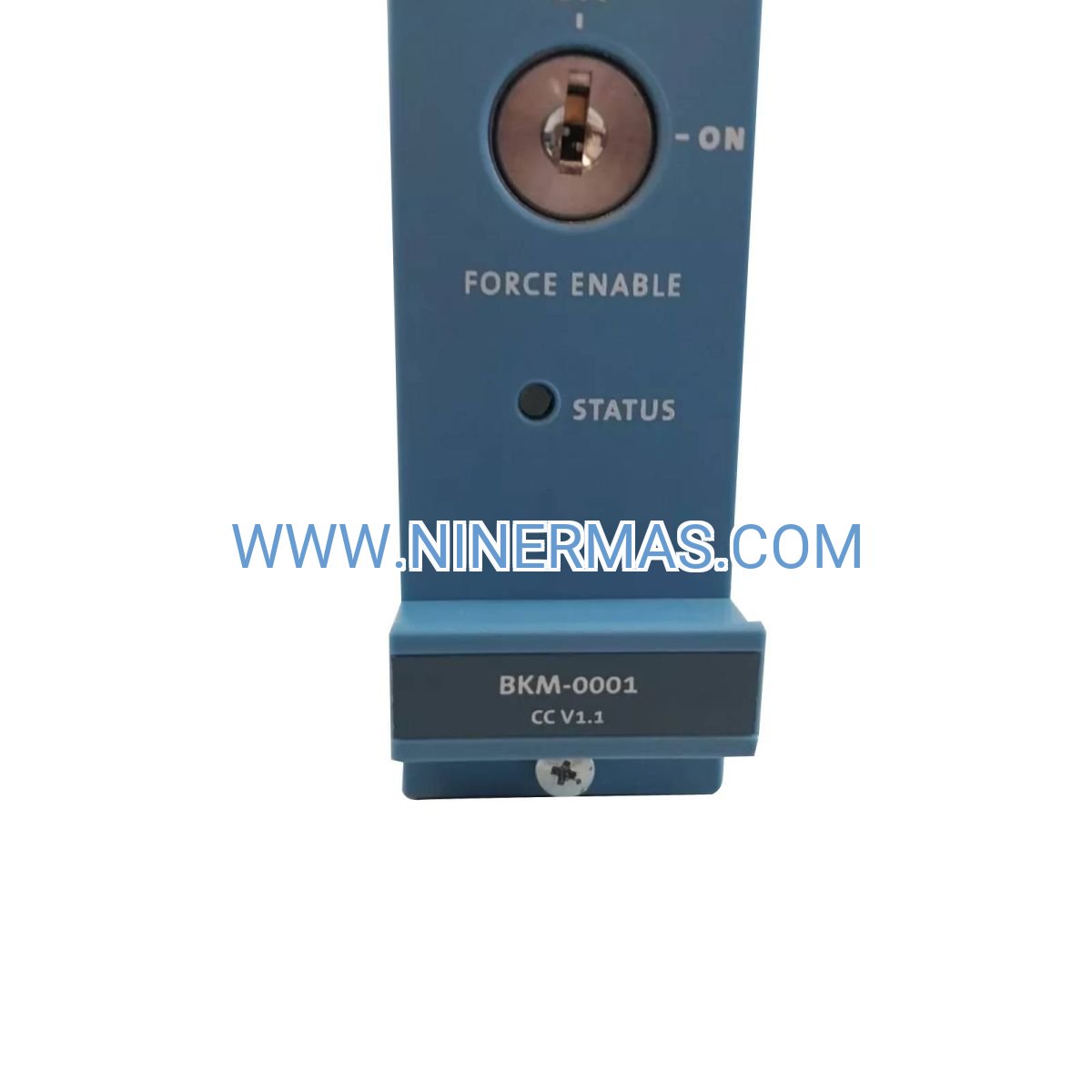

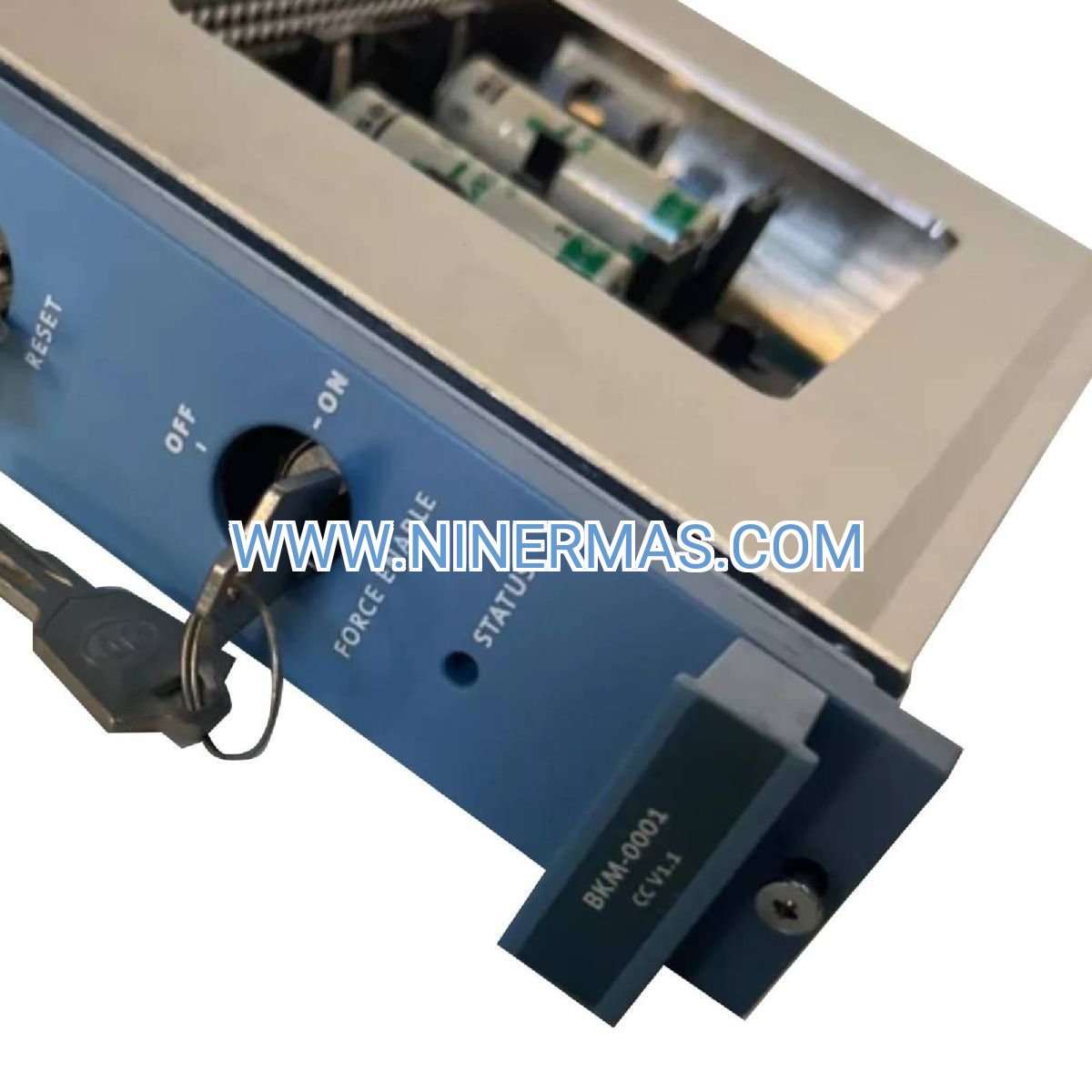

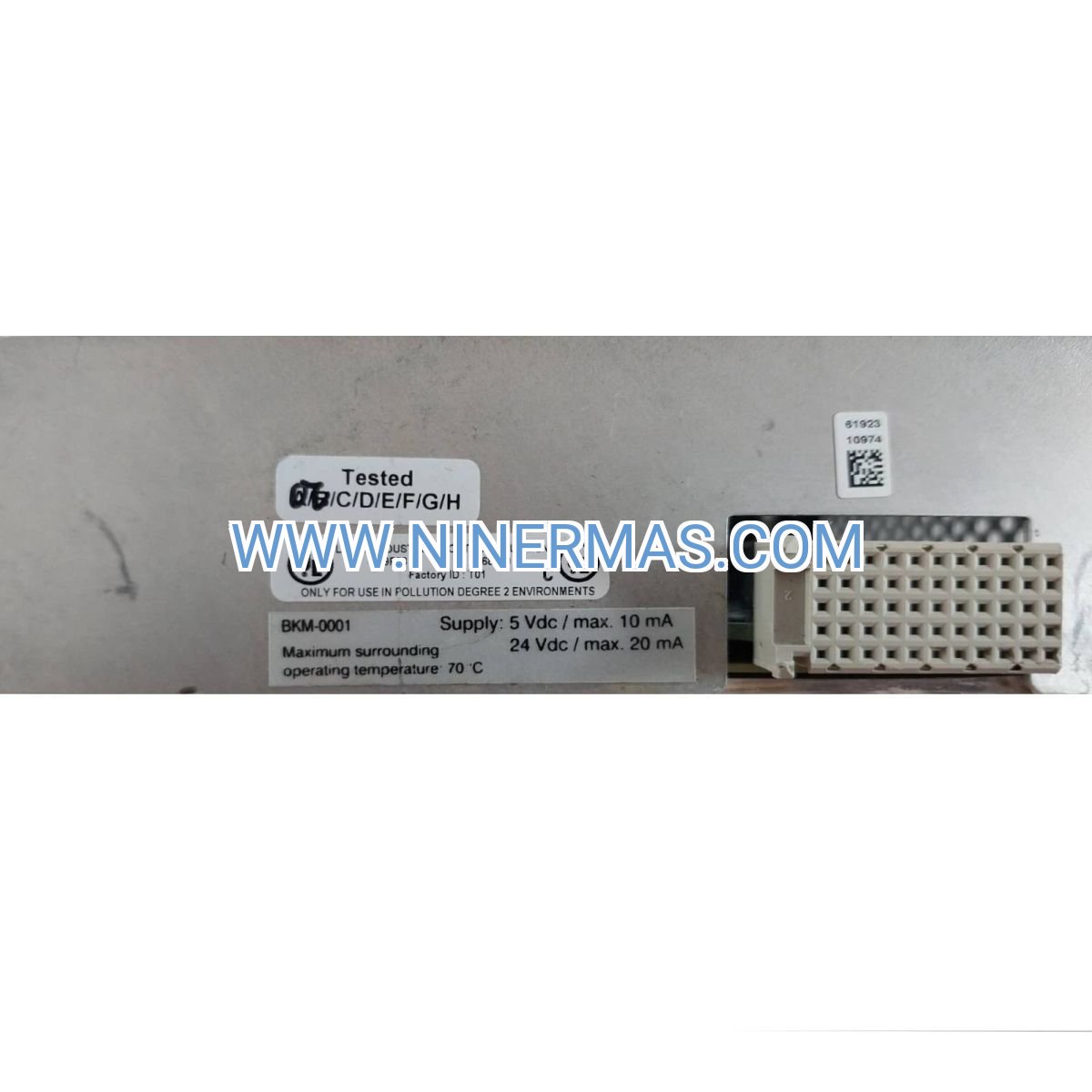

FC-BKM-0001 Industrial Safety Processor (SIL 3 Certified Control CPU)

The FC-BKM-0001 represents Honeywell's flagship safety processor engineered for fail-safe controller (FSC) architectures in mission-critical industrial environments. This IEC 61508 SIL 3 certified control CPU delivers deterministic processing, redundant operation modes, and seamless integration with distributed safety systems across oil & gas, chemical processing, power generation, and heavy manufacturing sectors.

Designed for engineers who demand uncompromising reliability, the FC-BKM-0001 eliminates single points of failure through dual-redundant processing channels, continuous self-diagnostics, and hot-swappable failover capabilities. Whether you're protecting high-value assets, ensuring personnel safety, or maintaining regulatory compliance, this processor provides the computational backbone for your safety instrumented systems (SIS).

With proven performance in over 10,000 global installations, the FC-BKM-0001 combines industrial-grade construction (-5°C to +70°C operation), multi-protocol connectivity (Modbus, Ethernet/IP, OPC), and sub-50ms scan times to deliver the responsiveness and durability your critical processes require.

Core Capabilities & Business Value

✓ Certified Safety Integrity: IEC 61508 SIL 3 / IEC 61511 certification ensures compliance with international functional safety standards, reducing liability exposure and simplifying regulatory audits for process safety management (PSM) programs.

✓ Redundant Architecture Options: Deploy in 1oo1, 1oo2, or 2oo3 configurations to match your risk tolerance and availability requirements. Automatic failover occurs within 100ms, maintaining process continuity during component failures or maintenance activities.

✓ Deterministic Performance: High-speed dual-core processing delivers consistent scan cycles under 50ms for standard safety logic, with priority scheduling for time-critical emergency shutdown (ESD) sequences and fire & gas detection responses.

→ Multi-Protocol Integration: Native support for Modbus TCP/IP, Ethernet/IP, and OPC DA/UA enables seamless data exchange with SCADA systems, DCS platforms, and third-party analytics tools without custom gateway hardware.

→ Extended Environmental Range: Operate reliably from -5°C to +70°C (23°F to 158°F) in harsh industrial settings including offshore platforms, desert facilities, and arctic installations where conventional controllers fail.

→ Comprehensive Diagnostics: Built-in health monitoring tracks processor load, memory utilization, I/O module status, and communication integrity with automatic alarm generation and event logging for predictive maintenance strategies.

Industry Applications & Problem Resolution

Upstream Oil & Gas Production
Challenge: Wellhead platforms require emergency shutdown systems (ESD) that respond to overpressure, gas detection, and fire events within seconds to prevent catastrophic failures.
Solution: The FC-BKM-0001 executes complex voting logic across multiple sensor inputs, triggering valve closures and pump shutdowns in under 200ms. Redundant processors ensure 99.99% uptime even during maintenance windows.
Value: Minimize hydrocarbon releases, protect personnel safety, and maintain production continuity with certified SIL 3 protection layers.

Chemical Batch Processing
Challenge: Reactor temperature excursions or runaway reactions demand immediate intervention to prevent vessel rupture, toxic releases, or explosions in multi-product facilities.
Solution: Integrate the processor with analog input modules for continuous temperature/pressure monitoring and analog output modules for precise cooling system modulation. Safety interlocks prevent incompatible material charging.
Value: Achieve batch-to-batch consistency, reduce insurance premiums through demonstrated risk mitigation, and comply with OSHA PSM and EPA RMP regulations.

Power Generation Turbine Control
Challenge: Steam and gas turbines require coordinated protection against overspeed, vibration, and lubrication failures to prevent multi-million dollar equipment damage and extended outages.
Value: Deterministic processing ensures trip functions execute within design safety margins. Hot-swappable redundancy allows online processor replacement during scheduled maintenance without unit shutdown.

Pharmaceutical Manufacturing
Challenge: Clean room environments demand contamination prevention through precise airflow control, while hazardous material handling requires certified safety interlocks.
Solution: The processor manages differential pressure monitoring, HVAC interlock sequences, and emergency ventilation activation with full audit trail capabilities for FDA 21 CFR Part 11 compliance.
Value: Protect product quality, ensure operator safety during material transfers, and maintain electronic records for regulatory inspections.

Wastewater Treatment Facilities
Challenge: Chlorine gas detection and ammonia release scenarios require immediate ventilation activation and chemical feed shutdowns to protect municipal workers and surrounding communities.
Solution: Deploy the FC-BKM-0001 with digital input modules for toxic gas sensors and digital output modules for ventilation damper control, achieving complete system response in under 500ms.
Value: Meet OSHA confined space entry requirements, reduce worker compensation claims, and demonstrate due diligence for environmental permits.

Technical Parameters & Selection Criteria

Selection Criteria: Choose the FC-BKM-0001 when your application requires SIL 3 certification, redundant processing, or integration with existing Honeywell FSC infrastructure. For smaller systems with SIL 2 requirements, consider compact processor alternatives. For systems exceeding 5,000 I/O points, evaluate distributed processor architectures with multiple FC-BKM-0001 units.

Advanced Integration Features

IoT & Cloud Connectivity: While the FC-BKM-0001 operates as a standalone safety processor, it supports secure data publishing to Honeywell Forge or third-party cloud platforms via OPC UA for remote monitoring, predictive analytics, and digital twin applications. Maintain air-gapped safety networks while enabling read-only data access for business intelligence systems.

Cybersecurity Hardening: Built-in security features include role-based access control (RBAC), encrypted communication channels, and audit logging to meet IEC 62443 industrial cybersecurity standards. Firmware authentication prevents unauthorized code modifications.

Custom Logic Libraries: Leverage pre-built function blocks for common safety patterns including 2oo3 voting, partial stroke testing, and sequential trip logic. Import custom libraries developed in Safety Manager software for standardized implementations across multiple sites.

Simulation & Testing: Perform factory acceptance testing (FAT) using Safety Manager's built-in simulator to validate logic before commissioning. Execute partial stroke tests and proof testing without process interruption using diagnostic override capabilities.

Delivery Timeline & Service Commitments

Standard Delivery: In-stock FC-BKM-0001 processors ship within 2-3 business days via express courier to most global destinations. Expedited same-day shipping available for emergency replacements (additional fees apply).

Custom Configurations: Pre-programmed processors with customer-specific logic and I/O mapping ship within 5-7 business days after configuration file approval. Factory testing reports included.

Warranty Coverage: 12-month manufacturer warranty covers defects in materials and workmanship. Extended warranty options available for up to 36 months with advance replacement service.

Technical Support: Unlimited phone and email support from certified FSC system engineers. Remote diagnostic assistance available for troubleshooting, configuration optimization, and firmware updates.

Documentation Package: Each processor includes installation manual, quick start guide, wiring diagrams, and Safety Manager software license (single-user). Comprehensive training materials and video tutorials available online.

Frequently Asked Questions

Q: Can I upgrade from an older FSC processor to the FC-BKM-0001 without rewiring?
A: Yes, the FC-BKM-0001 maintains pin-compatible backplane connections with previous-generation FSC processors. You can perform a drop-in replacement, then migrate your Safety Manager project file to the new processor. Verify I/O module compatibility and update firmware to current revisions for optimal performance.

Q: What redundancy configuration provides the best balance of safety and cost?
A: For most SIL 3 applications, a 1oo2 (one-out-of-two) redundant processor configuration offers excellent availability (>99.9%) at reasonable cost. Each processor independently executes safety logic, with automatic failover if one unit fails. 2oo3 configurations provide higher availability but require three processors and more complex voting logic.

Q: How do I integrate the FC-BKM-0001 with my existing Siemens or Rockwell DCS?
A: The processor's Modbus TCP/IP and Ethernet/IP interfaces enable direct communication with Siemens S7 PLCs, Rockwell ControlLogix systems, and most modern DCS platforms. Map safety status points and process variables to the communication module, then configure your DCS to poll these registers. OPC UA provides a vendor-neutral alternative for complex data structures.

Q: What is the typical lifespan before processor replacement is recommended?
A: With an MTBF exceeding 100,000 hours (11+ years), the FC-BKM-0001 typically operates reliably for 7-10 years in controlled environments. Plan replacement based on obsolescence risk, spare parts availability, and evolving cybersecurity requirements rather than component wear-out. Maintain at least one spare processor for critical applications.

Q: Does the processor support online firmware updates without process shutdown?
A: Yes, when configured in redundant mode (1oo2 or 2oo3), you can update firmware on one processor while the redundant unit maintains process control. After the first update completes and synchronizes, switch control to the updated processor and update the second unit. Total update time is typically 15-20 minutes with zero process interruption.

Q: Can I use the FC-BKM-0001 for both safety and non-safety control functions?
A: While technically possible, best practice separates safety-critical logic (emergency shutdowns, fire & gas response) from basic process control (PID loops, sequencing) to maintain clear functional safety boundaries. Use the FC-BKM-0001 exclusively for SIL-rated functions and deploy separate controllers for non-safety automation to simplify validation and reduce certification costs.

Start Your Safety System Upgrade Today

Ready to enhance your facility's safety posture with proven, certified technology? Contact our FSC system specialists to discuss your specific application requirements, receive a detailed quotation, and access technical resources for system design. We maintain extensive inventory of FC-BKM-0001 processors and complementary I/O modules for rapid project deployment.

Next Steps: Email your system architecture diagram and I/O count to our engineering team for a customized configuration proposal, or call to speak with a certified safety system specialist about your project timeline and budget parameters.
