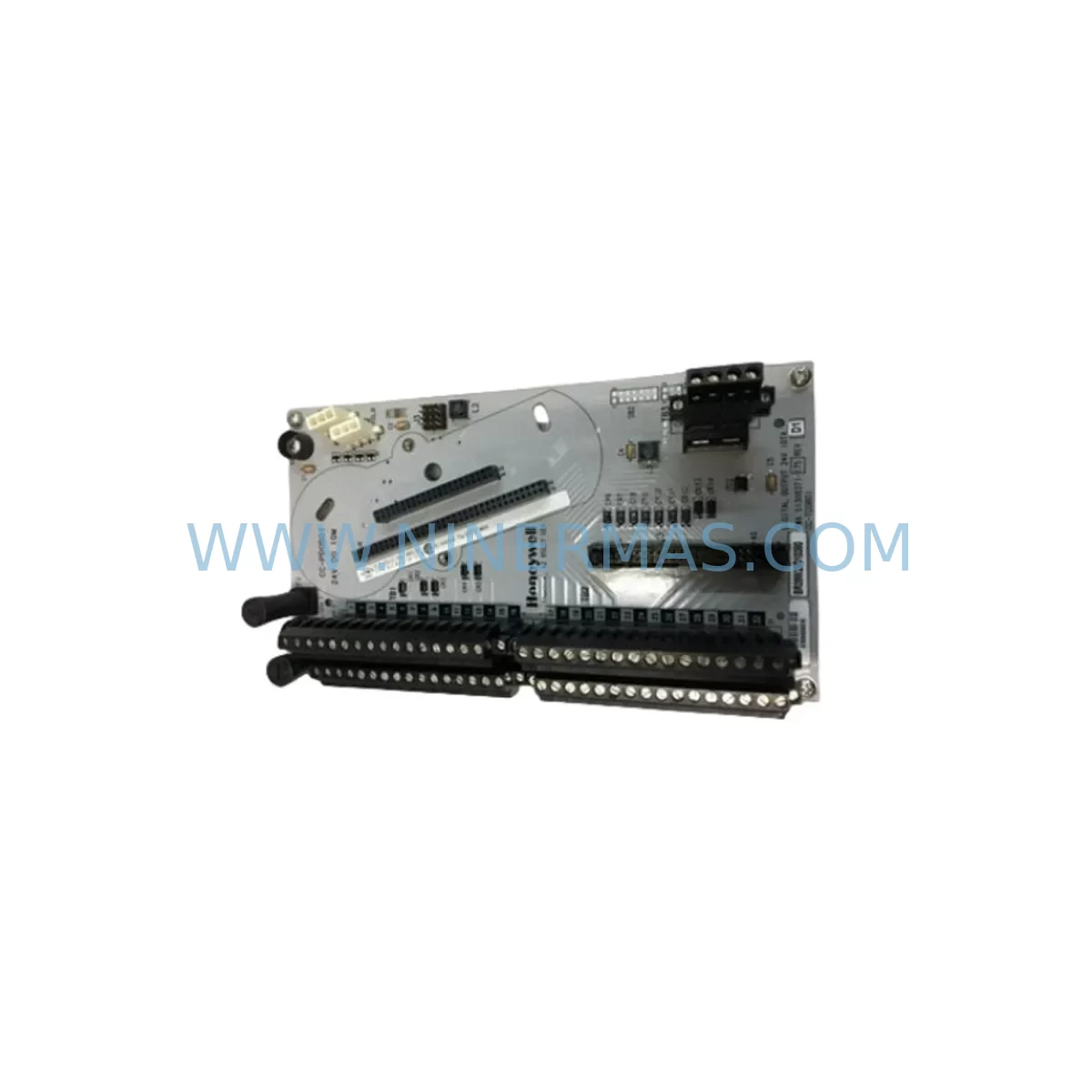

Honeywell DC-TDOB01 Retrofit-Compatible Digital Output Module

Honeywell DC-TDOB01 Retrofit-Compatible Digital Output Module for Legacy Systems

The Honeywell DC-TDOB01 is a ruggedized digital output module designed for use within Honeywell’s Safety Manager and DC-series control platforms. As legacy automation systems age and original spare parts become increasingly difficult to source, the DC-TDOB01 represents a critical retrofit-compatible solution for maintenance engineers managing aging safety instrumented systems (SIS), distributed control systems (DCS), and process automation cabinets. Whether you are executing a planned system upgrade, replacing a discontinued output module, or restoring a tripped safety loop, the DC-TDOB01 delivers the electrical performance and form-factor compatibility required for seamless field integration.

Procurement engineers sourcing this module should verify the existing backplane slot assignment, terminal wiring configuration, and output channel addressing before initiating a replacement. The DC-TDOB01 interfaces directly with the Safety Manager controller backplane and must be installed in the correct slot position to maintain I/O mapping integrity. Confirm that the field wiring termination block — typically a DC-TBOX or equivalent terminal assembly — is undamaged and that all output channel fuses are intact prior to module insertion. Failure to verify these elements can result in extended commissioning time and unnecessary downtime.

For sites running Honeywell Safety Manager SC or Safety Manager MC architectures, the DC-TDOB01 is a direct form-fit-function replacement for the original output module position. Engineers should cross-reference the system’s I/O configuration file and confirm that the replacement module’s firmware revision is compatible with the Safety Manager controller version currently deployed. In mixed-revision environments, a firmware alignment step may be required before the module is recognized by the controller.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful DC-TDOB01 retrofit begins well before the module arrives on site. Maintenance engineers should conduct a full cabinet audit covering the Safety Manager controller module (such as the DC-SCPU or DC-SCPU02), the power supply modules (DC-PSU series), and all adjacent I/O modules including digital input modules (DC-TDIB01 or equivalent) and analog output modules (DC-TAOB01 series). Identifying the health status of these neighboring components before the replacement prevents secondary failures from masking the root cause of the original fault.

During the retrofit planning phase, engineers should also inspect the backplane chassis (DC-RACK or equivalent) for signs of corrosion, bent connector pins, or mechanical damage that could affect the new module’s seating. A damaged backplane can cause intermittent communication faults that are difficult to diagnose after the new DC-TDOB01 is installed. If the backplane shows wear, a concurrent backplane replacement should be considered as part of the upgrade scope.

Communication continuity is another key planning element. In Safety Manager architectures, the controller communicates with the engineering workstation via the Safety Builder software environment. Before pulling the old module, engineers should export the current I/O configuration and create a backup of the Safety Manager project file. This ensures that if the replacement module requires a re-download of the I/O configuration, the process can be completed without referencing outdated documentation.

For sites where the DC-TDOB01 drives field devices such as solenoid valves, motor starters, or shutdown actuators, the output channel wiring should be documented and labeled before disconnection. Terminal blocks — particularly the DC-TBOX field termination assemblies — should be inspected for loose screws, oxidized contacts, or damaged insulation. Replacing corroded terminal blocks at the same time as the output module eliminates a common source of post-retrofit field faults.

Signal isolation requirements should also be reviewed. If the output channels interface with field devices operating at voltages or in environments that differ from the module’s rated output, signal isolators or relay output modules may be required in the circuit. Honeywell DC-series relay output modules or third-party DIN-rail signal isolators can be inserted between the DC-TDOB01 output and the field device to provide galvanic isolation and protect the module from voltage transients.

Finally, engineers should confirm that the site’s 24 VDC power distribution — fed from the DC-PSU power supply modules — is within specification before energizing the new module. Undervoltage or ripple on the 24 VDC bus is a common cause of premature digital output module failure and should be measured with a calibrated meter before and after the retrofit.

Downtime Control During System Migration

Minimizing downtime during a DC-TDOB01 replacement requires a structured hot-swap or controlled-shutdown procedure depending on the Safety Manager system’s redundancy configuration. For simplex Safety Manager installations, a planned shutdown window must be scheduled and coordinated with the process control team. For redundant configurations, the failed module can often be replaced while the redundant controller maintains process control, provided the replacement is completed within the system’s fault-tolerant window.

Before initiating the replacement, the engineering team should place the affected output channels in a safe state — typically by forcing the output to the de-energized (fail-safe) position through the Safety Builder software. This prevents unintended field device actuation during the module swap. Once the new DC-TDOB01 is seated and the terminal wiring is reconnected, the I/O configuration should be verified through the Safety Manager diagnostic display before returning the channels to automatic control.

To further reduce commissioning time, engineers should pre-configure the replacement module in a workshop environment using a bench test setup that mirrors the site’s I/O addressing and firmware version. A pre-tested, pre-configured module can be installed and brought online significantly faster than a module that requires full on-site configuration. All units supplied by NINERMAS are pre-shipment tested to confirm output channel functionality, communication integrity, and power consumption within specification — reducing the risk of receiving a non-functional module during a critical maintenance window.

Post-replacement, a full functional test of all 16 output channels should be performed before the system is returned to automatic operation. This includes verifying that each output channel correctly drives its associated field device, that the Safety Manager controller correctly reads the output status feedback, and that no diagnostic alarms are present in the Safety Builder environment. Documenting the test results provides a baseline for future maintenance audits and supports the 12-month warranty claim process if a defect is identified after installation.

Retrofit Support FAQ

Q1: Is the DC-TDOB01 a direct drop-in replacement for the original Honeywell module?
Yes. The DC-TDOB01 is designed as a form-fit-function replacement for the original module position within the Safety Manager and DC-series backplane. No mechanical modification is required. However, engineers should verify the firmware revision compatibility with the installed Safety Manager controller version before installation, as mixed-revision environments may require a firmware update or I/O configuration re-download.

Q2: How do I verify wiring compatibility before installing the replacement module?
Reference the original system wiring diagram and confirm that the field termination block (DC-TBOX or equivalent) is correctly wired and undamaged. Each output channel’s terminal assignment should match the I/O configuration file in the Safety Builder project. If the original wiring documentation is unavailable, the terminal assignments can be reconstructed from the Safety Manager I/O configuration export before the old module is removed.

Q3: What pre-shipment testing is performed on the DC-TDOB01?
All DC-TDOB01 units supplied by NINERMAS undergo pre-shipment functional testing that includes output channel activation verification, power consumption measurement, backplane communication check, and visual inspection for physical damage. A test report is available upon request. Units are covered by a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.

Q4: Can NINERMAS support long-term supply of the DC-TDOB01 for multi-site maintenance programs?
Yes. NINERMAS maintains inventory of the DC-TDOB01 and related Honeywell DC-series modules to support multi-site maintenance programs, annual inspection schedules, and emergency replacement requirements. Long-term supply agreements and volume pricing are available for procurement teams managing large installed bases of Safety Manager systems. Contact our team to discuss inventory reservation and lead time commitments for your program.
