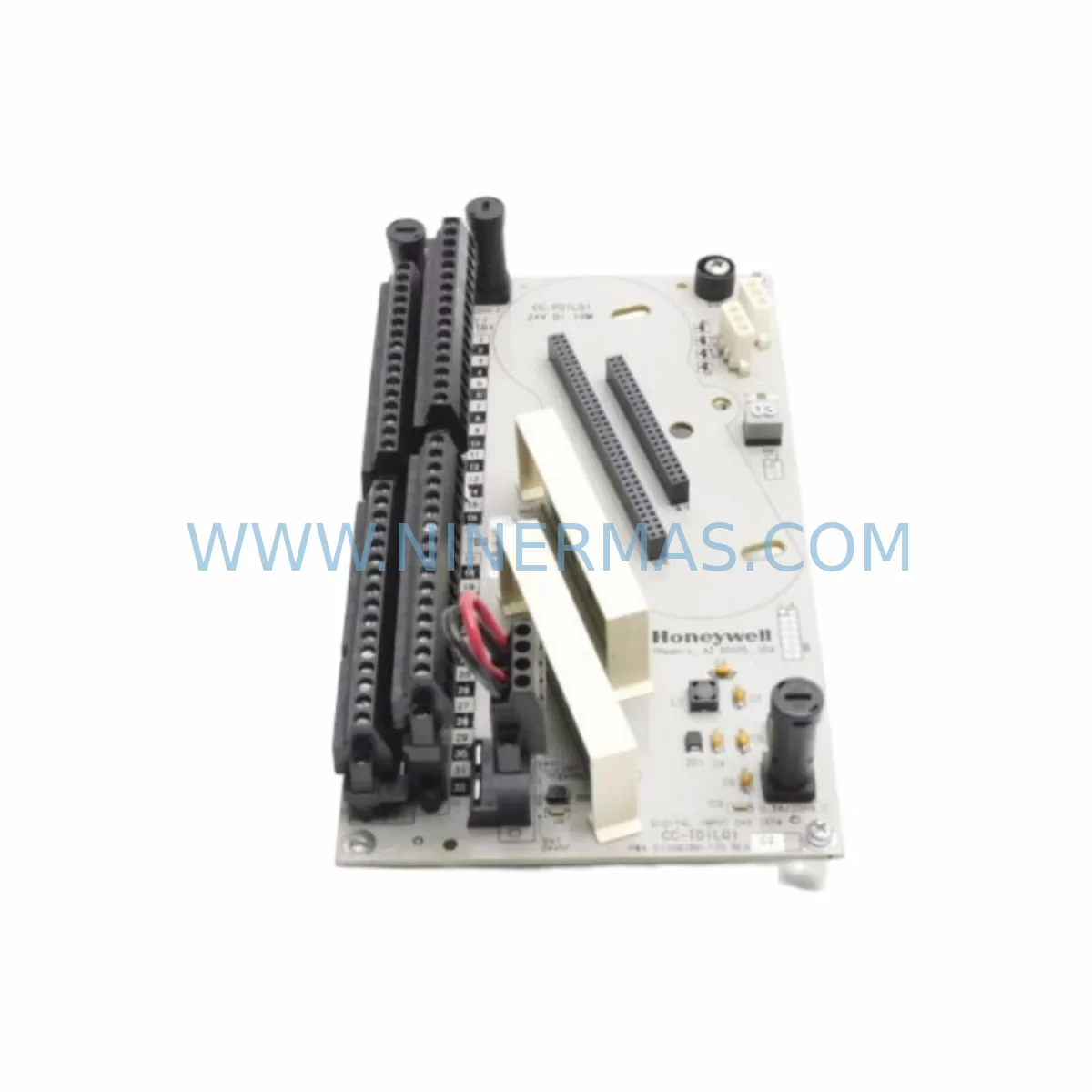

Honeywell CC-TDIL01 51308386-175 Safe Digital Input Module

Honeywell CC-TDIL01 51308386-175 Safe Digital Input Module for Critical Control Sites

The Honeywell 51308386-175 CC-TDIL01 is a ruggedized digital input module engineered for the Experion PKS C300 Controller platform, purpose-built to deliver uncompromising signal integrity and operational safety in the most demanding industrial environments. Whether deployed in continuous petrochemical processing, power generation interlock systems, heavy-duty mining control cabinets, or water treatment SCADA architectures, the CC-TDIL01 provides the deterministic digital input acquisition that safety-critical control loops depend on — day after day, without interruption.

In high-stakes industrial facilities, a single missed or corrupted digital input signal can cascade into a full process shutdown, a safety system misfire, or worse — an uncontrolled hazardous event. The CC-TDIL01 is designed from the ground up to eliminate these risks. Its ruggedized hardware architecture ensures stable signal acquisition even under severe electromagnetic interference (EMI), high-frequency vibration, wide thermal cycling, and condensation-prone humid environments. The module’s isolated input channels prevent ground loop interference and cross-channel signal contamination, which are among the most common causes of spurious trips and control loop instability in field-level DCS installations.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a well-engineered C300 control cabinet, the CC-TDIL01 digital input module does not operate in isolation — it functions as part of a tightly integrated safety and control architecture. When paired with the Honeywell CC-TCNT01 C300 Controller Module, the CC-TDIL01 feeds real-time field status data directly into the controller’s execution engine, enabling sub-100ms interlock response times that are essential for emergency shutdown (ESD) and safety instrumented system (SIS) applications.

Power stability is a foundational requirement for reliable digital input acquisition. Voltage sags, micro-interruptions, and surge transients on the 24VDC bus can cause false input state changes that trigger nuisance trips or, more dangerously, mask genuine process alarms. Integrating a Honeywell CC-PWR001 or equivalent C300 Power Supply Module with active surge suppression ensures the CC-TDIL01 receives clean, regulated power throughout its operational life. For additional surge protection at the field wiring termination level, inline surge arrestors and the Honeywell SLIO or equivalent field terminal assembly provide the first line of defense against lightning-induced transients and switching surges from large motor starters.

Communication integrity between the CC-TDIL01 and the C300 controller is maintained over the Honeywell FTE (Fault Tolerant Ethernet) backbone, which provides redundant communication paths that automatically failover in the event of a network segment fault. This architecture, combined with the CC-TDIL01’s onboard diagnostics, enables the Experion PKS system to detect open-wire faults, short circuits, and out-of-range input conditions before they escalate into process upsets. Complementary modules such as the Honeywell CC-TAIX01 Analog Input Module and the CC-TDOB01 Digital Output Module are commonly deployed alongside the CC-TDIL01 in the same I/O chassis, forming a complete field I/O solution for mixed signal environments.

For facilities operating under IEC 61511 functional safety requirements, the CC-TDIL01 is frequently integrated with Honeywell Safety Manager SC or legacy FSC (Fail-Safe Controller) architectures via hardwired interlock interfaces, ensuring that critical process variables — valve positions, motor run/stop status, pressure switch states — are captured with the redundancy and diagnostic coverage required for SIL-rated safety loops. The Honeywell HC900 Hybrid Controller is another platform where compatible digital input modules serve analogous roles in smaller-scale safety interlock applications, and spare module strategies for both platforms are often managed in parallel by reliability engineering teams.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In continuous hydrocarbon processing, the CC-TDIL01 monitors critical interlock inputs including high-high level switches, emergency shutdown valve (ESDV) position feedback, and flame detector status signals. Its high EMI immunity is essential in environments where large variable frequency drives (VFDs) and high-voltage switchgear generate significant electrical noise on shared cable trays. A single reliable digital input from a pressure safety valve (PSV) position switch, correctly captured by the CC-TDIL01, can prevent a catastrophic overpressure event.

Power Generation and Substation Control: Thermal and hydroelectric power plants rely on deterministic digital input acquisition for turbine protection systems, generator excitation control interlocks, and transformer differential protection relay status monitoring. The CC-TDIL01’s isolation architecture prevents ground potential differences — common in high-voltage substation environments — from corrupting input signals or damaging the I/O module itself.

Mining and Mineral Processing: Underground and surface mining operations subject control equipment to extreme vibration, dust ingress, and wide temperature swings. The CC-TDIL01’s ruggedized design and sealed module housing maintain reliable operation in these conditions, supporting conveyor belt interlock systems, crusher protection circuits, and ventilation fan status monitoring that are critical for personnel safety.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities operate 24/7 with zero tolerance for unplanned downtime. The CC-TDIL01 captures pump run/fail status, valve open/close confirmation, and high-level alarm inputs across distributed pump stations, ensuring that the Experion PKS SCADA system maintains accurate real-time visibility of the entire water distribution network.

Metallurgy and Steel Manufacturing: In electric arc furnace (EAF) and continuous casting environments, the CC-TDIL01 withstands the intense electromagnetic fields generated by high-current bus bars and induction heating systems, reliably capturing cooling water flow switch status, electrode position limit switch inputs, and mold level alarm signals that are essential for product quality and personnel protection.

Safety and Quality FAQ

Q1: What warranty does the Honeywell 51308386-175 CC-TDIL01 carry when purchased from NINERMAS?
A: Every CC-TDIL01 unit supplied by NINERMAS COMPANY LIMITED is backed by a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Our warranty support includes technical diagnosis, replacement coordination, and documentation assistance to minimize your plant downtime.

Q2: How is the CC-TDIL01 tested before shipment?
A: Each unit undergoes a comprehensive pre-shipment functional test that verifies channel-by-channel input response, isolation integrity, communication bus handshake with C300 controller firmware, and power consumption within specification. Only modules that pass all test criteria are released for shipment, ensuring you receive a field-ready spare.

Q3: Is the 51308386-175 CC-TDIL01 compatible with all Experion PKS C300 system revisions?
A: The CC-TDIL01 is designed for the Honeywell Experion PKS C300 I/O platform and is compatible with C300 controller revisions R400 and above. NINERMAS recommends confirming your specific system firmware revision with our technical team prior to ordering to ensure seamless drop-in replacement without configuration changes.

Q4: Can NINERMAS support long-term supply of the CC-TDIL01 for ongoing maintenance programs?
A: Yes. NINERMAS maintains dedicated inventory of Honeywell C300 series I/O modules, including the CC-TDIL01, CC-TAIX01, CC-TDOB01, and related controller and power supply modules, to support planned maintenance schedules, emergency breakdowns, and capital project sparing requirements. Contact our team to discuss blanket order arrangements and priority allocation for critical spare programs.
