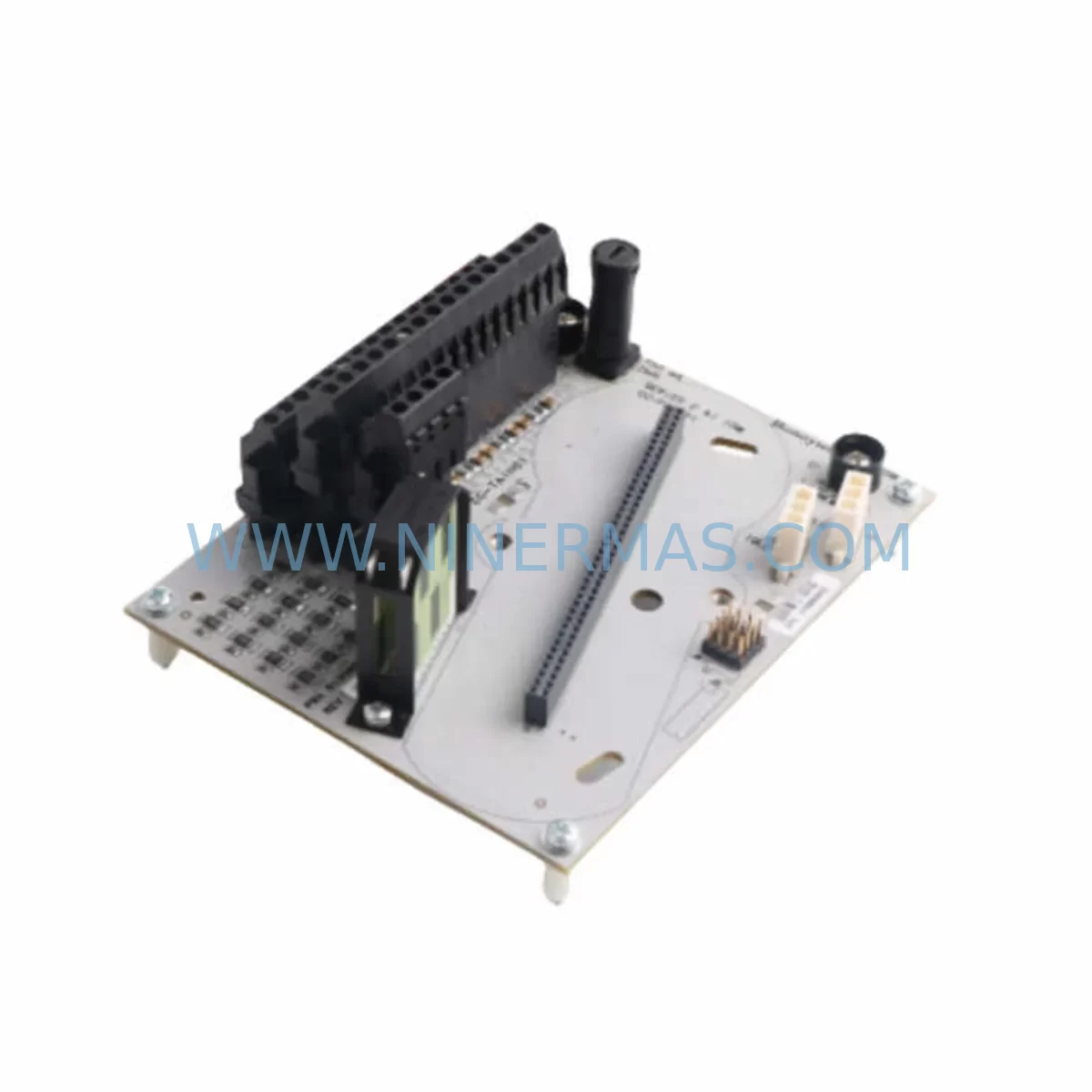

The Honeywell CC-TAIN01 (Part No. 51306513-175) is a high-integrity analog input terminal assembly engineered for the Experion PKS (Process Knowledge System) distributed control platform. Designed to operate continuously in demanding industrial environments — including petrochemical refineries, power generation facilities, metallurgical plants, and water treatment infrastructure — this terminal assembly delivers the signal accuracy, noise immunity, and long-term reliability that safety-critical control loops demand.

In continuous production environments, even a momentary signal interruption or measurement drift in an analog input channel can cascade into unplanned shutdowns, process deviations, or safety system activations. The CC-TAIN01 addresses these risks by providing a robust, field-proven interface between field instrumentation and the Experion PKS C300 Controller or equivalent process controllers, ensuring that 4–20 mA analog signals are faithfully acquired, conditioned, and transmitted to the control layer without degradation.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a well-engineered Experion PKS control cabinet, the CC-TAIN01 analog input terminal assembly does not operate in isolation — it is one node in a tightly integrated safety and control architecture. Signal integrity at the field interface depends equally on the quality of upstream and downstream components. The Honeywell CC-PAIH01 analog input HART module pairs directly with the CC-TAIN01 to enable HART communication over the same 4–20 mA loop, allowing field device diagnostics without interrupting the process signal. For power distribution within the cabinet, the Honeywell CC-PWR01 power supply module provides regulated 24 VDC to the I/O subsystem, and its redundant configuration eliminates single-point power failure as a source of control interruption.

Surge events — common in heavy industrial environments near large motor drives, arc furnaces, or high-voltage switchgear — represent a persistent threat to analog input accuracy. The CC-TAIN01’s built-in transient suppression works in concert with external surge protection devices such as the Phoenix Contact TRABTECH PT 2X2-24DC-ST series, which are frequently installed at the cabinet entry point to clamp transient voltages before they reach sensitive I/O terminals. For field wiring marshalling, the Honeywell CC-TAIX11 intrinsically safe analog input terminal assembly is the preferred companion in Zone 1 or Zone 2 hazardous area installations, while the CC-TAIN01 serves non-IS loops in the same cabinet row.

Communication integrity between the I/O subsystem and the C300 Controller is maintained through the Honeywell CC-SCMB02 Series C I/O Link module, which provides the high-speed serial backplane connection. Any degradation in this link — whether from connector wear, vibration-induced micro-interruptions, or firmware incompatibility — will manifest as sporadic analog input faults. Maintaining a stocked spare of the CC-SCMB02 alongside the CC-TAIN01 is a recognized best practice in spare parts programs for continuous process plants. Similarly, the Honeywell CC-TCNT01 control network interface module governs supervisory-level data exchange; its health directly affects how reliably the DCS historian captures analog trends from the CC-TAIN01 channels.

For plants operating redundant control strategies, the Honeywell C300 Controller (CC-PCF901) paired with a redundant module ensures that a controller failover does not interrupt analog input scanning. The CC-TAIN01 is fully compatible with this redundancy architecture. In high-vibration environments such as compressor halls or rolling mill control rooms, terminal block torque retention and cable strain relief — often managed through Weidmüller WDU 2.5 terminal blocks or equivalent — are critical to preventing intermittent open-circuit faults on analog input wiring that would otherwise appear as spurious process alarms.

Critical Industrial Safety Applications

Petrochemical & Refinery: In crude distillation units and hydrocracker control systems, the CC-TAIN01 acquires temperature, pressure, and flow signals from field transmitters across multiple process trains. Its 16-bit resolution ensures that small deviations in reactor temperature — which may precede runaway conditions — are detected and acted upon before safety instrumented system (SIS) activation thresholds are reached. The module’s optical isolation prevents ground loops between field instruments and the DCS, a common source of measurement error in large refinery installations with extensive grounding networks.

Power Generation: In coal-fired, gas turbine, and combined-cycle power plants, the Experion PKS platform with CC-TAIN01 I/O assemblies monitors boiler drum levels, turbine exhaust temperatures, and generator cooling system parameters. Reliable analog input acquisition is essential for load-following control and for meeting grid dispatch requirements without tripping on spurious process deviations.

Mining & Mineral Processing: Flotation cell level control, ball mill load monitoring, and tailings pump management all depend on accurate 4–20 mA signal acquisition. In dusty, high-humidity concentrator environments, the CC-TAIN01’s sealed terminal design and EMI filtering maintain measurement integrity even when variable-frequency drives for large grinding motors introduce significant conducted interference onto field wiring.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities rely on continuous pH, turbidity, dissolved oxygen, and flow measurement. The CC-TAIN01 supports long-term, unattended operation in these applications, where maintenance access is infrequent and control system availability directly affects regulatory compliance and public safety.

Metallurgy & Steel: In electric arc furnace (EAF) and continuous casting control systems, the electromagnetic environment is among the most severe in industry. The CC-TAIN01’s robust input filtering and surge suppression allow it to maintain signal fidelity in close proximity to high-current bus bars and transformer switching transients that would corrupt unprotected analog inputs.

Safety and Quality FAQ

Q1: What warranty does NINERMAS provide for the CC-TAIN01 51306513-175?
All CC-TAIN01 units supplied by NINERMAS carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing to verify analog input channel performance, isolation integrity, and backplane communication before dispatch.

Q2: How is the CC-TAIN01 tested before shipment?
Every unit is subjected to a multi-point outgoing inspection that includes power-on functional verification, channel-by-channel analog input accuracy check, isolation resistance measurement, and visual inspection for connector and terminal integrity. Test records are retained and available upon request for quality-critical procurement programs.

Q3: Is the CC-TAIN01 51306513-175 compatible with all Experion PKS revisions?
The CC-TAIN01 is designed for the Honeywell Experion PKS Series C I/O subsystem. It is compatible with C300 Controller-based architectures and standard Series C I/O link configurations. For specific firmware revision compatibility or integration with legacy R4xx Experion systems, NINERMAS technical support can advise on interoperability based on your installed base details.

Q4: Can NINERMAS support long-term spare parts supply for the CC-TAIN01?
Yes. NINERMAS maintains dedicated inventory for Honeywell Experion PKS I/O components, including the CC-TAIN01, to support long-term spare parts programs for continuous process plants. We offer stock-commitment arrangements for critical SKUs, ensuring availability for planned maintenance shutdowns, emergency replacements, and multi-year lifecycle support contracts. Contact our team to discuss volume pricing and reserved stock agreements.
