Honeywell CC-TAID11 51306731-175 Service-Ready Spare Part

Honeywell CC-TAID11 51306731-175 Service-Ready Spare Part for Industrial Maintenance

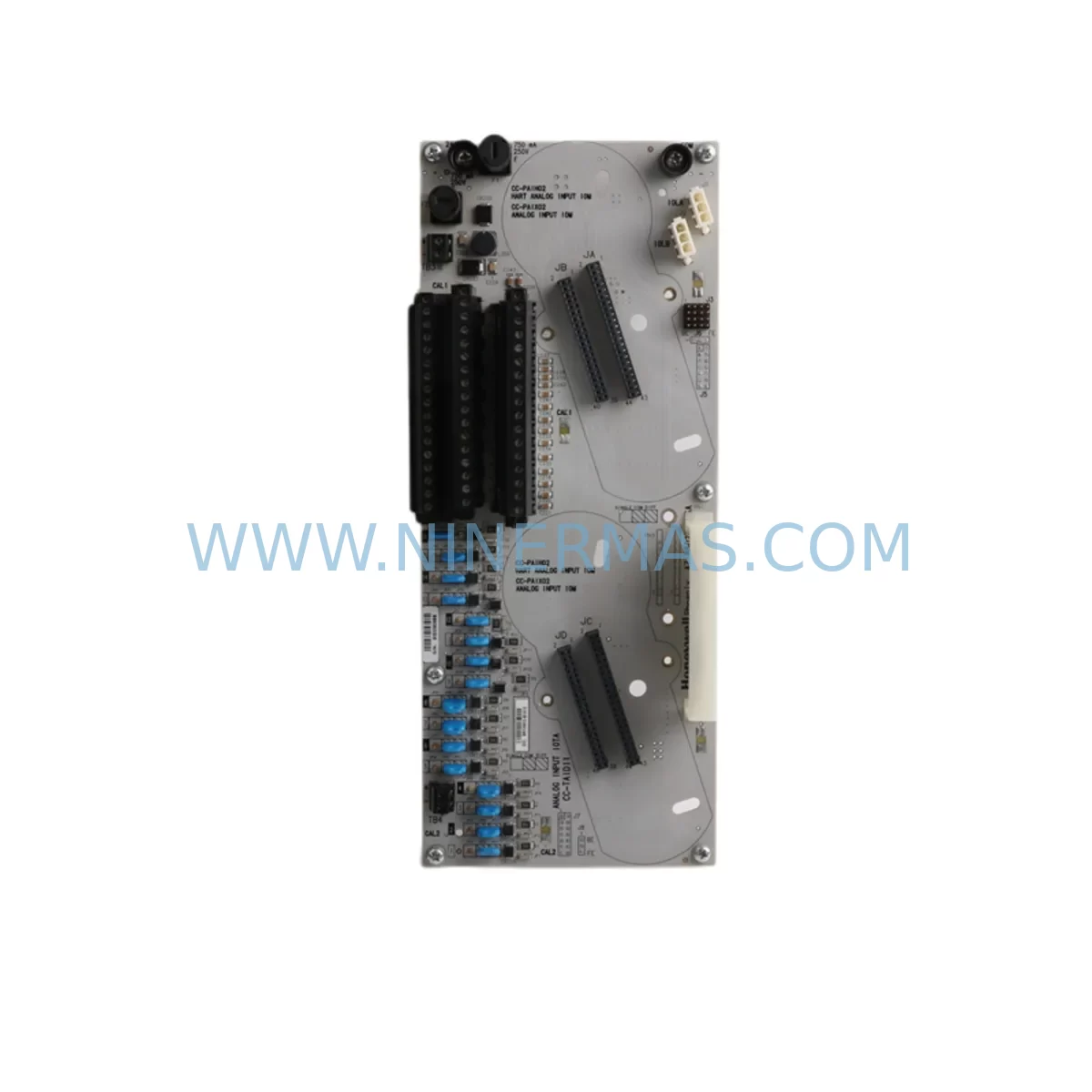

The Honeywell CC-TAID11 (P/N 51306731-175) is a high-density analog input termination assembly designed for use within the Honeywell Experion PKS C200 and C300 DCS control architectures. As a critical interface component between field instrumentation and the controller backplane, this module plays a central role in process signal acquisition across refining, petrochemical, power generation, and continuous manufacturing environments. When this component fails or degrades, the consequences extend beyond a single I/O channel — entire process loops can go blind, triggering unplanned shutdowns and costly production losses.

At NINERMAS, we stock the CC-TAID11 51306731-175 as a service-ready spare, fully tested prior to shipment and backed by a 12-month warranty. Whether you are responding to an emergency breakdown, executing a planned annual turnaround, or building out your critical spare parts inventory, our team provides fast quotation, pre-shipment functional verification, and long-term supply continuity for this and related Honeywell Experion components.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the CC-TAID11 51306731-175 in a live Experion PKS environment is rarely an isolated task. Maintenance engineers and procurement teams working on C200 or C300 controller cabinets should treat this replacement as an opportunity to audit the surrounding electrical and control infrastructure to prevent repeat failures and maximize uptime between scheduled outages.

Begin with the CC-TAIX11 analog input signal conditioner and associated CC-TAOX11 analog output termination assemblies mounted in the same marshalling cabinet — these components share the same signal rail and are subject to identical thermal and vibration stresses. If the CC-TAID11 has failed due to moisture ingress or surge, adjacent termination assemblies are likely compromised as well.

Inspect the CC-PWR01 and CC-PWR02 power supply modules that feed the I/O subsystem. Voltage ripple or marginal output from these units is a leading cause of analog signal drift and premature termination assembly failure. Pair any CC-TAID11 replacement with a power supply load test and, where applicable, a swap to a redundant CC-PWRR01 redundant power supply configuration.

Review the CC-SCMB01 system cabinet mounting base and backplane connectors for oxidation or mechanical wear. Loose backplane seating is a common root cause of intermittent analog channel faults that are misdiagnosed as module failures. While the cabinet is open, verify the integrity of CC-LINK01 or CC-LINK11 controller link modules that handle communication between the C200/C300 controller and the I/O subsystem.

For sites running legacy field instruments on HART protocol, confirm that the CC-TAIM11 HART-capable analog input module is not required as a direct replacement — some process loops require HART pass-through for valve positioner diagnostics. Additionally, check the CC-TDID11 digital input termination assembly and CC-TDOD11 digital output termination assembly in the same cabinet, as mixed analog/digital I/O cabinets often experience correlated failures during electrical transient events.

Finally, verify the Experion PKS C300 controller module (CC-PCF901) firmware version for compatibility with the replacement termination assembly, particularly if the site is running an older Experion release. Mismatched firmware can cause channel initialization errors even when the hardware is fully functional.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Confirm the exact part number (CC-TAID11, P/N 51306731-175) against the cabinet wiring diagram and Experion PKS I/O assignment database. Cross-check the channel address mapping to avoid loop reassignment errors after installation.

Step 2 — Safe Isolation: Place the affected I/O module in bypass or manual mode at the DCS operator station before physical removal. For critical process loops, coordinate with the control room to hold the associated PID controllers in manual. Do not rely solely on software bypass — verify field instrument signal isolation at the marshalling terminal block.

Step 3 — Physical Replacement: Remove the faulty CC-TAID11 assembly, inspect the backplane connector pins for damage, and seat the replacement module firmly. Torque terminal block screws to specification and verify shield grounding continuity with a multimeter before re-energizing.

Step 4 — Loop Verification: After power-up, perform a live signal injection test on each analog channel using a calibrated loop calibrator. Confirm that the Experion PKS operator station displays correct engineering unit values across the full 4–20 mA range before returning loops to automatic control.

Step 5 — Documentation and Spare Replenishment: Update the maintenance management system (CMMS) with the replacement date, module serial number, and test results. Immediately initiate a purchase order to replenish the consumed spare — lead times for Honeywell DCS components can extend to 8–16 weeks from standard distribution channels. NINERMAS maintains buffer stock specifically to support emergency and planned replacement cycles.

Spare Parts Support FAQ

Q1: Is the CC-TAID11 51306731-175 compatible with both C200 and C300 Experion PKS controllers?
Yes. The CC-TAID11 termination assembly is designed for use across the Honeywell Experion PKS C200 and C300 controller families. Compatibility extends across Experion releases R310 through R520 and later, though we recommend verifying your specific firmware version against Honeywell’s compatibility matrix before installation in mixed-revision environments.

Q2: What pre-shipment testing does NINERMAS perform on this module?
Every CC-TAID11 51306731-175 unit shipped by NINERMAS undergoes visual inspection, connector integrity verification, and functional signal path testing prior to dispatch. Units that do not meet original specification are quarantined and not offered for sale. A test report is available upon request for quality-critical procurement processes.

Q3: How should I manage long-term spare parts inventory for Honeywell Experion DCS systems?
For sites operating C200/C300-based DCS systems, we recommend maintaining a minimum of one CC-TAID11 unit per 10 installed modules as a rolling critical spare. Given Honeywell’s product lifecycle policies and the risk of obsolescence for older Experion hardware, procurement engineers should establish a multi-year supply agreement or identify a reliable secondary-market supplier — such as NINERMAS — capable of providing tested, warranted units beyond the OEM’s standard stocking window.

Q4: What is the warranty coverage and what does it include?
All CC-TAID11 51306731-175 units supplied by NINERMAS are covered by a 12-month warranty from the date of shipment. Warranty coverage includes defects in materials and workmanship under normal operating conditions. In the event of a warranty claim, NINERMAS will provide a replacement unit or full refund after fault verification. Warranty does not cover damage resulting from incorrect installation, overvoltage events, or unauthorized modification.
