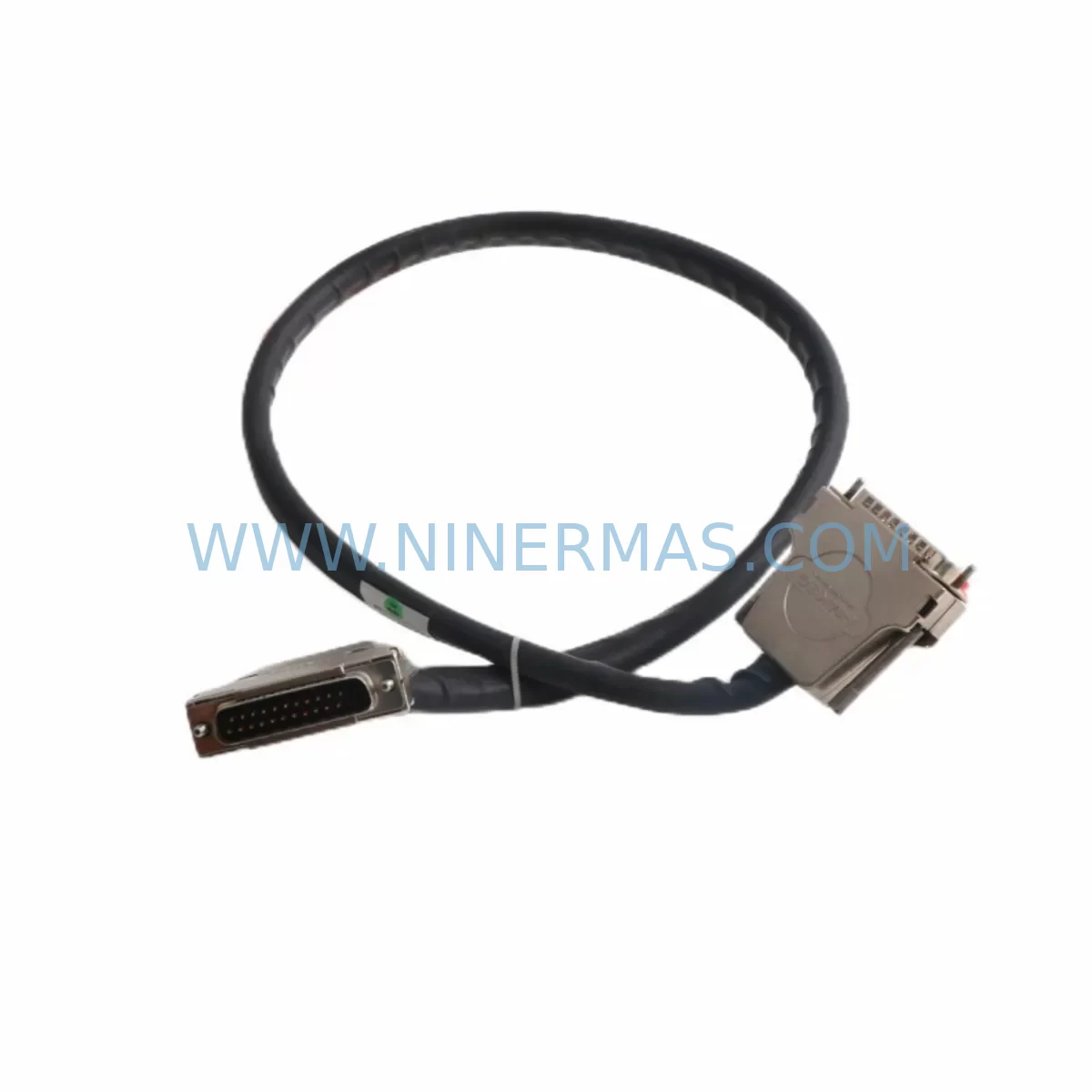

The ABB TK850V007 (3BSC950192R1) is a CEX-Bus Extension Cable designed for use within the ABB S800 I/O system, a widely deployed distributed I/O platform in process automation, power generation, oil & gas, and manufacturing environments. This cable serves as the physical communication backbone between S800 I/O modules and their associated CI801, CI810, CI820, or CI830 communication interface modules mounted on the ModuleBus. When this cable degrades, is physically damaged, or reaches end-of-service life, the entire I/O cluster it supports becomes unreachable — triggering process alarms, forcing manual overrides, and in worst cases, initiating unplanned shutdowns.

At NINERMAS, we stock the TK850V007 / 3BSC950192R1 as a service-ready spare, pre-inspected and tested before dispatch, with a 12-month warranty and fast international shipping to support your maintenance team’s response time.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

The TK850V007 CEX-Bus Extension Cable does not operate in isolation. In any S800 I/O installation, it is part of a tightly integrated signal chain that spans from field instruments through I/O modules, across the CEX-Bus, into the communication interface, and ultimately to the AC800M controller. A disciplined maintenance strategy requires that when this cable is replaced, the surrounding components are simultaneously inspected and — where warranted — replaced as part of the same maintenance window.

During a scheduled replacement of the TK850V007, maintenance engineers should verify the condition of the TB820 ModuleBus Modem and TB840A ModuleBus Modem, which terminate and regenerate the ModuleBus signal. Degraded modem modules are a common root cause of intermittent CEX-Bus communication faults that are often misdiagnosed as cable failures. Similarly, the CI810B or CI830 communication interface modules should be checked for firmware currency and connector wear — these interfaces are the logical endpoints of the bus the TK850V007 extends.

On the power side, the SD821 and SD822 Power Supply modules feeding the S800 I/O rail should be load-tested during the same outage window. Undervoltage conditions on the I/O rail accelerate connector oxidation and can cause the CEX-Bus to report spurious errors that mimic cable faults. Ensure that SA801 Surge Arresters on field signal inputs are intact, as transient events that damage field wiring often propagate stress into the I/O bus infrastructure.

For sites running mixed analog and digital I/O, inspect the AI810, AO810, DI810, and DO810 I/O modules seated on the same cluster as the cable being replaced. Connector pins on these modules can develop micro-arcing in high-vibration environments, and a maintenance window that already involves bus cable replacement is the right time to reseat and inspect them. If the installation includes AI820 HART-enabled analog input modules, verify that HART pass-through communication is restored after cable replacement and bus re-initialization.

Procurement engineers building annual spare parts budgets for S800 I/O systems should treat the TK850V007 as a consumable-class item — stocking at least one unit per CEX-Bus segment in facilities with more than three years of continuous operation. Pairing this with a buffer stock of TB820 ModuleBus Modems and at least one spare CI810B communication interface provides a complete first-response kit capable of resolving the majority of S800 I/O bus outage scenarios without waiting for international freight.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Before removing the TK850V007, access the AC800M controller’s diagnostic view and record the current CEX-Bus status for the affected cluster. Note any existing CRC error counts, module offline events, or communication retry statistics. This baseline confirms whether the cable is the primary fault source or a contributing factor.

Step 2 — Safe Isolation: Place the affected CI module into maintenance mode via the ABB Industrial IT / 800xA engineering station. This prevents the controller from generating process alarms during the cable swap. Do not power-cycle the I/O rail unless the CI module does not support hot-maintenance mode — unnecessary power cycling stresses the SD821/SD822 power supply capacitors.

Step 3 — Physical Replacement: Disconnect the TK850V007 from both the CI module CEX-Bus port and the downstream I/O cluster connector. Inspect both mating connectors for bent pins, oxidation, or debris. Install the new 3BSC950192R1 cable, ensuring the keyed connector is fully seated and the locking tab engages. Do not force the connector — misalignment is a common cause of premature cable failure in retrofit situations.

Step 4 — Bus Re-initialization and Verification: Release the CI module from maintenance mode and allow the ModuleBus to re-enumerate. Verify that all I/O modules on the cluster return to online status within the expected timeout period (typically 30–60 seconds for a healthy S800 cluster). Confirm that CRC error counters reset and do not increment after re-initialization.

Step 5 — Documentation and Stock Replenishment: Log the replacement in your CMMS with the cable’s serial number, installation date, and pre-replacement fault data. Immediately initiate a purchase order to replenish the consumed spare — lead times for ABB S800 accessories can extend to several weeks from standard distribution channels. NINERMAS maintains ready stock of TK850V007 / 3BSC950192R1 to support rapid replenishment cycles.

Spare Parts Support FAQ

Q1: Is the TK850V007 compatible with all S800 I/O generations?
The TK850V007 (3BSC950192R1) is designed for the ABB S800 I/O platform and is compatible with CEX-Bus architectures used across S800 I/O generations deployed with AC800M controllers. Compatibility should be confirmed against your specific CI module variant (CI801, CI810, CI810B, CI820, CI830) and the cable length requirement for your cabinet layout. NINERMAS can assist with compatibility verification before order confirmation.

Q2: What is included in the 12-month warranty?
All TK850V007 / 3BSC950192R1 units shipped by NINERMAS carry a 12-month warranty covering manufacturing defects, connector integrity, and signal continuity. Units that fail within the warranty period are replaced or refunded. The warranty period begins from the date of shipment. Warranty claims require the original invoice and a brief fault description.

Q3: How does NINERMAS verify units before shipment?
Each unit undergoes a pre-shipment inspection covering physical connector condition, cable jacket integrity, and continuity verification. Units sourced from original ABB supply chains are cross-referenced against ABB part number databases before dispatch. Test records are available upon request for critical infrastructure procurement.

Q4: Can NINERMAS support long-term or blanket purchase agreements for S800 I/O spare parts?
Yes. NINERMAS supports long-term supply agreements for facilities requiring guaranteed stock availability of S800 I/O components including TK850V007, TB820, CI810B, SD821, and related accessories. Contact our sales team at sale@ninermas.com to discuss volume pricing, reserved inventory, and scheduled delivery programs tailored to your annual maintenance calendar.
