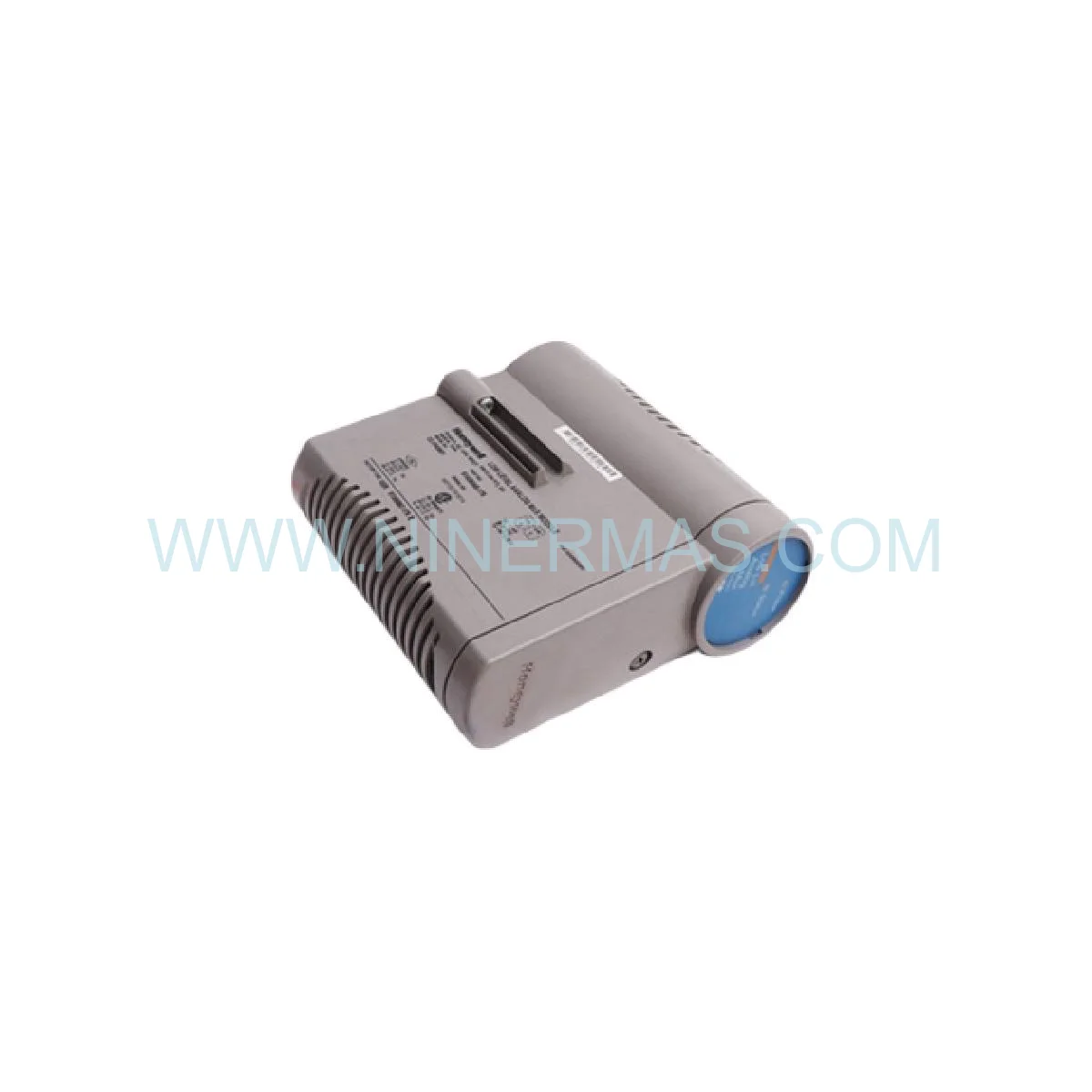

Honeywell CC-PFB402 FOUNDATION Fieldbus Module | 4 H1 Links — New & Original

Honeywell CC-PFB402 FOUNDATION Fieldbus Interface Module | Reliable Automation Component

Field Application & Operational Analysis

From a Site Reliability Engineer’s perspective, the Honeywell CC-PFB402 stands as a cornerstone automation component in mission-critical distributed control architectures. Deployed within Experion PKS platforms, the CC-PFB402 delivers four independent FOUNDATION Fieldbus H1 communication links — each operating at 31.25 kbit/s — enabling deterministic, high-availability data exchange between field instrumentation and the control layer. Its role in sustaining system uptime cannot be overstated: a single module can interface with dozens of transmitters, valve positioners, and analyzers simultaneously, directly reducing the risk of unplanned production stoppages.

Engineered for operational excellence in demanding industrial environments, the CC-PFB402 is rated for continuous service across a 0°C to 60°C temperature range with humidity tolerance up to 95% non-condensing. Installation follows the IOTA (Input/Output Termination Assembly) carrier architecture, which simplifies field wiring, minimizes termination errors, and accelerates commissioning cycles. Engineers must ensure proper Type A twisted-pair cabling (100Ω ±20% impedance) and correct segment termination to maintain signal integrity across all four H1 links.

As production lines increasingly depend on legacy and end-of-life automation components, maintaining a verified stock of the CC-PFB402 as a critical spare is a fundamental SRE discipline. Sourcing original, factory-packaged units from a reliable global supplier eliminates the risk of counterfeit modules entering the control loop — a failure mode with potentially catastrophic consequences for process safety and regulatory compliance.

Key Operational Features

Quad H1 Fieldbus Links: Four independent FOUNDATION Fieldbus H1 channels for maximum I/O density and process optimization.
Redundancy Architecture: Supports fully redundant module configurations, ensuring high availability for mission-critical applications.
Seamless System Integration: Native compatibility with Experion PKS C200 and C300 controllers via IOTA backplane — zero additional gateways required.
Multi-Vendor Device Support: Connects FOUNDATION Fieldbus-compliant instruments from Emerson, ABB, Endress+Hauser, Yokogawa, and others.
Per-Link Diagnostic LEDs: Real-time visual status indicators on each H1 channel accelerate fault isolation and reduce MTTR.
Hot-Swap Capable (Redundant Mode): Module replacement without process interruption when deployed in redundant pairs.

Maintenance & Performance Benchmarks

The CC-PFB402 is architected to scale across diverse industrial network topologies — from compact skid-mounted systems with a single controller to enterprise-scale DCS installations spanning multiple process units. Each H1 segment supports 12-16 field devices under standard loading conditions; careful segment design using Fieldbus Foundation guidelines ensures deterministic cycle times and prevents bus saturation.

In high-availability architectures, redundant CC-PFB402 pairs operate in active-standby mode. Switchover is automatic and transparent to the process, with bumpless transfer validated against Experion PKS firmware compatibility matrices. Preventive maintenance intervals should include periodic review of diagnostic counters via Experion Station — monitoring CRC errors, retry counts, and device health alerts provides early warning of segment degradation before it impacts process control.

For system integrators managing multi-generation Honeywell DCS estates, the CC-PFB402 represents a stable, long-lifecycle automation component. Its IOTA-based architecture aligns with Honeywell’s C-series I/O modules, enabling phased migration strategies that protect existing field wiring investments while modernizing the control layer.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every CC-PFB402 unit we supply is sourced as a New & Original component in factory-sealed packaging — complete with Honeywell documentation, firmware version labels, and traceability records. This guarantees authenticity and eliminates the integration risks associated with refurbished or grey-market modules entering your control system.

Same-Day Dispatch: In-stock units are eligible for same-day shipment upon order confirmation (subject to cut-off times).
Worldwide Express Logistics: DHL, FedEx, and UPS express services available to all major industrial regions globally.
EOL & Legacy Module Sourcing: Specializing in end-of-life and discontinued Honeywell automation components — maintaining global supply continuity for aging DCS installations.
Export Compliance: All shipments processed with full customs documentation and export classification support.

Engineering Support & FAQ

Q1: What are the installation prerequisites for the CC-PFB402 in an Experion PKS system?
A: The CC-PFB402 must be seated into a compatible IOTA carrier assembly connected to a C200 or C300 controller chassis. Verify IOTA slot assignment in the Experion Configuration Studio prior to installation. Use Type A shielded twisted-pair cable for all H1 segments and install bus terminators at both segment endpoints.

Q2: Which Experion PKS firmware versions are compatible with the CC-PFB402?
A: The CC-PFB402 is supported from Experion PKS R310 onwards. For R400+ environments, confirm the module’s firmware revision against Honeywell’s compatibility matrix (document EP-DS-CC-PFB402) to ensure full feature support including advanced diagnostics.

Q3: How do I configure redundant CC-PFB402 modules?
A: Install a matched pair of CC-PFB402 modules in adjacent IOTA slots designated for redundant operation. Within Experion Configuration Studio, enable the redundancy parameter for the Fieldbus Interface block. The system will automatically synchronize the active and standby modules and perform periodic health checks.

Q4: What is the warranty claim process for the CC-PFB402?
A: Units exhibiting manufacturing defects within the 12-month warranty period are eligible for replacement or repair at no charge. Contact our technical support team at sale@ninermas.com with the purchase order reference, module serial number, and a description of the fault. RMA authorization is typically issued within 24 business hours.

Q5: Can the CC-PFB402 support FOUNDATION Fieldbus HSE (High Speed Ethernet) devices?
A: No — the CC-PFB402 is designed exclusively for H1 segment connectivity at 31.25 kbit/s. HSE integration requires a dedicated linking device or HSE-capable interface module within the Experion PKS architecture.

Q6: How many CC-PFB402 modules can a single C300 controller support?
A: A C300 controller supports up to 40 I/O modules per controller pair, including CC-PFB402 units. The exact number depends on the overall I/O loading, scan rates, and system configuration. Consult Honeywell’s Experion PKS I/O capacity planning guide for detailed sizing calculations.
