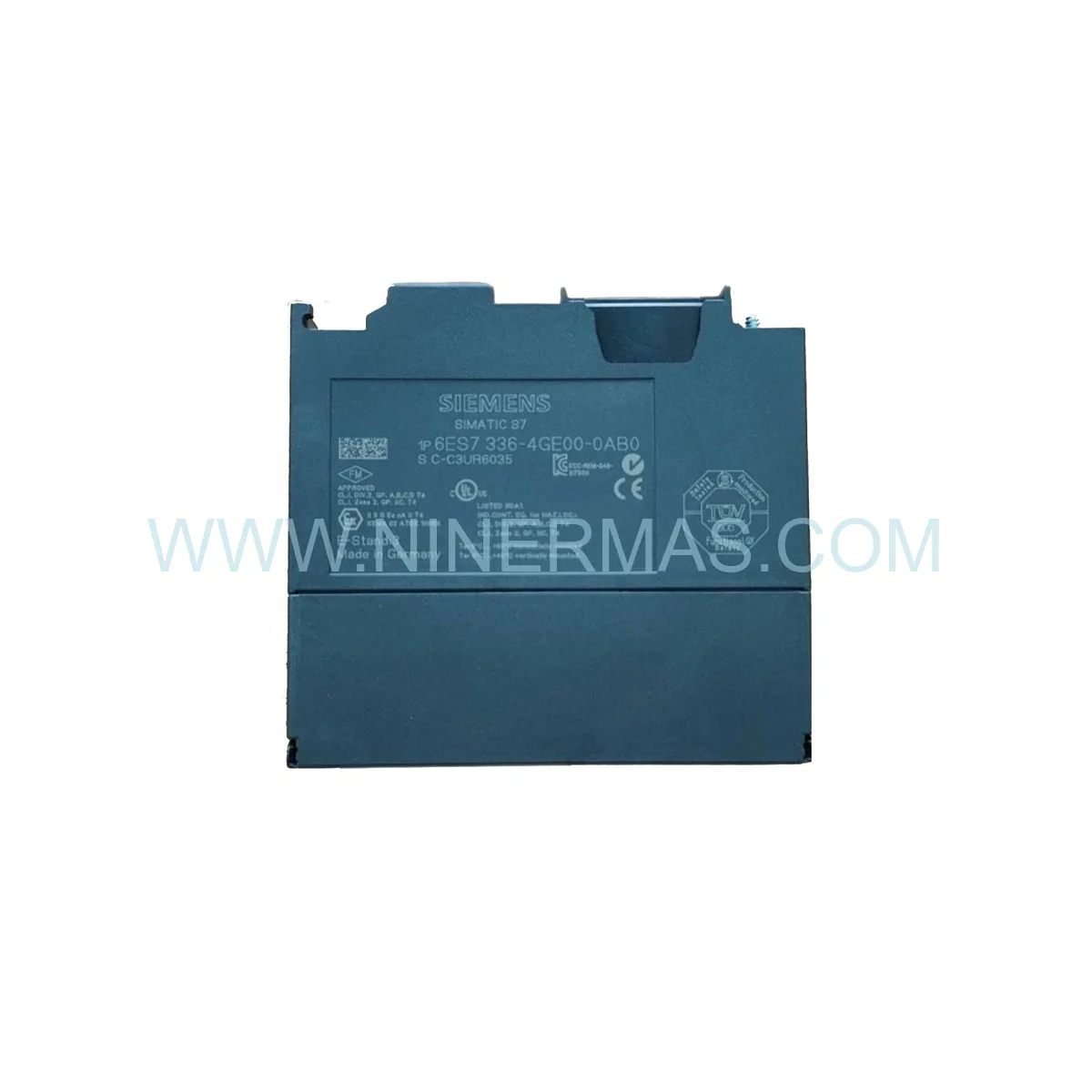

Siemens 6ES7336-4GE00-0AB0 SM 336 F Fail-Safe Analog Input — New & Original

Siemens SM 336 F 6ES7336-4GE00-0AB0 | Reliable Automation Component

Field Application & Operational Analysis

From the perspective of a Site Reliability Engineer managing high-stakes process environments, the 6ES7336-4GE00-0AB0 represents a cornerstone of system availability in safety-instrumented architectures. This Siemens SIMATIC S7-300 SM 336 F module delivers six channels of fail-safe analog input at 24-bit resolution, enabling Mission-Critical measurement loops — including HIPPS, custody transfer metering, and turbine control — to sustain certified SIL 3 / PL e integrity without compromise. Its role in Process Optimization is not incidental; it is structural.

Deploying the 6ES7336-4GE00-0AB0 in harsh industrial environments demands attention to thermal management and front-connector seating. The module operates reliably from 0 to +60°C and must be paired with the 40-pin front connector (6ES7392-1AM00-0AA0). Vibration-prone installations — such as compressor skids or offshore platforms — require periodic torque verification on the DIN rail locking mechanism to prevent intermittent PROFIsafe communication faults. Grounding discipline on the 4-20 mA signal commons is equally critical to preserve ±0.1% FS accuracy.

For Operational Excellence in any safety-critical facility, maintaining a certified spare of this module is not optional — it is a reliability mandate. End-of-life procurement cycles for legacy S7-300 F hardware make pre-positioned inventory a strategic necessity. A single unplanned shutdown attributable to an unavailable spare can dwarf the cost of maintaining buffer stock by orders of magnitude.

Key Operational Features

SIL 3 / PL e Certified — Meets IEC 61508 and ISO 13849-1 for the most demanding safety loops
24-Bit High-Precision ADC — 0.001% FS resolution with integrated linearization and temperature compensation
1oo2 Redundancy Evaluation — Certified discrepancy monitoring down to 0.1% for High Availability architectures
Full HART Pass-Through — Simultaneous safety measurement and HART diagnostic routing without integrity compromise
Seamless Integration — Native PROFIsafe protocol; plug-compatible with all S7-300 F-CPU racks and TIA Portal engineering
Comprehensive Self-Diagnostics — Wire break, over-range, precision drift, and internal ADC fault detection reported to safety program in 10 ms

Maintenance & Performance Benchmarks

The SM 336 F is engineered for System Integration across diverse industrial network scales. In small-footprint safety systems — such as standalone burner management or local HIPPS panels — a single rack with one 6ES7336-4GE00-0AB0 can protect an entire process unit. In large distributed architectures spanning multiple ET 200M remote I/O stations, the module’s PROFIsafe addressing scheme allows deterministic safety reaction times of 10 ms across the full network span, regardless of topology complexity.

Proof-test intervals for SIL 3 compliance typically require annual functional verification of each channel’s discrepancy detection and wire-break response. The module’s built-in diagnostic functions — accessible via STEP 7 Safety or TIA Portal Safety — automate much of this process, reducing proof-test labor by up to 40% compared to discrete relay-based safety loops. I/O Modules of this caliber are benchmarked against their Mean Time Between Failures (MTBF); Siemens rates this module for >100,000 hours of continuous operation under nominal conditions, a figure that underpins its selection for Automation Components in long-lifecycle plant designs.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every unit of the 6ES7336-4GE00-0AB0 dispatched from our facility ships in Original Factory Packaging with intact Siemens holographic seals and full documentation — including the EU Declaration of Conformity and calibration certificate where applicable. Same-day dispatch is available for in-stock units when orders are confirmed before the daily cut-off. Our global sourcing network maintains certified inventory across EU, US, and Asia-Pacific hubs, specifically to support EOL and Legacy Module procurement for plants operating extended S7-300 F lifecycles beyond Siemens’ standard availability window. All shipments are tracked end-to-end via express courier with full insurance coverage.

Engineering Support & FAQ

Q1: What are the installation prerequisites for the 6ES7336-4GE00-0AB0 in an existing S7-300 F rack?
A: The module requires an S7-300 F-CPU (e.g., CPU 315F-2 PN/DP or higher) and a PROFIsafe-capable PROFIBUS DP network. Insert the module into any standard S7-300 rack slot, connect the 40-pin front connector (6ES7392-1AM00-0AA0), and configure the PROFIsafe address in STEP 7 Safety or TIA Portal Safety. Ensure the F-address matches the hardware switch setting on the module front panel before powering up.

Q2: Which firmware versions of the S7-300 F-CPU are compatible with this module?
A: The 6ES7336-4GE00-0AB0 is compatible with all S7-300 F-CPUs running firmware V2.6 and above. For TIA Portal projects, Safety Integrated V13 SP1 or later is required to access the certified high-precision function blocks. Always verify the F-Library version matches the CPU firmware to avoid PROFIsafe parameterization errors.

Q3: Can this module be used in a 1oo2 redundant sensor configuration?
A: Yes. The SM 336 F natively supports 1oo2 evaluation using two channels per safety loop. The certified discrepancy monitoring function detects deviations 0.1% FS between paired channels and triggers a safety reaction within 10 ms, making it suitable for the highest-integrity pressure and flow protection loops.

Q4: How is the warranty claim process handled for this module?
A: Our 1-year warranty covers manufacturing defects and functional failures under normal operating conditions. To initiate a claim, contact sale@ninermas.com with the order reference and a description of the fault symptom. We will arrange advance replacement shipment for verified warranty cases to minimize your downtime exposure.

Q5: Is HART communication maintained during safety operation?
A: Full HART pass-through is maintained during normal safety operation. HART diagnostic data — including transmitter status, process variables, and device alerts — is routed alongside the safety measurement without affecting SIL 3 integrity. This enables predictive maintenance workflows without requiring additional HART multiplexers.

Q6: What diagnostic codes indicate the module requires replacement rather than reconfiguration?
A: Replacement is indicated by persistent “internal ADC fault” or “precision drift exceeds calibration limit” diagnostics that recur after a cold restart, a channel frozen at 3.75 mA or 20.95 mA during proof-test, or PROFIsafe “F-address mismatch” errors that cannot be resolved by re-parameterization. These symptoms indicate hardware-level failure of the measurement ASIC or safety processor.
