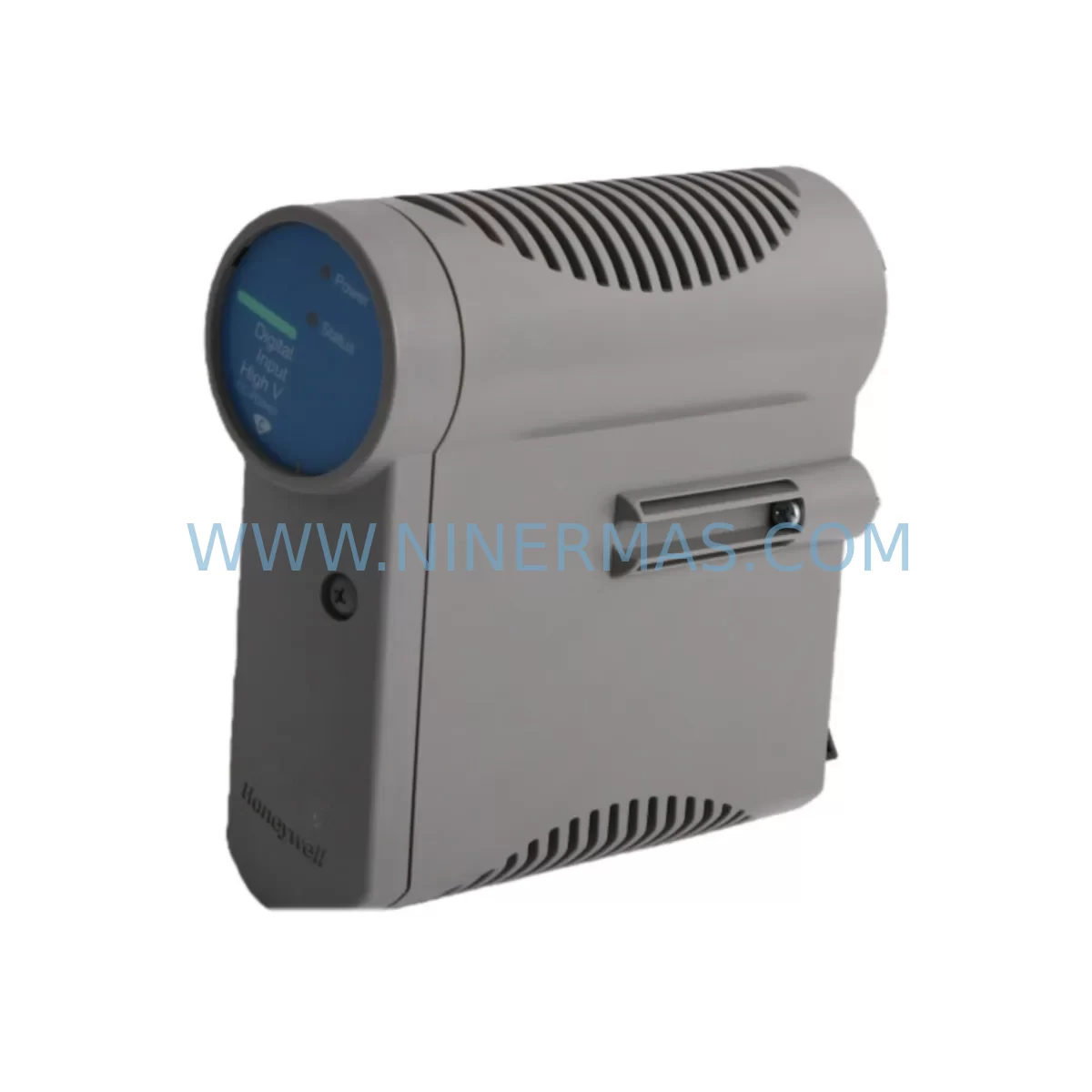

The Honeywell CC-PDIH01 (Part No. 51405041-176) is a ruggedized digital input module engineered for demanding industrial environments within the Experion PKS / C300 Controller series. For maintenance engineers managing continuous process operations, this module represents a critical node in the field I/O architecture — responsible for acquiring discrete on/off signals from field devices such as limit switches, proximity sensors, push buttons, and protective relay contacts. When this module fails or degrades, the consequences range from blind spots in process monitoring to full production line shutdowns. Stocking a verified, service-ready CC-PDIH01 spare is not optional — it is a fundamental element of any responsible maintenance strategy.

At NINERMAS, every CC-PDIH01 unit is sourced from authorized supply channels, subjected to pre-shipment functional verification, and dispatched with a 12-month warranty. Our inventory is maintained to support both emergency breakdown orders and planned annual overhaul procurement, ensuring your facility is never left waiting during a critical outage window.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a CC-PDIH01 module is flagged during a control cabinet inspection or triggers a diagnostic alarm in Experion PKS, the replacement workflow extends well beyond swapping the module itself. Experienced maintenance engineers understand that a digital input fault often signals broader issues within the same I/O loop or cabinet assembly.

Before or during replacement of the CC-PDIH01, the following components in the same control cabinet or I/O chassis should be inspected and, where appropriate, included in the spare parts order. The CC-PWRR01 redundant power supply module feeding the I/O chassis should be checked for output voltage stability — an under-voltage condition is a common root cause of intermittent DI module faults. The CC-TCF901 FTE communication module and associated Ethernet cabling should be verified for link integrity, as communication errors can mimic hardware failures in the DI module. The CC-PDOB01 digital output module installed in adjacent slots should be inspected for signs of thermal stress or contact wear, particularly in high-cycle applications.

Terminal blocks and field wiring connected to the CC-PDIH01 should be torque-checked and inspected for corrosion, especially in humid or chemically aggressive environments. Signal isolators or intrinsic safety barriers installed between field devices and the DI module inputs — such as those used in Zone 1 or Zone 2 hazardous area installations — should be tested for proper operation. Fuse holders and individual channel fuses protecting the 24 VDC field power distribution should be verified, as a blown fuse on a single channel can be misdiagnosed as a module failure.

For facilities running redundant C300 controller pairs, the CC-PCNT01 controller module and its redundancy link should be confirmed healthy before and after the DI module swap to ensure seamless failover capability is maintained. The CC-SCMB02 system cabinet mounting base and backplane connectors should be inspected for pin damage or contamination if the module has been removed and reinstalled multiple times. Where the process involves safety instrumented systems, the associated Safety Manager modules interfacing with the same field devices should be cross-checked to confirm signal consistency after the replacement.

Procurement engineers should consider bundling the CC-PDIH01 with a CC-PDOB01 digital output module and a CC-PWRR01 power supply as a standard cabinet-level spare kit. This approach reduces emergency procurement lead times and ensures that the most failure-prone components in a C300 I/O cabinet are always available on-site. NINERMAS supports bulk spare parts orders with consolidated testing and documentation, simplifying incoming inspection at your facility.

Site Replacement Workflow

Replacing the CC-PDIH01 in an operational Experion PKS environment follows a structured sequence to minimize process impact and ensure system integrity. Begin by confirming the replacement module’s firmware revision is compatible with the installed Experion PKS release — mismatched firmware can prevent the module from being recognized by the C300 controller after installation.

Place the affected I/O module in a maintenance state via the Experion Station operator interface before physical removal. This suppresses nuisance alarms and prevents the controller from generating spurious fault responses during the swap. Document the existing field wiring termination assignments before disconnecting any cables — a photograph of the terminal block face is a practical and reliable reference.

After installing the new CC-PDIH01, allow the module to complete its self-diagnostic boot sequence before re-enabling the I/O points in the controller. Verify each channel’s status in the Experion PKS Control Builder or Station display to confirm all 32 DI points are reading correctly against known field device states. For critical interlock or safety-related inputs, perform a point-by-point functional test with the field device before returning the loop to automatic control.

This replacement workflow applies equally to planned annual maintenance shutdowns and emergency breakdown scenarios. Having a pre-tested, service-ready CC-PDIH01 from NINERMAS on the shelf means the physical swap can be completed in under 30 minutes, with the majority of downtime consumed by the verification and documentation steps rather than waiting for parts delivery.

Spare Parts Support FAQ

Q1: Is the CC-PDIH01 compatible with all versions of Experion PKS?
The CC-PDIH01 is designed for use within the Honeywell Experion PKS C300 I/O architecture. Compatibility is confirmed for Experion PKS R400 and later releases. For installations running earlier software versions, firmware alignment should be verified with your system documentation or Honeywell service records before installation. NINERMAS can provide the module’s firmware version upon request prior to shipment.

Q2: What does the 12-month warranty cover, and how is it supported?
Every CC-PDIH01 supplied by NINERMAS carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. If a module fails within the warranty period, NINERMAS will arrange replacement or repair at no additional cost. All units undergo pre-shipment functional verification, and test records are available upon request to support your incoming inspection process.

Q3: Can NINERMAS support long-term or recurring spare parts supply for CC-PDIH01?
Yes. NINERMAS maintains ongoing inventory of Honeywell C300 series modules including the CC-PDIH01, and supports both one-time emergency orders and scheduled annual procurement programs. For facilities managing multiple Experion PKS installations, we offer consolidated spare parts kitting with unified documentation to simplify your maintenance inventory management.

Q4: How should we verify the CC-PDIH01 is the correct replacement for our existing module?
Cross-reference the part number (CC-PDIH01) and the Honeywell catalog number (51405041-176) against your existing module’s label and your system’s I/O assignment documentation. If your installation uses a specific hardware revision, provide the revision code to NINERMAS before ordering so we can confirm stock alignment. We recommend retaining the original module until the replacement has been fully verified in service.
