Honeywell CC-PAIX02 51405038-475 Retrofit Analog Input

Honeywell CC-PAIX02 51405038-475 Retrofit-Compatible Analog Input Module for Legacy Experion PKS Systems

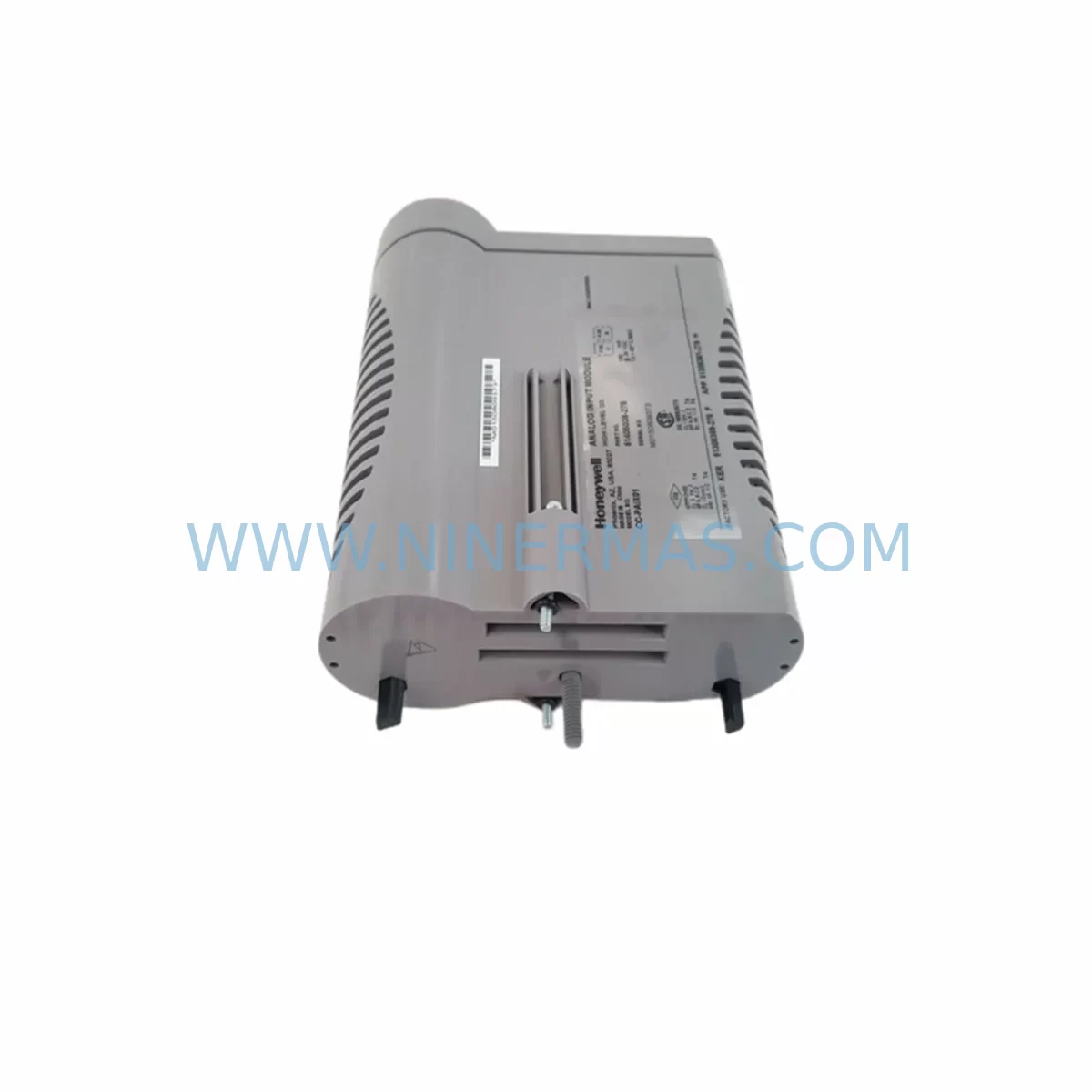

The Honeywell CC-PAIX02 (Part No. 51405038-475) is a ruggedized analog input module designed for use within the Honeywell Experion PKS (Process Knowledge System) distributed control architecture. As a retrofit-compatible replacement, this module supports seamless integration into existing C300 Controller-based cabinets and EUCN (Ethernet Universal Control Network) backplane assemblies without requiring full system redesign. It is widely deployed in oil and gas, refining, chemical processing, and power generation facilities where legacy control infrastructure must be extended beyond original vendor support timelines.

For plants operating aging Experion PKS R400 or R500 environments, sourcing a verified replacement for the CC-PAIX02 is critical to maintaining loop integrity across 4–20 mA analog input channels. This module interfaces directly with the CC-TCF901 termination assembly and supports HART pass-through communication, enabling field device diagnostics without loop interruption. Engineers planning a cabinet-level upgrade should confirm backplane slot addressing, verify the IOTA (I/O Termination Assembly) revision compatibility, and cross-reference the existing FIM (Field Interface Module) firmware version before installation.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

When integrating the CC-PAIX02 (51405038-475) into an existing Experion PKS cabinet, the retrofit scope typically extends beyond the module itself. A complete migration plan should account for the full I/O subsystem, including the CC-FIM001 Field Interface Module that bridges IOLINK traffic to the EUCN network, and the CC-PWR001 or CC-PWR002 power supply modules that feed the backplane rail. Engineers should audit the available slot capacity in the CC-CIOFL1 or CC-CIOFL2 IOLINK chassis before ordering additional analog input modules.

For plants also managing discrete I/O alongside analog loops, the CC-PDIX01 digital input module and CC-PDOX01 digital output module share the same IOLINK backplane architecture, simplifying mixed-signal cabinet layouts. Where HART device management is a priority, the existing CC-TCF901 termination assembly supports direct field wiring reuse, eliminating the need for intermediate marshalling panels during the swap.

In facilities transitioning from older TDC 3000 or PlantScape systems to Experion PKS, the CC-PAIX02 is frequently specified as part of a phased migration that preserves existing field wiring while upgrading the controller backbone to a C300 Controller platform. This approach avoids full loop rewiring and allows engineering teams to validate each analog input channel individually before cutover. The CC-SCMB01 system cabinet module bus and associated backplane connectors should be inspected for oxidation or mechanical wear during any planned maintenance window.

For remote I/O applications or geographically distributed process units, the CC-RAIC01 remote analog input card and associated CC-LINK communication modules may be evaluated as complementary components in the same upgrade project. Signal isolators and loop-powered barriers installed upstream of the IOTA terminals should be verified for compatibility with the 4–20 mA input impedance of the CC-PAIX02 to prevent measurement offset errors after installation.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern when replacing the CC-PAIX02 (51405038-475) in a live production environment. The module supports hot-standby configurations when paired with a redundant FIM pair, allowing the replacement to be staged while the redundant path maintains loop continuity. Before initiating the physical swap, the control engineer should place the affected C300 Controller in manual mode for all loops sourced from the target module, document the current process variable readings, and confirm that the Experion Station HMI displays are configured to alarm on communication loss rather than defaulting to a last-known-good value.

The replacement procedure should follow the Honeywell Experion PKS I/O Module Replacement Guide sequence: de-energize the IOTA field wiring terminals using the local isolation switch, extract the module from the IOLINK slot, insert the replacement CC-PAIX02, and allow the FIM to re-enumerate the module address before restoring field power. The entire hot-swap sequence for a single module typically completes within 8–12 minutes under controlled conditions, provided the replacement unit has been pre-tested and the IOTA wiring has not been disturbed.

Post-installation verification should include a channel-by-channel loop check against the existing P&ID, confirmation of HART device recognition in the Experion Field Device Manager, and a 30-minute soak period monitoring process variable stability before returning loops to automatic control. All pre-shipment testing performed by NINERMAS ensures that each CC-PAIX02 unit is powered, addressed, and channel-verified before dispatch, reducing on-site commissioning risk and supporting the 12-month warranty coverage from date of installation.

Retrofit Support FAQ

Q1: Is the CC-PAIX02 (51405038-475) a direct drop-in replacement for the CC-PAIX01?
Yes, the CC-PAIX02 is the designated successor to the CC-PAIX01 and occupies the same single-wide IOLINK slot. The CC-TCF901 IOTA and existing field wiring can be retained without modification. Confirm that the FIM firmware version supports the CC-PAIX02 module descriptor before installation.

Q2: Can the CC-PAIX02 be installed without shutting down the entire controller?
In redundant FIM configurations, the CC-PAIX02 can be replaced with the affected loops placed in manual mode, without a full controller shutdown. Single FIM installations require a planned maintenance window. NINERMAS recommends coordinating with your DCS engineer to confirm the redundancy status of the target chassis before scheduling the replacement.

Q3: What pre-shipment testing is performed on each CC-PAIX02 unit?
Each unit supplied by NINERMAS undergoes power-on functional testing, channel signal verification across the 4–20 mA range, and HART communication validation prior to dispatch. A test report is available upon request. All units are covered by a 12-month warranty from the date of shipment.

Q4: What is the lead time and stock availability for the CC-PAIX02 51405038-475?
NINERMAS maintains inventory of the CC-PAIX02 to support urgent spare parts requirements. Standard lead time for in-stock units is 3–7 business days for international shipments. For critical plant shutdowns or emergency procurement, contact our team directly to confirm current stock levels and expedited shipping options.
