Honeywell CC-PAIX01 51405038-275 Retrofit-Compatible AI Module

Honeywell CC-PAIX01 51405038-275 Retrofit-Compatible AI Module for Legacy Systems

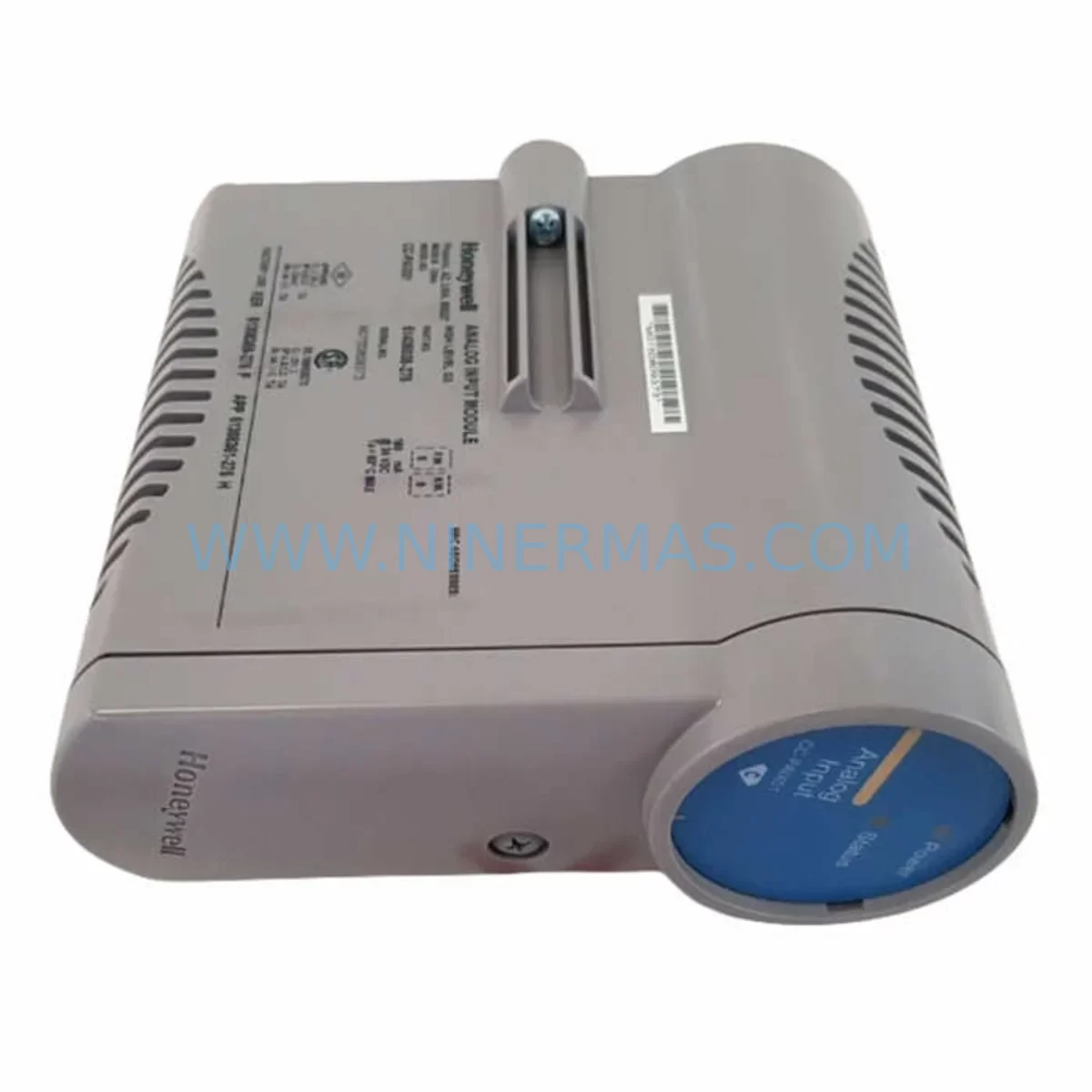

The Honeywell CC-PAIX01 (P/N 51405038-275) is a high-density analog input module designed for the Honeywell C Series I/O platform, widely deployed across refining, petrochemical, power generation, and continuous process manufacturing facilities. As legacy Experion PKS and TDC 3000 control architectures age into end-of-life cycles, the CC-PAIX01 has become a critical retrofit component — enabling facilities to extend the operational life of existing control cabinets without committing to a full DCS migration. NINERMAS maintains verified stock of this module with full functional testing and a 12-month warranty, supporting both emergency replacement and planned modernization projects.

Whether your facility is replacing a failed card in an active loop, upgrading a control cabinet to accommodate additional I/O capacity, or migrating from an older TDC 3000 rack to a C300 controller-based architecture, the CC-PAIX01 provides a reliable, field-proven solution. Its compatibility with the standard C Series I/O FTA (Field Termination Assembly) wiring infrastructure means that in most retrofit scenarios, existing field cable terminations can be preserved, dramatically reducing rewiring labor and minimizing the risk of wiring errors during cutover.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the CC-PAIX01 into an aging control architecture begins well before the module arrives on-site. Retrofit engineers should start by auditing the existing C300 Controller node configuration in Experion Control Builder to confirm the current I/O assignment map. Each CC-PAIX01 occupies a defined slot on the C Series I/O backplane, and its channel-to-tag mapping must be verified against the active Control Module (CM) database before any physical swap is initiated.

Field termination wiring connects to the CC-TAIX01 or CC-TAIX11 FTA (Field Termination Assembly), which remains in place during a module swap. This is one of the key advantages of the C Series architecture — the FTA stays mounted and wired, while only the I/O module itself is exchanged. Before proceeding, technicians should confirm that the FTA’s terminal block wiring matches the channel signal type (4–20 mA current loop vs. voltage input) and that any HART pass-through requirements are documented, as the CC-PAIX01 supports HART communication on each channel when paired with the appropriate FTA revision.

Power budget verification is a frequently overlooked step in retrofit planning. The CC-PWRR01 or CC-PWRR02 redundant power supply modules feeding the I/O enclosure must have sufficient headroom to support the CC-PAIX01’s backplane draw alongside all other populated slots. In cabinets where additional I/O expansion is planned — for example, adding CC-PDOB01 digital output modules or CC-PAOX01 analog output modules to the same enclosure — a full power audit is essential to avoid nuisance trips or supply degradation under load.

For facilities migrating from older TDC 3000 or PlantScape architectures, the retrofit path typically involves introducing a C300 Controller as the new processing node, with C Series I/O modules like the CC-PAIX01 replacing legacy HPM (High-Performance Process Manager) I/O cards. In these scenarios, the communication link migration from the Universal Control Network (UCN) to Fault Tolerant Ethernet (FTE) must be carefully staged. The CC-FTEB01 FTE Bridge module plays a key role in maintaining network continuity during phased cutovers, allowing legacy and new I/O nodes to coexist on the control network during the transition period.

Where signal isolation is required — particularly in older plants where ground loops or high common-mode noise environments exist — inline signal isolators or signal conditioners may be installed between field devices and the CC-TAIX01 FTA terminals. This is especially relevant when retrofitting loops that previously used isolated input cards in TDC 3000 HPM racks. Documenting these isolation requirements in the retrofit engineering package prevents signal quality issues during commissioning.

For facilities that require programming access during the retrofit, a programming cable or dedicated engineering workstation running Experion Control Builder is required to download updated CM configurations after the module swap. If the replacement is performed as a hot-swap on a redundant C300 node, the standby controller can be updated first, followed by a controlled switchover — minimizing process disruption. Technicians should also verify that the CC-SCMB01 or equivalent system communication module is functioning correctly before initiating any node-level changes.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern when replacing the CC-PAIX01 in a live production environment. The C Series I/O architecture supports online module replacement when the associated C300 Controller is configured in redundant mode — meaning the physical swap can be performed without halting the control loop, provided the standby controller has been pre-loaded with the updated configuration and the FTA wiring has been verified in advance.

Before initiating the swap, the original Control Module (CM) logic should be exported and archived from Experion Control Builder. This backup preserves the existing program logic, PID tuning parameters, alarm setpoints, and I/O tag assignments, providing a recovery baseline if the cutover encounters unexpected issues. The archived CM can be reloaded to a spare C300 node or used to restore the system to its pre-retrofit state within minutes if required.

Field continuity during migration is maintained by keeping the CC-TAIX01 FTA in place and energized throughout the module exchange. Analog input signals from field transmitters continue to reach the FTA terminals uninterrupted; only the module processing those signals is temporarily offline during the physical swap. In most cases, the C300 Controller’s fault tolerance logic will hold the last valid process value for affected channels during the brief interruption, preventing spurious control actions or false alarms at the Experion Station HMI.

Post-installation, a structured commissioning sequence should be followed: confirm module recognition in Experion Control Builder, verify channel-by-channel signal readback against field instrument outputs, check HART device communication if applicable, and validate alarm and interlock logic against the original functional specification. All commissioning results should be documented in the retrofit record package to support future maintenance and regulatory compliance audits. NINERMAS provides pre-shipment functional test reports for each CC-PAIX01 unit, reducing on-site verification time and supporting faster return-to-service.

Retrofit Support FAQ

Q1: Is the CC-PAIX01 (51405038-275) a direct drop-in replacement for the original Honeywell module?
Yes. The CC-PAIX01 with part number 51405038-275 is a direct slot-compatible replacement for the same module designation within the C Series I/O platform. No backplane or FTA changes are required for a like-for-like swap. Confirm the revision level of your existing FTA (CC-TAIX01 or CC-TAIX11) to ensure full compatibility with HART pass-through functionality if that feature is in use.

Q2: Can this module be commissioned without taking the C300 Controller offline?
In redundant C300 configurations, the CC-PAIX01 can typically be replaced online. The standby controller should be updated with the current CM configuration before the swap, and the module should be inserted with the FTA wiring already verified. After insertion, Experion Control Builder will automatically recognize the new module and restore normal I/O scanning within seconds. Always consult your site’s Management of Change (MOC) procedure before performing any live control system modification.

Q3: What wiring checks are required before installing the replacement module?
Verify that all field cable terminations at the CC-TAIX01 or CC-TAIX11 FTA are secure and correctly labeled. Confirm signal type (4–20 mA or 1–5 VDC) for each channel matches the FTA jumper configuration. Check for ground loop conditions or shield continuity issues that may have contributed to the original module failure. If HART communication is required, confirm that the FTA revision supports HART pass-through and that the field device HART addresses are documented.

Q4: What warranty and testing does NINERMAS provide with this module?
All CC-PAIX01 units supplied by NINERMAS are covered by a 12-month warranty from the date of shipment. Each module undergoes a full functional burn-in test prior to dispatch, with a test report available upon request. Units are shipped in anti-static packaging with appropriate handling documentation. In-stock units are typically available for same-day or next-business-day dispatch, supporting both emergency breakdown replacements and planned maintenance schedules.
