Honeywell 8C-TAOXA1 51307135-175 Retrofit-Compatible AO Module

Honeywell 8C-TAOXA1 51307135-175 Retrofit-Compatible AO Module: Seamless Legacy System Upgrade for C300 Platforms

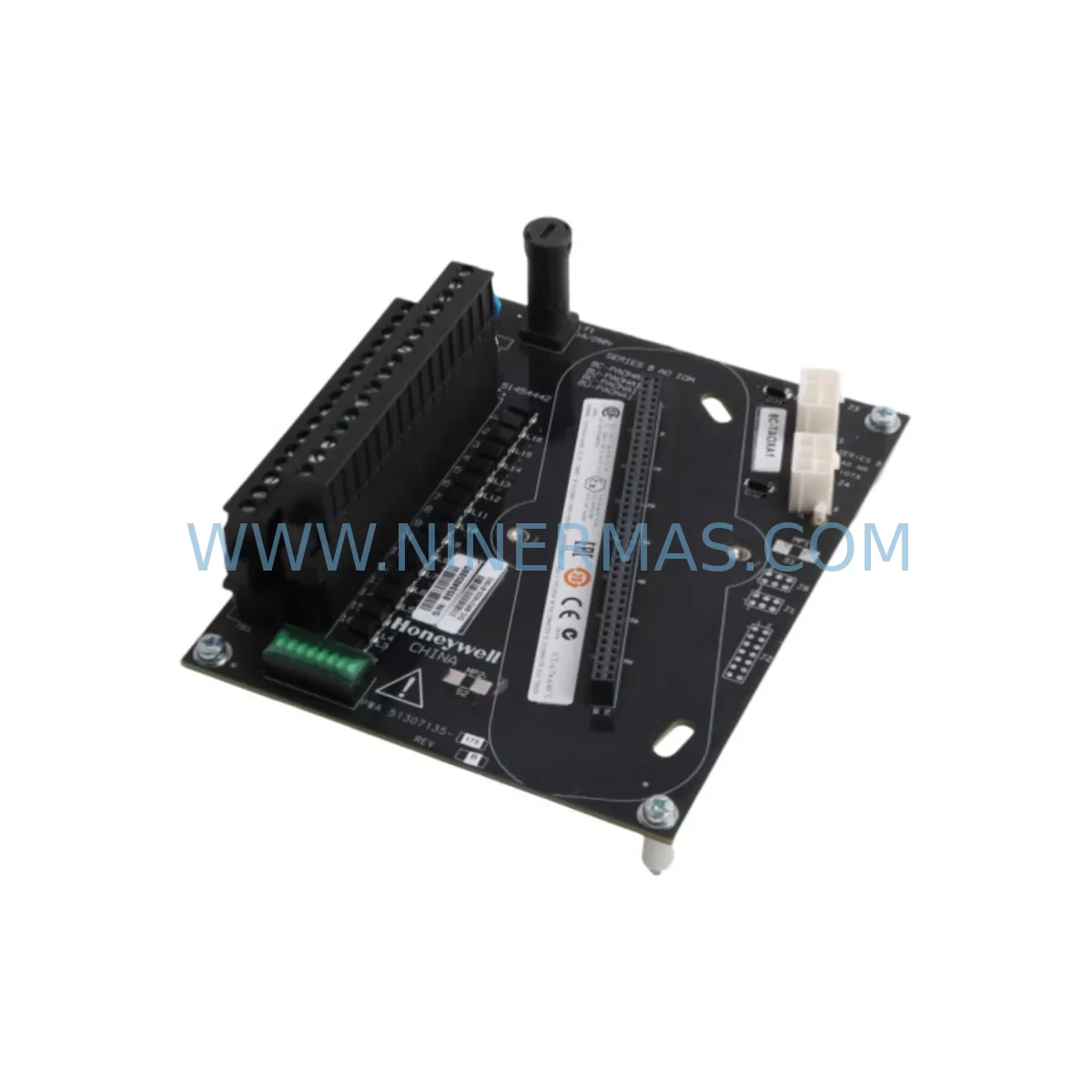

The Honeywell 8C-TAOXA1 (P/N 51307135-175) is an 8-channel analog output module engineered for the Honeywell Experion PKS C300 controller platform. As legacy DCS installations age and original spare parts reach end-of-life, this module serves as a critical retrofit solution for facilities seeking to extend the operational life of their existing control infrastructure without committing to a full system overhaul. Whether you are replacing a failed module in an aging C300 cabinet, consolidating I/O during a partial migration, or restoring a mothballed production line, the 8C-TAOXA1 provides the signal fidelity, backplane compatibility, and firmware alignment required for a smooth, low-risk transition.

NINERMAS maintains verified stock of the 8C-TAOXA1 51307135-175, with each unit subject to pre-shipment functional testing, covering channel-by-channel output verification, loop integrity checks, and backplane communication handshake validation. All units ship with a 12-month warranty and full traceability documentation.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the 8C-TAOXA1 within a live or recently decommissioned C300 system requires a structured approach that accounts for both hardware compatibility and software configuration integrity. Before scheduling the physical swap, engineers should retrieve the current module configuration from Experion PKS Control Builder, noting the channel tag assignments, engineering unit ranges, and any HART device descriptors linked to the outgoing module. This configuration data must be preserved and re-applied to the replacement unit to avoid re-engineering field instrument calibration.

On the hardware side, the 8C-TAOXA1 installs into the same I/O chassis slot as its predecessor. The C300 I/O chassis (also referred to as the IOLINK chassis or EUCN node chassis) accommodates multiple module types in adjacent slots, so technicians should also inspect neighboring modules — such as the 8C-TAIX11 analog input module or 8C-TDIL01 digital input module — for signs of wear or intermittent faults that could complicate post-retrofit diagnostics. Addressing adjacent module health before the retrofit reduces the risk of misattributing post-swap signal anomalies to the new AO module.

Power distribution within the C300 cabinet is managed through the C300 power supply module (typically the 51309512-175 or equivalent). Before inserting the 8C-TAOXA1, verify that the cabinet power budget accommodates the module’s current draw, particularly in high-density I/O configurations where multiple analog modules share a single power rail. Overloaded power rails are a common but overlooked cause of intermittent output drift after module replacement.

For facilities running Experion PKS with a C300 controller paired to a Series C I/O Link, the module address is determined by the physical slot position in the chassis. After insertion, the C300 controller will attempt to auto-discover the module. If the slot was previously occupied by a module with a different firmware revision, a brief configuration download from Control Builder may be required to re-establish full channel functionality. This process typically takes under five minutes and does not require a controller restart.

In retrofit projects that also involve communication protocol migration — for example, transitioning field instruments from legacy 4–20 mA loops to HART or from HART to Foundation Fieldbus — the 8C-TAOXA1’s HART pass-through capability allows engineers to retain existing wiring infrastructure while gaining access to device diagnostics and remote configuration. This is particularly valuable in aging plants where re-cabling costs would otherwise make a full migration economically prohibitive.

For larger modernization projects that extend beyond a single module swap, the 8C-TAOXA1 is frequently deployed alongside 8C-TAOX11 extended-range analog output modules, C300 redundant controller pairs, and Experion PKS server upgrades. In control cabinets where HMI integration is also being refreshed, engineers should verify that the Experion Station or Experion Operator Station display faceplates correctly reference the updated module tag names after any Control Builder download. Mismatched tag references between the controller database and the HMI graphics are a common source of alarm floods during the first hours of post-retrofit operation.

Signal isolation requirements should also be reviewed during retrofit planning. In installations where the 8C-TAOXA1 drives field devices in electrically noisy environments — such as variable frequency drive (VFD) enclosures or high-voltage switchgear rooms — the addition of DIN-rail signal isolators between the module output terminals and the field wiring can significantly reduce ground loop interference and protect the module’s output circuitry. Terminal block wiring should be inspected and re-torqued to manufacturer specifications during the retrofit, as loose connections are a leading cause of premature module failure in high-vibration industrial environments.

Finally, for facilities maintaining a programming cable connection to the C300 for offline configuration backup, ensure that the Experion PKS project database is backed up to a secure network location before beginning any module replacement activity. This backup serves as the recovery baseline if the retrofit encounters unexpected compatibility issues and a rollback is required.

Downtime Control During System Migration

Minimizing production downtime during a C300 module replacement is achievable with disciplined pre-planning. The 8C-TAOXA1 supports hot-swap insertion in systems where the C300 controller is configured for non-redundant I/O operation, provided that the affected output channels have been placed in manual mode at the DCS operator station prior to physical removal of the failed module. For redundant I/O configurations, the standby I/O path maintains field output continuity during the swap, allowing the replacement to proceed without placing the process in manual.

Before removing the outgoing module, document the current output values for all eight channels. This snapshot allows operators to quickly verify that the replacement module has resumed correct output levels after insertion and configuration download. Any deviation from the pre-swap output values should be investigated before returning the loop to automatic control.

To further compress the maintenance window, pre-stage the replacement 8C-TAOXA1 with its configuration loaded and verified in a bench test environment before bringing it to the field. Bench testing against a known-good C300 chassis — using a spare C300 controller module and a test I/O chassis — allows the full channel verification cycle to be completed offline, reducing the on-site commissioning time to a simple insertion, auto-discovery confirmation, and output value check. This approach is particularly effective in facilities where access to the control cabinet requires confined space entry or hot-work permits, where every minute of on-site activity carries additional safety and compliance overhead.

Post-retrofit, monitor the Experion PKS System Status Display for a minimum of 30 minutes to confirm that all eight output channels are reporting correctly, that no new alarms have been generated, and that the redundancy synchronization status (if applicable) has returned to a healthy state. Log the replacement activity in the plant maintenance management system with the module serial number, firmware revision, and slot address for future reference.

Retrofit Support FAQ

Q1: Is the 8C-TAOXA1 51307135-175 a direct drop-in replacement for the original module in my C300 chassis?
Yes. The 8C-TAOXA1 51307135-175 is designed to install directly into the same C300 I/O chassis slot as the original module. No mechanical modification is required. After insertion, the C300 controller will auto-detect the module. A configuration download from Control Builder may be needed if the firmware revision differs from the outgoing module, but this is a software-only step that does not affect field wiring.

Q2: What pre-shipment testing does NINERMAS perform on the 8C-TAOXA1?
Each unit undergoes channel-by-channel analog output verification across the full 4–20 mA range, backplane communication handshake testing, and loop integrity checks before shipment. Units that do not meet specification are quarantined and not shipped. A test report is available upon request. All units are covered by a 12-month warranty from the date of shipment.

Q3: Can the 8C-TAOXA1 be used in a system running an older version of Experion PKS?
The 8C-TAOXA1 is compatible with Experion PKS R310 and above. For systems running earlier releases, a firmware compatibility review is recommended before ordering. Contact our technical team with your current Experion PKS release number and C300 controller firmware revision, and we will confirm compatibility or identify any required upgrade steps.

Q4: What is the typical lead time and do you maintain stock?
NINERMAS maintains verified inventory of the 8C-TAOXA1 51307135-175. Standard orders ship within 2–5 business days. For urgent requirements, expedited shipping options are available. Contact us at sale@ninermas.com or +0086 187 5021 5667 to confirm current stock levels and lead time for your specific quantity requirement.
