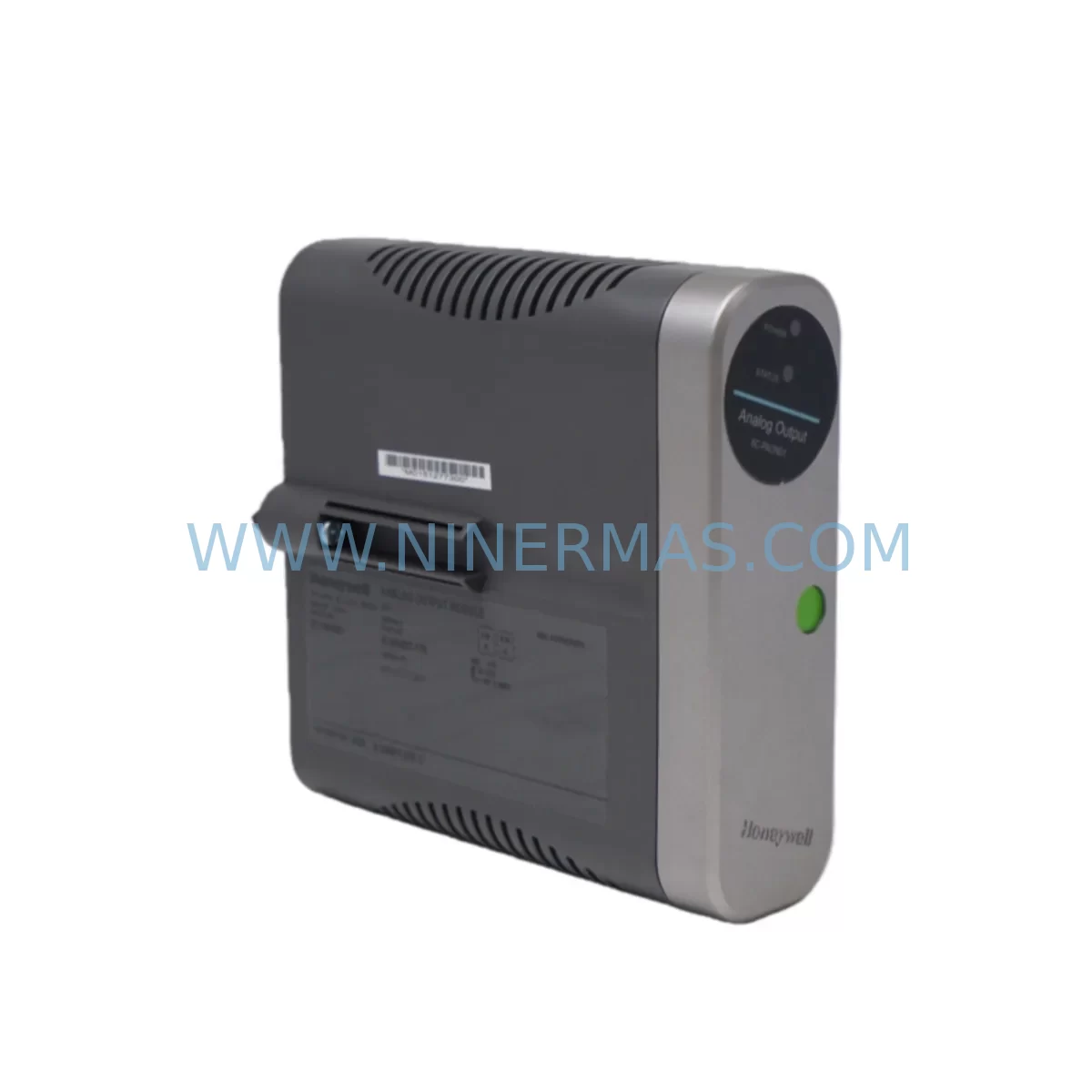

The Honeywell 8C-PAON01 is an original analog output module designed for use within the Experion PKS C300 Controller platform — one of Honeywell’s most widely deployed distributed control systems (DCS) in refining, petrochemical, power generation, and continuous process manufacturing environments. When this module fails or degrades, the consequences extend far beyond a single I/O channel: entire control loops can go offline, safety interlocks may be compromised, and unplanned production shutdowns can cost thousands of dollars per hour. Sourcing a verified, service-ready replacement is not optional — it is a core element of any responsible maintenance strategy.

At NINERMAS, the 8C-PAON01 is stocked as a tested, ready-to-ship spare part backed by a 12-month warranty. Every unit undergoes pre-shipment functional verification to confirm signal integrity, channel isolation, and firmware compatibility before it leaves our facility. Whether you are responding to an emergency shutdown, building a preventive spare parts inventory, or planning an annual turnaround, we provide the supply continuity and technical support your maintenance team requires.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 8C-PAON01 in a live Experion PKS environment is rarely an isolated task. Experienced maintenance engineers understand that analog output module failures are often symptomatic of broader issues within the control cabinet — issues that, if left unaddressed, will generate repeat failures and additional unplanned downtime.

When performing a scheduled or emergency replacement of the 8C-PAON01, your site team should conduct a concurrent inspection of the following associated components:

C300 Controller Module (CC-PCNT01 / CC-PCNT11): The C300 controller directly manages the 8C-PAON01 via the Series C backplane. If the analog output module has failed due to a firmware mismatch or communication fault, the controller itself should be inspected for error logs, firmware version compatibility, and redundancy status. A spare C300 controller module should be maintained in your critical spares inventory alongside the 8C-PAON01.

Series C I/O Carrier and Backplane (CC-TAIX11 / CC-TAOX11): The I/O carrier provides the physical and electrical interface between the 8C-PAON01 and the field wiring. Corroded terminals, loose field wiring connections, or a damaged carrier can cause intermittent output faults that are incorrectly attributed to the module itself. Inspect the carrier for terminal integrity and verify that field cable shields are properly grounded.

Power Supply Module (CC-PWR001 / CC-PWR002): Analog output modules are sensitive to power quality. A degraded or undersized power supply module within the C300 cabinet can cause output drift, channel faults, or module resets. During any 8C-PAON01 replacement, verify that the cabinet power supply is delivering stable 24 VDC within tolerance and that redundant power supply modules are both operational.

FTE Network Switch and Communication Cables: The Experion PKS system relies on Fault Tolerant Ethernet for controller-to-server communication. If the 8C-PAON01 replacement is accompanied by controller communication alarms, inspect the FTE network switches, fiber patch cables, and copper Ethernet connections within the cabinet. A failed FTE switch port can prevent the new module from being recognized by the Experion server.

Analog Input Modules (8C-PAIN01): In many control loops, the 8C-PAON01 analog output works in conjunction with analog input modules that provide process feedback. If output signals are being sent correctly but the control loop is not closing as expected, inspect the corresponding 8C-PAIN01 analog input module for channel faults or calibration drift. Maintaining a spare 8C-PAIN01 alongside the 8C-PAON01 is a best practice for loop-level redundancy.

Signal Isolators and Marshalling Panels: In facilities where field signals pass through signal isolators or marshalling cabinets before reaching the I/O module, a failed isolator can mimic an analog output module fault. Verify signal continuity from the 8C-PAON01 output terminals through the marshalling panel to the final control element (e.g., control valve positioner or variable frequency drive).

Fuses and Terminal Blocks: Blown fuses on the field power distribution rail or loose terminal block connections are common root causes of apparent module failures. Before condemning the 8C-PAON01, verify fuse continuity on all output channels and inspect terminal blocks for signs of overheating, corrosion, or mechanical loosening.

HMI and Operator Workstation: After replacing the 8C-PAON01, confirm that the Experion Operator Station (OS) is correctly reflecting the restored output channels. If the HMI continues to display faults after module replacement, the issue may lie in the Experion server configuration, point database, or OPC communication layer rather than the hardware itself.

Building a structured spare parts kit that includes the 8C-PAON01, its associated carrier, a C300 controller spare, and key power supply modules will reduce your mean time to repair (MTTR) from hours to minutes — a critical advantage in high-availability process environments.

Site Replacement Workflow

The following workflow is recommended for maintenance engineers performing an 8C-PAON01 replacement in an Experion PKS C300 system:

Step 1 — Pre-Replacement Preparation: Download the current controller configuration and I/O point database from the Experion server before beginning any hardware work. Confirm the firmware version of the replacement 8C-PAON01 is compatible with the installed Experion PKS release (R310 or above). If the system is running an older Experion release, consult Honeywell’s compatibility matrix or contact NINERMAS for pre-configured module options.

Step 2 — Safe Isolation: Place the affected control loops in manual mode at the Experion Operator Station. Notify the process operations team of the planned output interruption. If the output channel is connected to a safety-critical actuator, follow your site’s Management of Change (MOC) and Permit to Work (PTW) procedures before proceeding.

Step 3 — Module Removal: The 8C-PAON01 is designed for hot-swap replacement in redundant configurations. In non-redundant installations, confirm that the control loop is in manual before removing the module. Disconnect field wiring from the I/O carrier terminals, label all wires, and remove the module from the backplane slot.

Step 4 — Replacement and Verification: Insert the replacement 8C-PAON01 into the backplane slot. The Experion system will automatically detect the new module and download the configuration. Verify that all output channels are recognized in the Experion Control Builder and that no fault alarms are active. Reconnect field wiring and confirm signal continuity to the final control element.

Step 5 — Loop Commissioning: Return the control loops to automatic mode one at a time. Verify that each loop is controlling correctly by observing the process variable response to output changes. Document the replacement in your site’s maintenance management system (CMMS) and update your spare parts inventory accordingly.

This workflow minimizes production impact, ensures system compatibility, and provides a documented audit trail for regulatory compliance — all critical requirements in ISO 9001 and IEC 61511 environments.
