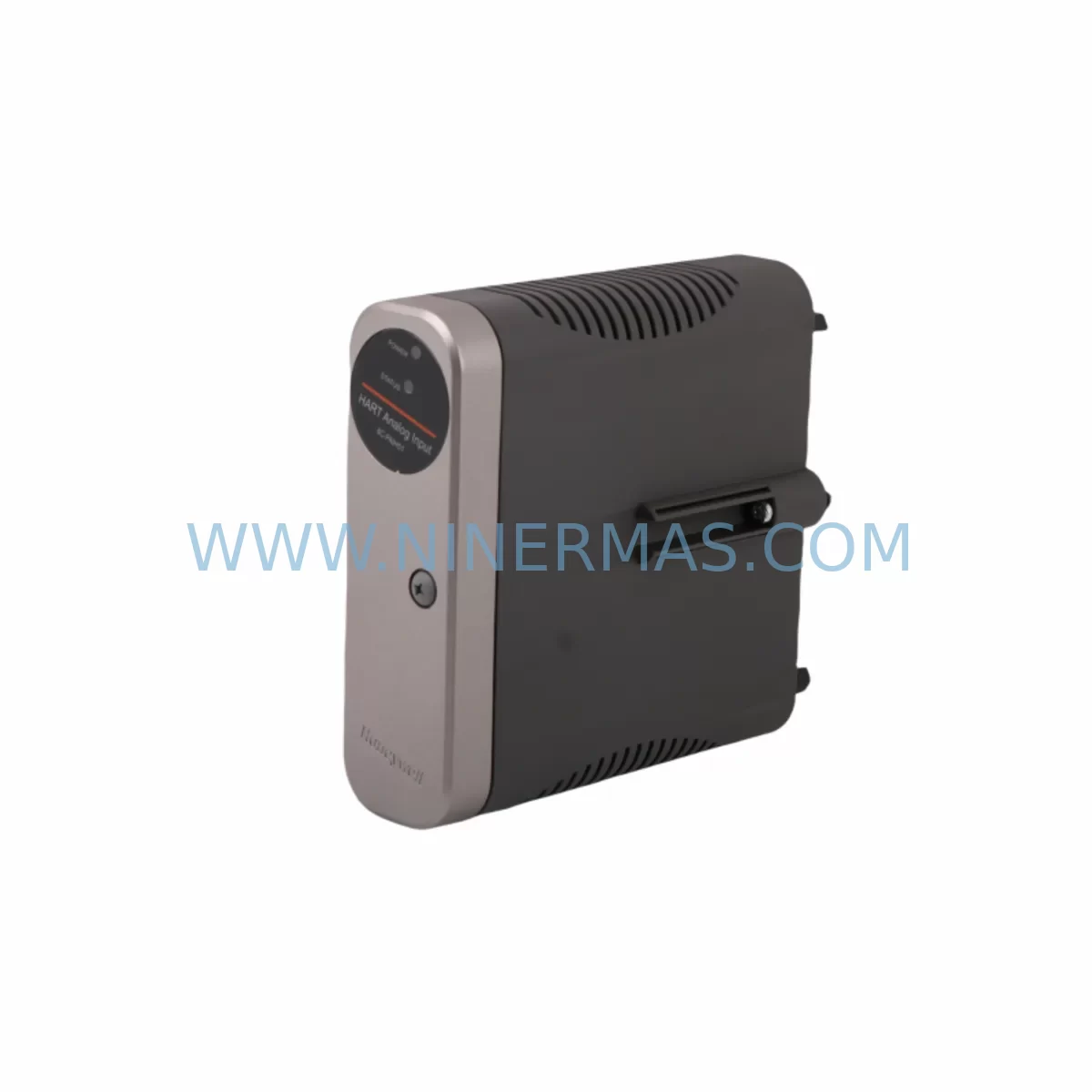

The Honeywell 8C-PAIH51 (P/N 51454352-175) is an original analog input module designed for the Honeywell Series 8 / Experion PKS distributed control system platform. As a critical signal acquisition component within the C300 controller architecture, this module handles high-density analog input processing for process industries including oil & gas, petrochemical, power generation, pulp & paper, and pharmaceutical manufacturing. Maintaining a verified, tested spare of the 8C-PAIH51 in your site inventory is a fundamental requirement for any maintenance team operating Honeywell Experion-based control systems — particularly where unplanned downtime carries significant production and safety risk.

At NINERMAS, every 8C-PAIH51 unit is sourced as an original Honeywell component, inspected for physical integrity, and function-tested prior to shipment. Each unit ships with a 12-month warranty, full traceability documentation, and is packaged to IPC-A-610 standards for safe international transit.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or procurement engineer identifies the 8C-PAIH51 as a replacement requirement, the scope of inspection should extend beyond the module itself. The 8C-PAIH51 operates within a tightly integrated I/O subsystem, and a thorough site replacement protocol should include verification of all adjacent components in the same control cabinet and I/O loop.

Begin with the Series 8 I/O backplane — confirm that the backplane slot connectors show no signs of oxidation, mechanical damage, or intermittent contact. The 8C-PWRJ2 I/O power supply module should be checked for output voltage stability, as power fluctuations are a leading cause of premature analog module failure. If the cabinet houses redundant power feeds, verify that the power distribution terminal blocks and associated fuse holders are intact and within rated capacity.

Field wiring connected to the 8C-PAIH51’s analog input channels should be inspected for insulation integrity, correct shielding termination, and proper grounding at the marshalling cabinet terminal strips. Signal cables carrying 4–20 mA loops from field transmitters are susceptible to ground loops and EMI-induced noise — particularly in older installations where cable routing passes near variable frequency drives or high-current motor feeders. A signal isolator or loop conditioner installed upstream of the analog input channel can significantly extend module service life in electrically noisy environments.

The C300 Process Controller paired with this I/O module should be reviewed for firmware revision compatibility. Ensure the controller’s FTE communication link is operating without packet loss, and that the Fault Tolerant Ethernet switch serving the Experion node is functioning correctly. If the site runs a redundant C300 pair, both primary and secondary controllers should be checked for synchronization status before and after the module swap.

For sites with aging Experion PKS infrastructure, it is also advisable to audit the condition of the 8C-PDODA1 analog output modules, 8C-PDIDS1 digital input modules, and 8C-PDODS1 digital output modules installed in the same chassis. These modules share the same backplane power bus and I/O link architecture as the 8C-PAIH51, and a failure in one module is often a leading indicator of degradation across the entire I/O assembly. Proactive replacement of aging modules — particularly those showing intermittent channel faults or elevated diagnostic alarm rates — is far more cost-effective than emergency procurement during an unplanned shutdown.

Finally, review the Experion PKS HMI server and associated operator workstation connections. Analog input data from the 8C-PAIH51 feeds directly into process displays, historian trends, and alarm management systems. After module replacement, confirm that all associated process variables are reading correctly in the DCS, that historian data continuity is maintained, and that no spurious alarms have been generated by the module swap event.

Site Replacement Workflow

The 8C-PAIH51 (51454352-175) is a hot-swap capable module within the Series 8 I/O architecture, which significantly reduces the downtime window required for field replacement. However, a structured replacement workflow is essential to ensure system stability and data integrity throughout the process.

Step 1 — Pre-Replacement Verification: Confirm the replacement module’s part number and firmware revision against the installed base record. Cross-reference the 51454352-175 revision level with the site’s Experion PKS version to ensure compatibility. Download and archive the current module configuration from the Experion Control Builder before proceeding.

Step 2 — Loop Isolation: Notify the control room operator and place all affected analog input loops in manual mode at the DCS. For safety-instrumented loops, coordinate with the SIS engineer before isolating any input signal. Tag out field transmitters connected to the affected channels per site LOTO procedures.

Step 3 — Module Removal: With the Series 8 backplane powered (hot-swap), carefully extract the faulty 8C-PAIH51 from its slot. Inspect the ejected module’s connector pins and the backplane slot for contamination or damage before inserting the replacement unit.

Step 4 — Module Installation and Auto-Configuration: Insert the new 8C-PAIH51 into the backplane slot. The Experion PKS system will automatically detect the new module and download the stored I/O configuration. Monitor the module status LED and the Experion Station display for successful initialization — typically within 30–60 seconds.

Step 5 — Loop Verification and Return to Auto: Verify each analog input channel against the field transmitter signal using a calibrated loop calibrator. Confirm that all process variable readings in the DCS match expected values within calibration tolerance. Return all loops to automatic control and clear any maintenance-mode alarms. Document the replacement in the site maintenance management system (CMMS).

This workflow applies equally to planned annual maintenance replacements and emergency fault-driven swaps. Maintaining a pre-tested, shelf-ready 8C-PAIH51 spare eliminates the procurement lead time variable from your downtime equation — a critical advantage when production losses are measured in thousands of dollars per hour.

Spare Parts Support FAQ

Q1: Is the 8C-PAIH51 (51454352-175) still available as a new original part, or only as refurbished stock?
NINERMAS supplies the 8C-PAIH51 as original Honeywell components. Each unit undergoes incoming inspection and functional testing before dispatch. We maintain long-term sourcing relationships to support sites running legacy Experion PKS and Series 8 I/O infrastructure, including systems where Honeywell has discontinued standard commercial availability. All units are shipped with full traceability documentation and a 12-month warranty from the date of delivery.

Q2: How do I verify compatibility between the 8C-PAIH51 and my installed Experion PKS version before ordering?
Compatibility is determined by the Experion PKS release version, C300 controller firmware, and Series 8 I/O link revision installed at your site. Share your system’s software version and existing module revision data with our technical team at sale@ninermas.com, and we will confirm compatibility before order confirmation. We recommend maintaining at least one verified spare per chassis for critical analog input assemblies.

Q3: What testing is performed on each 8C-PAIH51 unit before shipment, and what does the 12-month warranty cover?
Each unit is powered up and tested for channel-level analog input accuracy, isolation integrity, and backplane communication handshake prior to packaging. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Units that fail in service within the warranty period are replaced or credited at no additional cost. Our standard lead time for tested, ready-to-ship units is 3–7 business days for international destinations.

Q4: Can NINERMAS support long-term supply agreements for 8C-PAIH51 and related Series 8 I/O modules?
Yes. NINERMAS offers long-term supply agreements for maintenance teams managing large Honeywell Experion PKS installations. We can reserve allocated stock of the 8C-PAIH51 and related modules — including analog output, digital I/O, and power supply components — under a framework agreement that guarantees pricing and availability over a 12–36 month horizon. Contact our procurement team to discuss your site’s annual consumption requirements and establish a dedicated spare parts supply plan.
