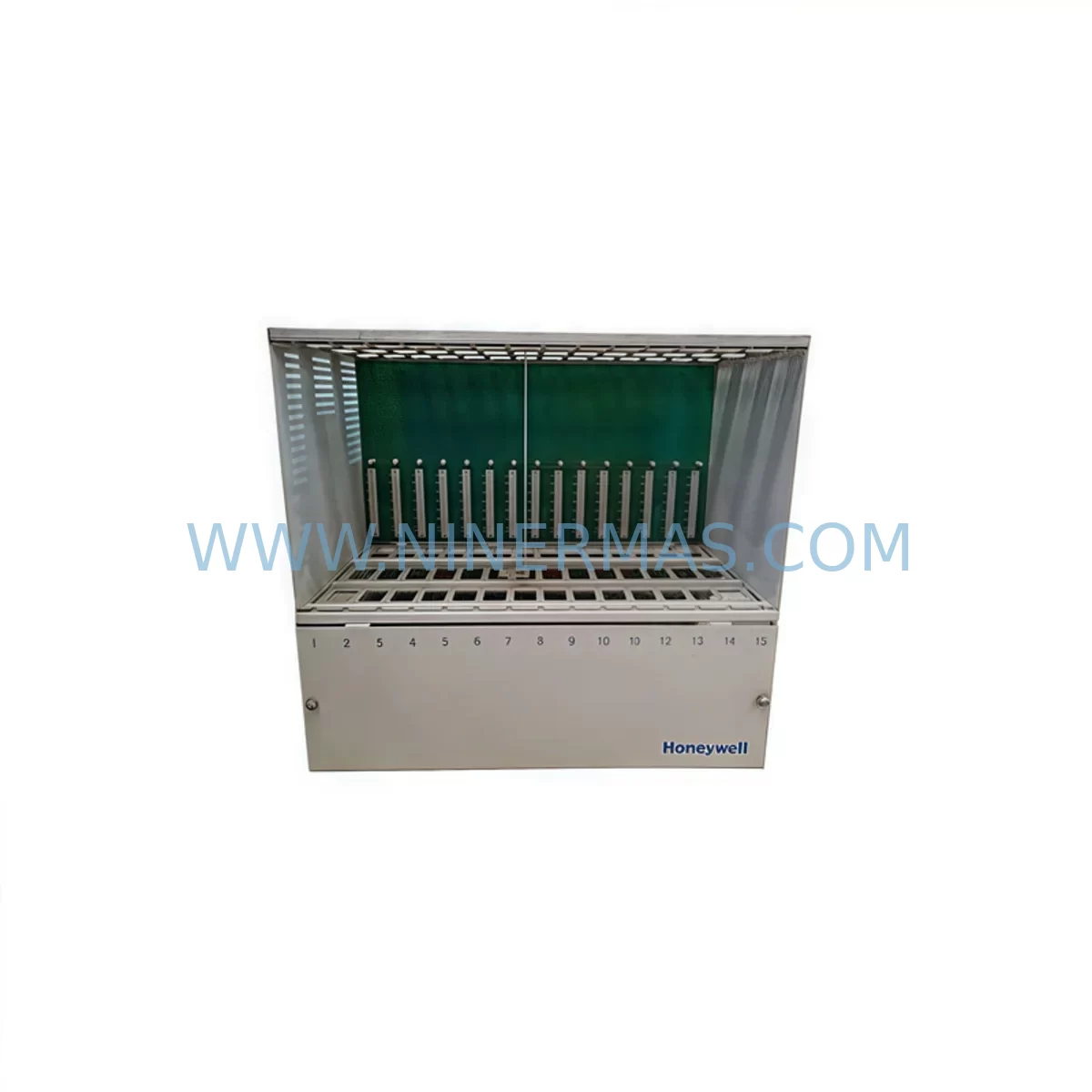

The Honeywell 51401406-100 is an I/O File Chassis Rack designed for use within Honeywell’s TDC 3000 and TotalPlant Solution (TPS) Distributed Control System (DCS) platforms. As a structural and electrical backbone of the I/O subsystem, this chassis rack provides the physical mounting and backplane connectivity for I/O modules, power supplies, and communication cards that form the core of process control in refineries, chemical plants, power generation facilities, and other continuous-process industries.

For maintenance engineers managing aging DCS infrastructure, the 51401406-100 represents a critical spare. Chassis rack failures — whether caused by backplane corrosion, mechanical damage, connector fatigue, or power distribution faults — can result in complete loss of I/O communication across an entire file, triggering unplanned shutdowns and costly production losses. Stocking a verified, service-ready replacement unit is one of the most effective strategies for minimizing mean time to repair (MTTR) and protecting operational continuity.

At NINERMAS, every 51401406-100 unit is sourced, inspected, and dispatched with full traceability. We support procurement engineers and plant maintenance teams with long-term supply, pre-shipment functional verification, and a 12-month warranty on all spare parts.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a Honeywell 51401406-100 I/O File Chassis Rack is identified for replacement during a scheduled turnaround or emergency corrective maintenance event, experienced DCS engineers know that the chassis itself is rarely the only component requiring attention. A thorough inspection of the surrounding subsystem is essential to prevent repeat failures and ensure full restoration of control system integrity.

Begin by verifying the I/O File Power Supply (such as the Honeywell 51401544-150 or equivalent TPS power supply module) that feeds the chassis. A degraded or intermittently failing power supply is a common root cause of chassis-level faults that are misdiagnosed as rack failures. Inspect output voltage rails and ripple characteristics before reinstalling any I/O modules into the replacement chassis.

Next, audit the I/O modules seated within the file — including analog input cards, analog output cards, and digital I/O modules from the TDC 3000 series. Backplane connector pins on these modules can suffer from fretting corrosion after years of thermal cycling. Modules such as the Honeywell 51304485-150 analog input card or 51309276-150 digital output module should be cleaned and re-seated or replaced if contact resistance is elevated.

The Highway Gateway Module (HGM) or Local Control Network (LCN) interface card installed in the file should also be inspected. Communication faults at the chassis level often propagate from degraded LCN or UCN (Universal Control Network) interface hardware. Confirm that the communication module firmware is current and that network termination resistors are intact.

For plants running hybrid architectures, check the Field Termination Assembly (FTA) wiring and marshalling panels connected to the I/O file. Loose terminal connections, corroded field wiring, or failed signal isolators between field instruments and the I/O cards can cause erratic readings that are incorrectly attributed to chassis faults. Inspect and torque all terminal connections per Honeywell’s installation standards.

If the control cabinet houses redundant I/O file configurations, verify that the redundancy switchover mechanism is functioning correctly after chassis replacement. Test manual and automatic switchover before returning the system to service. Also confirm that fuse holders and circuit protection on the power distribution rail within the cabinet are intact — blown fuses on I/O file power feeds are a frequently overlooked cause of partial file failures.

For plants managing long-term DCS life extension programs, maintaining a curated spare parts inventory that includes the 51401406-100 chassis rack alongside compatible I/O termination boards, backplane cables, and module extender cards is a recognized best practice. Procurement engineers should establish a minimum stock level based on the number of I/O files installed across the plant and the historical failure rate of chassis hardware in the operating environment.

NINERMAS supports long-term supply agreements for Honeywell TDC 3000 and TPS spare parts, enabling procurement teams to secure critical hardware at confirmed pricing and lead times — reducing exposure to spot-market shortages as legacy DCS components approach end-of-availability status.

Site Replacement Workflow

Step 1 — Pre-Replacement Preparation: Before removing the faulty 51401406-100 chassis, document all module slot assignments, wiring connections, and I/O addresses. Photograph the installed configuration for reference. Notify the control room and obtain a permit-to-work (PTW) in accordance with site safety procedures.

Step 2 — Power Down and Module Extraction: De-energize the I/O file power supply following Honeywell’s lockout/tagout procedure. Carefully extract all I/O modules, labeling each with its slot position. Disconnect field wiring from the FTA or marshalling panel as required.

Step 3 — Chassis Removal and Inspection: Remove the faulty 51401406-100 chassis from the cabinet rail. Inspect the cabinet mounting rails, grounding straps, and power feed cables for damage. Clean the cabinet interior before installing the replacement unit.

Step 4 — Replacement Chassis Installation: Mount the new 51401406-100 chassis onto the cabinet rail. Reconnect power feed cables and verify grounding continuity. Re-install I/O modules in their original slot positions, ensuring full backplane connector engagement.

Step 5 — Power-Up and System Verification: Energize the I/O file power supply and confirm stable voltage output. From the Honeywell operator station or engineering workstation, verify that all I/O points in the replaced file are communicating correctly. Perform a loop check on critical analog and digital signals before releasing the system to operations.

Step 6 — Documentation and Spare Parts Replenishment: Update the plant maintenance management system (CMMS) with the replacement record. Immediately initiate a procurement request to replenish the consumed 51401406-100 spare to maintain minimum stock levels.

Spare Parts Support FAQ

Q1: Is the Honeywell 51401406-100 compatible with both TDC 3000 and TPS DCS systems?
Yes. The 51401406-100 I/O File Chassis Rack is designed for use within Honeywell’s TDC 3000 and TotalPlant Solution (TPS) DCS platforms. Before installation, confirm the chassis slot count and backplane revision match your existing file configuration. NINERMAS technical support can assist with compatibility verification based on your system documentation.

Q2: What pre-shipment testing is performed on the 51401406-100?
Each unit undergoes visual inspection, connector integrity checks, and functional verification prior to dispatch. Units are packaged with anti-static protection and shipped with a test report. Our 12-month warranty covers defects in materials and workmanship from the date of shipment.

Q3: How should the 51401406-100 be stored as a long-term spare?
Store in a clean, dry environment with controlled temperature (15°C–25°C recommended) and humidity below 60% RH. Use anti-static packaging and avoid stacking heavy items on the chassis. Inspect stored units annually for connector oxidation and mechanical integrity.

Q4: Can NINERMAS support long-term supply of Honeywell TDC 3000 and TPS spare parts?
Yes. NINERMAS specializes in long-term supply of legacy DCS and industrial automation spare parts, including Honeywell TDC 3000, TPS, Experion PKS, and related I/O hardware. We offer blanket order agreements, reserved stock programs, and multi-year supply contracts to support plant life extension and turnaround planning.
