Honeywell 51306816-200 Service-Ready Spare Part

Honeywell 51306816-200 Service-Ready Spare Part

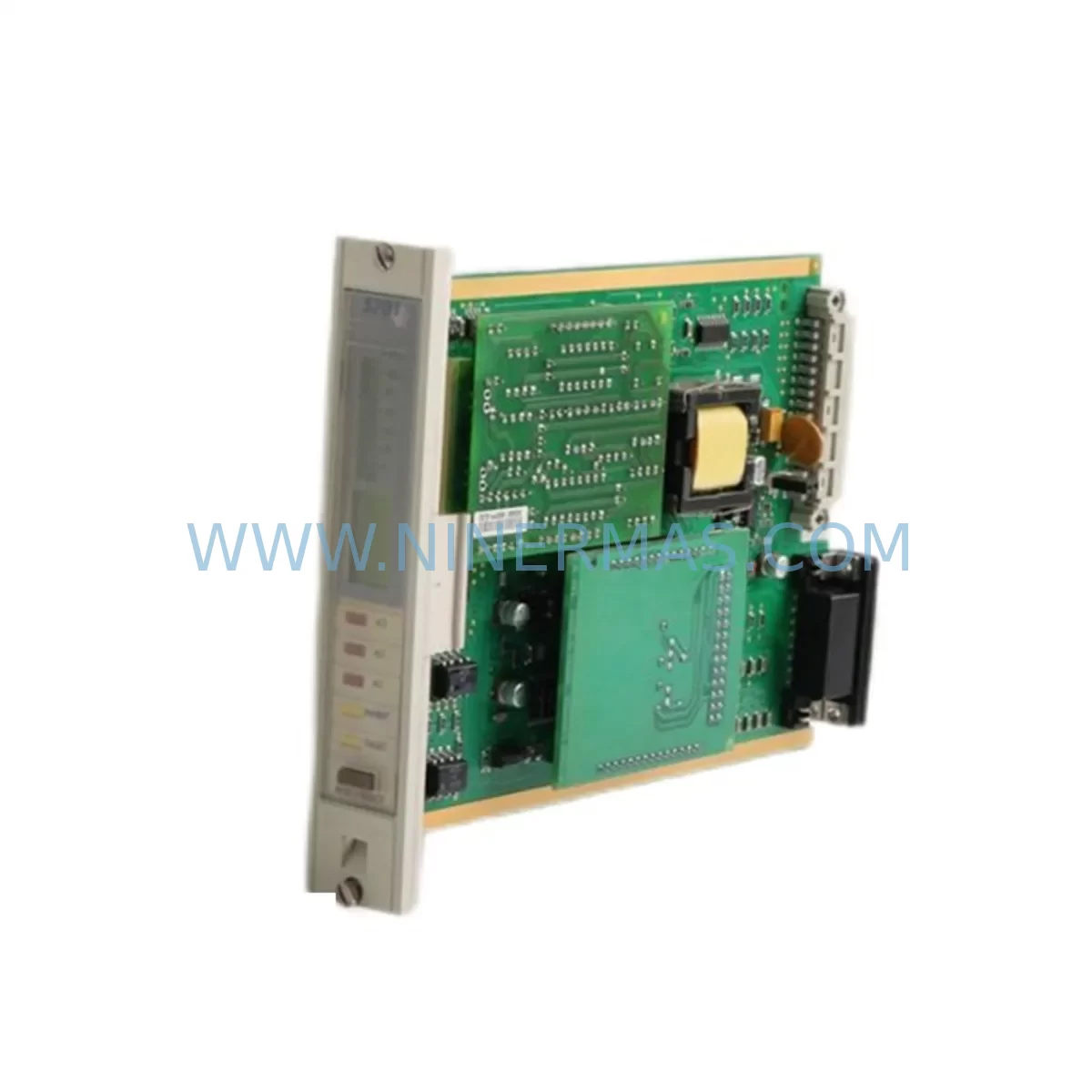

The Honeywell 51306816-200 is a ruggedized analog input module engineered for continuous operation in demanding industrial environments. Designed for integration within Honeywell’s TDC 3000 Distributed Control System (DCS) architecture, this module delivers reliable signal acquisition from field instrumentation including thermocouples, RTDs, 4–20 mA transmitters, and millivolt sources. For maintenance engineers managing aging DCS infrastructure, the 51306816-200 represents a critical spare that directly impacts process uptime and control loop integrity.

At NINERMAS, every 51306816-200 unit is sourced from verified supply channels, subjected to pre-shipment functional testing, and shipped with a 12-month warranty. Our long-term spare parts program ensures continued availability for facilities committed to lifecycle extension of legacy Honeywell TDC 3000 systems.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a Honeywell 51306816-200 analog input module is flagged for replacement during a scheduled turnaround or emergency fault isolation, maintenance engineers should treat the event as an opportunity to audit the surrounding control loop and cabinet infrastructure. Analog input failures rarely occur in isolation — signal degradation, ground loops, or power supply instability often affect adjacent components simultaneously.

Begin by inspecting the Honeywell 51304754-150 or 51304754-175 power supply modules that feed the HPM cabinet. A marginal power supply operating near its load limit can induce intermittent analog errors that mimic module failure. Verify output voltage stability under full rack load before condemning the input card.

Next, check the field termination assemblies (FTAs) and associated marshalling cabinet wiring. Corroded terminal blocks, loose field wiring, or degraded cable shields are common root causes of analog signal noise on 4–20 mA loops. Replacing the 51306816-200 without addressing wiring integrity will result in repeat failures.

For multi-loop process areas, also inspect the Honeywell 51309276-150 analog output modules installed in the same HPM chassis. Output modules sharing the same backplane and power bus are subject to the same environmental stressors. A proactive swap during a planned outage avoids a second unplanned shutdown.

The HPM backplane assembly itself should be visually inspected for connector wear, oxidation on card-edge contacts, and any signs of thermal stress. Backplane connector degradation is a known failure mode in TDC 3000 systems with 15+ years of service. Cleaning contacts with approved electronic contact cleaner and verifying card seating torque is a low-cost preventive step.

Communication health between the HPM and the Local Control Network (LCN) should also be confirmed. Verify that Honeywell NIM (Network Interface Module) cards are operating without error flags, as LCN communication faults can mask or misattribute analog input alarms. Similarly, check the History Module (HM) for any logged channel fault events that predate the current failure.

For facilities running Honeywell Universal Control Network (UCN) field devices alongside TDC 3000, inspect the UCN interface cards and associated coaxial trunk cabling. Signal integrity on the UCN directly affects how field transmitter data is presented to the HPM analog input channels.

Finally, review the status of any signal isolators or signal conditioners installed between field transmitters and the marshalling cabinet. Aging galvanic isolators can introduce offset errors or reduce loop compliance voltage, causing the 51306816-200 to report out-of-range values even when the transmitter and module are both functional. Replacing isolators as part of a module swap is a best practice for long-term signal reliability.

Procurement engineers should maintain a minimum stock of 2–3 units of the 51306816-200 per HPM chassis in service, particularly for facilities where TDC 3000 systems are operating beyond their original design life. NINERMAS supports blanket order programs with fixed lead times to simplify annual spare parts budgeting.

Site Replacement Workflow

Step 1 — Fault Confirmation: Use the Honeywell operator console or Engineering Workstation to confirm the specific channel or module generating the fault. Document the slot address, channel number, and alarm history before any physical intervention.

Step 2 — Safe Isolation: Place the affected control loop in manual mode at the DCS. Notify the process operator and obtain a work permit. De-energize the HPM cabinet section per site LOTO procedures. Do not remove the card under power unless the system is confirmed hot-swap capable for this slot.

Step 3 — Card Removal and Inspection: Extract the 51306816-200 from its backplane slot. Inspect the card-edge connector for oxidation, bent pins, or debris. Inspect the backplane slot for the same. Photograph the installed position for reference.

Step 4 — Replacement Installation: Insert the new 51306816-200 unit. Ensure full seating and verify any locking mechanism is engaged. The module is a direct form-fit-function replacement — no firmware re-flashing or address reconfiguration is required for standard slot replacement.

Step 5 — Loop Verification: Re-energize the cabinet section. Return the control loop to automatic mode. Verify that all channels on the replacement module are reading correctly against known field transmitter values. Perform a loop check on at least one channel using a calibrated signal source if time permits.

Step 6 — Documentation: Record the replacement in the site CMMS (Computerized Maintenance Management System). Log the removed module’s serial number, fault symptoms, and replacement date. Return the removed module to the spare parts store for evaluation or disposal per site policy.

Spare Parts Support FAQ

Q1: Is the Honeywell 51306816-200 still available as a new or tested spare?
Yes. NINERMAS maintains stock of the 51306816-200 as a tested, service-ready spare. Each unit undergoes pre-shipment functional verification. While Honeywell has transitioned newer DCS platforms to Experion PKS, the TDC 3000 installed base remains extensive globally, and we support long-term availability through our dedicated legacy spare parts program.

Q2: How do I verify compatibility before ordering?
The 51306816-200 is compatible with Honeywell TDC 3000 HPM (High-Performance Process Manager) chassis. Confirm your HPM firmware revision and backplane type against the module’s hardware revision. Contact our technical team at sale@ninermas.com with your system configuration details for pre-order compatibility confirmation.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers functional failure under normal operating conditions from the date of shipment. It includes free replacement or repair for verified module defects. The warranty does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. All warranty claims are processed directly through NINERMAS with fast turnaround.

Q4: Can NINERMAS support a long-term supply agreement for TDC 3000 spare parts?
Yes. We offer blanket purchase order programs and annual supply agreements for facilities managing large TDC 3000 installed bases. Fixed pricing, reserved stock allocation, and priority shipping are available under these agreements. This is particularly valuable for refineries and chemical plants with multi-year turnaround cycles and strict spare parts budget planning requirements. Contact us at sale@ninermas.com or +0086 187 5021 5667 to discuss your requirements.
