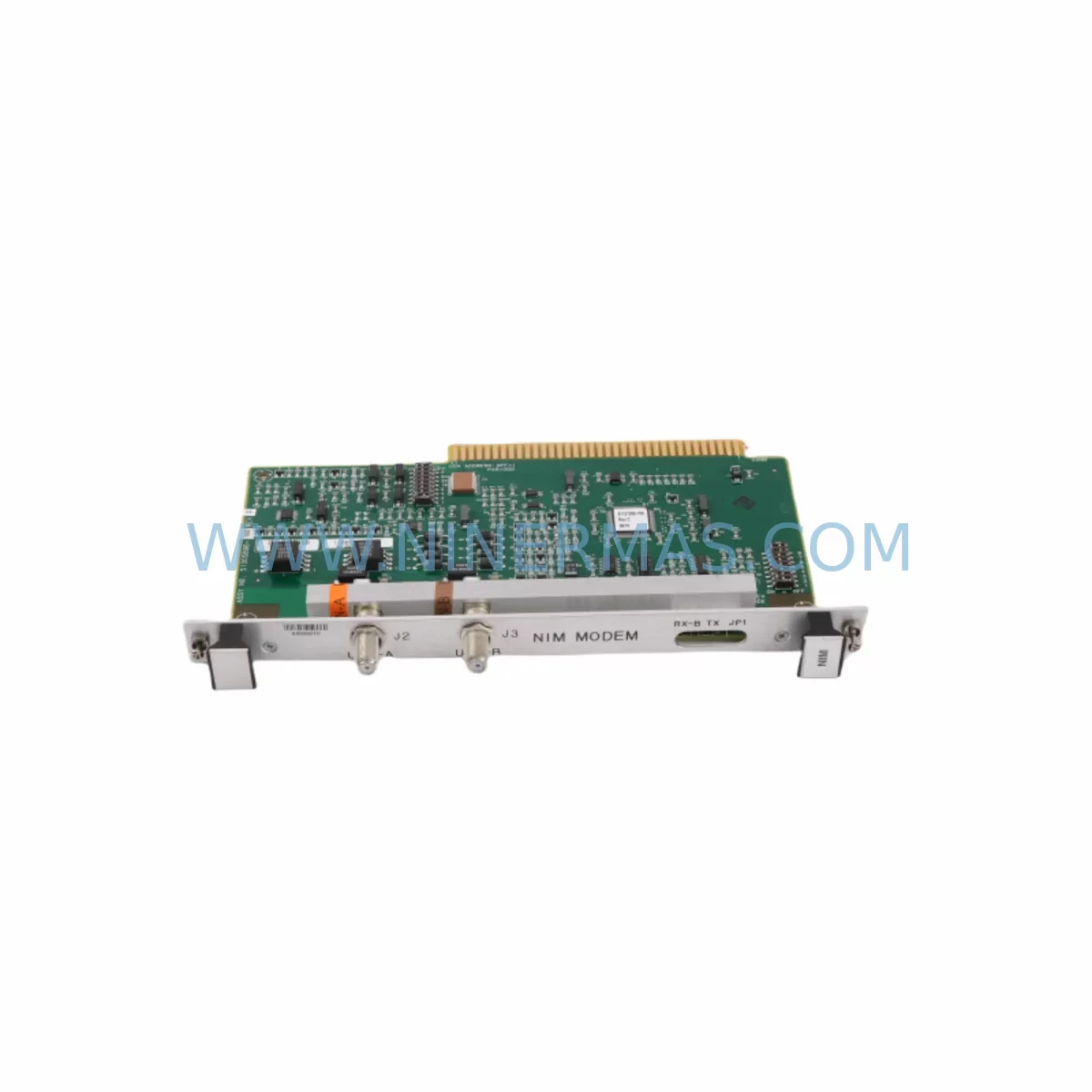

The Honeywell 51305896-100 is a PWA Network Interface Module (NIM) Modem designed for integration within the Honeywell TDC 3000 and TotalPlant Solution (TPS) distributed control system platforms. As legacy DCS installations continue to operate well beyond their original design lifecycle, the 51305896-100 has become a critical spare part for engineers and maintenance teams responsible for sustaining plant operations without committing to a full system replacement. This module supports network communication between the Universal Control Network (UCN) and higher-level supervisory nodes, making it an essential component in any retrofit or life-extension program targeting Honeywell’s legacy control architecture.

For facilities running TDC 3000 or TPS platforms, sourcing a verified replacement for the 51305896-100 is often the difference between a controlled maintenance window and an unplanned production shutdown. NINERMAS maintains in-stock inventory of this module, pre-tested and ready for shipment, backed by a 12-month warranty covering both hardware integrity and functional performance under normal operating conditions.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the 51305896-100 NIM Modem within an active TDC 3000 or TPS environment requires careful pre-engineering to avoid disrupting live process loops. Before the replacement module arrives on site, the maintenance team should document the existing node address assignments, UCN segment topology, and the physical slot position within the card cage. The card cage backplane must be inspected for pin integrity, and the local power supply module — typically a Honeywell 51401288-100 or equivalent PSU card — should be load-tested to confirm it can support the replacement NIM without voltage droop under peak communication load.

In systems where the NIM Modem interfaces with a Honeywell History Module (HM) or Application Module (AM), the communication path must be re-validated after module swap. Engineers should confirm that the UCN node address programmed into the replacement 51305896-100 matches the original configuration stored in the system database, as a mismatch will prevent the module from appearing on the network and may trigger fault alarms across dependent control loops.

For plants that have already migrated portions of their control architecture to Experion PKS, the 51305896-100 often serves as a bridge component, maintaining legacy UCN communication while newer Experion C300 controllers or EHPM (Experion Hybrid Process Manager) nodes handle updated process areas. In this hybrid configuration, the NIM Modem’s role in sustaining the UCN segment is critical, and its replacement must be coordinated with the Experion system administrator to avoid disrupting the gateway mapping between legacy and modern nodes.

Terminal wiring on the associated I/O modules — such as the Honeywell 51304485-100 Analog Input card or 51309512-175 Digital Output module — should be photographed and documented before any cabinet work begins. If the retrofit scope extends to replacing adjacent communication modules, such as a Honeywell 51190493-100 NIM or a Local Control Network (LCN) interface card, the sequence of module removal and re-insertion must follow the system’s hot-swap or cold-swap procedures as defined in the TDC 3000 maintenance manual.

Where the retrofit also involves upgrading the operator interface, teams should verify that the existing Universal Station (US) or Global User Station (GUS) HMI displays retain their tag references after the NIM replacement. Any change in node addressing will require corresponding updates to the HMI display database, and this should be tested in a shadow or simulation environment before the live cutover. Programming cables and configuration tools compatible with the TDC 3000 platform should be staged on-site prior to the maintenance window.

For installations where the 51305896-100 supports a Redundant UCN segment, both the primary and secondary NIM Modem slots must be addressed during the retrofit. Replacing only one module in a redundant pair without verifying the health of the standby unit is a common source of post-maintenance failures. NINERMAS recommends sourcing a matched pair when redundancy is part of the original system design.

Downtime Control During System Migration

Minimizing downtime during a NIM Modem replacement on a live TDC 3000 system begins with a structured pre-outage checklist. Before the maintenance window opens, all process values associated with UCN-connected controllers should be placed in manual mode or transferred to backup regulatory control where available. The existing 51305896-100 should be powered down in accordance with the card cage shutdown sequence — never removed under power unless the system documentation explicitly supports hot-swap for this module revision.

Once the replacement module is seated and the card cage is powered, the system console should be used to verify that the NIM Modem appears on the UCN network within the expected timeout period. If the module does not register, the node address DIP switch or firmware configuration should be checked against the original system records before escalating to a full diagnostic. In most cases, a correctly addressed and pre-tested 51305896-100 will come online within the normal network initialization cycle, allowing process loops to be returned to automatic control without further intervention.

To protect original program logic during the migration, a full system checkpoint or database backup should be performed before the maintenance window begins. This ensures that if the replacement module triggers any unexpected system response, the control database can be restored to its pre-maintenance state without loss of tuning parameters, alarm setpoints, or sequence logic. Keeping the maintenance window focused on the NIM replacement alone — rather than combining it with other system changes — is the most reliable way to isolate the cause of any post-maintenance anomaly.

Retrofit Support FAQ

Q1: Is the Honeywell 51305896-100 a direct drop-in replacement for other NIM Modem variants in the TDC 3000 platform?
In most cases, yes. The 51305896-100 is designed for the TDC 3000 and TPS card cage environment and shares the same backplane connector and UCN interface as other NIM variants in the same series. However, firmware revision compatibility should be confirmed against your system’s current software version before installation. NINERMAS can provide the module’s revision label upon request prior to shipment.

Q2: What commissioning steps are required after installing the replacement module?
After physical installation, the node address must be verified or configured via the system console. The UCN network scan should confirm the module’s presence, and any dependent Application Modules or History Modules should be checked for communication continuity. HMI tag references tied to the replaced node should be validated on the operator station before returning loops to automatic control.

Q3: Has the 51305896-100 been tested before shipment?
Yes. Every unit shipped by NINERMAS undergoes pre-shipment functional testing to verify communication path integrity and hardware condition. A test report is available upon request. All units are covered by a 12-month warranty from the date of shipment, covering defects in materials and workmanship under normal operating conditions.

Q4: What is the lead time and supply availability for the 51305896-100?
The 51305896-100 is currently in stock and available for immediate dispatch. For customers requiring multiple units or long-term supply commitments to support ongoing maintenance programs, NINERMAS offers stock reservation arrangements with fixed lead times. Contact our team to discuss volume requirements and supply continuity planning for your facility.
