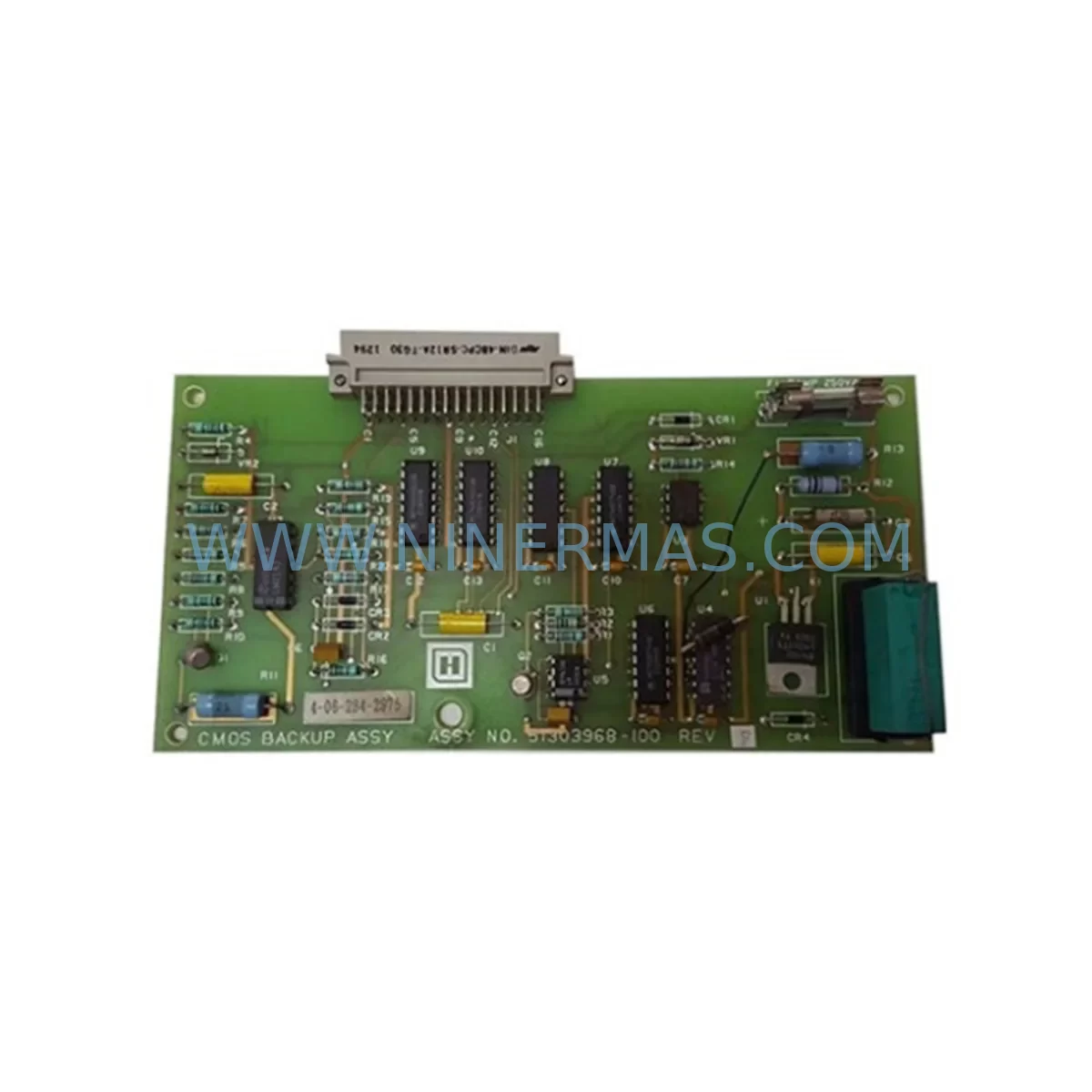

HONEYWELL 51303968-100 Safety-Reliable Backup Board

HONEYWELL 51303968-100 Safety-Reliable Backup Board for Critical Industrial Control Sites

The HONEYWELL 51303968-100 is an original backup board engineered for the Honeywell TDC 3000 Distributed Control System (DCS), one of the most widely deployed process automation platforms in continuous manufacturing, petrochemical refining, power generation, and metallurgical processing. Designed to meet the demanding requirements of critical control sites, this board delivers the redundancy, signal integrity, and fault-tolerance that safety-critical operations depend on. At NINERMAS, every unit is sourced from verified supply channels, subjected to outgoing inspection, and backed by a 12-month warranty.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In any continuous production environment — whether a refinery running 24/7 hydrocarbon processing, a power plant managing turbine control loops, or a water treatment facility overseeing chemical dosing — the integrity of the DCS control cabinet is non-negotiable. The HONEYWELL 51303968-100 backup board plays a central role in maintaining that integrity by providing redundant processing support within the TDC 3000 architecture, ensuring that a single board failure does not cascade into a full control loop shutdown or unplanned process trip.

Within a typical TDC 3000 control cabinet, the 51303968-100 works in close coordination with the Honeywell 51304485-100 Power Entry Module, which conditions incoming AC supply and protects downstream boards from voltage transients and surge events. Upstream of the power entry, a Honeywell 51196655-100 Power Supply Module provides regulated 24 VDC to the backplane, and any instability in this supply — caused by grid fluctuations, generator switchover, or capacitor aging — can propagate to every board in the rack. The 51303968-100’s robust backplane interface is designed to tolerate these transient conditions without triggering spurious resets or data corruption.

Signal reliability is equally critical. In plants with large motor drives, arc furnaces, or high-frequency switching equipment, electromagnetic interference (EMI) is a persistent threat to control signal fidelity. The Honeywell 51309276-175 Data Highway Module manages peer-to-peer communication across the TDC 3000 network, and when paired with a properly functioning backup board like the 51303968-100, the system maintains communication continuity even during partial hardware faults. Similarly, the Honeywell 51401544-150 Universal Control Network Interface bridges the TDC 3000 to higher-level supervisory systems, and its reliable operation depends on stable lower-level board health — which the 51303968-100 directly supports.

For I/O integrity, the Honeywell 51304754-150 Analog Input Module and 51304516-100 Digital Output Module handle field signal acquisition and actuator command output respectively. Signal drift on analog inputs — caused by aging components, thermal stress, or ground loop issues — is one of the most common sources of process upsets in aging DCS installations. Maintaining a healthy backup board ensures that the system’s self-diagnostic routines can accurately identify and isolate faults rather than masking them. On the output side, a failed digital output module that cannot be quickly replaced risks leaving a critical valve or interlock in an indeterminate state — exactly the scenario that a well-stocked spare parts strategy, including the 51303968-100, is designed to prevent.

In safety instrumented systems (SIS) integrated with the TDC 3000, the Honeywell FSC (Fail Safe Controller) Safety I/O Modules handle the final safety layer for emergency shutdown (ESD) and fire-and-gas (F&G) functions. While the 51303968-100 operates in the basic process control system (BPCS) layer, its reliability directly affects the quality of process data fed to the SIS for voting logic decisions. A backup board that maintains accurate process state information reduces the risk of nuisance trips or, more critically, missed trip conditions. Complementing this, the Honeywell 51198685-100 Redundancy Module enables hot-standby controller operation, and the 51303968-100 is a key component in ensuring that switchover between primary and standby controllers occurs cleanly, without data loss or control bump.

Critical Industrial Safety Applications

Petrochemical & Refining: In crude distillation units, catalytic crackers, and hydrocracker control rooms, the TDC 3000 platform manages hundreds of PID loops controlling temperature, pressure, flow, and level. An unplanned controller failure in these environments can trigger emergency shutdowns costing hundreds of thousands of dollars per hour. The 51303968-100 backup board provides the redundancy layer that allows maintenance teams to replace a failed primary board without interrupting the control loop — a critical capability in facilities where planned shutdowns occur only once every two to four years.

Power Generation: Coal-fired, gas turbine, and combined-cycle power plants rely on the TDC 3000 for boiler management, turbine sequencing, and auxiliary system control. In these applications, control system availability is directly tied to grid reliability commitments. The 51303968-100 supports continuous operation by ensuring that backup processing capacity is always available, reducing the risk of forced outages caused by single-point hardware failures.

Mining & Mineral Processing: Grinding circuits, flotation cells, and smelter control systems operate in environments characterized by heavy vibration, conductive dust, and wide temperature swings. The 51303968-100’s industrial-grade construction makes it suitable for control cabinets in these harsh conditions, where consumer-grade electronics would fail within months. Its availability as a stocked spare at NINERMAS means that mining operations can minimize mean time to repair (MTTR) when a board failure occurs during a production campaign.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities use the TDC 3000 to manage chemical dosing, filtration, and effluent monitoring. In these applications, control system failures can have direct public health implications. The 51303968-100 provides the backup processing reliability needed to maintain continuous, uninterrupted control of treatment processes, even in the high-humidity environments typical of pump stations and chemical storage areas.

Metallurgy & Steel Production: Electric arc furnaces, continuous casting lines, and rolling mill control systems generate extreme electromagnetic interference that challenges even industrial-grade control hardware. The 51303968-100’s EMI-hardened design and robust backplane connection make it a reliable choice for control cabinets in these environments, where signal integrity and board longevity are paramount.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the HONEYWELL 51303968-100?
The 12-month warranty covers functional failure of the board under normal operating conditions consistent with the Honeywell TDC 3000 system specifications. If the board fails to perform its designed backup and processing functions within the warranty period, NINERMAS will provide a replacement or full refund. The warranty period begins from the date of shipment confirmation.

Q2: What outgoing inspection and testing is performed before shipment?
Every HONEYWELL 51303968-100 unit dispatched by NINERMAS undergoes a pre-shipment functional verification process. This includes visual inspection for physical damage, component integrity checks, and where applicable, powered functional testing to confirm that the board initializes correctly and communicates with the TDC 3000 backplane as expected. Units that do not pass inspection are quarantined and not offered for sale.

Q3: Is the 51303968-100 compatible with all TDC 3000 system revisions?
The 51303968-100 is designed for use within the Honeywell TDC 3000 DCS platform. Compatibility with specific system revisions, firmware versions, or cabinet configurations should be verified against your site’s engineering documentation. NINERMAS technical support can assist with compatibility queries — contact sale@ninermas.com with your system revision details for confirmation before ordering if you have specific integration requirements.

Q4: Can NINERMAS support long-term supply of the 51303968-100 for ongoing maintenance programs?
Yes. NINERMAS maintains stock of the 51303968-100 and other TDC 3000 spare parts to support planned maintenance, emergency replacement, and long-term lifecycle management programs. For facilities managing aging DCS installations where OEM support has been reduced or discontinued, NINERMAS provides a reliable alternative supply channel with consistent quality standards and documented traceability. Blanket order arrangements and priority allocation agreements are available for high-volume or time-critical customers.
