Honeywell 16159/1/1 Retrofit-Compatible Input Module Legacy

Honeywell 16159/1/1 Retrofit-Compatible Input Module for Legacy Systems

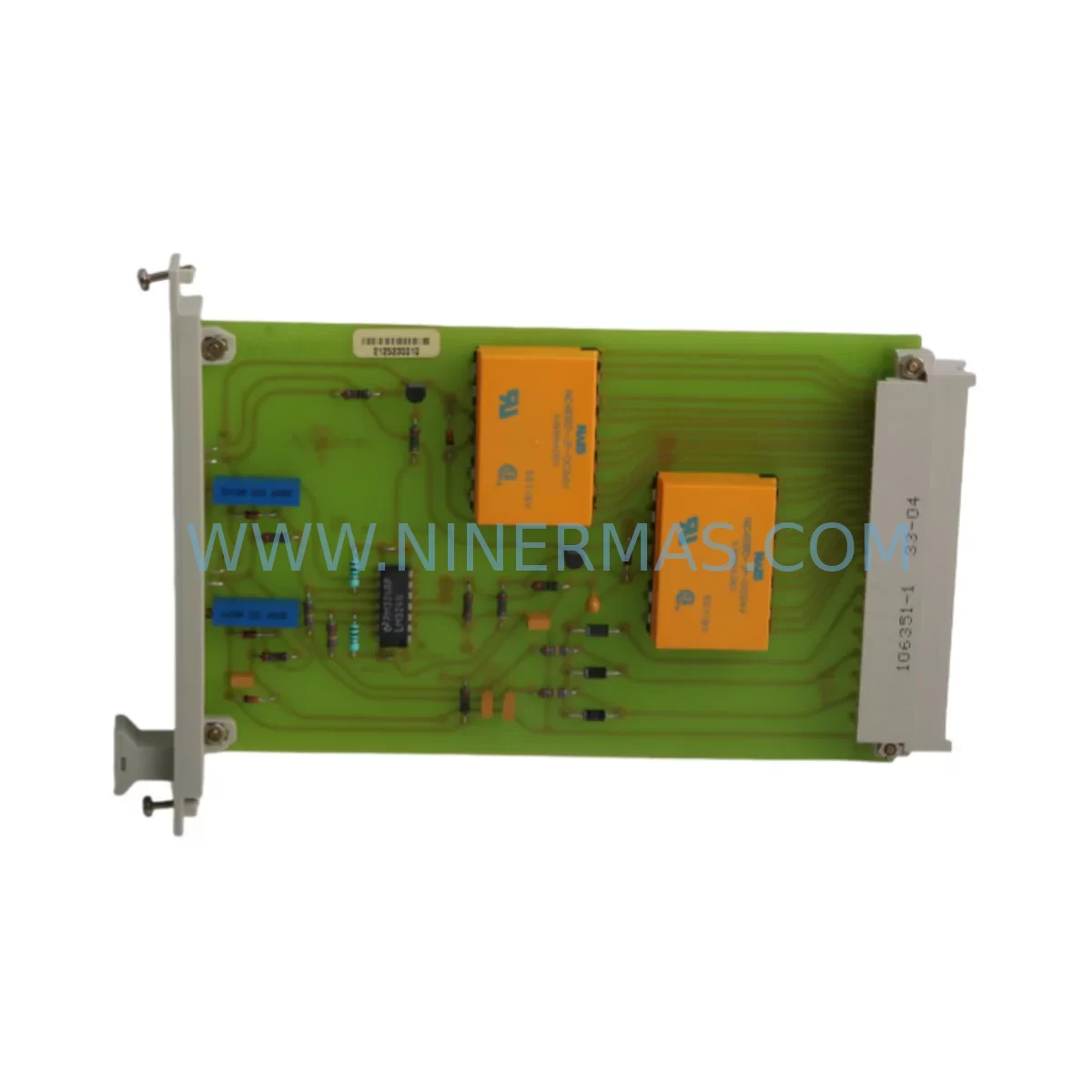

The Honeywell 16159/1/1 is a field-proven input module originally designed for the TDC 3000 and FSC (Fail-Safe Controller) distributed control platforms — two of the most widely deployed process automation architectures in refining, petrochemical, power generation, and continuous manufacturing environments. As these platforms approach or exceed their published end-of-life dates, the 16159/1/1 has become a critical retrofit component for engineers tasked with extending system life, replacing failed I/O hardware, or executing phased migration strategies without full DCS replacement.

For maintenance engineers managing aging TDC 3000 cabinets, sourcing a verified replacement for the 16159/1/1 is often the difference between a two-hour corrective maintenance window and a multi-day production shutdown. This module handles field signal acquisition at the I/O tier, interfacing directly with process transmitters, field sensors, and analog input loops. When a module fails or degrades, the affected control loops lose visibility — triggering alarms, forcing manual override, and exposing the process to uncontrolled variation. Having a pre-tested, shelf-ready 16159/1/1 in your spare parts inventory eliminates this risk entirely.

Procurement engineers evaluating retrofit options for legacy Honeywell systems should confirm that the 16159/1/1 is compatible with the target rack slot, backplane revision, and firmware baseline in use at their site. The module must be installed in the correct I/O slot within the TDC 3000 High-Performance Process Manager (HPPM) or equivalent process manager node. Slot addressing, module type registration in the Universal Control Network (UCN), and signal range configuration must all be verified before commissioning. Failure to confirm these parameters can result in incorrect signal scaling, missed alarms, or communication faults on the UCN highway.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the Honeywell 16159/1/1 requires a structured review of the surrounding control architecture. Engineers should begin by auditing the full I/O rack assembly, including adjacent input and output modules such as the 16158/1/1 analog output module and any 16152/x/x digital I/O modules installed in the same process manager node. These modules share the same backplane power distribution and UCN communication path, so a fault in one module can mask or amplify symptoms in neighboring slots.

Power supply integrity is a prerequisite for any I/O module replacement. The TDC 3000 process manager node relies on dedicated 24 VDC power modules — typically the 621-0020 or equivalent — to supply stable rail voltage to the I/O backplane. Before installing the 16159/1/1, verify that the power module output is within specification and that no shared rail is sagging under load. A marginal power supply will cause intermittent module faults that are difficult to distinguish from a hardware defect in the replacement module itself.

Communication continuity on the UCN highway must also be confirmed. The UCN coaxial cable, UCN tap assemblies, and the Network Interface Module (NIM) that bridges the UCN to the Local Control Network (LCN) should all be inspected for signal integrity before the replacement module is brought online. If the site is running a hybrid architecture — for example, using a Honeywell Experion PKS gateway alongside legacy TDC 3000 nodes — the I/O module replacement must be coordinated with the Experion server configuration to ensure that the new module’s data points are correctly mapped in the historian and alarm management system.

Field wiring termination is another critical checkpoint. The 16159/1/1 connects to field transmitters through marshalling cabinets and terminal blocks — often Honeywell or Phoenix Contact DIN-rail terminal assemblies. Verify that field loop wiring is correctly landed, that shield grounding is intact, and that any signal isolators or barriers in the loop (such as Zener barriers or galvanic isolators for intrinsically safe zones) are functioning correctly. A degraded signal isolator can introduce offset errors or noise that appear as module faults after replacement.

For sites planning a broader migration from TDC 3000 to a modern DCS platform, the 16159/1/1 replacement can serve as a bridge strategy — maintaining process visibility on the legacy system while the migration project is scoped and funded. In this context, procurement engineers should also evaluate the availability of the associated HPPM controller module, the UCN NIM, and any redundant module pairs that protect critical control loops. Maintaining a minimum two-unit buffer of the 16159/1/1 in site inventory is recommended for high-criticality loops.

Downtime Control During System Migration

Minimizing downtime during a 16159/1/1 replacement requires preparation before the maintenance window opens. The replacement procedure should be documented in a site-specific work instruction that covers: loop isolation and field device de-energization, module extraction from the live rack (hot-swap capability must be confirmed for the specific rack revision), physical installation of the replacement module, address verification in the TDC 3000 configuration database, and loop checkout against the P&ID.

Where hot-swap is not supported, the affected control loops must be placed in manual mode at the operator station — typically through the Honeywell Universal Station (US) or GUS (Global User Station) HMI — before the module is removed. Operators should be briefed on the expected duration of the maintenance window and the manual control strategy for each affected loop. For FSC-based safety loops, the safety function must be formally bypassed in accordance with the site’s functional safety management procedure before any hardware change is made.

After installation, the replacement 16159/1/1 should be verified by performing a live loop check: confirm that the input signal from the field transmitter is correctly displayed at the operator station, that the engineering unit conversion is accurate, and that no UCN communication alarms are present. If the site uses a Honeywell PHD (Process Historian Database) or equivalent data historian, confirm that the new module’s tags are logging correctly before returning the loop to automatic control.

For multi-loop replacement projects — for example, replacing an entire I/O rack’s worth of 16159/1/1 modules during a planned turnaround — a staged replacement approach reduces risk. Replace and verify one module at a time, returning each loop to automatic before proceeding to the next. This approach preserves process control continuity and allows the maintenance team to isolate any commissioning issues to a single module without affecting the broader system.

All replacement units supplied by NINERMAS are pre-tested prior to shipment, with functional verification performed against the module’s original specification. This eliminates the risk of receiving a defective unit and reduces the time required for on-site commissioning. Each unit is covered by a 12-month warranty from the date of shipment, providing procurement teams with a documented quality assurance baseline for their spare parts records.

Retrofit Support FAQ

Q1: Is the Honeywell 16159/1/1 a direct drop-in replacement for all TDC 3000 input module slots?
The 16159/1/1 is designed for specific slot types within the TDC 3000 HPPM I/O rack. Before ordering, confirm the slot type designation in your rack configuration and cross-reference with the module’s hardware revision. Some rack revisions require a specific sub-variant (e.g., 16159/1/1 vs. 16159/2/1). Our technical team can assist with compatibility verification based on your system’s configuration database export.

Q2: Can this module be used in FSC (Fail-Safe Controller) safety systems?
The 16159/1/1 is associated with the Honeywell FSC platform, which is used in safety instrumented systems (SIS). Any replacement in an FSC-based safety loop must comply with the site’s functional safety management plan, including formal bypass authorization, proof test documentation, and validation against the Safety Requirements Specification (SRS). NINERMAS supplies pre-tested units; site-level safety validation remains the responsibility of the end user’s functional safety engineer.

Q3: What is the lead time and are units available from stock?
NINERMAS maintains inventory of the Honeywell 16159/1/1 to support urgent maintenance and planned procurement. Standard lead time for in-stock units is 3–7 business days for international shipment. For urgent requirements, expedited dispatch is available. Contact sale@ninermas.com with your required quantity and delivery location for a confirmed availability and lead time quote.

Q4: What warranty and pre-shipment testing is provided?
All Honeywell 16159/1/1 units supplied by NINERMAS are functionally tested prior to shipment and covered by a 12-month warranty from the date of dispatch. The warranty covers hardware defects and functional failures under normal operating conditions. Units are packaged in anti-static protective packaging with a test confirmation label. Warranty claims are processed directly through NINERMAS with replacement or credit issued within the warranty period.
