Honeywell 10104/2/1 Retrofit-Compatible Fail-Safe I/O Module

Honeywell 10104/2/1 Retrofit-Compatible Fail-Safe I/O Module for Legacy FSC Safety Systems

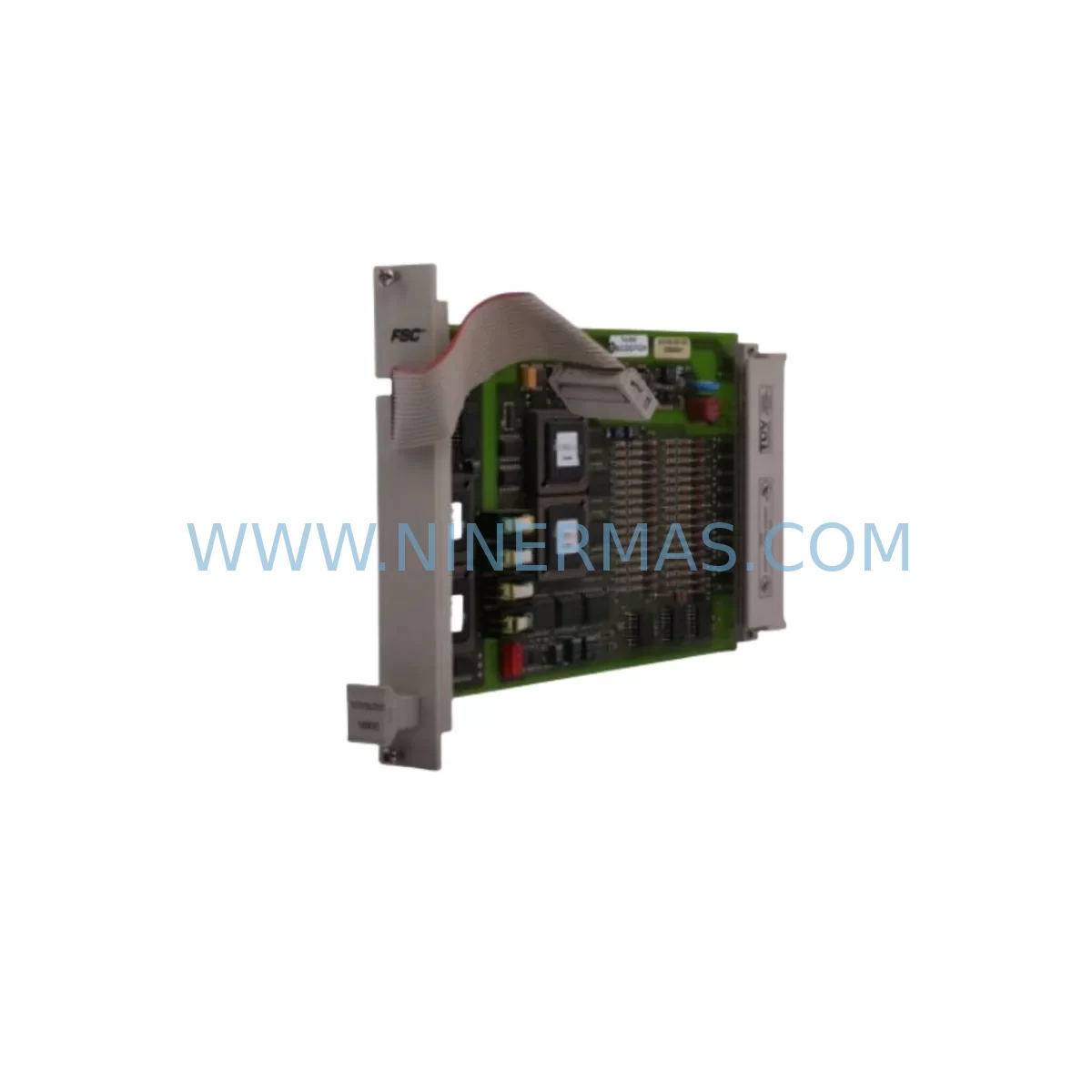

The Honeywell 10104/2/1 is a Fail-Safe Controller (FSC) high-density I/O module designed for safety-critical process automation environments. As legacy FSC-based safety instrumented systems (SIS) approach end-of-life or require capacity expansion, the 10104/2/1 remains one of the most sought-after retrofit components for engineers managing brownfield upgrades, control cabinet modernization, and spare parts lifecycle extension. This module supports direct installation into existing FSC racks and backplanes, enabling a smooth migration path without requiring a full safety system replacement.

Whether you are replacing a failed module in a running plant, expanding I/O capacity in an aging control cabinet, or executing a phased migration from a legacy FSC platform to a modern safety PLC architecture, the 10104/2/1 provides the high-density channel count and fail-safe diagnostics required to maintain SIL-rated loop integrity. Each unit shipped by NINERMAS undergoes pre-shipment functional testing to verify channel response, diagnostic coverage, and backplane communication before dispatch.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Integrating the Honeywell 10104/2/1 into an existing FSC-based safety system requires careful pre-engineering to avoid configuration mismatches and unplanned shutdowns. The first step is to audit the current rack layout and confirm available slot positions within the FSC chassis. In multi-rack configurations, the FSC 10102/1/1 rack termination unit and the FSC 10103/1/1 rack coupler are commonly involved in defining the physical and logical boundaries of the I/O expansion. Engineers should cross-reference the existing FSC configuration database to confirm that the module address assigned to the 10104/2/1 does not conflict with any currently active I/O assignments.

Terminal wiring is a critical checkpoint. The 10104/2/1 uses a high-density terminal arrangement, and field wiring must be mapped against the existing marshalling cabinet layout. Where legacy wiring uses older terminal block standards, adapters or rewiring to match the module’s connector pitch may be required. It is advisable to prepare a wiring schedule that cross-references each field instrument — including pressure transmitters, solenoid valves, and emergency shutdown (ESD) actuators — against the new channel assignments before any physical connection is made.

Power supply capacity must also be verified. The FSC 10116/1/1 power supply module feeding the rack should be checked against the additional load introduced by the 10104/2/1, particularly in high-density configurations where multiple I/O modules share a single power rail. If the existing FSC 10116/1/1 is already operating near its rated output, a supplementary power module or load redistribution across racks may be necessary before commissioning.

For systems that include an FSC co-processor or communication interface — such as the FSC 10023/1/1 Modbus or PROFIBUS gateway card — the addition of new I/O modules may require an update to the communication node configuration to ensure that the new channels are correctly polled and reported to the DCS or SCADA layer. HMI faceplates linked to the affected I/O loops should be reviewed and updated to reflect the new channel addresses, preventing operator confusion during and after the migration.

Where the retrofit involves migrating from an older FSC generation to a current-generation safety PLC platform, the 10104/2/1 can serve as an interim I/O solution while the new controller infrastructure is being staged and validated. This phased approach — maintaining the existing FSC I/O layer while the new CPU and communication backbone are brought online — significantly reduces the risk of simultaneous multi-system changes and allows loop-by-loop validation before final cutover. Signal isolators and safety barriers installed between the field instruments and the FSC I/O terminals should be inspected and replaced if they are approaching end-of-life, as degraded isolation can introduce ground loops that compromise SIL-rated diagnostics.

Downtime Control During System Migration

Minimizing unplanned downtime during an FSC I/O module replacement or system migration requires a structured change management approach. Before any physical intervention, a full backup of the FSC configuration database — including the cause-and-effect matrix, diagnostic masks, and module address table — should be exported and stored offline. This ensures that the original program logic can be restored rapidly in the event of an unexpected fault during the replacement procedure.

Where the process permits, a hot-swap replacement of the 10104/2/1 can be executed without a full system shutdown, provided the FSC platform supports online module replacement for the relevant rack slot. Engineers should confirm this capability in the FSC system manual for the specific firmware version in use. If online replacement is not supported, a planned maintenance window should be scheduled during a low-production period, with all affected safety loops placed in manual bypass or inhibit mode in accordance with the site’s Management of Change (MOC) and Safety Instrumented System (SIS) bypass procedures.

During the replacement window, field technicians should perform a point-to-point loop check on each channel of the new 10104/2/1 before the module is brought into service. This includes verifying input signal levels from field transmitters, confirming output energization of solenoid valves and ESD actuators, and checking that the FSC diagnostic system reports no channel faults after the module is initialized. Any discrepancies in channel response should be resolved before the safety loops are returned to automatic mode.

Post-replacement, a functional safety test — covering at minimum the first-out trip logic and the manual trip pushbutton circuits connected to the replaced module — should be conducted and documented in the site’s SIS maintenance record. This documentation supports ongoing SIL verification and provides evidence of due diligence for regulatory audits. NINERMAS supplies each 10104/2/1 with a pre-shipment test report confirming channel functionality, which can be retained as part of the site’s equipment history file.

Retrofit Support FAQ

Q1: Is the Honeywell 10104/2/1 a direct drop-in replacement for the same SKU from the original FSC system?
A: Yes, the 10104/2/1 is designed as a direct slot-compatible replacement within the FSC rack architecture. However, engineers should verify the firmware revision of the replacement module against the FSC CPU version in use, as certain firmware combinations may require a configuration download after module insertion. NINERMAS can advise on firmware compatibility based on your system’s CPU part number.

Q2: What pre-shipment testing does NINERMAS perform on the 10104/2/1?
A: Each unit undergoes functional channel testing, backplane communication verification, and diagnostic self-test confirmation before dispatch. A test report is included with the shipment. The 12-month warranty covers manufacturing defects identified after installation under normal operating conditions.

Q3: Can the 10104/2/1 be used in an expanded rack configuration alongside newer FSC I/O modules?
A: In most FSC rack configurations, mixed-generation I/O modules can coexist within the same chassis, provided the rack coupler and power supply are rated for the combined load. It is recommended to validate the full rack configuration in the FSC configuration tool before commissioning to confirm address allocation and diagnostic coverage across all installed modules.

Q4: What is the typical lead time and stock availability for the 10104/2/1?
A: NINERMAS maintains inventory of the Honeywell 10104/2/1 to support urgent replacement and planned maintenance requirements. Standard lead time for in-stock units is 3–7 business days for international shipment. Contact our team for current stock status and expedited shipping options for critical plant situations.
