Honeywell 10014/1/1 Service-Ready Spare Part for Industrial Maintenance

Honeywell 10014/1/1 Service-Ready Spare Part for Industrial Maintenance

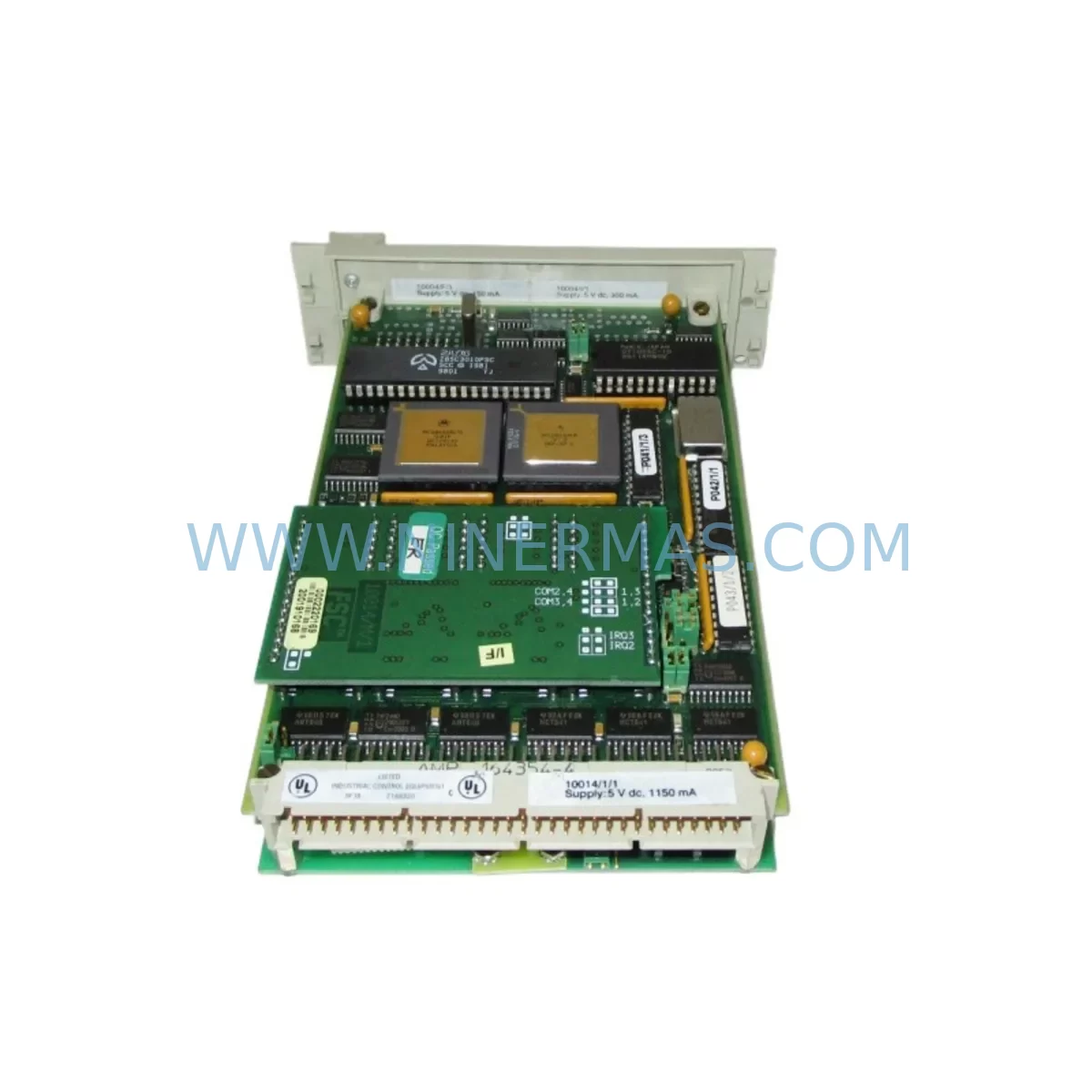

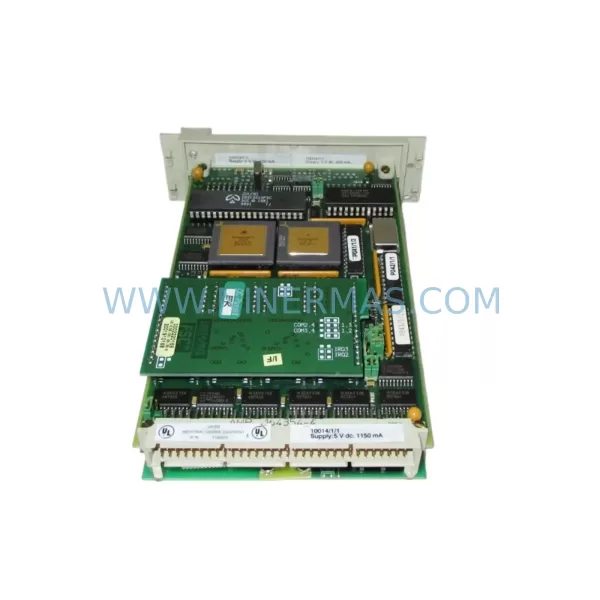

The Honeywell 10014/1/1 is a proven DCS spare part module designed for maintenance engineers and procurement teams managing legacy Honeywell TDC 3000, PlantScape, and Experion PKS control systems. In continuous process industries — petrochemical, power generation, water treatment, mining, and metallurgy — unplanned downtime caused by a failed I/O or communication module can result in significant production loss, safety incidents, and costly emergency procurement. Stocking the Honeywell 10014/1/1 as a verified, tested spare part is a fundamental strategy for reducing that risk.

This module is sourced, inspected, and dispatched with full functional testing to ensure it meets original Honeywell performance specifications. Every unit ships with a 12-month warranty, giving maintenance teams and plant managers confidence in both the component quality and long-term supply continuity. NINERMAS maintains ready inventory of the 10014/1/1 to support urgent replacement needs, scheduled annual shutdowns, and proactive spare parts programs.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a Honeywell 10014/1/1 module fails or shows signs of degradation — intermittent signal loss, communication faults, or unexpected process alarms — the replacement process must be systematic to avoid introducing new faults into the control loop. Experienced maintenance engineers know that replacing a single DCS module in isolation is rarely sufficient; the surrounding components must be inspected and verified at the same time.

During a planned or emergency replacement of the 10014/1/1, the following components in the same control cabinet or safety loop should be checked concurrently. The Honeywell 10006/1/1 power supply module feeding the backplane should be tested for output voltage stability, as a marginal power supply is a common root cause of repeated module failures. The Honeywell 10009/1/1 communication interface card in the same rack should be inspected for connector wear and firmware version compatibility. Field wiring terminations at the Honeywell 10023/1/1 marshalling terminal assembly should be re-torqued and checked for corrosion, particularly in humid or coastal plant environments.

If the 10014/1/1 is part of a safety instrumented loop, the associated Honeywell FSC (Fail-Safe Controller) I/O modules and their redundant power feeds should be verified for correct operation. Signal isolators — such as the Honeywell STT850 smart temperature transmitter or equivalent field instruments — should be loop-tested after module replacement to confirm signal integrity end-to-end. In high-EMI environments such as motor control centres or variable frequency drive (VFD) rooms, surge protection devices on the I/O signal cables should be inspected and replaced if they have absorbed transient events.

For systems using Honeywell’s Highway Addressable Remote Transducer (HART) multiplexer modules, the HART communication path should be re-verified after the 10014/1/1 swap to ensure device descriptors and process variables are correctly polled. The Honeywell UCN (Universal Control Network) coaxial cable and tap assemblies connecting the module to the plant-wide DCS network should also be inspected for physical damage, particularly in older installations where cable aging may be a factor. Finally, the Honeywell AM (Application Module) or HM (History Module) in the same node should be checked to confirm that historian and alarm data are being correctly received after the replacement.

Maintaining a minimum of two units of the 10014/1/1 in your on-site spare parts inventory is recommended for any plant running a Honeywell TDC 3000 or legacy Experion system. This buffer supports both emergency replacement and the ability to bench-test a suspect module without leaving the system unprotected.

Site Replacement Workflow

Replacing the Honeywell 10014/1/1 on a live or recently shut-down system follows a structured workflow to minimise downtime and ensure system integrity. Before beginning, confirm that the replacement unit’s firmware or hardware revision is compatible with the target backplane slot — Honeywell legacy systems can have revision-sensitive slot assignments, and installing an incompatible revision may cause the node to fault on restart.

Step one is to place the affected control loop in manual mode at the operator station, ensuring that the process remains under safe manual control during the module swap. Step two is to document the current module LED status, fault codes, and any active alarms in the DCS historian before powering down the slot. Step three is to remove the faulty 10014/1/1 by releasing the module locking mechanism and sliding it clear of the backplane connector — avoid rocking the module, as backplane connector pins in older systems can be fragile. Step four is to insert the replacement 10014/1/1, confirm the locking tab engages, and observe the module’s self-test LED sequence on power-up. Step five is to verify all associated I/O channels are reading correctly at the operator station before returning the loop to automatic control.

This workflow reduces the risk of a secondary fault being introduced during maintenance and ensures that the replacement is fully validated before the process loop is returned to automatic operation. NINERMAS can provide technical support documentation for the 10014/1/1 replacement procedure upon request.

Spare Parts Support FAQ

Q1: What warranty does the Honeywell 10014/1/1 carry?
Every 10014/1/1 unit supplied by NINERMAS carries a 12-month warranty from the date of shipment. If the module fails under normal operating conditions within the warranty period, we will provide a replacement or full refund. Each unit undergoes functional testing before dispatch to verify it meets original Honeywell performance specifications.

Q2: How do I confirm compatibility with my existing Honeywell DCS system?
The 10014/1/1 is designed for Honeywell TDC 3000, PlantScape, and legacy Experion PKS backplane systems. To confirm compatibility, provide your system node type, backplane model, and current firmware revision when placing your enquiry. Our technical team will cross-reference the hardware revision of the available stock against your system requirements before shipment.

Q3: Can NINERMAS support urgent or emergency replacement orders?
Yes. NINERMAS maintains ready inventory of the Honeywell 10014/1/1 to support both planned maintenance and emergency breakdown situations. Same-day or next-business-day dispatch is available for in-stock units. Contact our team directly at sale@ninermas.com or +0086 187 5021 5667 to confirm stock availability and arrange priority shipment.

Q4: What is NINERMAS’s long-term supply commitment for legacy Honeywell spare parts?
NINERMAS specialises in sourcing and supplying legacy industrial automation spare parts, including discontinued and hard-to-find Honeywell DCS modules. We maintain ongoing procurement channels for the 10014/1/1 and related legacy components to support plants that are extending the operational life of their existing DCS infrastructure. Long-term supply agreements and consignment stock arrangements are available for high-volume or critical-site customers.
