Honeywell 10001/A/1 Retrofit-Compatible Bus Driver for Legacy Systems

Honeywell 10001/A/1 Retrofit-Compatible Bus Driver Module: Legacy System Compatibility and Smooth Upgrade Path

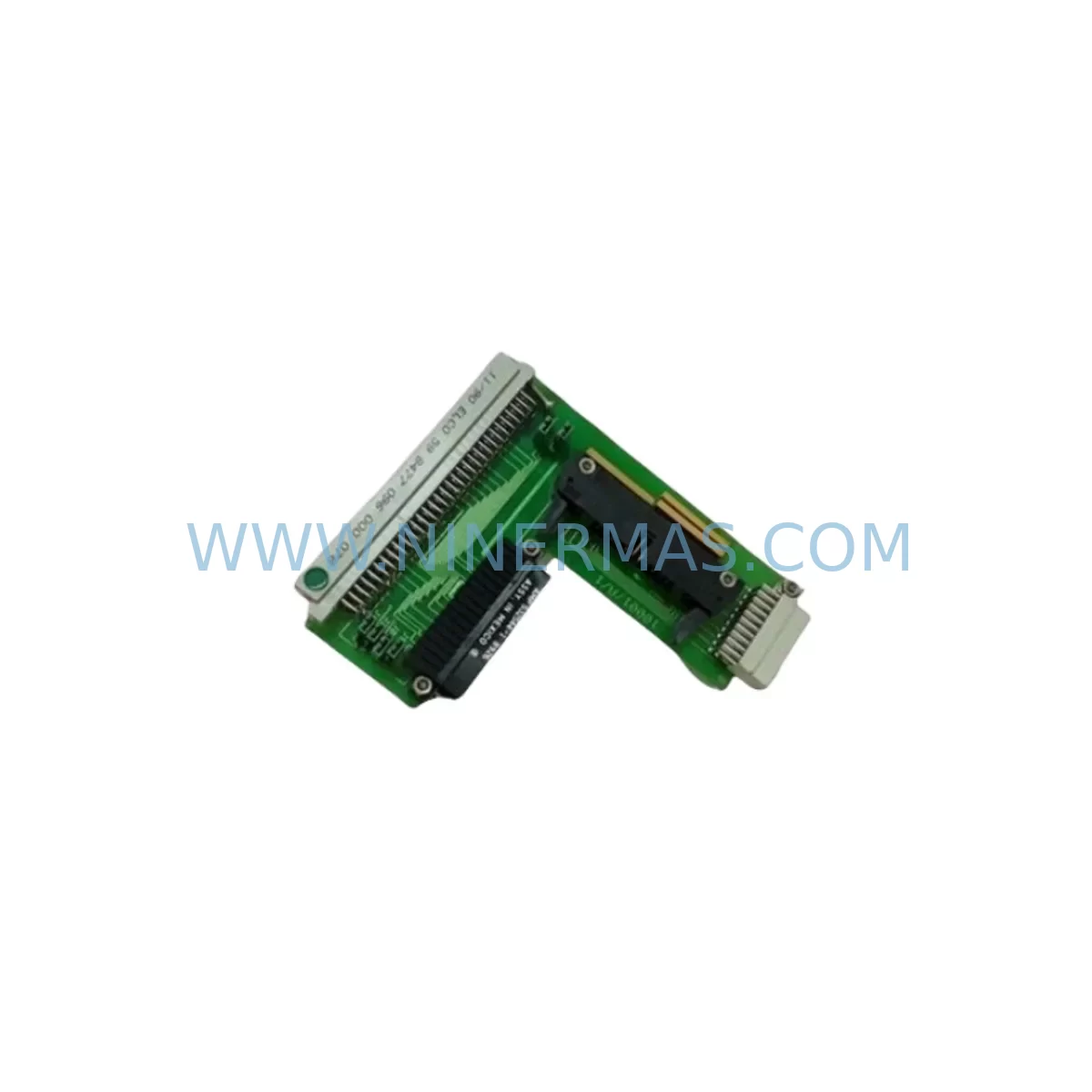

The Honeywell 10001/A/1 is a ruggedized Vertical Bus Driver Module engineered for the Honeywell TDC 3000 distributed control system platform. Designed to operate in harsh industrial environments, this module serves as a critical signal routing and bus communication component within legacy process control architectures. As TDC 3000 systems approach end-of-life and spare parts become increasingly scarce, the 10001/A/1 remains one of the most sought-after replacement modules for refineries, chemical plants, power generation facilities, and continuous process manufacturing operations that depend on long-term system stability.

At NINERMAS, every 10001/A/1 unit is pre-shipment tested under simulated load conditions to verify bus signal integrity, backplane communication, and module addressing before dispatch. All units are supplied with a 12-month warranty and full documentation support to facilitate seamless integration into existing control cabinets.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the Honeywell 10001/A/1 Bus Driver Module within an active TDC 3000 control system requires careful pre-planning to avoid unplanned shutdowns and data loss. The bus driver sits at the heart of the backplane communication architecture, and any interruption to its signal path can affect multiple downstream I/O modules simultaneously.

Before initiating a retrofit, engineers should audit the full card cage population. In a typical TDC 3000 cabinet, the 10001/A/1 operates alongside Honeywell 10001/A/2 horizontal bus extender modules, Honeywell 51304485-100 power supply modules, and various Honeywell 51401544-150 analog input modules. The interaction between the bus driver and these adjacent cards determines the signal routing path for the entire node. If the power supply module is aging, it is strongly recommended to replace the Honeywell 51304485-100 PSU concurrently to avoid a secondary failure shortly after the bus driver swap.

Terminal wiring on field I/O modules such as the Honeywell 51304516-150 analog output module should be documented and photographed before any cabinet work begins. While the bus driver itself does not carry field wiring, disturbances to the card cage during module extraction can loosen adjacent terminal blocks. A wiring audit using the original loop drawings is essential before re-energizing the system.

For plants running Honeywell UCN (Universal Control Network) communication links, the bus driver replacement must be coordinated with the UCN node address table stored in the Honeywell NIM (Network Interface Module). If the NIM firmware version is below the minimum compatible revision, a firmware update may be required before the new 10001/A/1 is recognized on the network. Similarly, any Honeywell HG (Highway Gateway) modules bridging the LCN to plant-level SCADA systems should be verified for address table consistency after the swap.

In systems where the TDC 3000 is being partially migrated toward a modern DCS platform such as Honeywell Experion PKS, the 10001/A/1 can serve as a bridge component during the transition period. Rather than a full cutover, many plants choose a phased approach: maintaining the TDC 3000 bus infrastructure while gradually migrating control strategies to Experion controllers. In this scenario, the bus driver module must remain fully functional throughout the transition to ensure continuity of legacy I/O data to the new historian and HMI layer.

HMI screen validation is another critical step. After replacing the bus driver, operators should verify that all associated process tags are displaying correctly on the Honeywell GUS (Global User Station) or any third-party HMI connected via OPC. Tag dropouts or stale values after module replacement typically indicate a module address mismatch or a bus arbitration conflict that must be resolved before returning the loop to automatic control.

For I/O expansion projects running alongside the bus driver replacement, Honeywell 51309276-175 I/O link interface modules and Honeywell 51198947-100 FTA (Field Termination Assembly) units are commonly installed in the same maintenance window to minimize total downtime. Coordinating these replacements under a single planned outage reduces the number of system restarts required and lowers overall retrofit risk.

Downtime Control During System Migration

Minimizing downtime during a bus driver module replacement on a live TDC 3000 system requires a structured migration plan. The first step is to place all affected control loops in manual mode at the Honeywell Operator Station before any hardware is touched. This protects the process from sudden setpoint deviations caused by loss of bus communication during the module swap.

A full backup of the system database — including controller configurations, tag definitions, alarm setpoints, and HMI graphics — should be completed and verified on a separate storage medium before work begins. This backup serves as the rollback baseline if the new module fails to initialize correctly or if a configuration mismatch is detected during commissioning.

The physical replacement of the 10001/A/1 should be performed with the card cage powered down where possible. If a hot-swap is unavoidable due to process constraints, the replacement must be executed rapidly and the new module must be pre-configured with the correct slot address before insertion. Post-insertion, the system should be monitored for a minimum of 15 minutes at the operator station before returning any loops to automatic control.

Communication link integrity between the bus driver and the NIM should be confirmed using the TDC 3000 diagnostic tools before full handover. Any bus error flags or communication timeouts logged in the system event journal must be investigated and cleared. Only after a clean diagnostic report should the plant return to normal operations. This disciplined approach consistently achieves sub-4-hour total outage windows for single bus driver replacements in well-prepared facilities.

Retrofit Support FAQ

Q1: Is the Honeywell 10001/A/1 a direct drop-in replacement for all TDC 3000 card cage configurations?
The 10001/A/1 is designed for the standard TDC 3000 vertical bus architecture. Before installation, confirm the card cage model and slot assignment with your system documentation. Some later-generation TDC 3000 cabinets use revised backplane connectors that may require an adapter plate. NINERMAS technical support can assist with compatibility verification prior to shipment.

Q2: What pre-shipment testing does NINERMAS perform on the 10001/A/1?
Every unit undergoes functional testing that includes bus signal integrity verification, backplane communication handshake testing, and module address response checks under simulated load. A test report is available upon request. All units are covered by a 12-month warranty from the date of shipment.

Q3: Can the 10001/A/1 be used during a phased migration from TDC 3000 to Honeywell Experion PKS?
Yes. The 10001/A/1 is commonly retained during phased DCS migrations to maintain legacy I/O bus continuity while new Experion controllers are commissioned in parallel. This approach allows plants to migrate control strategies loop-by-loop without a full system cutover, significantly reducing migration risk and total downtime.

Q4: What is the typical lead time and inventory availability for the 10001/A/1?
NINERMAS maintains stock of the 10001/A/1 to support urgent replacement and planned maintenance programs. Standard lead time for in-stock units is 3–7 business days for international shipment. For volume orders or long-term supply agreements, contact our sales team to discuss dedicated inventory reservation and fixed lead-time programs.
