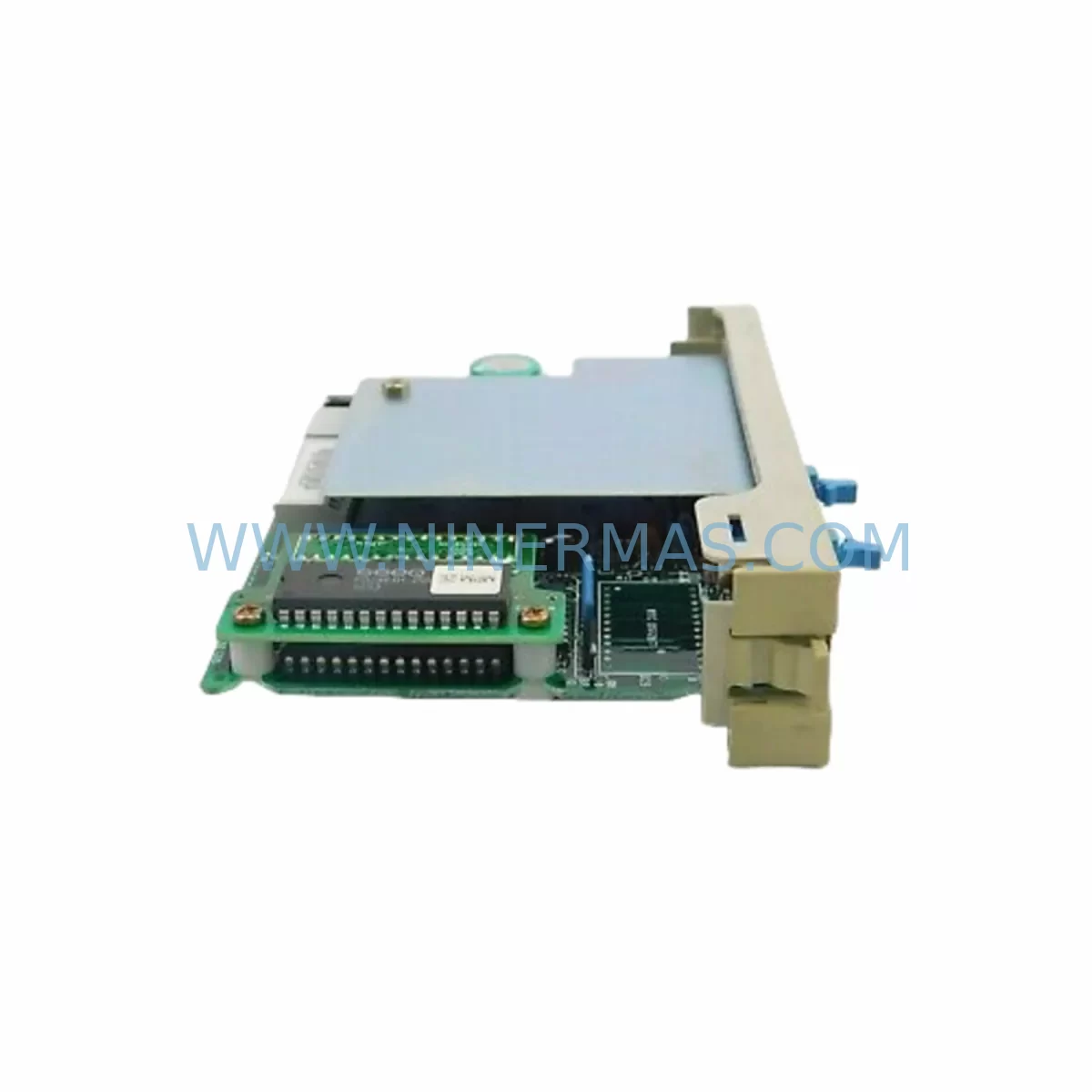

The Hitachi CPM-E3 is a central processing unit module designed for the Hitachi EH-150 programmable logic controller platform — one of the most widely deployed mid-range PLC families in Asian and global manufacturing environments. As the EH-150 series has reached end-of-life status, the CPM-E3 has become a critical retrofit and replacement component for maintenance engineers, system integrators, and OEMs managing legacy automation infrastructure. NINERMAS maintains verified in-stock inventory of the CPM-E3, pre-shipment tested and backed by a 12-month warranty, to support uninterrupted production continuity for facilities that cannot yet migrate to a next-generation control platform.

The CPM-E3 occupies the CPU slot of the EH-150 base unit and supports the full EH-150 instruction set, including ladder logic, function block, and structured text programming via the Hitachi EH-PGM programming cable or compatible USB-to-serial adapter. Engineers replacing a failed or degraded CPM-E1 or CPM-E2 module will find the CPM-E3 to be a direct functional upgrade, offering expanded program memory and improved scan cycle performance without requiring changes to the existing I/O configuration or HMI screen layouts.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the CPM-E3 in an active production environment requires a structured pre-migration checklist to avoid configuration loss and unplanned downtime. Before removing the existing CPU module, engineers should use the EH-PGM programming cable to perform a full program backup to a laptop running Hitachi’s ladder programming software. This backup should include all data registers, timer presets, counter values, and communication parameters stored in the CPU’s non-volatile memory.

The EH-150 base unit accommodates a range of I/O modules in adjacent slots — commonly the EH-XD16 digital input module, EH-YT16 transistor output module, and EH-RY2A relay output module. These modules remain in place during a CPU swap and do not require re-addressing, provided the replacement CPM-E3 is configured with the same station number and I/O map as the outgoing unit. Engineers should document all module slot assignments before beginning the swap.

For systems using the EH-SIO serial communication module for RS-485 Modbus RTU links to field instruments, inverters, or remote I/O panels, the communication parameters (baud rate, parity, station address) must be re-entered into the new CPM-E3 after program restore. Similarly, if the control cabinet includes an EH-ETH Ethernet module for SCADA or MES connectivity, the IP address and subnet configuration stored in the Ethernet module itself will be preserved, but the CPU-side communication table must be verified post-swap.

Power supply integrity is a critical pre-check. The EH-PS24 or EH-PS100 power supply module feeding the EH-150 backplane must be verified to deliver stable 5 VDC bus voltage within specification before the new CPM-E3 is installed. A degraded power supply is a common root cause of repeated CPU failures in aging control cabinets and should be inspected or replaced as part of any CPM-E3 retrofit project.

For facilities running Hitachi SJ700 series variable frequency drives on the same control network, the drive communication parameters are stored independently in the SJ700 and are unaffected by the PLC CPU swap. However, the ladder program sections managing drive start/stop commands and frequency references should be verified during commissioning to confirm correct operation after program restore.

Downtime Control During System Migration

Minimizing production downtime during a CPM-E3 swap requires advance preparation and a disciplined swap procedure. The recommended approach is to pre-configure the replacement CPM-E3 offline — loading the backed-up program, setting the station number, and verifying communication parameters — before the maintenance window begins. This reduces the in-cabinet swap time to the physical module exchange and a functional verification test, typically achievable within 30 to 60 minutes for an experienced technician.

During the swap window, the original program logic should not be modified. The goal is a like-for-like restore that preserves all existing control sequences, interlock conditions, and HMI screen variable mappings. Any program changes required for the upgraded CPM-E3’s expanded memory or new features should be planned as a separate commissioning phase after the system has been returned to stable operation.

Post-swap commissioning should include a forced I/O test to verify that all digital inputs and outputs are responding correctly, a communication link check for any connected EH-SIO or EH-ETH modules, and a review of the HMI operator panel to confirm that all screen tags are updating correctly. For systems with safety interlocks or emergency stop circuits wired through EH-RY2A relay output modules, these circuits must be verified before the system is returned to automatic mode.

NINERMAS ships all CPM-E3 units with a pre-shipment functional test report. Units are powered on, program memory is verified, and communication ports are tested before dispatch. This reduces the risk of receiving a non-functional unit and supports faster on-site commissioning.

Retrofit Support FAQ

Q: Is the CPM-E3 a direct replacement for the CPM-E1 and CPM-E2?
A: Yes. The CPM-E3 is mechanically and electrically compatible with the EH-150 CPU slot and supports the same instruction set as the CPM-E1 and CPM-E2. A program backup and restore is required. No I/O re-wiring or base unit modification is needed.

Q: What programming cable is required to upload and download programs to the CPM-E3?
A: The Hitachi EH-PGM programming cable (RS-232C) is the standard interface. A USB-to-RS-232C adapter is required on modern laptops. The programming software is Hitachi’s ladder editor, compatible with Windows environments.

Q: Does NINERMAS test CPM-E3 units before shipment?
A: Yes. Every CPM-E3 unit shipped by NINERMAS undergoes a pre-shipment functional test covering power-on, program memory verification, and communication port integrity. A test report is included with each shipment. All units are covered by a 12-month warranty from the date of shipment.

Q: What is the typical lead time and stock availability for the CPM-E3?
A: NINERMAS maintains in-stock inventory of the CPM-E3 to support urgent maintenance and retrofit requirements. Standard lead time for in-stock units is 3–7 business days for international shipments. Contact sale@ninermas.com for current stock confirmation and expedited shipping options.
