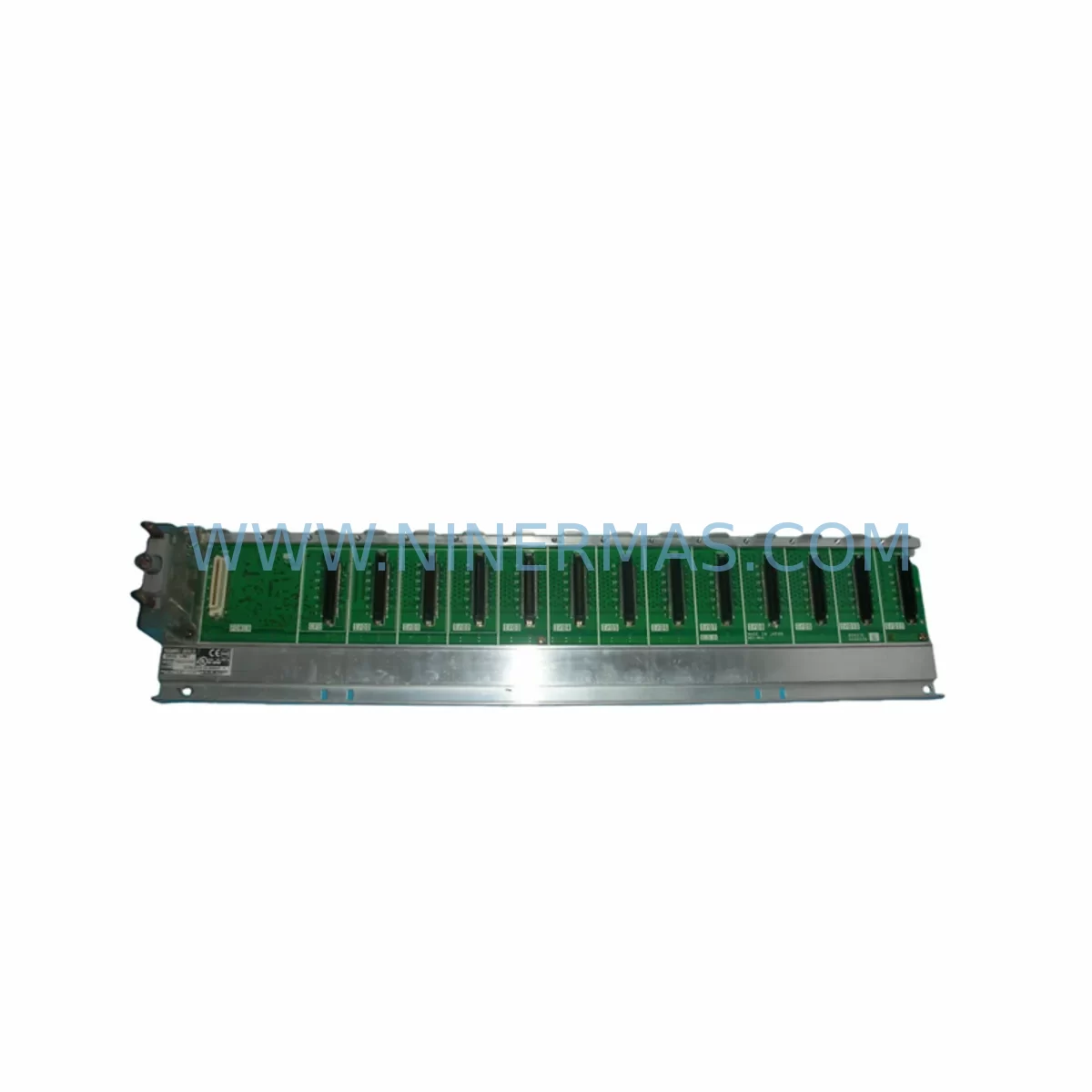

HITACHI H8Q312B Retrofit-Compatible Controller for Legacy Systems

HITACHI H8Q312B Retrofit-Compatible Controller for Legacy Systems: Smooth Upgrade for Aging Automation Infrastructure

The HITACHI H8Q312B is a high-reliability programmable logic controller designed for seamless integration into existing H8Q-series automation architectures. As industrial facilities face increasing pressure to modernize aging control systems while minimizing production disruption, the H8Q312B has become a trusted solution for engineers managing legacy panel upgrades, discontinued spare part replacement, and phased control system migration. NINERMAS maintains verified stock of the H8Q312B with full pre-shipment testing and a 12-month warranty, ensuring your retrofit project proceeds with confidence.

Whether you are replacing a failed H8Q-series CPU module, expanding I/O capacity on an existing rack, or migrating from an obsolete communication protocol to a modern fieldbus standard, the H8Q312B provides the compatibility and flexibility required for industrial-grade retrofit work. Its backplane interface is fully compatible with the standard H8Q rack system, allowing engineers to slot the unit directly into existing cabinet installations without structural modification.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful retrofit of the H8Q312B into a legacy control system requires careful pre-installation planning across several technical dimensions. Before removing the existing CPU module, engineers should document the full rack configuration, including the positions of all installed I/O modules such as digital input cards, analog output cards, and any specialty function modules occupying adjacent slots on the H8Q backplane.

Power supply capacity is a critical first checkpoint. The existing H8Q power supply module — often a dedicated 24VDC rail unit mounted within the same control cabinet — must be verified to deliver sufficient current for the H8Q312B alongside all connected I/O expansion modules. If the original PSU is operating near its rated capacity, a replacement or supplementary power module should be sourced before the retrofit begins.

Terminal wiring documentation is equally essential. Field wiring connected to existing I/O terminal blocks must be photographed and labeled before disconnection. When the H8Q312B is installed alongside existing H8Q digital input modules and analog I/O modules, terminal assignments should be cross-referenced against the original wiring diagram to prevent signal misrouting during recommissioning.

For systems that include communication links to SCADA platforms or distributed I/O networks, the H8Q312B’s serial communication ports must be configured to match the original baud rate, parity, and station address settings. In facilities where the legacy system used a proprietary Hitachi communication protocol, migration to Modbus RTU may require updates to both the PLC communication parameters and the corresponding SCADA driver configuration. Signal isolators installed on RS-485 loops should be inspected and replaced if they show signs of degradation, as aging isolation components are a common source of communication instability after a CPU swap.

Where the control system includes an HMI panel — whether a Hitachi-branded operator terminal or a third-party touchscreen — the HMI project file should be reviewed to confirm that all tag addresses and device driver settings remain valid after the H8Q312B is installed. In some cases, the HMI communication driver version may need to be updated to maintain compatibility with the replacement controller. Programming cables used to upload or download ladder logic to the H8Q312B should also be confirmed compatible with the engineering workstation software version in use at the facility.

For systems with expansion racks connected via rack bus cables, the module address DIP switch settings on each I/O card must be verified and documented before the retrofit. After the H8Q312B is powered on, a full I/O scan should be performed to confirm that all remote modules are recognized correctly by the new CPU before any production restart is attempted.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern during any legacy PLC replacement. For the H8Q312B retrofit, a structured migration approach significantly reduces the risk of extended outages. The recommended sequence begins with a full backup of the existing ladder logic program using the original programming cable and engineering software, followed by a complete I/O status snapshot that records the last known state of all digital and analog signals.

Where production schedules permit, a parallel testing phase is strongly recommended. The H8Q312B can be pre-configured and program-loaded on a bench setup before the scheduled maintenance window, allowing engineers to verify program execution, communication link behavior, and HMI screen response in a controlled environment. This approach compresses the on-site installation window to the physical swap, wiring verification, and final commissioning steps.

During the actual cutover, field control continuity should be maintained wherever possible by keeping downstream actuators and sensors in a safe hold state. After the H8Q312B is installed and powered, a step-by-step I/O force test confirms that all output channels respond correctly before automatic control is re-enabled. Communication links to SCADA systems and remote I/O nodes should be verified individually before the system is returned to automatic operation.

NINERMAS ships the H8Q312B with a pre-shipment functional test report, reducing the risk of receiving a non-functional unit during a time-critical retrofit. All units are covered by a 12-month warranty against manufacturing defects, providing ongoing protection through the post-installation commissioning and stabilization period.

Retrofit Support FAQ

Q: Is the H8Q312B a direct drop-in replacement for other H8Q-series CPU modules?
A: The H8Q312B is designed for compatibility with the standard H8Q backplane and rack system. However, engineers should verify the specific CPU model being replaced, as I/O capacity, memory size, and communication port configurations may differ between H8Q variants. NINERMAS technical support can assist with cross-reference confirmation before purchase.

Q: What wiring changes are required when installing the H8Q312B?
A: In most direct replacement scenarios, no field wiring changes are required. The H8Q312B uses the same backplane connector interface as the original H8Q CPU. Terminal block wiring connected to I/O modules remains unchanged. Communication port wiring should be verified against the original RS-232 or RS-485 cable pinout.

Q: How is the H8Q312B tested before shipment?
A: Every H8Q312B unit shipped by NINERMAS undergoes a pre-shipment functional test covering power-on self-diagnostics, communication port verification, and I/O bus integrity checks. A test report is included with each shipment. All units are covered by a 12-month warranty from the date of delivery.

Q: What is the typical lead time and stock availability?
A: NINERMAS maintains inventory of the H8Q312B to support urgent retrofit and emergency replacement requirements. Standard orders are processed and shipped within 1–3 business days. For large-quantity or project-based procurement, please contact our sales team to confirm availability and lead time.
