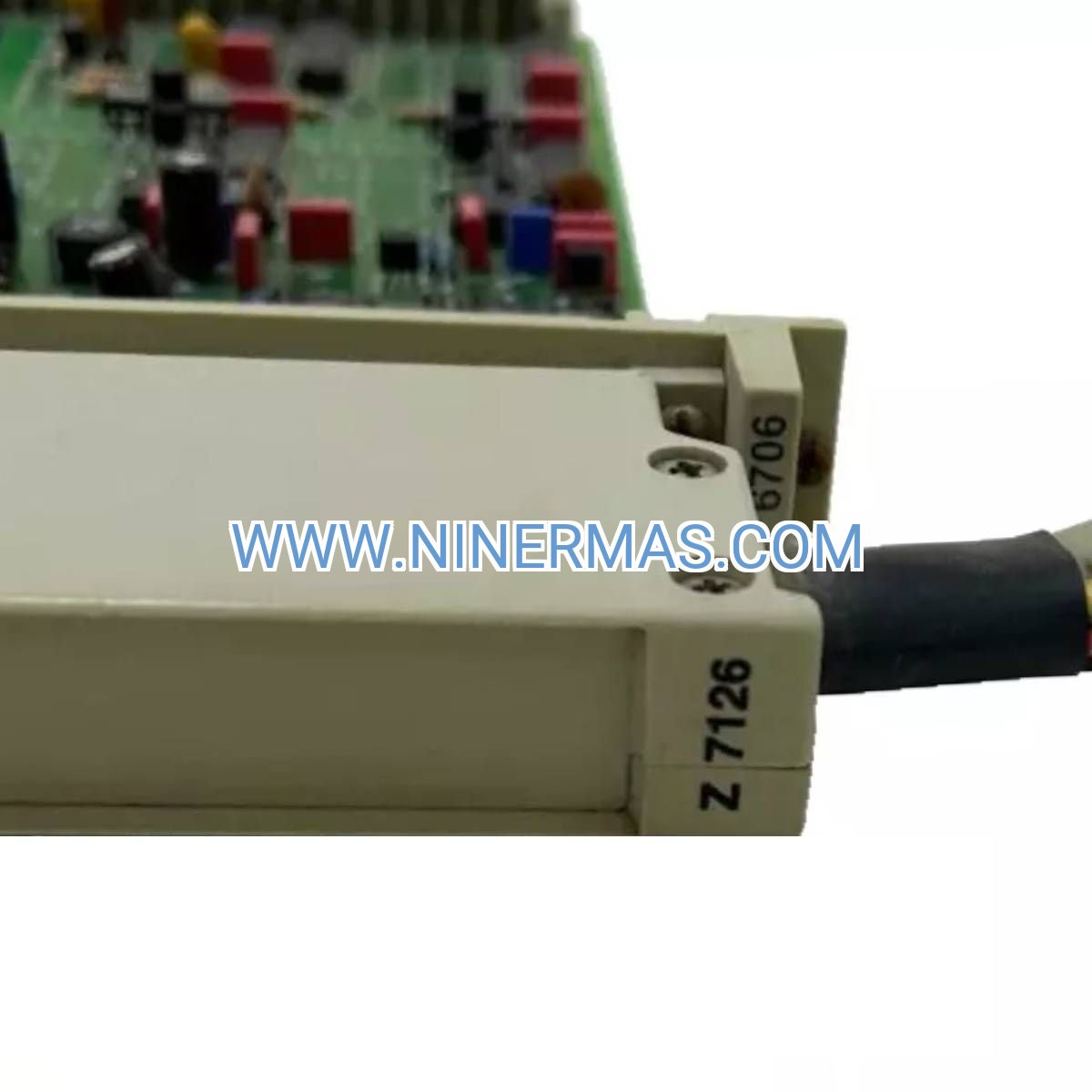

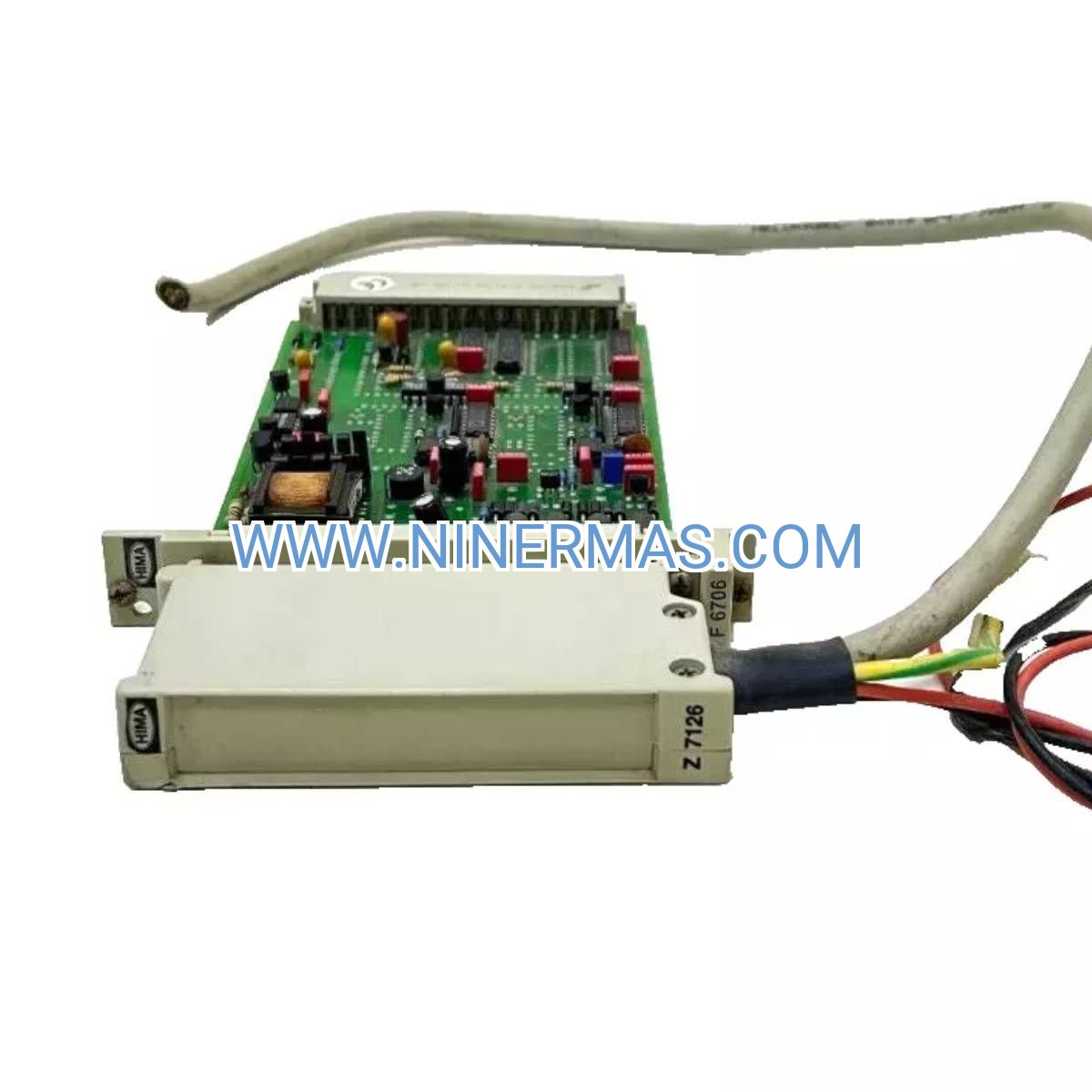

Z7126 Industrial-Grade Cable Plug (HIMA Safety System Integration)

The Z7126 cable plug represents a critical interface component for HIMA HIQuad and HIMatrix safety instrumented systems, delivering fail-safe connectivity in process industries where operational continuity and personnel protection are paramount. This precision-engineered connector bridges digital and analog modules with gold-plated contact technology, ensuring signal fidelity across SIL 3-rated safety loops in oil & gas, chemical processing, and power generation facilities.

Designed for engineers and maintenance teams managing safety-critical infrastructure, the Z7126 addresses the challenge of maintaining reliable electrical connections in harsh industrial environments subject to temperature extremes, vibration, and electromagnetic interference. Its locking mechanism and pre-configured pin assignments eliminate installation errors while supporting hot-swap maintenance protocols that minimize system downtime.

Key differentiators include TÜV-certified SIL 3 compliance per IEC 61508, insulation resistance exceeding 100 MΩ at 500V DC, and ATEX Zone 2 certification for hazardous area deployment. The connector's -40°C to +70°C operating range and IP20 protection class make it suitable for both climate-controlled control rooms and field-mounted junction boxes.

Core Features & Business Value

→ SIL 3 Safety Integrity: TÜV-certified compliance with IEC 61508 functional safety standards ensures regulatory adherence for emergency shutdown systems, reducing liability exposure and audit preparation time.

→ Gold-Plated Contact Technology: Copper alloy pins with gold plating resist oxidation and corrosion, maintaining contact resistance below 20 mΩ over 10,000+ mating cycles—critical for long-term signal accuracy in analog 4-20mA loops.

→ Vibration-Resistant Locking: Mechanical retention system tested to IEC 60068-2-6 standards withstands continuous vibration environments (10-55 Hz, 0.35mm amplitude), preventing intermittent faults in rotating equipment installations.

✓ Hot-Swap Capability: Compatible with HIMA redundant backplane architectures, enabling module replacement during live operation—reducing mean time to repair (MTTR) from hours to minutes and avoiding costly production shutdowns.

✓ Pre-Configured Pin Assignments: Factory-set terminal mapping eliminates field wiring errors, accelerating commissioning timelines by 30-40% compared to field-terminated solutions while improving first-time-right installation rates.

✓ Wide Temperature Range: -40°C to +70°C operational capability supports deployment across arctic offshore platforms to Middle Eastern desert facilities without derating, simplifying global spare parts inventory management.

Industrial Application Scenarios

Emergency Shutdown Systems (Oil & Gas): In offshore production platforms and onshore processing facilities, the Z7126 connects HIMA safety controllers to field-mounted solenoid valves and actuators. When gas detectors trigger an alarm, the connector's low contact resistance ensures rapid valve closure signals propagate without delay, meeting API RP 14C response time requirements of <2 seconds for critical shutdowns.

Burner Management Systems (Chemical Processing): Petrochemical plants utilize the Z7126 in furnace and boiler control loops where flame failure detection must initiate fuel cutoff within 1 second. The connector's high insulation resistance prevents cross-talk between adjacent safety channels, maintaining the integrity of 2oo3 voting logic in redundant safety architectures.

Turbine Overspeed Protection (Power Generation): Combined-cycle power plants deploy the Z7126 in steam and gas turbine trip systems where vibration from rotating machinery can compromise standard connectors. The locking mechanism maintains electrical continuity during transient vibration events, preventing nuisance trips that cost $50,000-$100,000 per hour in lost generation capacity.

Reactor Interlock Systems (Pharmaceutical Manufacturing): Batch pharmaceutical production requires the Z7126 for temperature and pressure interlock circuits in clean room environments. The IP20 protection class prevents particulate ingress while the connector's compact DIN rail mounting conserves valuable panel space in GMP-compliant control cabinets.

Water Treatment SCADA Networks (Municipal Infrastructure): Drinking water facilities use the Z7126 to interface HIMA controllers with pump stations and chlorination systems. The connector's ATEX Zone 2 certification permits installation in areas with occasional explosive gas presence, such as chlorine storage rooms, without requiring costly intrinsically safe barriers.

Technical Parameters & Selection Guide

Selection Criteria: Choose the Z7126 when interfacing HIMA HIQuad or HIMatrix safety controllers with field devices in SIL 3 applications. For legacy HIMax systems, specify Z7008 series connectors instead. When deploying in ATEX Zone 1 or Zone 0 hazardous areas, combine with HIMA intrinsically safe barriers (consult factory for barrier selection). For applications requiring visual diagnostics, consider the Z7008 LED variant with integrated status indicators.

Extended Functionality & Integration

Redundant Architecture Support: The Z7126 integrates seamlessly with HIMA's dual-channel safety configurations, enabling 1oo2 and 2oo3 voting logic implementations. When paired with redundant I/O modules, the connector supports automatic switchover to backup channels without manual intervention, achieving system availability exceeding 99.99%.

Diagnostic Capabilities: While the standard Z7126 lacks built-in LEDs, it maintains full compatibility with HIMA's HIScout diagnostic software. Technicians can monitor contact resistance and insulation integrity through the connected module's self-test routines, enabling predictive maintenance scheduling based on actual connector health rather than fixed replacement intervals.

Customization Options: For OEM integrators requiring non-standard pin configurations, HIMA offers factory customization services with minimum order quantities of 50 units. Custom variants can accommodate specialized cable types, alternative contact plating (tin, silver), or extended temperature ratings to -55°C for arctic applications.

Delivery Timeline & Service Assurance

Standard Delivery: In-stock Z7126 connectors ship within 2-3 business days via DHL Express or FedEx International Priority. Typical transit times: North America (4-6 days), Europe (3-5 days), Asia-Pacific (5-7 days), Middle East (6-8 days).

Custom Configuration Lead Time: Factory-customized variants require 4-6 weeks for engineering review, prototype validation, and production. Expedited 3-week delivery available for urgent projects with premium surcharge.

Warranty Coverage: 12-month manufacturer warranty covers material defects and workmanship failures. Warranty excludes damage from improper installation, overvoltage events, or use outside published specifications. Extended 36-month coverage available through authorized HIMA service partners.

Technical Support: Purchase includes access to HIMA's global support network with 24/7 emergency hotline for safety system issues. Standard support package provides email/phone assistance during business hours (8AM-6PM CET), installation guidance documents, and CAD drawings in STEP/DXF formats.

Documentation Package: Each shipment includes installation manual (English/German/Chinese), compliance certificates (CE/TÜV/ATEX), material safety data sheet (MSDS), and traceability documentation linking serial numbers to factory test records per ISO 9001 quality procedures.

Frequently Asked Questions

What cable specifications are recommended for the Z7126 connector?
Use shielded twisted-pair cables rated AWG 18-22 (0.75-1.5 mm²) with 360° shield termination at both ends. HIMA BV7032 series pre-assembled cables are factory-tested for impedance matching and EMC compliance. For field-terminated installations, maintain shield continuity through metal cable glands and ensure drain wire connection to chassis ground within 50mm of the connector.

How do I verify proper mating and electrical connection?
The Z7126 features tactile and audible click confirmation when fully seated—you should feel resistance followed by a distinct snap at the final 2mm of insertion travel. After installation, verify green LED illumination on the connected HIMA module (if equipped with status indicators). For modules without LEDs, use HIScout diagnostic software to confirm zero fault codes and normal I/O channel status.

Can the Z7126 be used in Zone 1 hazardous area classifications?
No, the Z7126 carries ATEX Zone 2 certification only, permitting use in areas where explosive atmospheres are not likely to occur during normal operation. For Zone 1 (occasional explosive atmosphere) or Zone 0 (continuous explosive atmosphere) installations, you must implement intrinsically safe barriers between the Z7126 and field devices. Contact HIMA technical support for barrier selection based on your specific gas group and temperature class requirements.

What is the expected service life and replacement interval?
The Z7126 is rated for 10,000 mating cycles under laboratory conditions. In typical industrial applications with annual maintenance cycles (1-2 disconnections per year), expect 15-20 years of service life. Replace connectors immediately if you observe physical damage, corrosion on contact surfaces, or if insulation resistance measurements fall below 50 MΩ during routine testing.

Is the Z7126 compatible with third-party safety controllers?
No, the Z7126 uses HIMA's proprietary pin assignment and mechanical keying system, ensuring compatibility exclusively with HIMA HIQuad and HIMatrix platforms. Attempting to mate with non-HIMA equipment will result in mechanical interference and potential damage. For multi-vendor safety system integration, use industry-standard terminal blocks or marshalling panels as interface points.

What are the storage and handling requirements before installation?
Store Z7126 connectors in original anti-static packaging at 15-25°C with <60% relative humidity. Avoid exposure to direct sunlight, corrosive chemicals, or conductive dust. Before installation, allow connectors to acclimate to ambient temperature for 2 hours if stored in significantly different conditions. Inspect contact pins for oxidation or debris; clean with isopropyl alcohol and lint-free cloth if necessary.

Take the Next Step

Ensure your HIMA safety system operates at peak reliability with genuine Z7126 cable plugs. Our technical team is ready to assist with connector selection, cable specification, and integration planning for your specific application.

Request a Quote: Contact our sales team at sale@ninermas.com or call +0086 187 5021 5667 for volume pricing and delivery timelines.

Technical Consultation: Schedule a 30-minute consultation with our HIMA-certified engineers to review your system architecture and confirm compatibility.

Documentation Download: Access installation manuals, CAD drawings, and compliance certificates through our technical resource portal.
