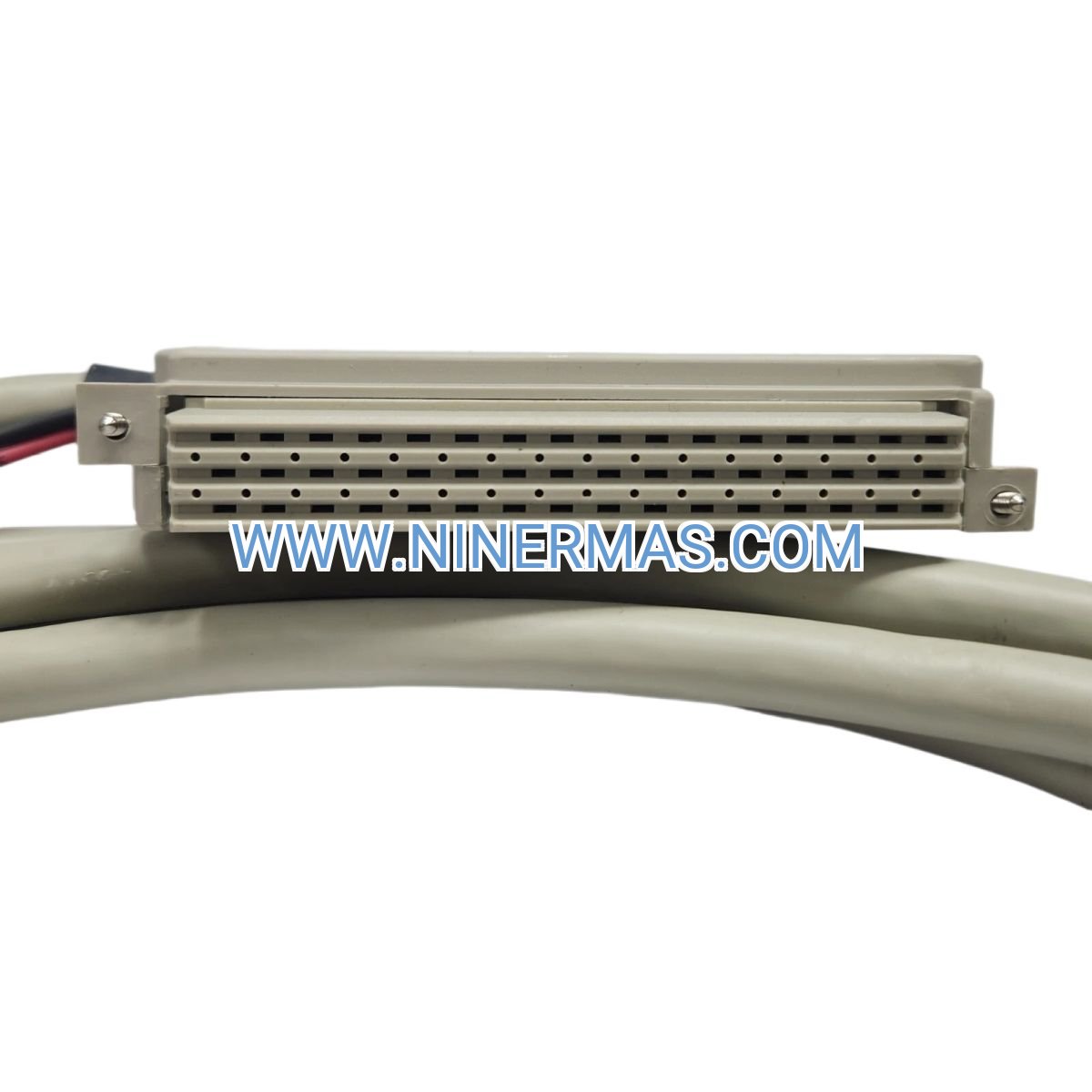

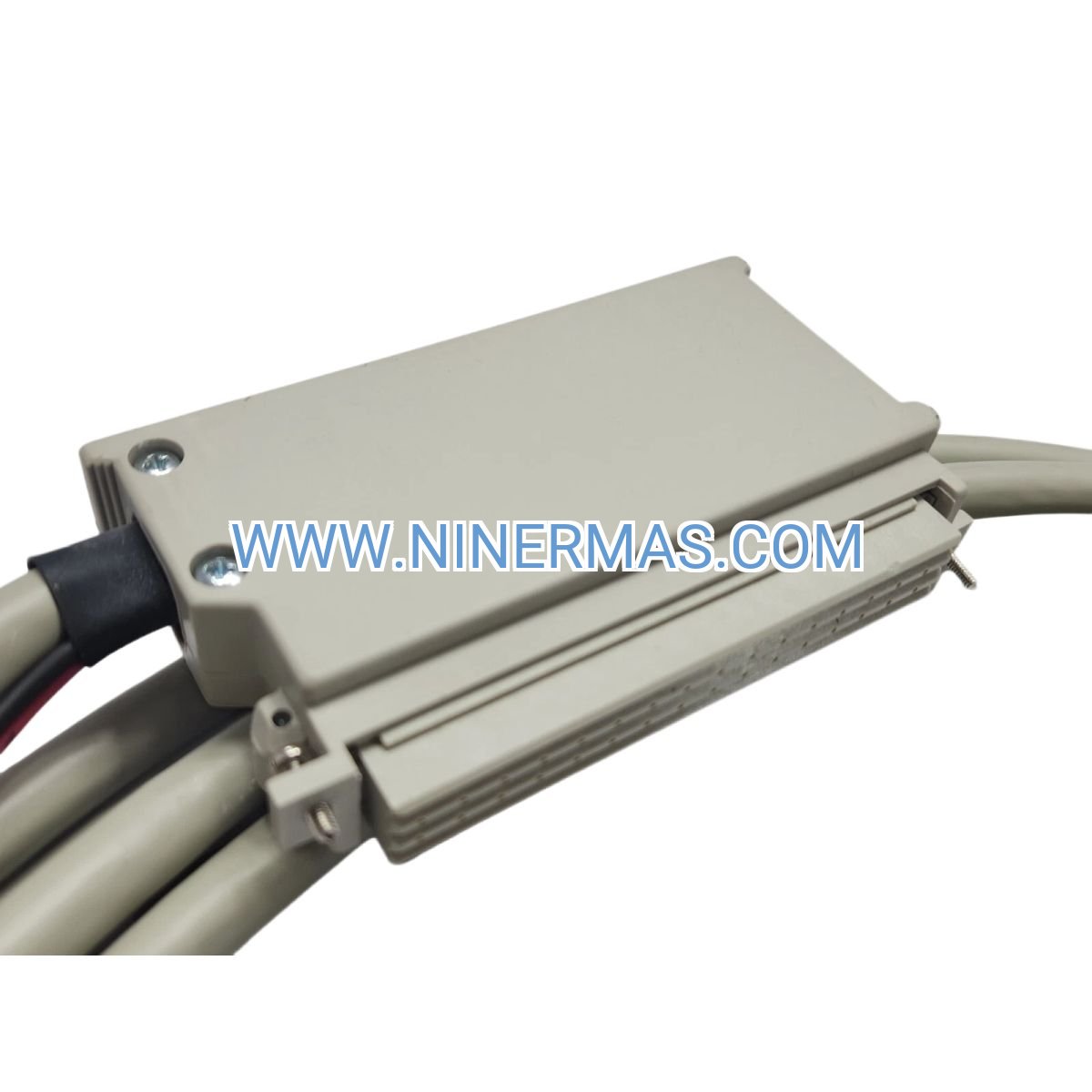

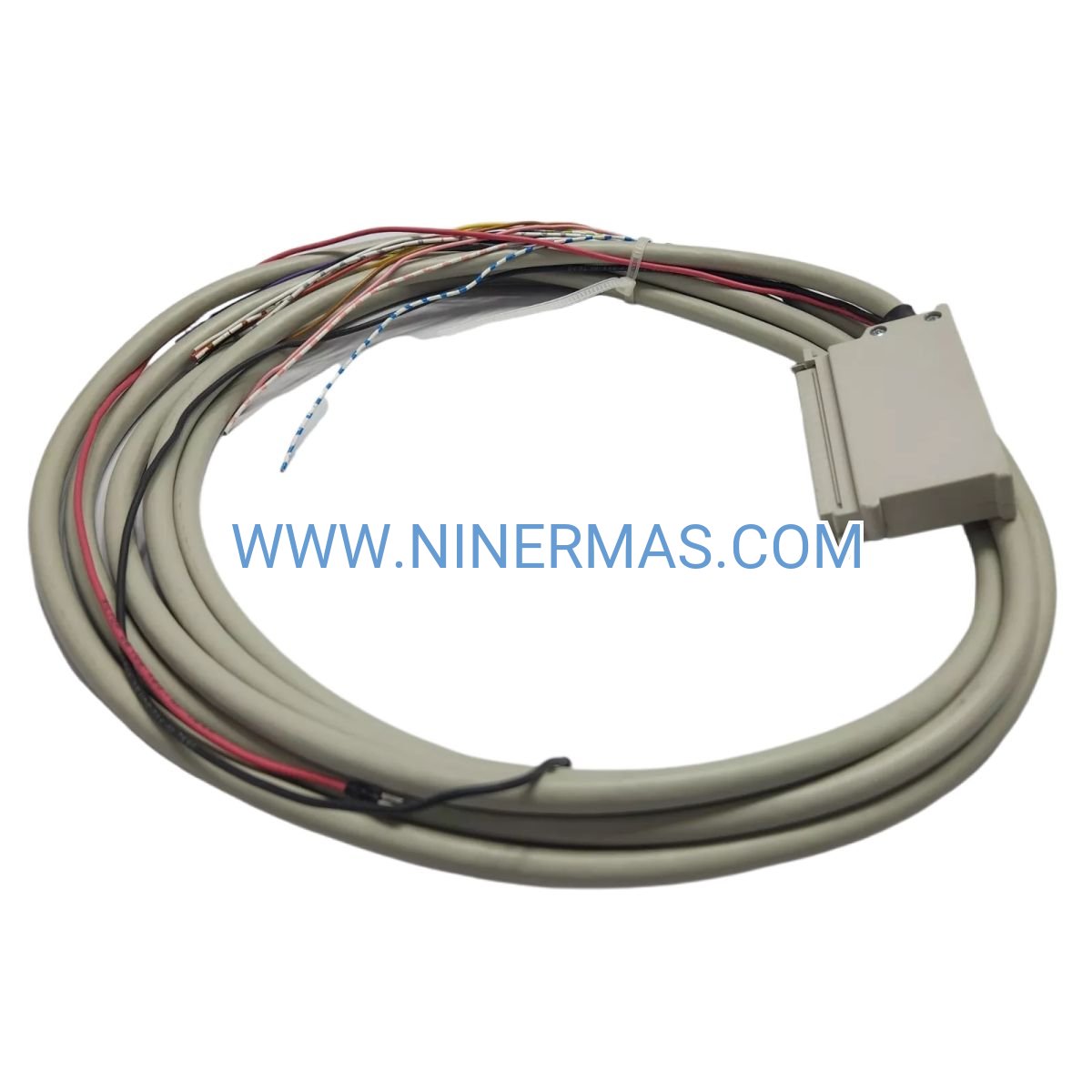

Z7008 LED Diagnostic Cable Plug (Industrial-Grade Safety System Monitor)

The Z7008 LED Diagnostic Cable Plug represents HIMA's commitment to operational transparency in safety-critical environments. This precision-engineered connector transforms complex system diagnostics into instant visual intelligence, enabling maintenance teams to identify fault conditions 40% faster than traditional monitoring methods. Certified to SIL 3 standards under IEC 61508, it serves as the frontline diagnostic interface for oil refineries, chemical plants, and power generation facilities where split-second awareness prevents catastrophic failures.

Designed for integration with HIMA's HIMax, HIMatrix, and HIQuad safety platforms, this plug-and-play diagnostic tool eliminates guesswork during emergency response scenarios. Its multi-color LED array communicates system health, communication integrity, and power supply status through universally recognized color coding—green for nominal operation, amber for pre-fault warnings, red for critical alerts. For plant operators managing distributed safety systems across hazardous zones, the Z7008 delivers actionable intelligence at every control cabinet.

Built to German engineering standards with IP20 environmental protection, this 50-gram connector withstands temperature extremes from -20°C to +60°C while maintaining LED visibility in high-ambient-light industrial settings. Whether you're commissioning new safety instrumented systems or retrofitting legacy HIMA installations, the Z7008 provides the diagnostic clarity that keeps your operations compliant and your workforce protected.

Core Capabilities & Business Impact

→ Tri-Color Diagnostic Intelligence
Instantaneous fault identification through green/amber/red LED sequences reduces mean time to repair (MTTR) by up to 40%, minimizing production losses during safety system interventions.

✓ SIL 3 Certification Compliance
Meets IEC 61508 Safety Integrity Level 3 requirements, ensuring your diagnostic infrastructure matches the criticality of your safety-instrumented functions without introducing additional risk.

→ Universal HIMA Platform Compatibility
Seamless integration with F-series safety modules, H-series controllers, and legacy HIMax systems—one diagnostic solution across your entire HIMA ecosystem eliminates spare parts complexity.

✓ Plug-and-Play Deployment
Zero-configuration installation via keyed connector design prevents reverse polarity errors, enabling technicians to deploy diagnostic monitoring in under 60 seconds per module.

→ Extended Operating Range
-20°C to +60°C thermal tolerance ensures reliable performance in unheated control rooms, outdoor enclosures, and high-temperature process areas where conventional electronics fail.

✓ 50,000-Hour LED Lifespan
Industrial-grade LED components deliver 5+ years of continuous operation, reducing maintenance cycles and ensuring diagnostic visibility throughout your safety system's service life.

Industry-Specific Deployment Scenarios

Upstream Oil & Gas – Emergency Shutdown Systems
In offshore platforms and onshore processing facilities, the Z7008 provides visual confirmation of ESD logic solver health during quarterly proof tests. Maintenance crews can verify module communication status without laptop diagnostics, accelerating SIS validation procedures required by API RP 754.

Chemical Manufacturing – Batch Reactor Safety
For exothermic reaction control systems, the Z7008's amber pre-fault warnings alert operators to degraded sensor inputs or communication delays before they escalate to full safety shutdowns—preventing batch losses averaging $50,000+ per incident.

Power Generation – Turbine Protection Systems
Gas and steam turbine safety systems benefit from the Z7008's real-time power supply monitoring, which detects voltage fluctuations that could compromise overspeed protection or flame monitoring circuits during grid disturbances.

Pharmaceutical Production – Sterile Process Control
In cleanroom environments where laptop access is restricted, the Z7008 enables visual verification of safety PLC status during aseptic filling operations, maintaining GMP compliance without contamination risk.

Water Treatment – Chlorination Safety Interlocks
Municipal water facilities use the Z7008 to monitor chlorine gas detection system integrity, providing operators with instant visual confirmation that toxic gas safety chains remain active during 24/7 operations.

Technical Specifications & Selection Criteria

Selection Recommendations: For new installations, order one Z7008 per safety module requiring local diagnostic visibility. Retrofit projects should prioritize modules in high-traffic areas or those with historically high fault rates. Consult HIMA system documentation to confirm connector pinout compatibility with your specific module revision.

Advanced Integration & Customization Options

SCADA Integration Pathway
While the Z7008 provides local visual diagnostics, it complements HIMA's SILworX engineering suite for centralized monitoring. LED status mirrors diagnostic data available via Modbus TCP or PROFINET interfaces, creating redundant awareness layers.

Hazardous Area Adaptation
For Zone 1/Division 1 installations, the Z7008 can be housed within HIMA's Ex-certified enclosure systems (consult factory for intrinsically safe barrier requirements). This extends diagnostic visibility into classified areas without compromising ATEX/IECEx compliance.

Custom Color Coding
High-volume orders (50+ units) can specify alternative LED color schemes to match facility-specific diagnostic protocols or integrate with existing plant-wide status indication standards.

Delivery Timelines & Service Commitments

Standard Lead Time: 3-5 business days for stock items; 10-15 business days for factory-direct orders
Warranty Coverage: 12 months against manufacturing defects, extendable to 24 months with service agreement
Technical Support: Lifetime access to HIMA-certified application engineers for integration assistance
Documentation Package: Includes installation guide, LED status reference card, SIL 3 certification, and material traceability certificate

Global Logistics: DHL Express shipping to 180+ countries with real-time tracking. Consolidated orders ship via air freight with customs pre-clearance for expedited delivery to project sites.

Frequently Asked Questions

How does the Z7008 LED cable plug improve safety system troubleshooting efficiency?
The tri-color LED array eliminates the need for laptop-based diagnostics during initial fault assessment, reducing MTTR by 40%. Technicians can triage issues at the cabinet level before deploying specialized tools, accelerating response during process upsets.

What LED color patterns indicate communication failures versus power supply issues?
Amber flashing typically signals communication timeouts or degraded signal quality, while red solid indicates power supply faults or module self-test failures. Consult your HIMA module manual for model-specific LED sequences—patterns vary between F3xxx and H4xxx series.

Can the Z7008 be installed in explosive atmosphere locations?
The standard Z7008 carries IP20 rating for general industrial use. For Zone 1/2 or Division 1/2 applications, it must be installed within HIMA's Ex-certified enclosures with appropriate intrinsic safety barriers. Contact our engineering team for hazardous area integration guidance.

Does the LED diagnostic plug require calibration or periodic testing?
No field calibration is required. The Z7008 is a passive diagnostic interface with no user-serviceable components. LED functionality is verified during annual safety system proof tests as part of your SIS maintenance program per IEC 61511.

What is the expected service life in continuous operation environments?
Industrial-grade LEDs are rated for 50,000+ hours (approximately 5.7 years of continuous operation). In practice, most installations exceed 10 years before LED brightness degradation becomes noticeable, aligning with typical safety system replacement cycles.

Are replacement Z7008 plugs backward compatible with legacy HIMA systems?
Yes, the Z7008 maintains connector compatibility with HIMA safety modules dating back to the HIMax platform (circa 2005). However, verify your module's connector type—some early F-series modules used different pinouts. Our technical team can cross-reference your module serial number for confirmation.

Take the Next Step Toward Diagnostic Excellence

Enhance your safety system's operational transparency with the Z7008 LED Diagnostic Cable Plug. Contact our industrial automation specialists for compatibility verification, volume pricing, or integration support for your next SIS project.

Request a Quote: Email your module list and delivery location for same-day pricing
Technical Consultation: Schedule a 30-minute call with HIMA-certified engineers
Sample Program: Evaluation units available for qualified system integrators
