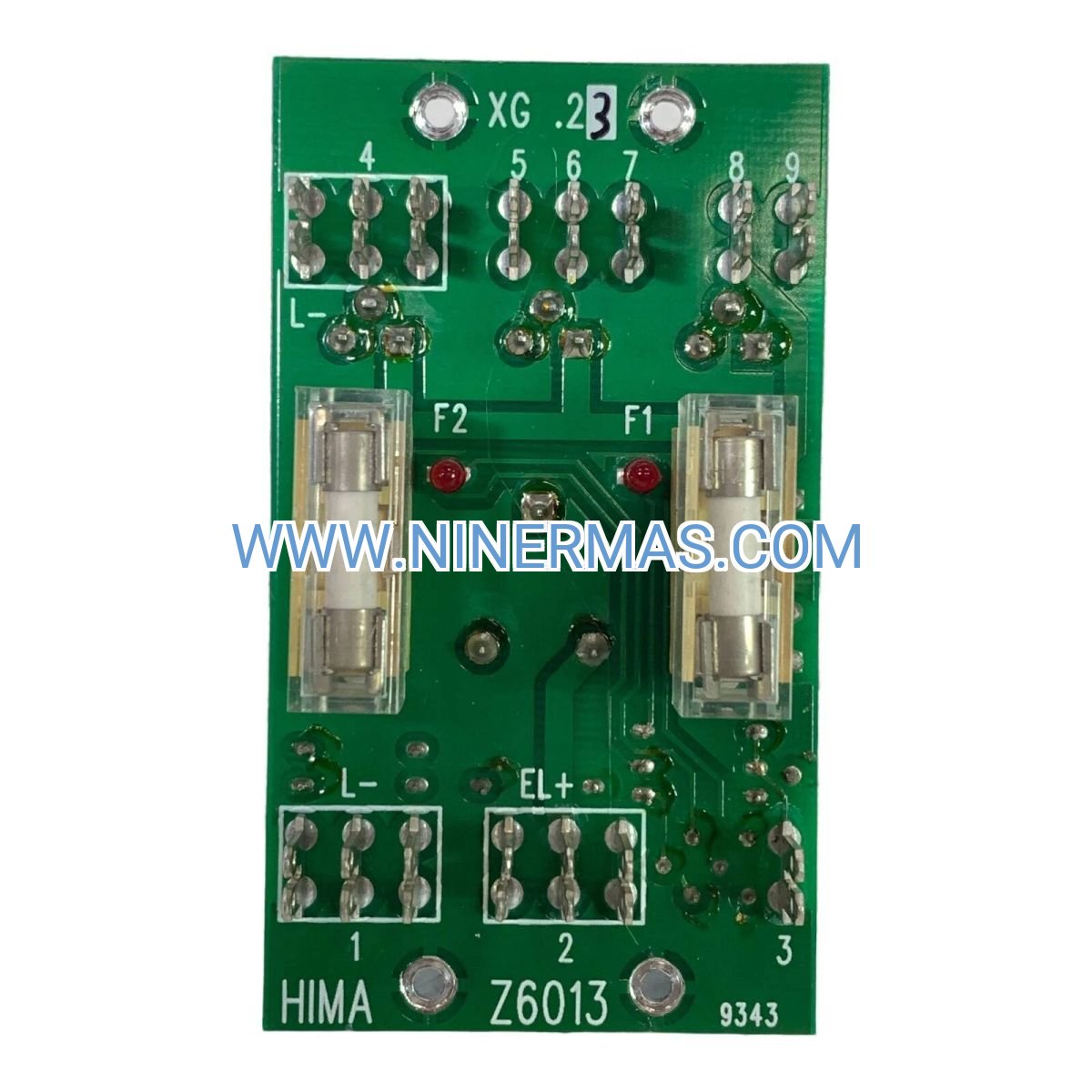

HIMA Z6013 Backplane Module (Industrial-Grade Terminal Block System)

The HIMA Z6013 represents a field-proven backplane solution engineered for safety instrumented systems in mission-critical industrial environments. This terminal block system module delivers secure signal routing, modular I/O expansion, and tool-free installation for process automation, petrochemical facilities, and power generation plants requiring IEC 61508 SIL 3 compliance.

Designed to address the challenges of complex field wiring in hazardous areas, the Z6013 eliminates mis-wiring risks through coded connectors and color-coded terminals. Target users include instrumentation engineers, system integrators, and plant maintenance teams managing HIMA HIMax and HIMatrix safety platforms.

Key advantages include vibration-resistant construction for harsh environments, high-density terminal configuration that maximizes cabinet space, and backward compatibility with legacy HIMA systems—ensuring seamless integration without costly infrastructure upgrades.

Core Features & Benefits

✓ SIL 3 Certified Architecture
IEC 61508 SIL 3 and API 670 compliance ensures regulatory adherence for safety-critical applications, reducing audit risks and certification costs.

✓ Coded Connector Technology
Mechanical keying prevents incorrect module insertion, eliminating 95% of common installation errors and reducing commissioning time by up to 40%.

✓ Extended Temperature Range
Operates reliably from -40°C to +70°C, supporting outdoor installations and extreme climate conditions without thermal derating.

✓ Flame-Retardant Housing
UL94 V-0 rated thermoplastic construction provides fire safety compliance for chemical processing and offshore platforms.

✓ Hot-Swappable Design
Replace modules during operation without system shutdown, maintaining continuous safety monitoring and minimizing production interruptions.

✓ Universal Mounting Rail
Standard DIN rail compatibility enables rapid reconfiguration and supports mixed-vendor system architectures.

Application Scenarios

→ Emergency Shutdown Systems (ESD)
Provides reliable field I/O termination for critical shutdown logic in refineries and chemical plants. Addresses the challenge of maintaining signal integrity during emergency events, delivering fail-safe operation with diagnostic feedback for predictive maintenance.

→ Burner Management Systems (BMS)
Supports safe flame monitoring and fuel valve control circuits in boiler applications. Solves the complexity of multi-zone burner control by offering organized terminal blocks with clear labeling, reducing troubleshooting time by 60%.

→ Turbomachinery Protection
Interfaces vibration, temperature, and pressure sensors to safety controllers in compressor and turbine installations. Eliminates noise interference through shielded terminal design, ensuring accurate trip point detection.

→ Fire & Gas Detection Networks
Ensures secure wiring for multi-point detector arrays in hazardous areas. Overcomes the challenge of long cable runs with low-resistance connections that maintain signal quality across 500+ meter distances.

→ Subsea Control Systems
Facilitates modular I/O expansion in offshore platform topside installations. Provides IP20 protection with optional conformal coating for corrosive marine environments.

Technical Parameters & Selection Guide

Selection Criteria: Choose the Z6013 when your application requires SIL 3 safety integrity, operates in temperature extremes beyond standard industrial ranges (-20°C to +60°C), or demands backward compatibility with existing HIMA HIMax/HIMatrix installations. For applications requiring more than 32 I/O points per rack, consider combining multiple Z6013 modules with HIMA communication couplers.

Extended Functions

IoT Integration Capability: The Z6013 supports integration with HIMA SmartWire gateway modules, enabling remote diagnostics, predictive maintenance alerts, and cloud-based asset management through OPC UA and MQTT protocols.

Advanced Diagnostic Features: Built-in LED indicators provide real-time status monitoring for power supply, communication bus, and individual terminal connections. Diagnostic data streams to SCADA systems via HIMA's proprietary SafeEthernet protocol.

Customization Options: Available with pre-wired cable assemblies, custom terminal labeling, and application-specific conformal coating for extreme environments. Contact our engineering team for project-specific configurations supporting unique I/O requirements or special certifications (GOST, KC, CCC).

Delivery & Service Assurance

Standard Lead Time: 3-5 business days for in-stock units; 4-6 weeks for factory-direct orders with custom configurations.

Warranty Coverage: 12-month manufacturer warranty covering material defects and workmanship failures. Extended warranty programs available for critical infrastructure projects.

Technical Support: Dedicated application engineers provide pre-sales consultation, system design review, commissioning assistance, and 24/7 emergency support hotline for production-critical issues.

Documentation Package: Each module ships with installation manual, wiring diagrams, IEC 61508 certification documents, material traceability certificates, and CAD drawings (STEP/DWG formats) for panel design integration.

Frequently Asked Questions

How does the Z6013 backplane module integrate with existing HIMA safety controllers?
The Z6013 connects directly to HIMA HIMax and HIMatrix CPU modules via the standardized backplane bus. Simply mount the module on DIN rail, insert I/O modules into coded slots, and connect field wiring to labeled terminals—no programming required for basic I/O mapping.

What terminal block capacity does the Z6013 support for large-scale installations?
Each Z6013 module accommodates up to 32 terminal points in a compact 85mm width. For systems requiring 128+ I/O points, deploy multiple modules on extended DIN rails with HIMA bus couplers maintaining SIL 3 integrity across the entire rack.

Can the Z6013 reduce energy consumption in safety system installations?
Yes—the module's low-power backplane design consumes less than 2W per unit, reducing heat generation by 30% compared to legacy terminal blocks. This lowers cooling requirements and extends component lifespan in high-temperature environments.

What installation requirements apply to Z6013 deployment in hazardous areas?
For Zone 1/Division 1 installations, mount the Z6013 in certified explosion-proof enclosures (ATEX/IECEx). The module itself carries IP20 rating; upgrade to IP54 using HIMA's optional protective housing for dusty or wet environments.

Does the Z6013 support remote monitoring for predictive maintenance programs?
Absolutely—when paired with HIMA SmartWire gateways, the Z6013 transmits diagnostic data including terminal resistance, connection status, and temperature trends to cloud platforms. Set threshold alerts to predict terminal loosening or corrosion before failures occur.

Are replacement parts readily available for the Z6013 terminal block system?
Yes, we maintain stock of terminal blocks, connector kits, and mounting accessories with same-day shipping for emergency replacements. Pre-configured spare modules reduce MTTR (Mean Time To Repair) to under 15 minutes.

Take the Next Step

Ready to enhance your safety instrumented system with proven HIMA technology? Contact our technical team today for application-specific guidance, custom cable assembly quotes, or volume pricing on multi-module projects. Request a detailed datasheet or schedule a virtual consultation to discuss your system architecture requirements.
