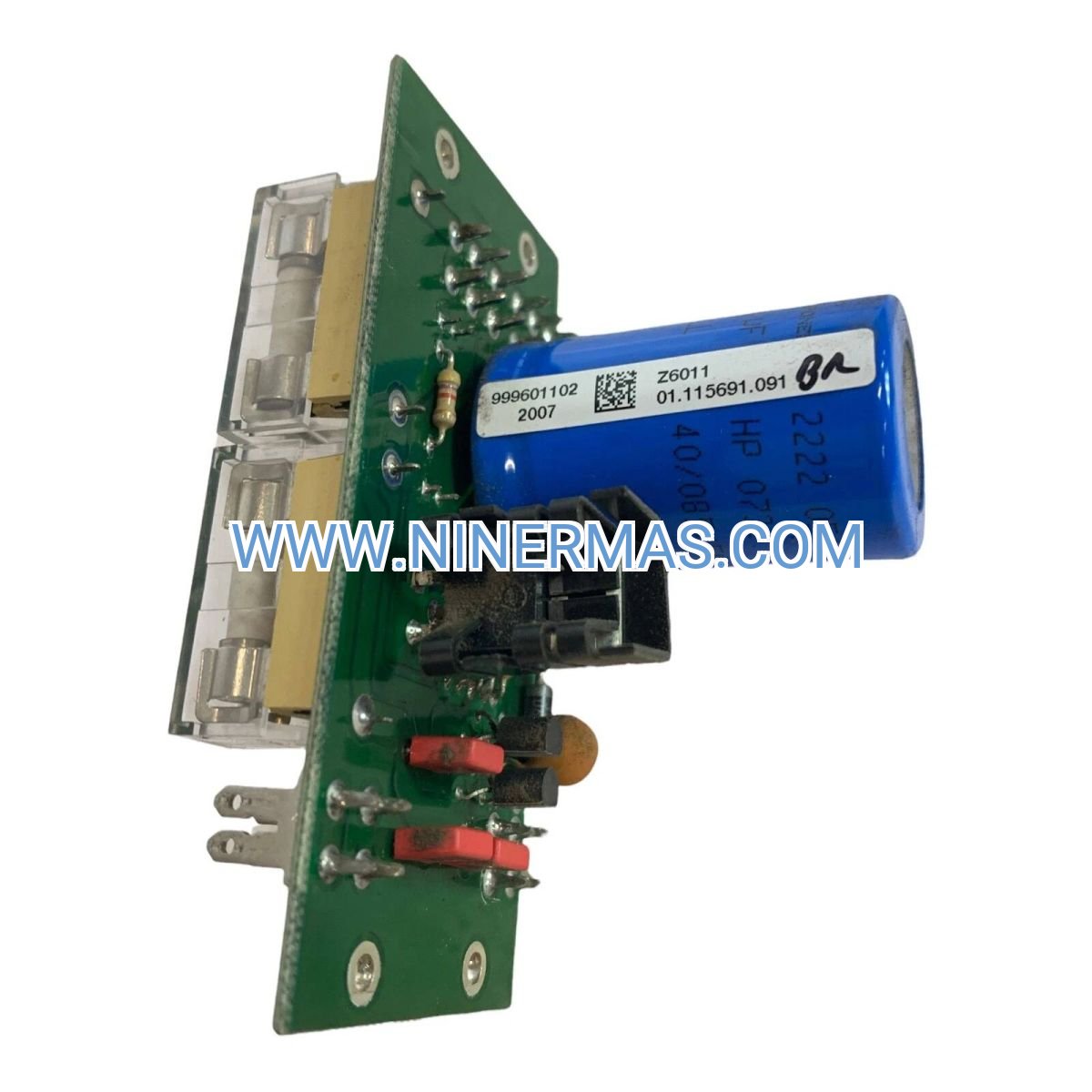

HIMA Z6011 Backplane Module (Industrial-Grade Terminal Block System)

The HIMA Z6011 represents a critical infrastructure component for safety-instrumented systems across process industries. This backplane module provides dependable signal routing, field termination, and system expansion capabilities within HIMA HIMatrix and HIMax safety platforms. Designed for environments where failure is not an option, the Z6011 ensures continuous operation in oil & gas, chemical processing, power generation, and pharmaceutical facilities.

Process engineers and automation specialists rely on the Z6011 to eliminate single points of failure in emergency shutdown systems, burner management, and turbomachinery protection applications. Its modular architecture supports rapid deployment, hot-swap maintenance, and seamless integration with existing HIMA control infrastructure.

With SIL 3 certification, EMC hardening, and vibration-resistant construction, the Z6011 delivers the reliability demanded by mission-critical safety applications while reducing installation time and lifecycle costs.

Core Features & Benefits

✓ SIL 3 Certified Safety Platform
IEC 61508 SIL 3 and TÜV-approved design ensures compliance with international functional safety standards, reducing liability and meeting regulatory requirements for safety-critical applications.

✓ Hot-Swap Maintenance Capability
Field-replaceable design allows module replacement without system shutdown, minimizing production interruptions and enabling predictive maintenance strategies that reduce total cost of ownership.

✓ Universal DIN Rail Mounting
Standard 35mm DIN rail compatibility accelerates installation, simplifies panel layout, and ensures mechanical stability in high-vibration environments per IEC 60068-2-6 specifications.

✓ Diagnostic LED Indicators
Real-time visual status feedback enables rapid fault identification and troubleshooting, reducing mean time to repair (MTTR) and improving system availability.

✓ EMC-Hardened Construction
Superior electromagnetic immunity protects against industrial noise, variable frequency drives, and switching transients, ensuring signal integrity in electrically harsh environments.

✓ Backward Compatible Architecture
Seamless integration with legacy HIMA H41/H51 systems protects existing infrastructure investments while enabling phased modernization strategies.

Application Scenarios

→ Oil & Gas Production Facilities
Deployed in emergency shutdown (ESD) systems, fire & gas detection networks, and turbomachinery protection schemes. The Z6011 provides reliable signal termination for critical safety loops protecting personnel, assets, and the environment from overpressure, flame detection, and rotating equipment failures.

→ Chemical & Petrochemical Plants
Integral to reactor safety interlocks, burner management systems (BMS), and batch process control. Ensures fail-safe operation during abnormal conditions, preventing runaway reactions, combustion hazards, and process deviations that could lead to catastrophic incidents.

→ Power Generation Stations
Supports boiler protection systems, steam turbine monitoring, and generator control applications. Provides the signal infrastructure for vibration monitoring, temperature protection, and emergency trip functions that prevent equipment damage and unplanned outages.

→ Pharmaceutical Manufacturing
Enables clean room environmental monitoring, critical process parameter control, and batch documentation systems. Maintains signal integrity for temperature, pressure, and flow measurements essential for GMP compliance and product quality assurance.

→ Water & Wastewater Treatment
Facilitates pump control, level monitoring, and SCADA integration for municipal and industrial water systems. Delivers reliable signal distribution for automated control sequences that optimize energy consumption and ensure regulatory compliance.

Technical Parameters & Selection Guide

Selection Criteria: Choose the Z6011 when your application requires SIL 3-rated signal distribution, DIN rail mounting flexibility, and compatibility with HIMA HIMatrix/HIMax platforms. For extended I/O capacity requirements, consider the Z6013 variant. For compact installations with space constraints, evaluate the Z1001 alternative.

Extended Functions

System Integration Capabilities: The Z6011 supports integration with modern SCADA platforms, asset management systems, and predictive maintenance tools through HIMA's communication modules. Diagnostic data can be accessed via Modbus TCP, OPC UA, or proprietary HIMA protocols for condition monitoring and performance analytics.

Customization Options: Custom terminal labeling, pre-wired configurations, and application-specific testing are available for large-scale projects. Contact our engineering team to discuss project-specific requirements, including hazardous area certifications (ATEX, IECEx) and extended temperature range variants.

IoT & Industry 4.0 Readiness: When paired with HIMA communication gateways, the Z6011 infrastructure supports cloud connectivity, remote diagnostics, and digital twin applications that enable predictive maintenance strategies and operational efficiency improvements.

Delivery & Service Assurance

Standard Delivery: In-stock modules ship within 1-3 business days via DHL, FedEx, or UPS with full tracking and insurance. Typical transit time to major industrial centers: 3-7 days globally.

Custom Configuration: Pre-wired assemblies and project-specific configurations require 2-4 weeks lead time depending on complexity and quantity.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects and material failures. Extended warranty programs available for critical applications.

Technical Support: Application engineering assistance, configuration guidance, and troubleshooting support provided by HIMA-certified technicians. Remote support available via phone, email, and video consultation.

Documentation Package: Each module includes factory test certificate, installation manual, wiring diagrams, and SILworX configuration files for rapid commissioning.

Frequently Asked Questions

Q: How does the Z6011 backplane module integrate with existing HIMA safety controllers?
A: The Z6011 connects directly to HIMA I/O modules and controllers via backplane connectors, providing signal distribution for digital inputs, analog sensors, and communication networks. Configuration is managed through HIMA SILworX engineering software, which handles parameter assignment, diagnostics, and system documentation.

Q: What wire gauge specifications are recommended for field termination?
A: Terminal blocks accept solid or stranded wire from 0.5mm² to 2.5mm² (AWG 20-14). For stranded wire, use ferrules to ensure reliable contact and prevent strand breakage. Torque specifications: 0.5-0.6 Nm for optimal connection integrity.

Q: Can the module be replaced during live operation without affecting safety functions?
A: Hot-swap capability depends on system architecture and redundancy configuration. In redundant systems with proper safety logic programming, modules can be replaced without safety function interruption. Always follow HIMA service procedures and consult your safety validation documentation before performing live maintenance.

Q: What environmental conditions affect module performance and reliability?
A: The Z6011 operates reliably in -20°C to +60°C ambient temperature with 5-95% non-condensing humidity. Avoid direct exposure to corrosive gases, conductive dust, or condensation. For harsh environments, consider IP65-rated enclosures and environmental sealing options.

Q: How do I verify genuine HIMA modules and avoid counterfeit components?
A: Genuine modules include factory-applied serial numbers, holographic labels, and certificates of conformity. We source directly from authorized HIMA distributors and provide full traceability documentation. Request batch codes and test certificates to verify authenticity.

Q: What training resources are available for installation and commissioning?
A: HIMA offers comprehensive training programs covering system architecture, installation best practices, and SILworX software operation. We can arrange on-site commissioning support or remote guidance for complex installations.

Take the Next Step

Ready to enhance your safety system infrastructure? Contact our technical sales team for application-specific recommendations, pricing quotations, and delivery schedules. We maintain inventory of genuine HIMA modules with factory certification and provide expedited shipping for urgent requirements.

Request a Quote: Email your system configuration, quantity requirements, and delivery location to receive a detailed proposal within 24 hours.

Technical Consultation: Schedule a call with our application engineers to discuss integration challenges, system design, and optimization opportunities.

Sample Evaluation: Request evaluation units for compatibility testing and performance validation in your specific application environment.
